Complete Rear Assembled BRX80 PHAT™ Axle Set w/ AR44 HD Gears

USD $95.00

Part #: BRD8023


LOADING IMAGES

Complete Rear Assembled BRX80 PHAT™ Axle Set w/ AR44 HD Gears

USD $95.00

Part #: BRD8023

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsBRX02 109 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual-brx70_80_90-rear-phat-axle-complete-set_1655880409.pdf

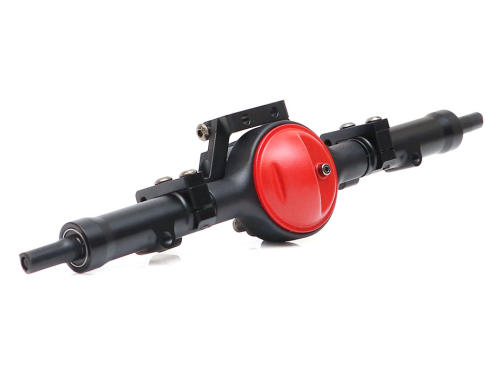

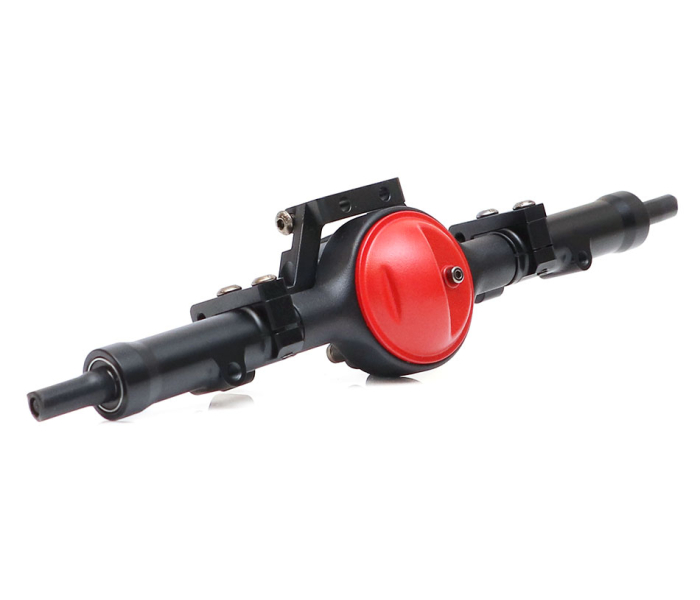

This is a complete set of assembled Rear BRX80 Scale PHAT Axle Set. The BRX80 pin-to-pin axle width is 162mm or 6.378 inches, which is between the BRX70 and BRX90 axles.

The BRX80 axle is a performance-based, high mass heavy-duty axle set designed for 1:10 scale RC crawlers and trucks. It can be easily installed in any project build.

Similar to the BRX70 and BRX90 axles, this latest BRX80 axle is packed with many features; heavy weight for low CG, reversible axle bevel gear positions, optional leaf spring over and under the axle, detachable aluminum CNC link mount and third member. Comes with heavy-duty steel keyed AR44 axle gears for ultimate strength and durability, an input shaft, and AR44 compatible knuckles.

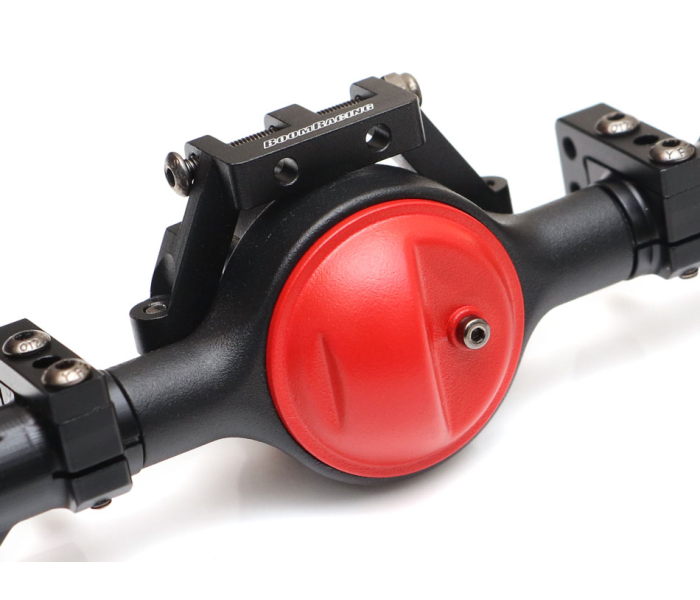

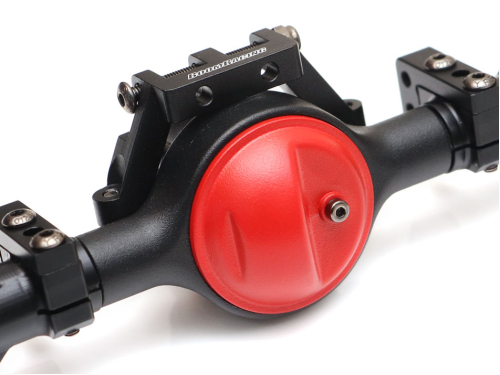

Includes red color Diff Cover; Optional Black color Diff Cover is available here.

Includes black color Third Member (fits Reverse AR44 Helical Cut Bevel Gear for running Counter Rotating Center Drive Shafts). Note red color Third Member will not fit Reverse AR44 gear.

Features:
  • Narrow axle for super scale builds
  • PHAT axle (heavy and robust)
  • 205 grams total weight
  • Keyed HD AR44 Helical Bevel Gear Set. Bevel gears are keyed for extra durability and strength. Standard AR44 high pinion gear & input shaft
  • Removable third member with reversible axle bevel gear positions for standard or counter rotation setups (swap gear to opposite side for counter rotation center drivetrain setup)

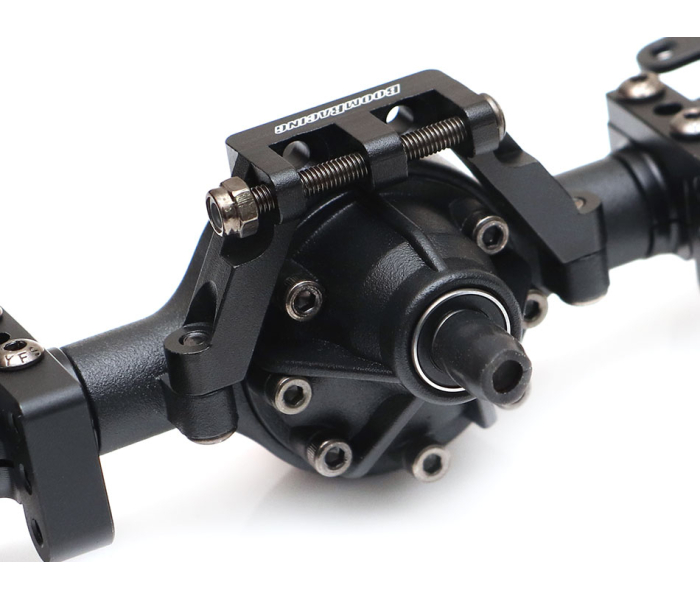

  • High pinion third member for better clearance
  • Leaf spring over and under the axle housing option

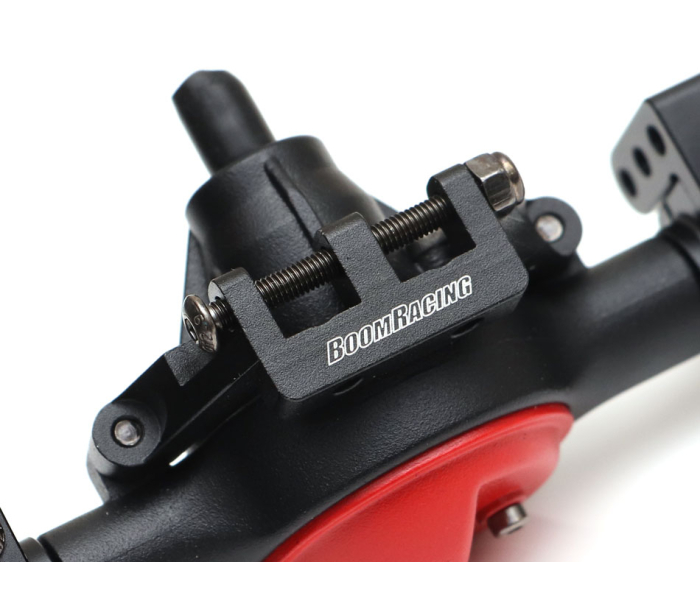

  • CNC aluminum truss included for linked setup (remove truss for leaf spring option for ultimate scale look)

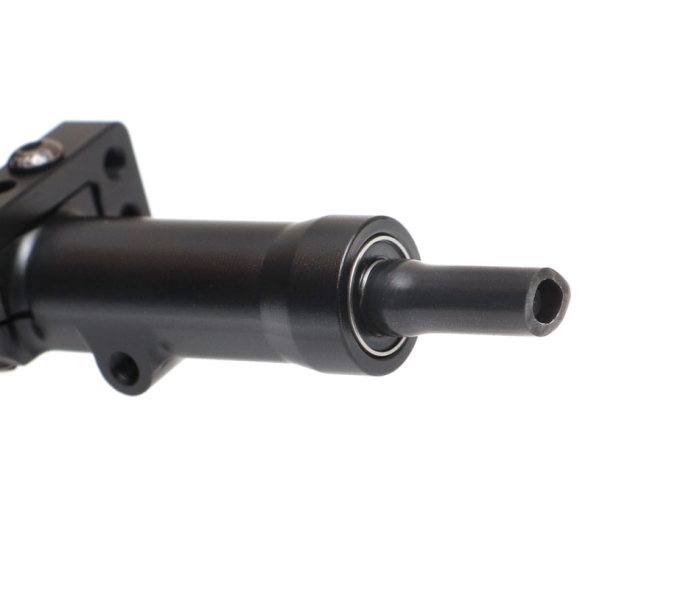

  • BADASS HD Steel rear shaft for ultimate durability and strength for the axle drivetrain

Size:
  • 162mm pin-to-pin (6.378 inches)

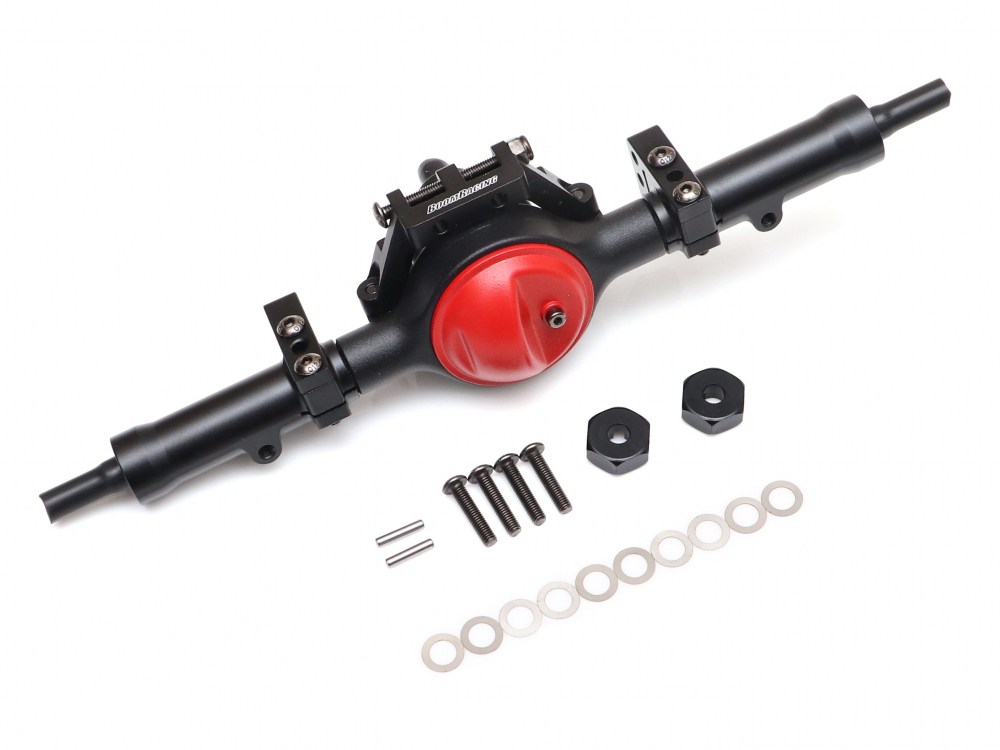

Includes:
  • 1x BRX80 Rear PHAT Axle Housing
  • 1x AR44 Heavy Duty Keyed Helical Bevel Gear & Input Shaft (30/8T) #BR955020
  • 2x CNC aluminum lockout
  • 2x BADASS Heavy Duty Steel Rear Shaft
  • 1x CNC Aluminum Truss
  • 2x CNC Aluminum Link Mount
  • 2x CNC Aluminum 12mm Hex and Wheel Pins
  • Full rubber-sealed bearings
  • Hardware

Optional Parts:
  • Rear Skid Plate #BRLC7086R
  • XT Diff Cover  #BRLC7088
  • Classic Diff Cover Black #BRLC7026

Replacement Parts:
  • High-Performance Full Ball Bearings Set for BRX70 / BRX80 / BRX90 Front & Rear PHAT Axles (18) PHAT7890BBZ

When you receive the axle:

Make sure to grease up the axle set. You can fill up the empty space with diff grease surrounding the bevel gear and input shaft.

The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.

Install spacers accordingly between the center driveshaft and the input shaft to prevent input shaft from unnecessary slop.
