1/10 4WD Scale Performance Chassis Kit Link Version For Team Raffee Co. D110

USD $635.00

Part #: BR8004

Watch video

See all photos

1/10 4WD Scale Performance Chassis Kit Link Version For Team Raffee Co. D110

USD $635.00

Part #: BR8004

Option:

Select Body:

		None
		Station Wagon* (+USD $139.00)
		Pick-Up* (+USD $139.00)
*Interior comes pre-cut for BRX02, and includes new lighter weight plastic seats

Qty:

Add to favorites

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit. Spend $100 on parts for free shipping on each extra car kit.

One year factory limited warranty

We will repair or replace any product that is incorrectly made or proves to be defective in material or craftsmanship during the one-year warranty period.

Learn more

PRODUCT DESCRIPTION

Product Resources
instruction-manual-brx02-4-link_110122-br8004_20240905_1725499068.pdf

*Update: all BRX02 Link chassis now come with 6mm aluminum rails instead of carbon fiber rails*

The Scale Performance Continues

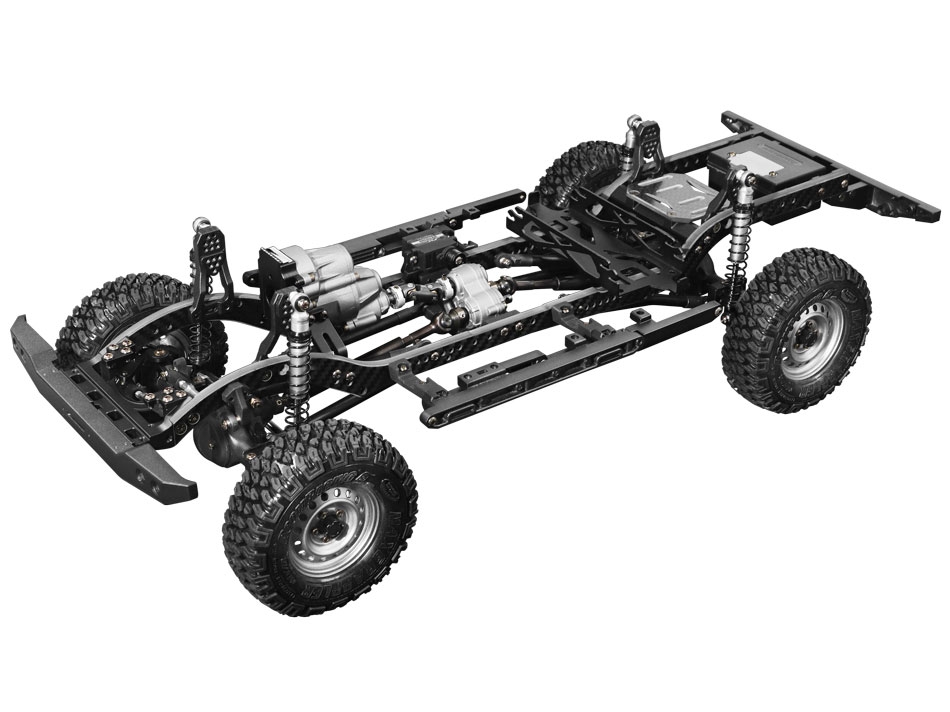

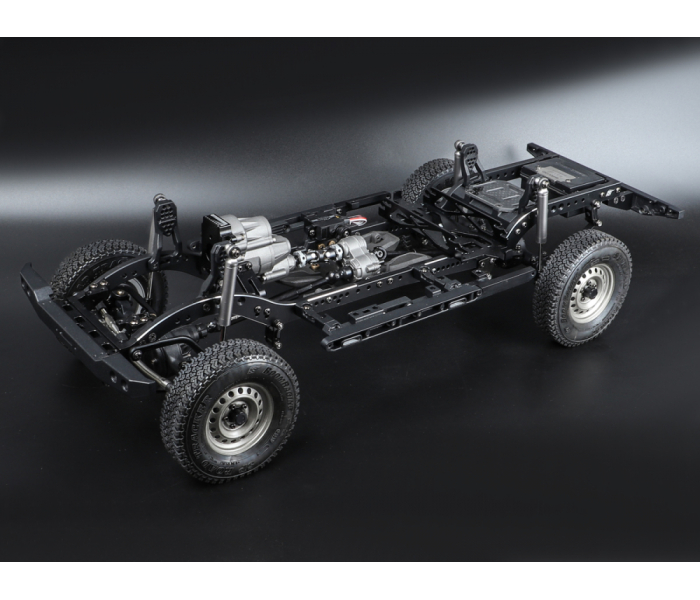

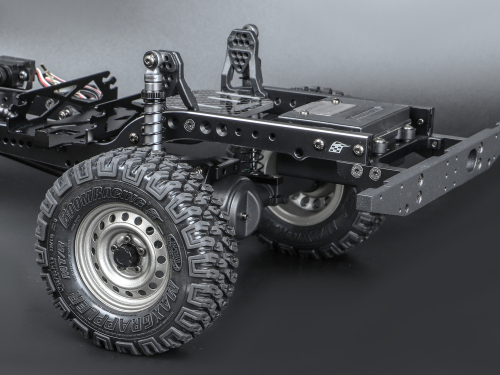

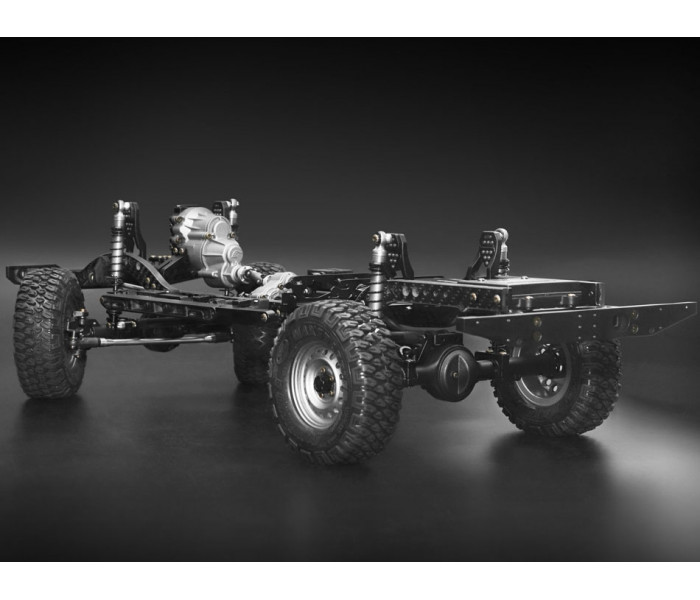

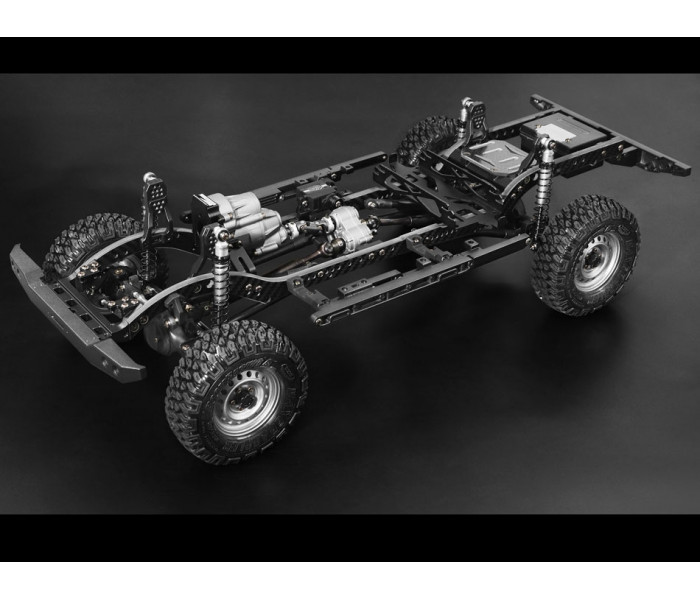

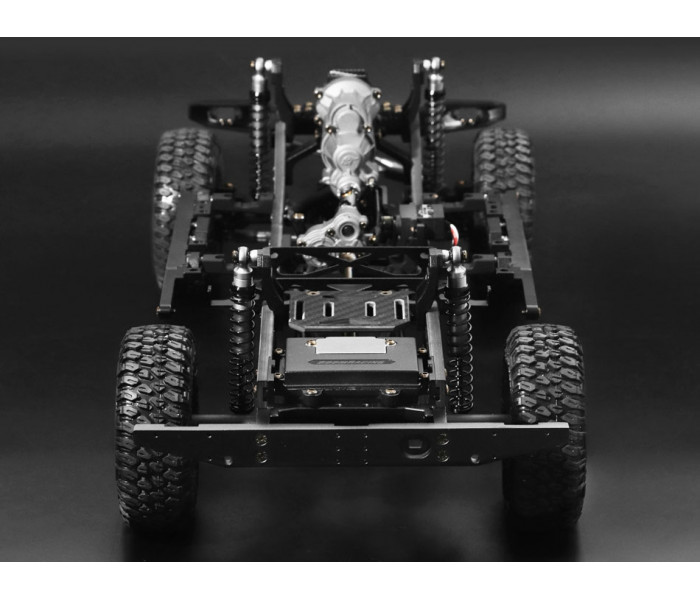

The BRX02 is Boom Racing's latest top-of-the-line scale performance off-road chassis. It is the result of continuous development and improvement of the highly-rated BRX01, developed in close collaboration with many scale hobbyists around the world. With the BRX02, you can expect to build an ultra-realistic R/C model vehicle that gives you great performance straight out of the box.

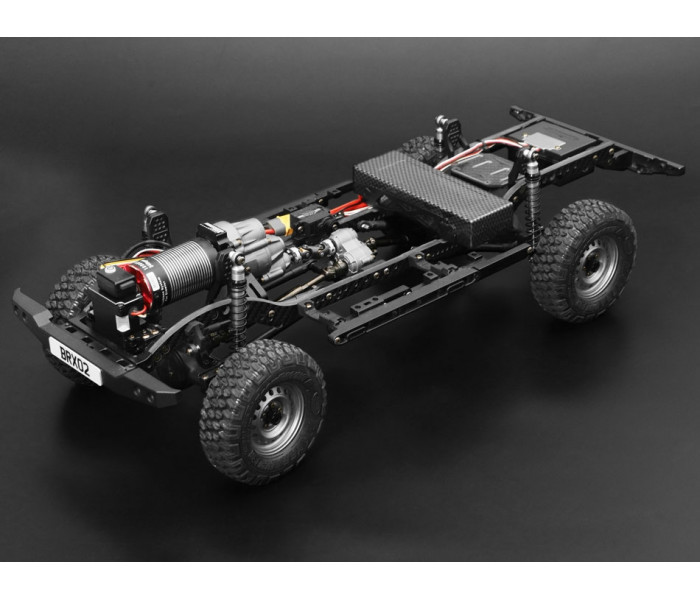

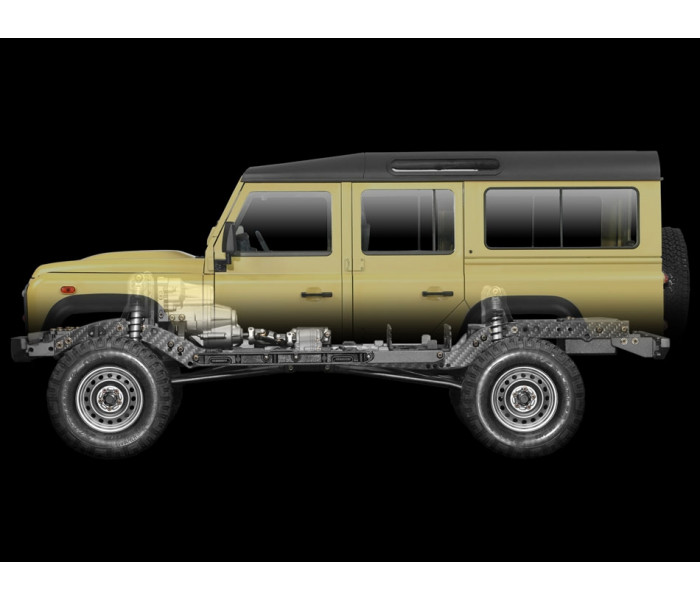

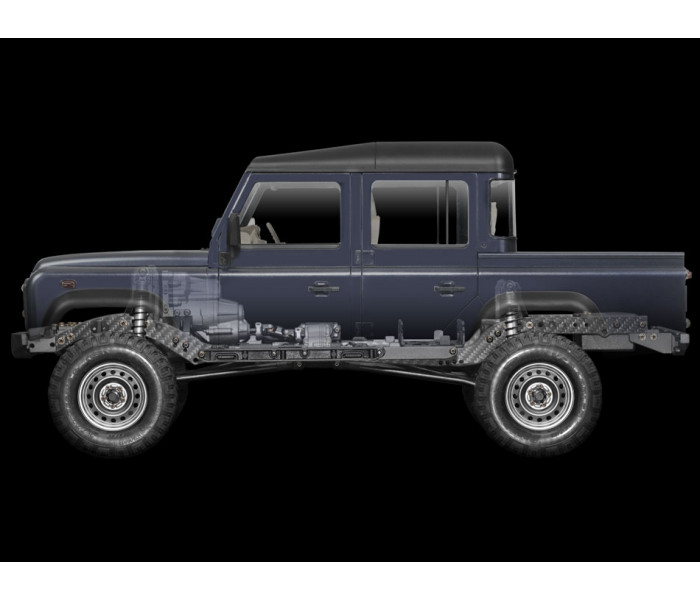

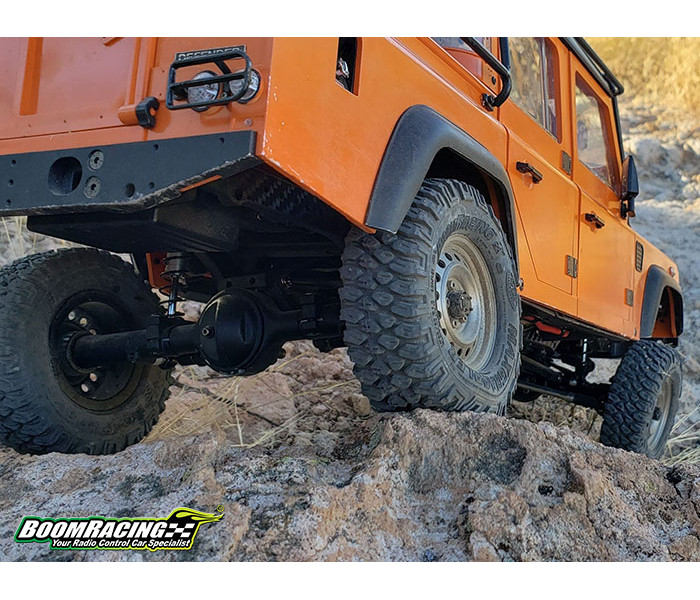

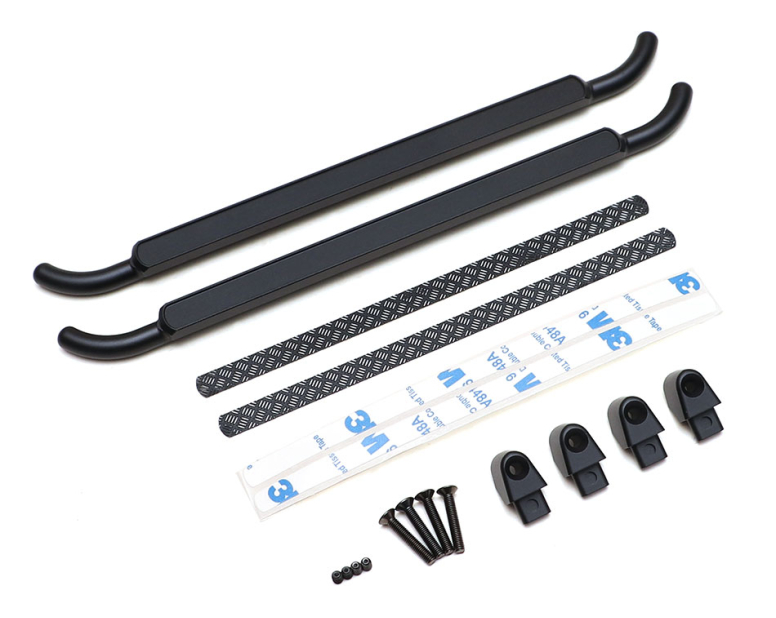

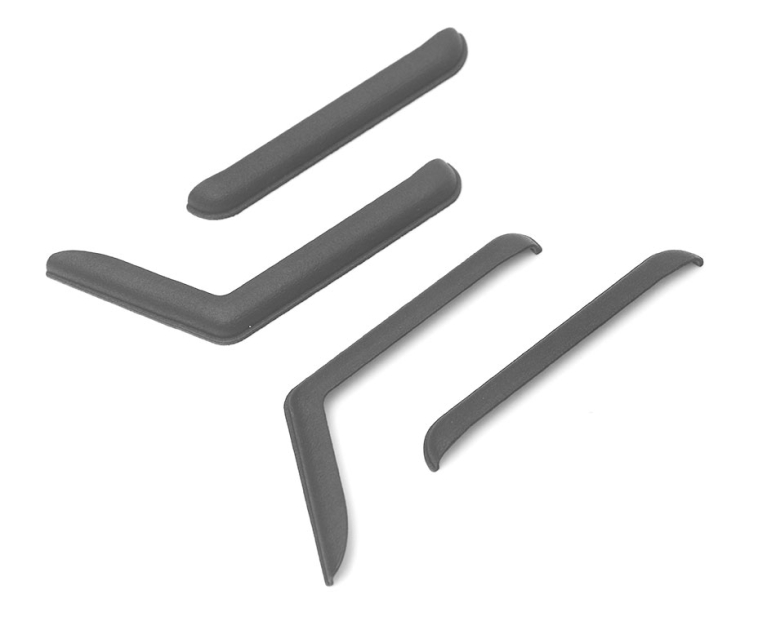

This chassis fits the Team Raffee Co. D110 Station Wagon and Pick-Up hard bodies.

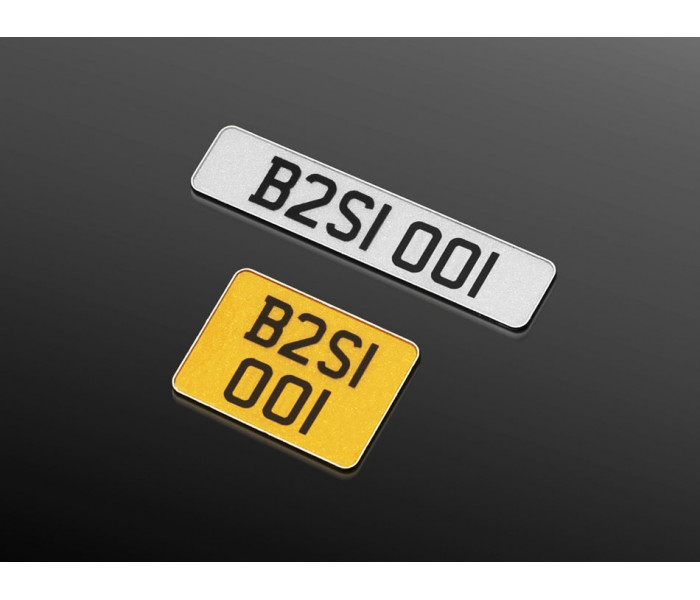

All BRX02 come with a pair of unique UK license plates that are numbered which matches the chassis number, on a first-come-first-served basis.

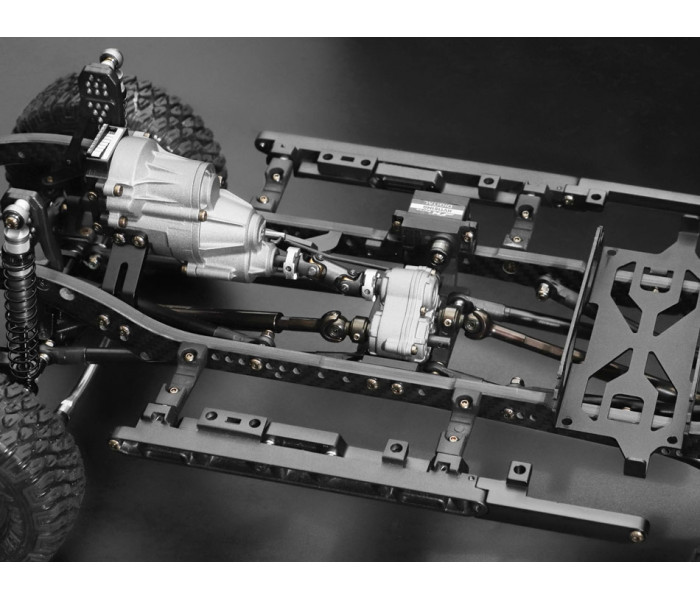

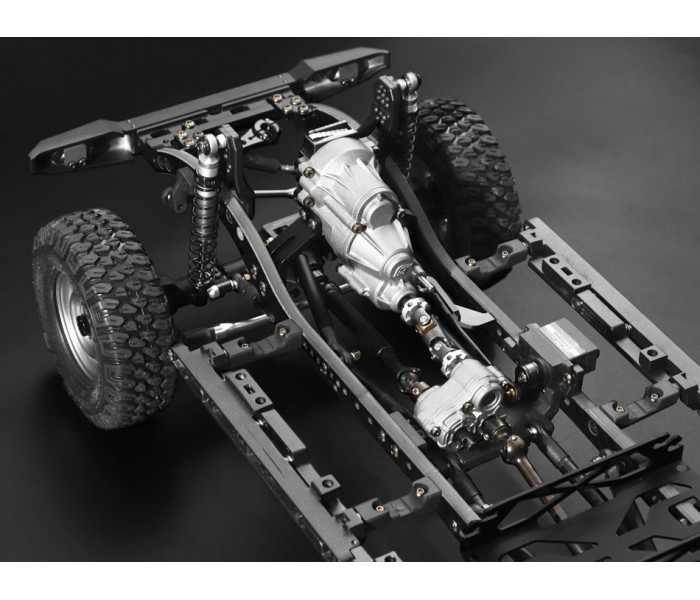

The BCF2™ Transmission and the SRD™ Transfer Case in the BRX02 require assembly.

Features Highlight:

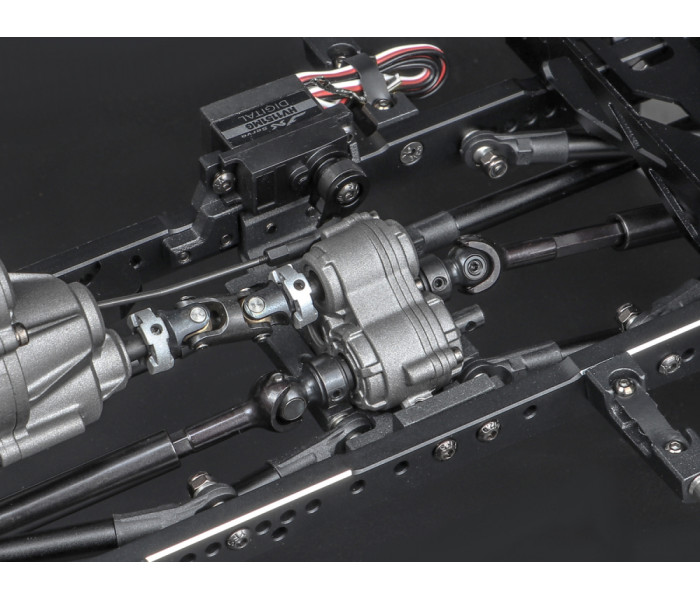

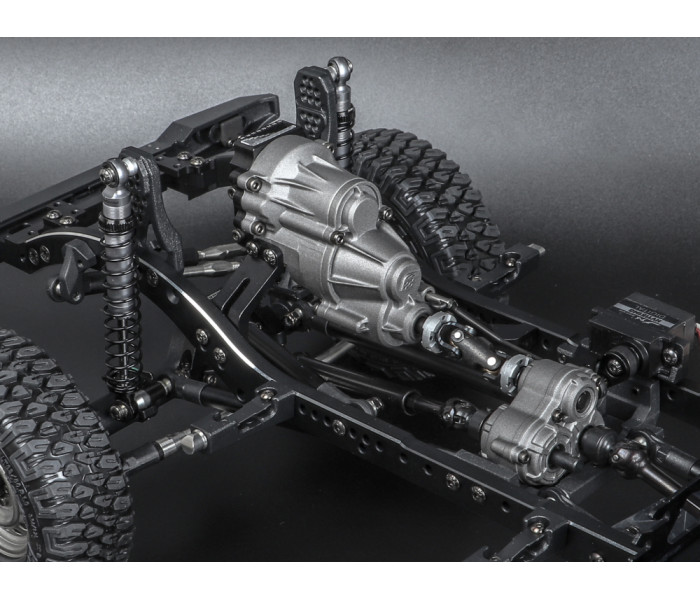

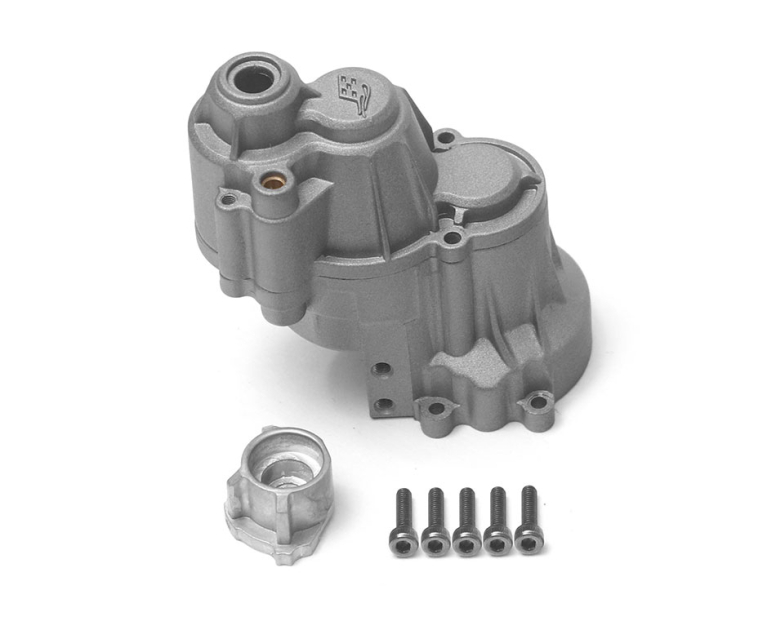

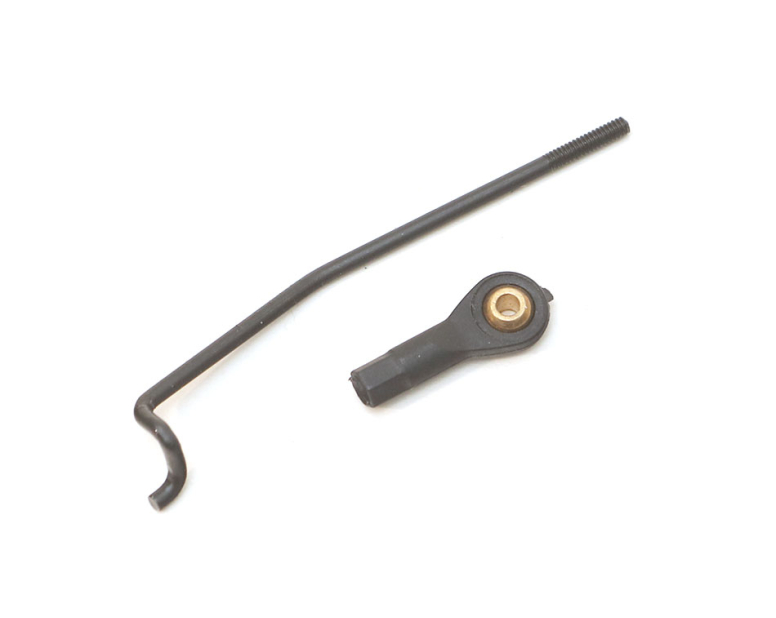

Transmission: BCF2™ 2-speed Hi-Lo, Remote Shifting
Transfer Case: SRD™ Anti-Torque Twist w/ Selective Rotational Drive (SRD)

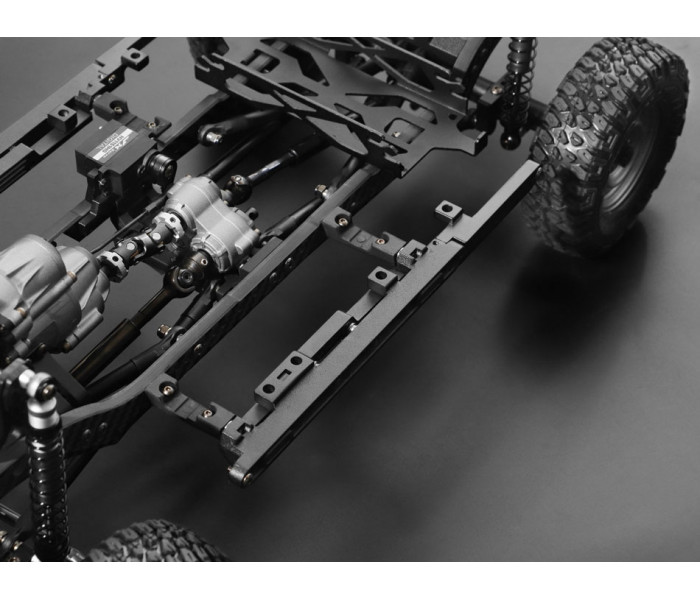

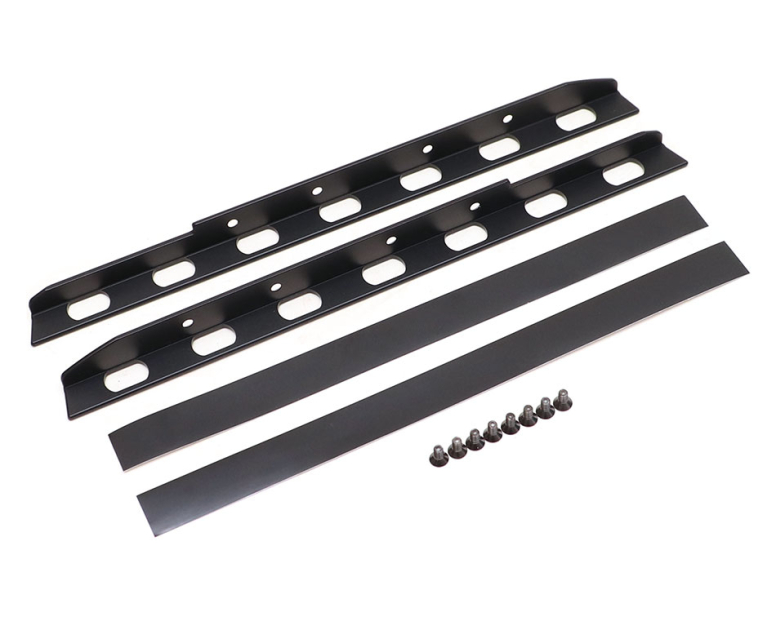

Aluminum 6mm Chassis Rails for strength, and durability

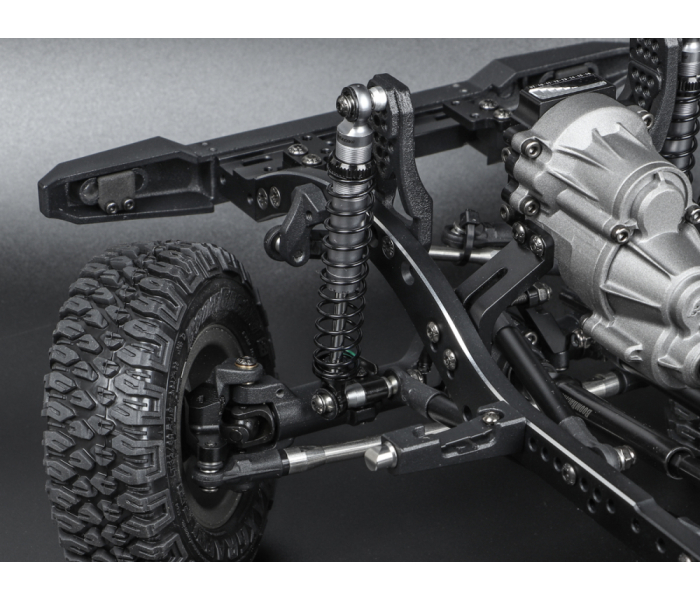

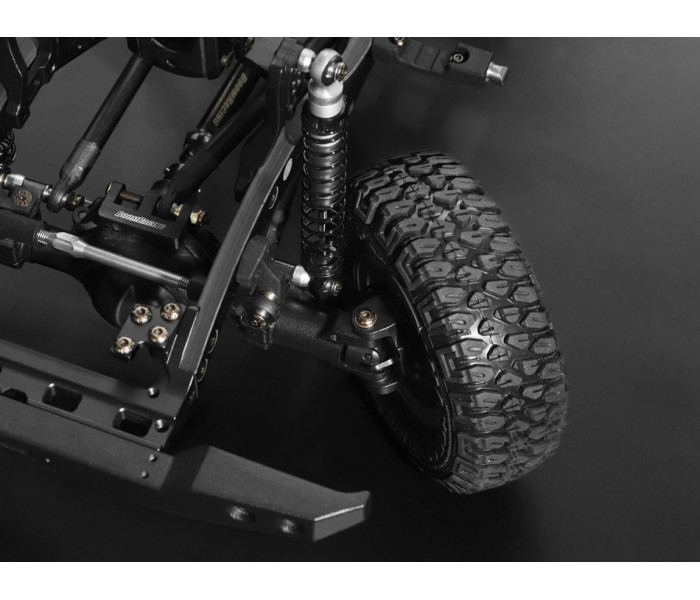

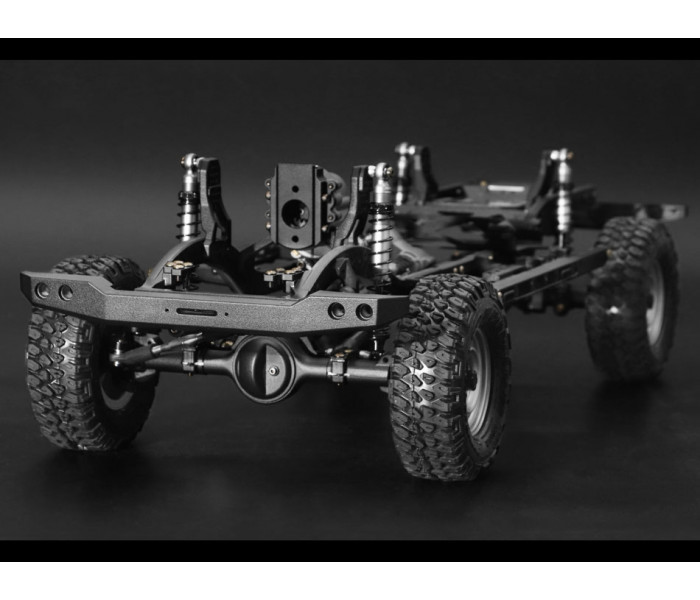

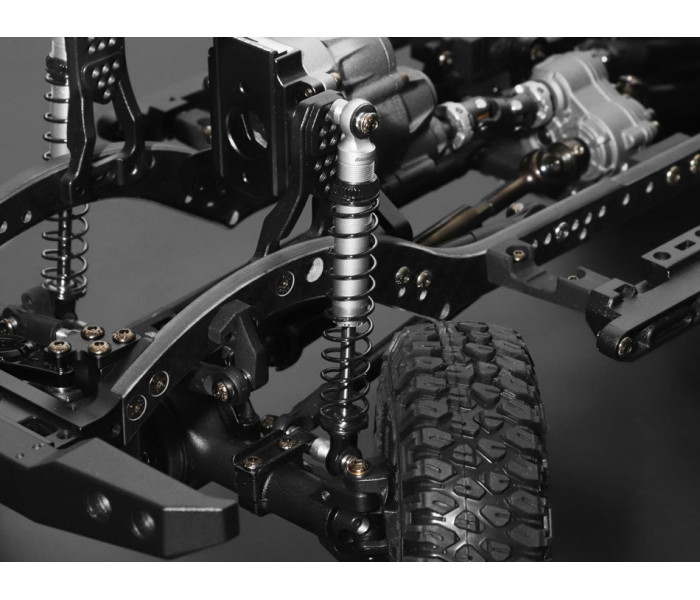

BRX90 High Pinion PHAT™ Axle w/ AR44 Keyed Helical Cut HD Gears

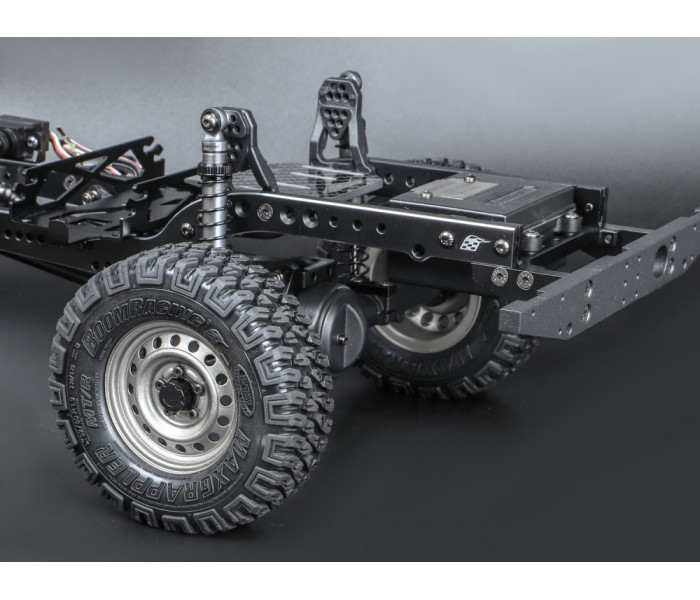

KUDU™ 90mm Scale Coilover Shock Absorbers
KUDU™ Heavy-Duty 110-130mm Steel CVD Drive Shafts

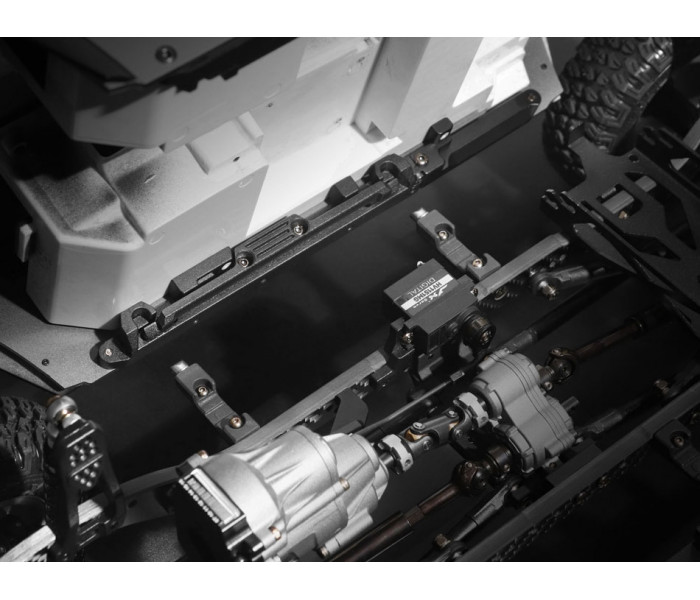

Quick-Release System designed for a quick and easy way to attach and detach the body

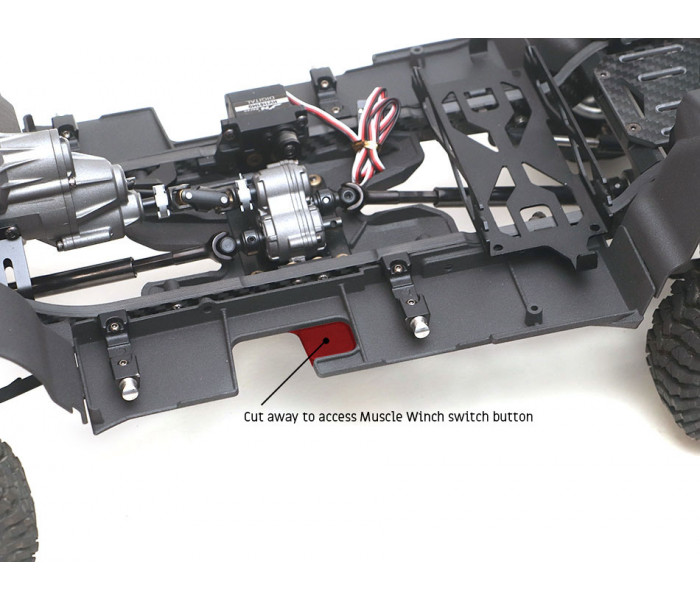

Design ready for Internal Servo Winch Kit to be mounted

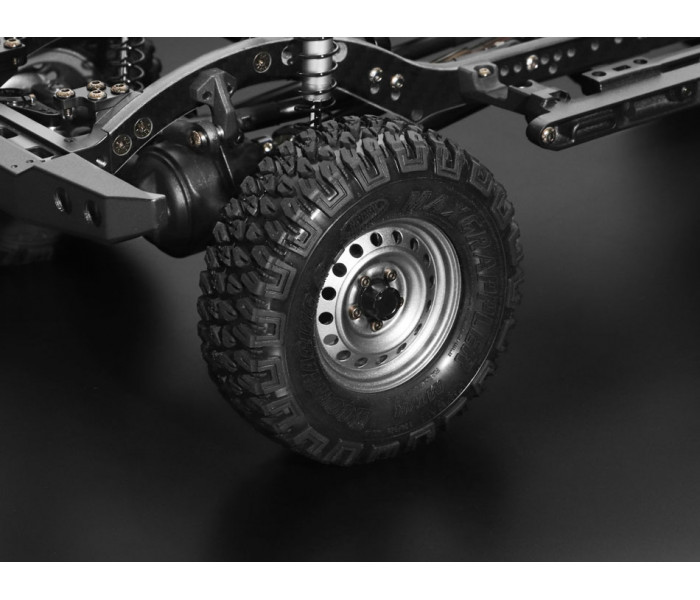

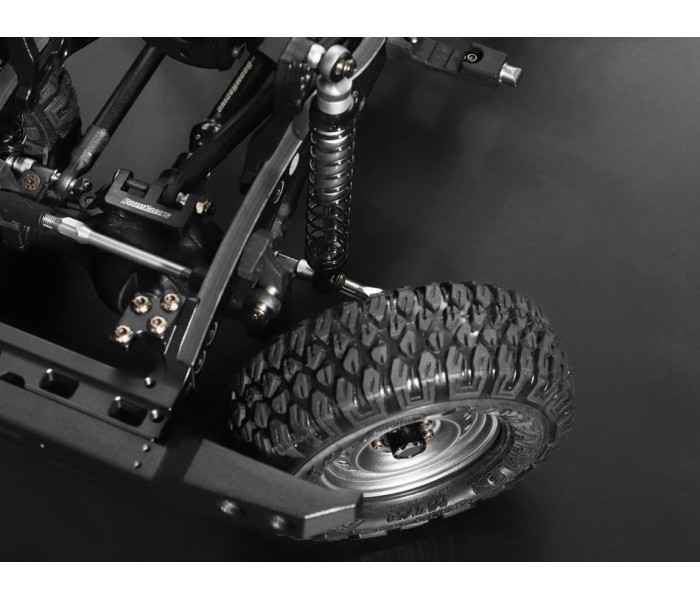

1.9" 16-Hole Steelie Beadlock Wheels
1.9" MAXGRAPPLER™ 97x32mm GEKKO Compound

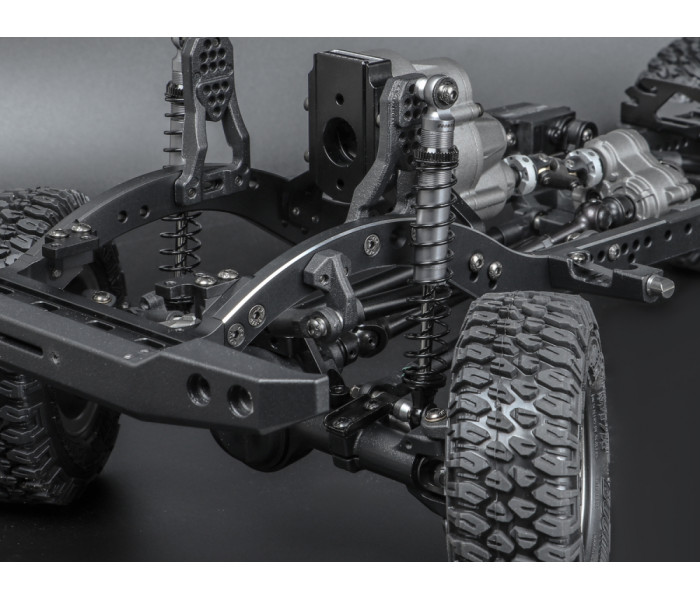

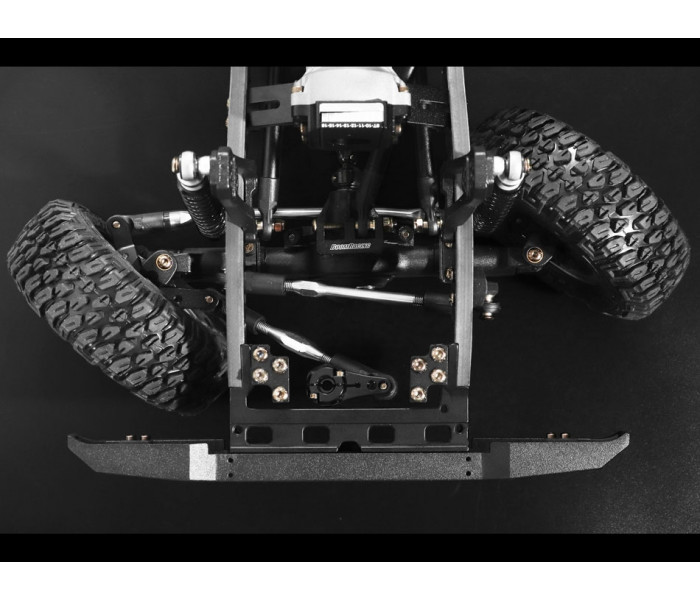

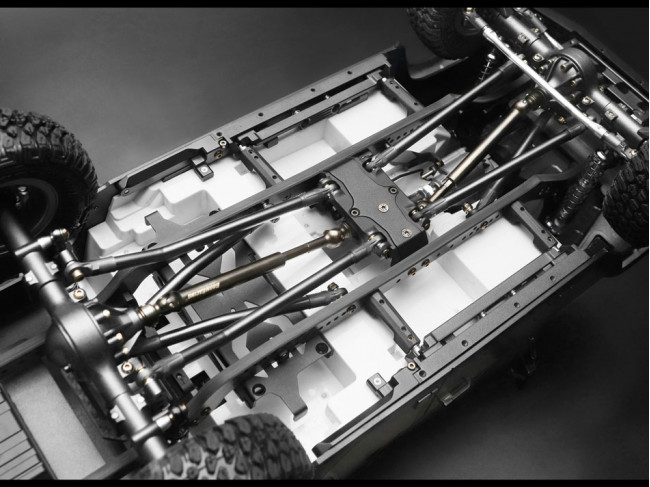

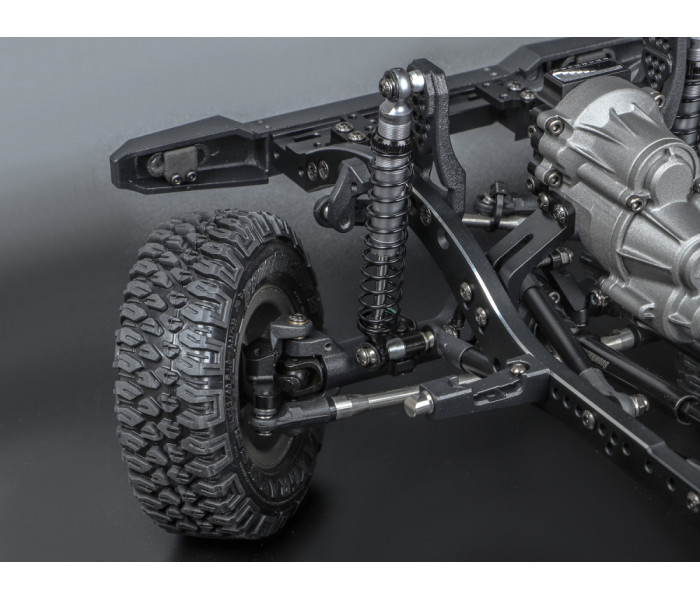

High clearance aluminum links to clear bigger obstacles

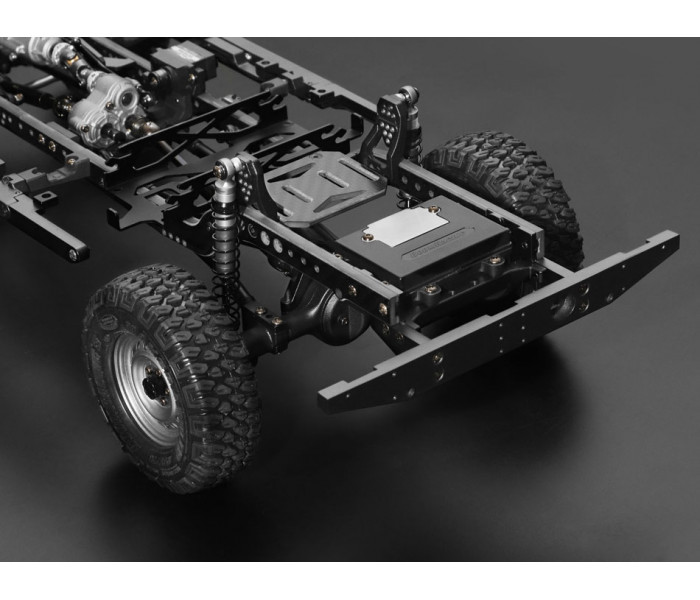

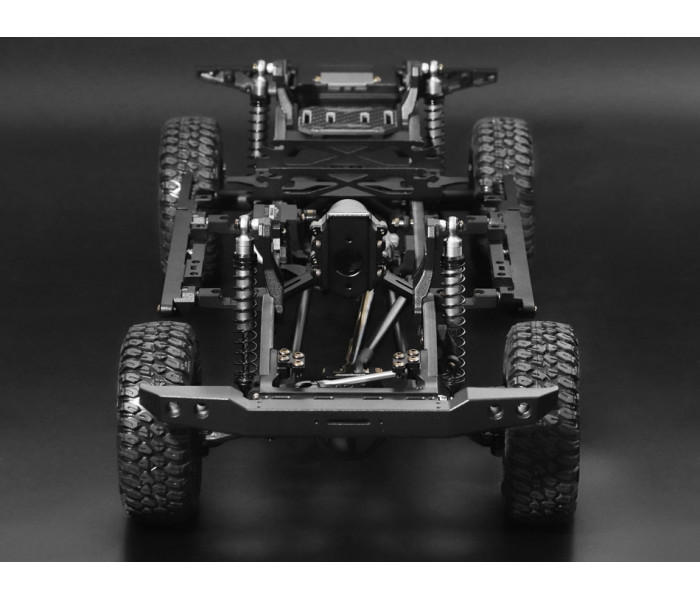

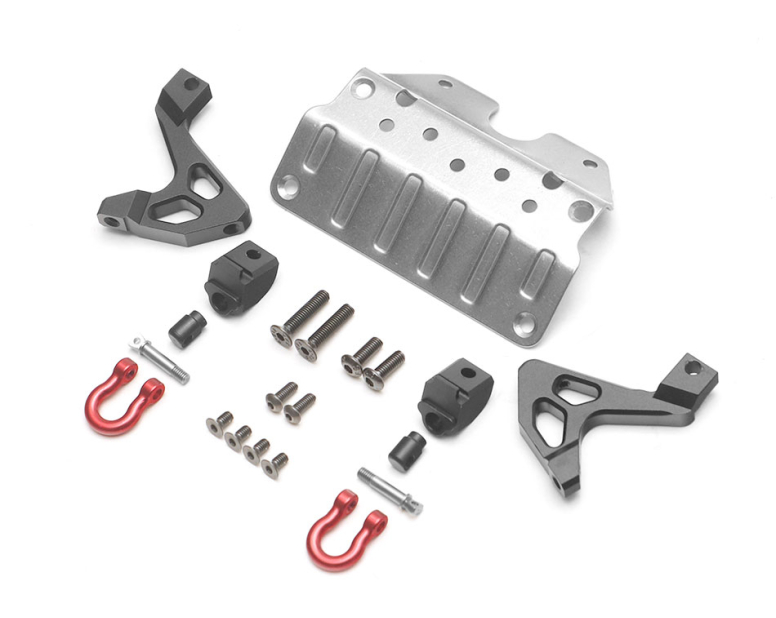

High clearance skid plate for superior crawling capability

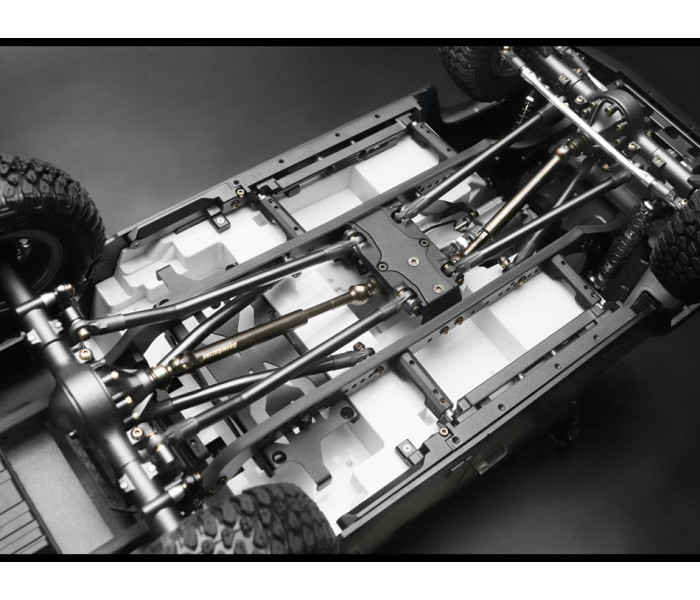

Centralized chassis weight and drivetrain layout to keep the left and right sides equally balanced

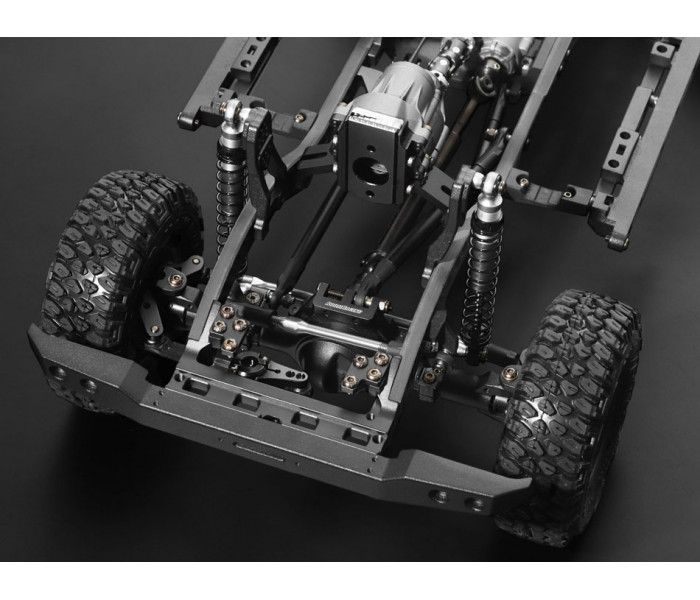

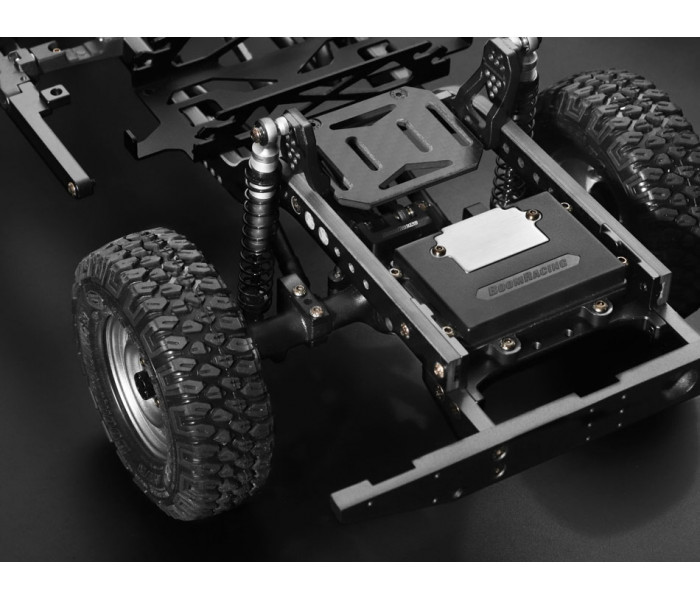

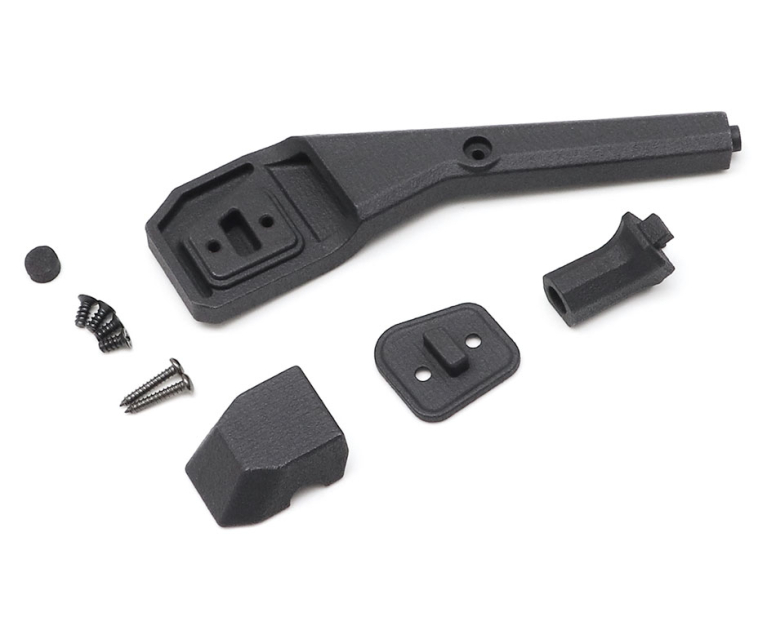

Adjustable Chassis-Mounted-Servo (CMS) Mount
Complete high performance Rubber Sealed Bearings
High Grade 12.9 Alloy Steel Nickel Plated Screws

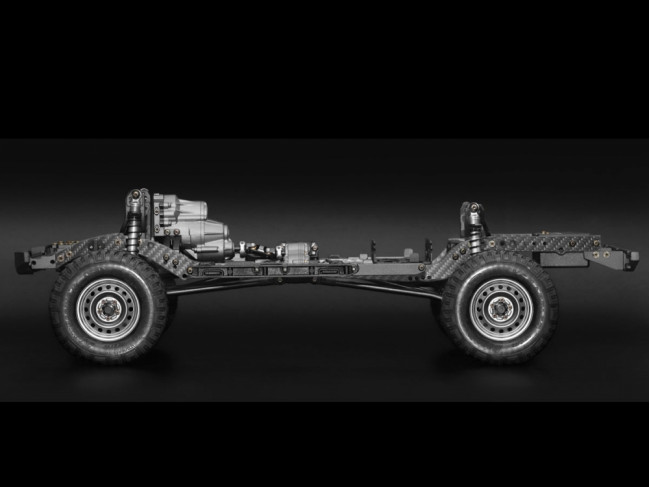

Specifications:

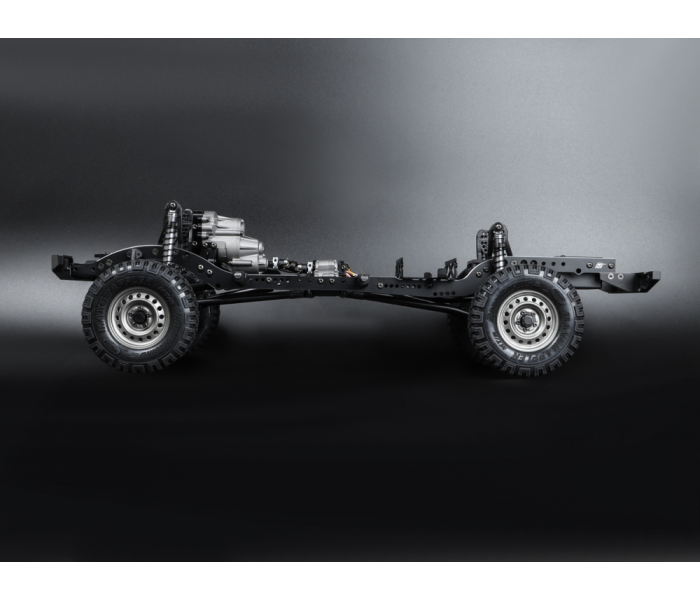

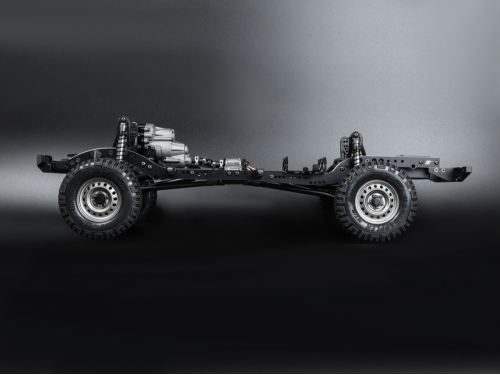

Length: 528mm / 20.79"
Width: 220mm / 8.66"
Height: 148mm / 5.83"
Wheelbase: 334mm / 13.15"
Track Width: 185mm / 7.28"
Axle Clearance: 28mm / 1.10"
Skid Clearance: 66mm / 2.60"
Weight: 2373g / 5.23lbs
Shock Length: 90mm / 3.54"
Hex Size: 12mm
Motor Size: 540/550 (not included)
Gear Pitch: 32P Pinion/Spur, 48P T-Case
Drive System: Full-Time Shaft Driven 4WD

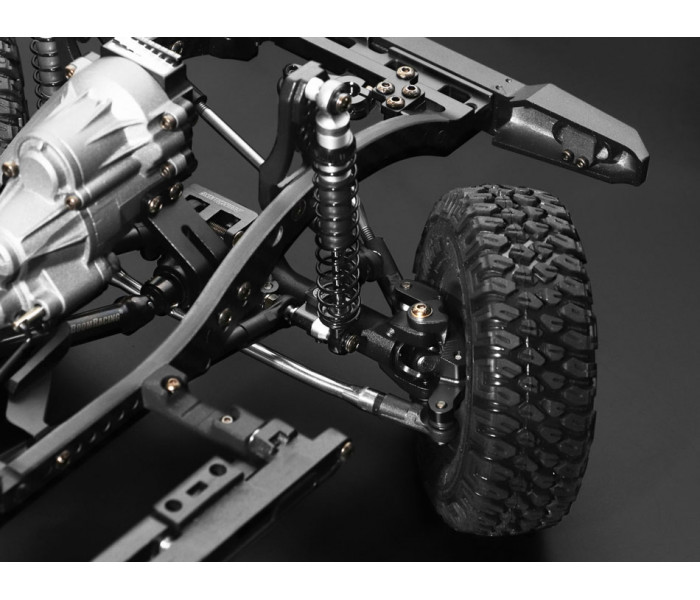

Steering: Chassis Mounted Servo Suspension: Front 3 Link Panhard and Rear Triangulated 4 Link

Drivetrain:

Full-time shaft driven 4WD
Innovative pinion-spur gear mesh guide for precision setup
Heavy-duty steel cut gears
SRD™ Anti-Torque Twist T-Case reduces chassis torque twist under acceleration, and choose between counter-rotational setup and standard setup
KUDU™ Heavy Duty 110-130mm Steel Center Drive Shafts

Mini Servo Specifications:

Brand: JX Servo
Model: JX/PDI-HV1151MG
Working voltage: 6V~8.4V
Working temperature: -20C°~ +60C°
Dead band: 4usec
Motor type: Core Motor
Signal booster type: Digital
Gear material: Metal gear
Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
Idle Current: 150mA (6.0V) | 180mA (8.4V)
Load Current: 260mA (6.0V) | 340mA (8.4V)
Size: 23.2 x 12.5 x 25.6mm
Weight: 15g
Tooth Count: 25
Wire length: 310mm JR plug
Black: Negative Red: Positive White: Signal

What's Included:

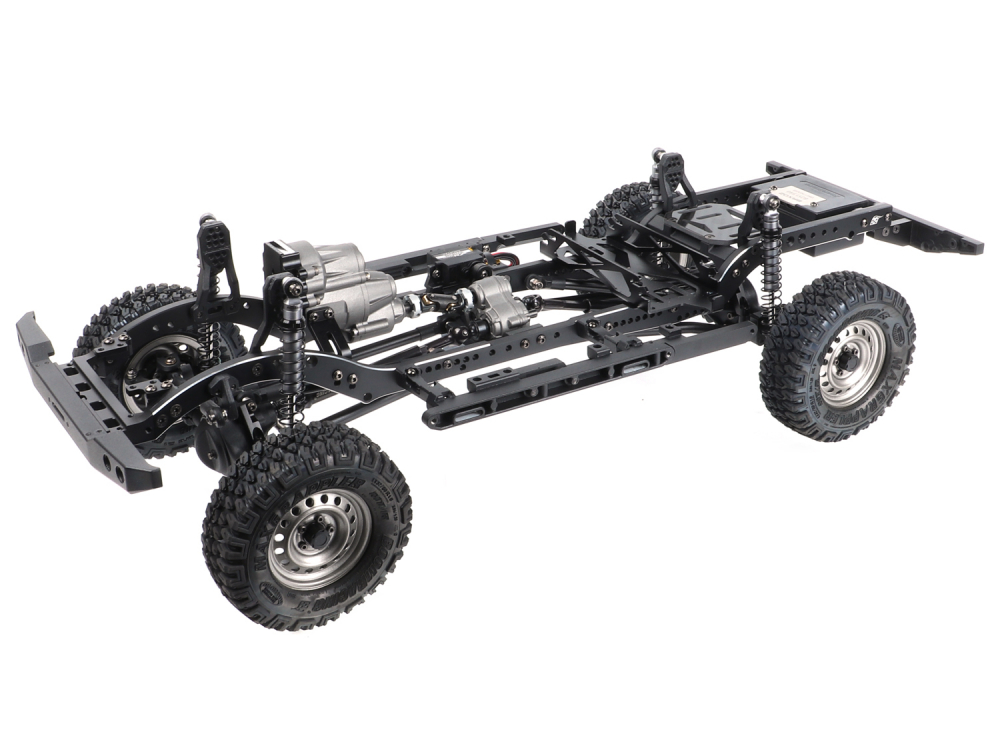

BRX02 1/10 4WD Scale Performance Chassis Kit Link Version BR8004
JX Waterproof Mini Servo with Metal Gears
32 Pitch 12T Steel Pinion Gear
25T Low Profile Aluminum Servo Horn
Maintenance Kit (Shock Oil, Black Grease, Siliking Grease, Thread Lock)
Cable Wiring Retainer Set (18pcs)
BRX02 Custom Unique License Plates (Numbered) with Chassis VIN# Plate
Basic Tool Kit

Equipment Required:

Body (Team Raffee Co. D110 Pick-Up #TRC/302215 or Station Wagon #TRC/302214)
3 Channel Radio System
ESC (electronic speed control)
Steering Servo
540 or 550 Motor (27T for off-road / 35T for crawling matched with provided 12T pinion gear)
Battery
Charger
Tools

What's A Bolt-On Kit?

Parts of the chassis components are pre-assembled. The factory-assembled parts offer convenience for builders eager to get started.

The BRX02 kit includes factory pre-built axles. Shocks require oil to be filled (included).

BRX02 Owners Club

Similar to the BRX01 owners club, as an owner of the BRX02 kit, you are eligible to receive a special promotion at each of the events being attended by Boom Racing.

Register your vehicle directly on the manufacturer's website.

Once your vehicle is registered online, the chassis is officially registered to you and no one else can claim it. This will help with recalls, scheduled maintenance, any updates, and can be used to notify you of new options in the future.

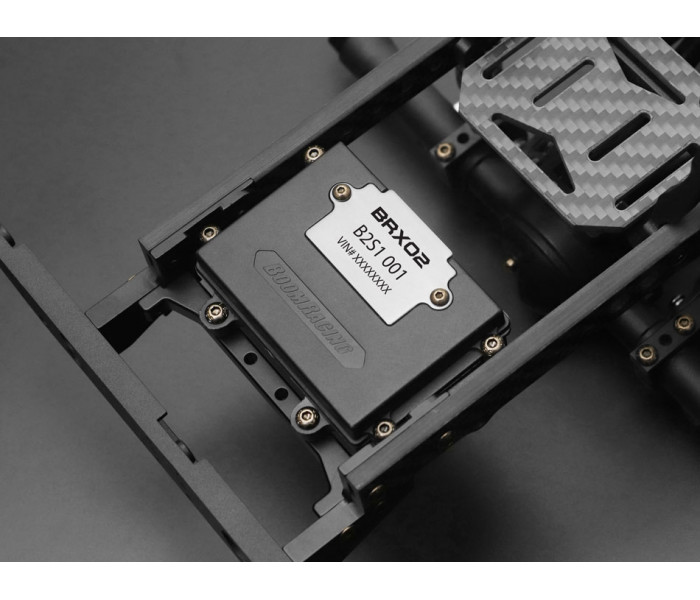

All BRX02 chassis kits are numbered and include a VIN#. The Car No. matches the number on the BRX02 License Plates. No two chassis will ever have the same License Plate.


	Leaf version	link version

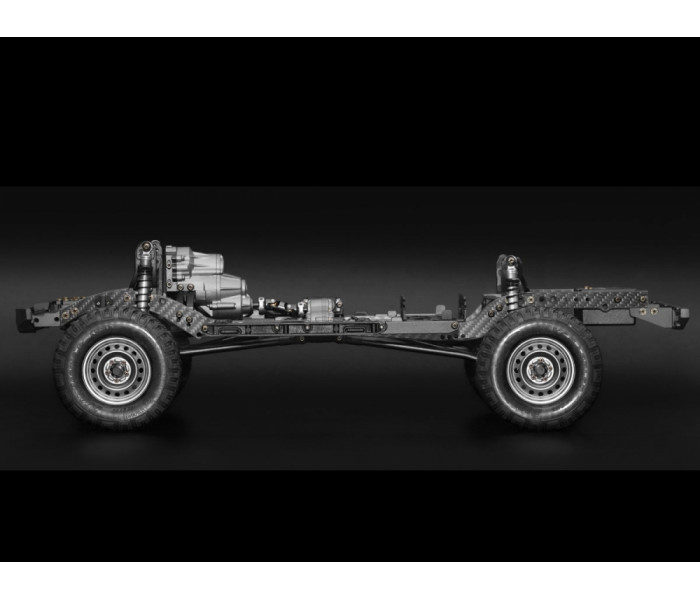

	Full leaf sprung suspension with dampers.	4-linked suspension with coil-over shocks.
FEATURES
BCF2^TM (Boom Racing Compact Front-Mounted 2-Speed) Transmission with Remote Shifting
Anti-Torque Twist Transfer Case SRD^TM (Selective Rotational Drive)
Quick-release system designed for a quick and easy way to attach and detach the body
KUDU^TM 110-130mm Heavy-Duty Steel CVD Drive Shafts
BRX90 High Pinion PHAT^TM Axle w/ AR44 Keyed Helical Cut HD Gears
Design ready for internal servo winch kit to be used
Shocks	KUDU^TM 90mm Dampers w/ Leaf Springs	KUDU^TM 90mm Coilover Shocks
Suspension Geometry	Front & Rear Leaf Spring w/ Dampers	4-Link w/ Coilover Shocks
1.9” Steelie Beadlock Wheels	Narrow (21mm)	Standard (25mm)

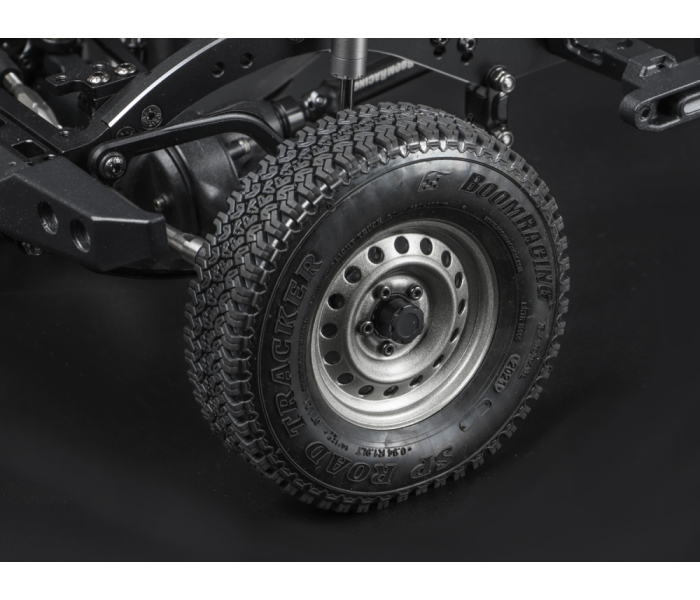

1.9” GEKKO^TM Compound Tires	SP Road Tracker^TM 97x24mm	MAXGRAPPLER^TM 97x32mm

SPECIFICATIONS
Length	528mm	528mm
Width	212mm	220mm
Height	146mm	148mm
Wheelbase	334mm	334mm
Track Width	187mm	185mm
Axle Clearance	30mm	28mm
Skid Clearance	65mm	66mm
Weight	2279g	2373g
Shock Length	90mm	90mm
