Brass Front Brake Disc Set for BRX70/BRX80/BRX90 PHAT™ Axle

USD $42.90

Part #: BRLC7081F


LOADING IMAGES

Brass Front Brake Disc Set for BRX70/BRX80/BRX90 PHAT™ Axle

USD $42.90

Part #: BRLC7081F

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HexBrake DiscBRX01 PartsPhat Axle PartsBRX02 PartsBRX02 Optional PartsBRX01 Optional PartsTrail & Scale Lovers

PRODUCT DESCRIPTION

Product Resources
instruction-manual---boomracing_brass_brake_disc_1579672351.pdf

This is a set of Brass Scale Brake Disc Set for BRX70/BRX80/BRX90 Front Axles.

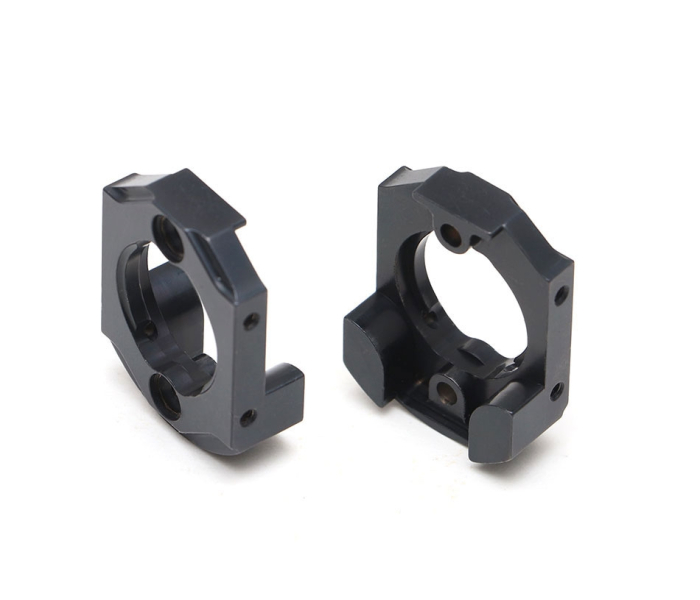

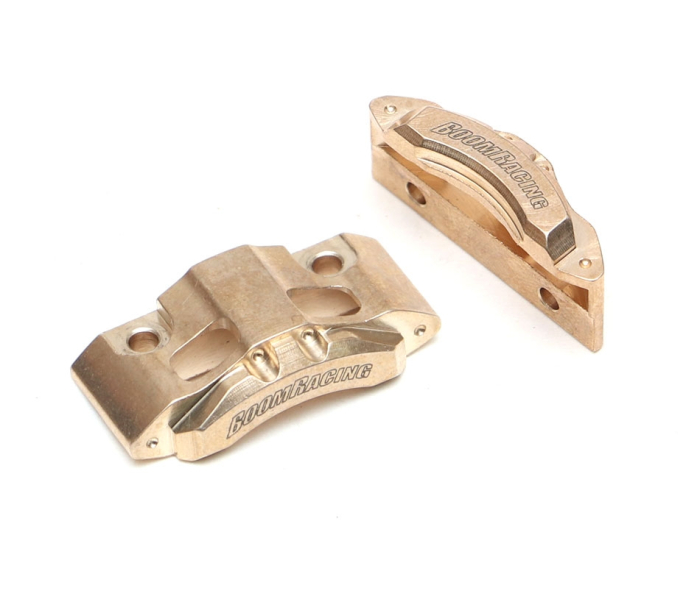

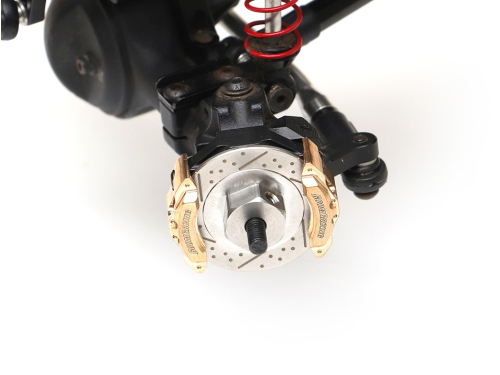

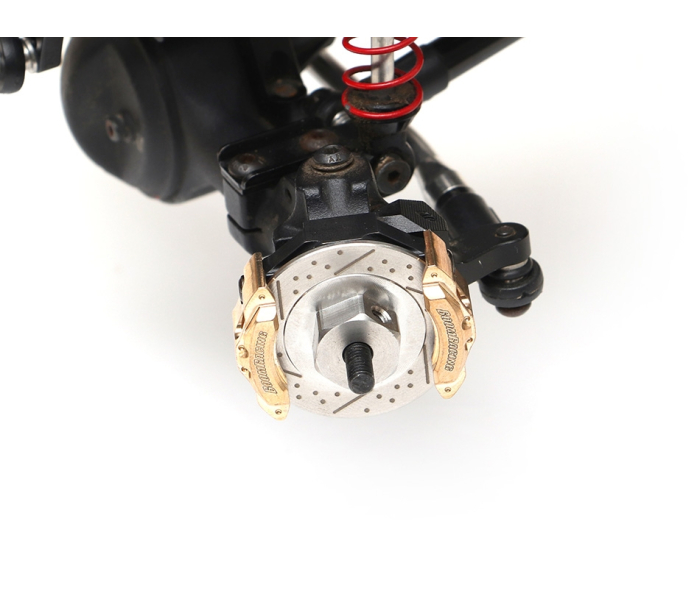

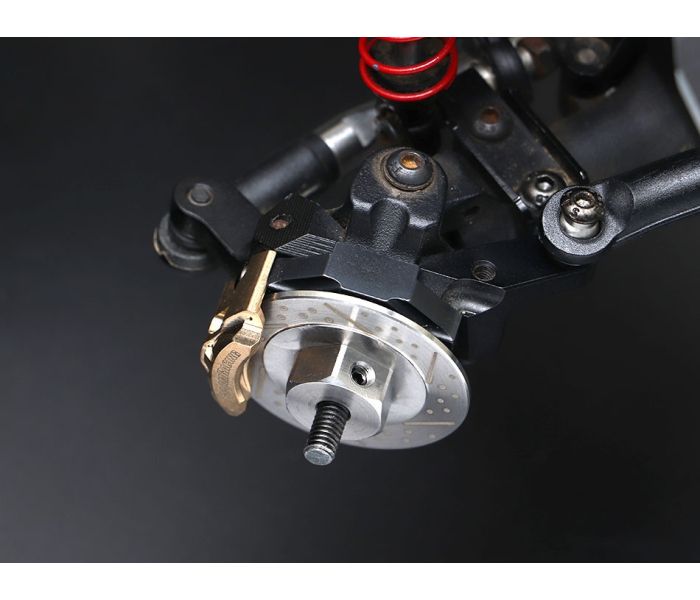

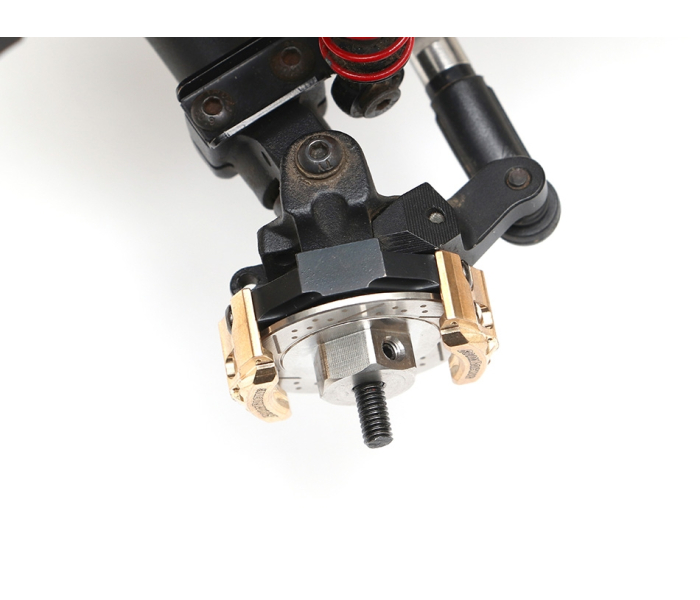

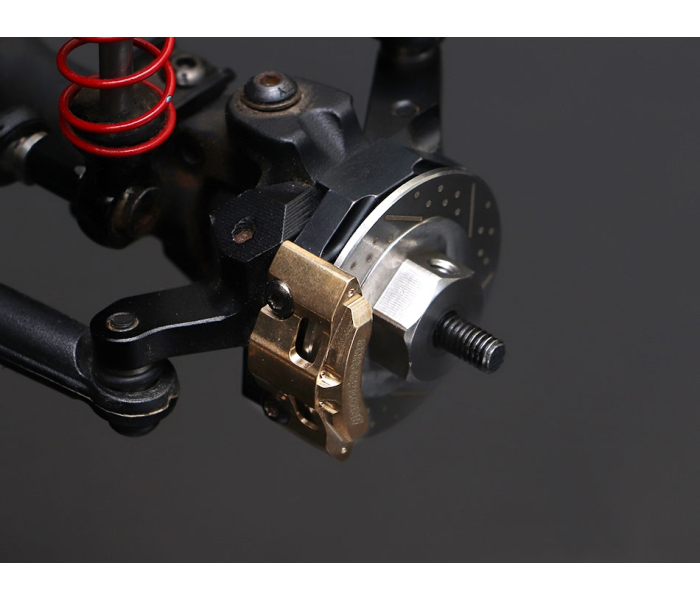

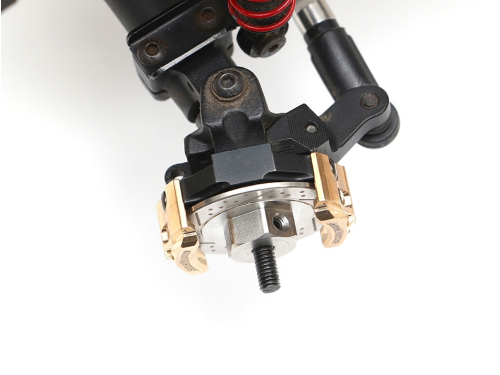

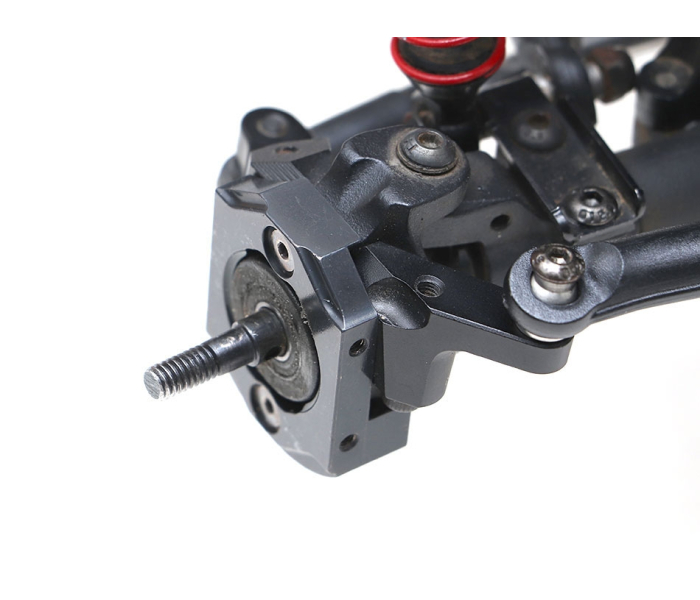

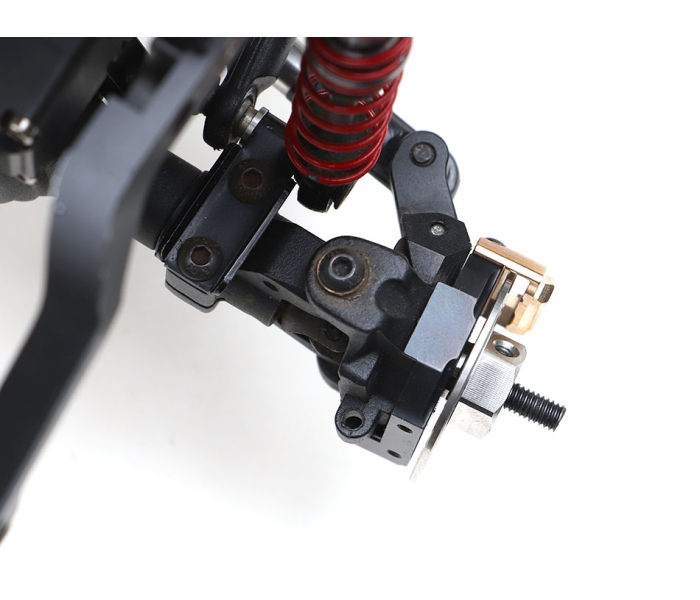

A brass adapter (black anodized) attaches to the BRX70/BRX80/BRX90 knuckle and the brass caliper attaches to the brass adapter. On the front, it can take up to two calipers on each adapter (for weight adjustments).

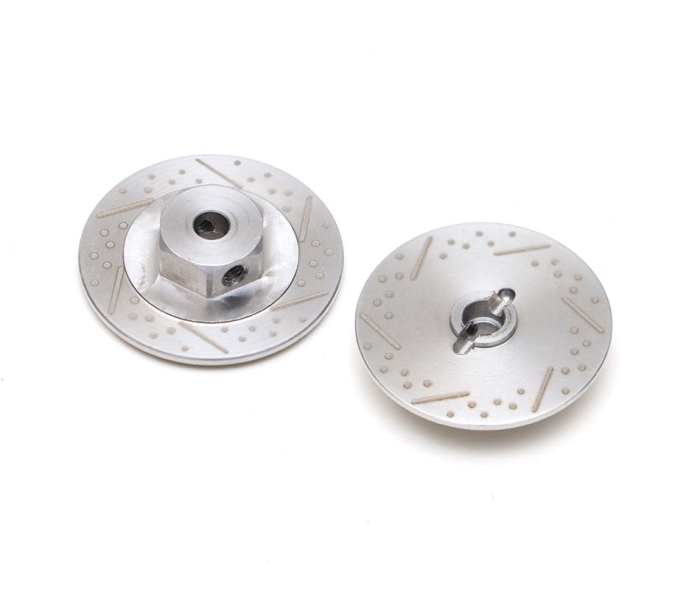

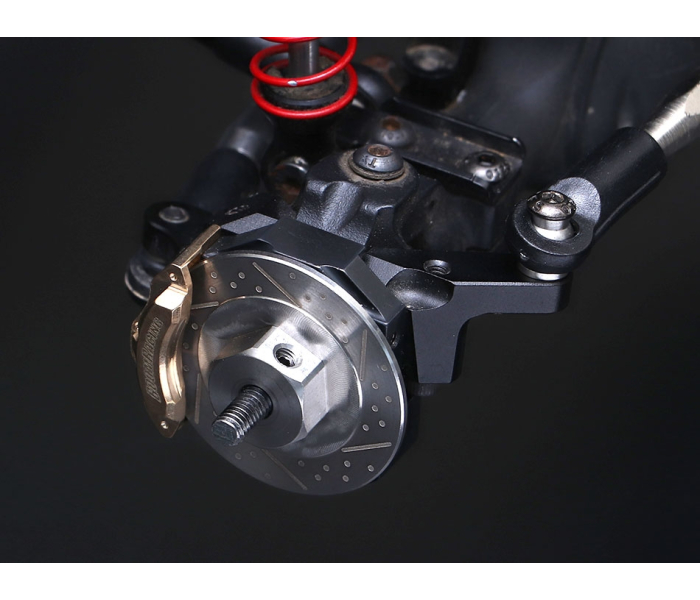

The stainless steel brake disc is machined together with a 12mm standard hex. The hex uses a drive pin and has two set screws to lock down the drive shaft securely.

Note:

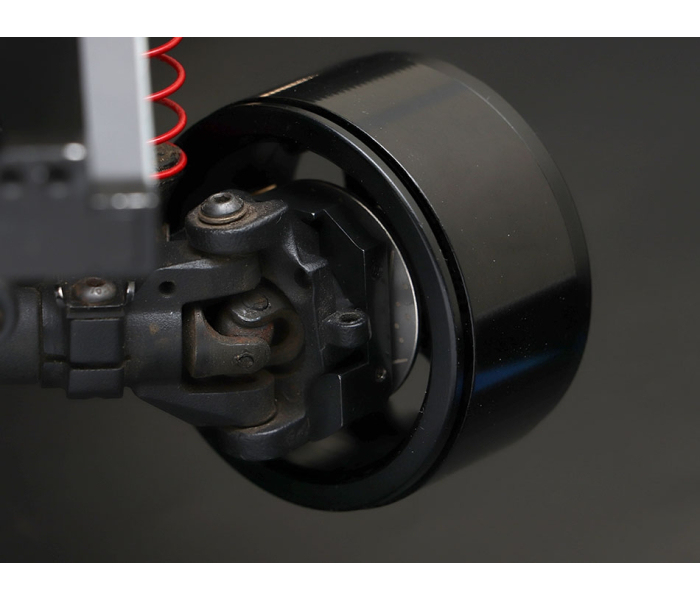

This brake system is not designed for 1.55" wheels. Will fit Boom Racing 1.55" 16-Hole Steelies if used in deep-dish setup.

For AR44 setup, it must be used with knuckle BRLC7002 or BRLC7002/CA.

Fits:

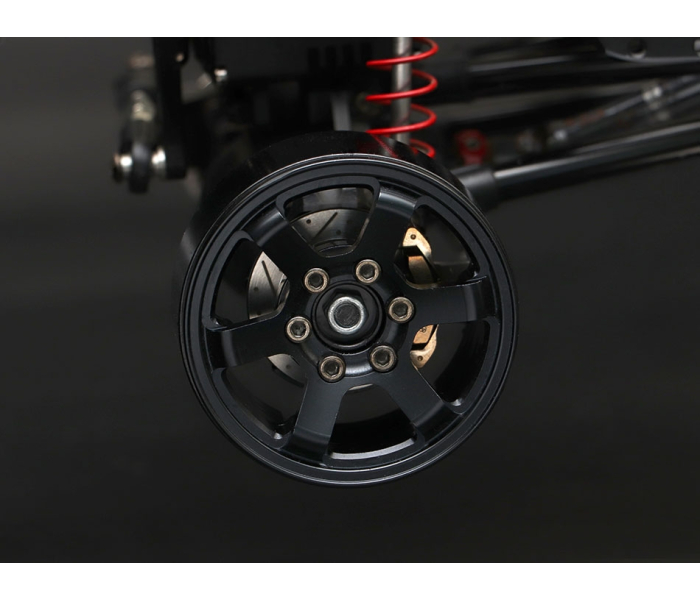

  • 1.9"/2.2" wheels
  • Wheels with 31mm inner diameter or more

Specification:
  • Weight:
    • Brass Adapter: 20 grams per adapter
    • Stainless Steel Brake Disc: 12 grams per disc
    • Brass Caliper: 6.5 grams per caliper
  • Diameter:
    • Caliper: 35.35mm
    • Brake Disc: 31mm
  • Hex Offset: 6.45mm
  • 12mm wheel hex

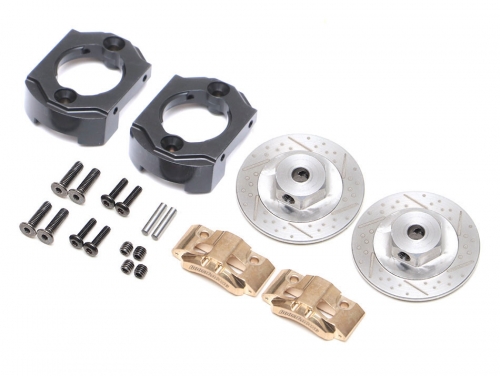

Includes:
  • 2x Brass Brake Adapter
  • 2x Brass Brake Caliper #BRLC7082
  • 2x Stainless Steel Brake Disc 12mm Hex #BRLC7081
  • 4x M2x8 RS Screw
  • 4x M2.5x10 CSS Screw
  • 4x M3x3 SS Screw
  • 2x M2x10 Pin

Optional Parts:
Stainless Steel Cross Drilled Brake Disc 12mm Hex (2) #BRLC7084
