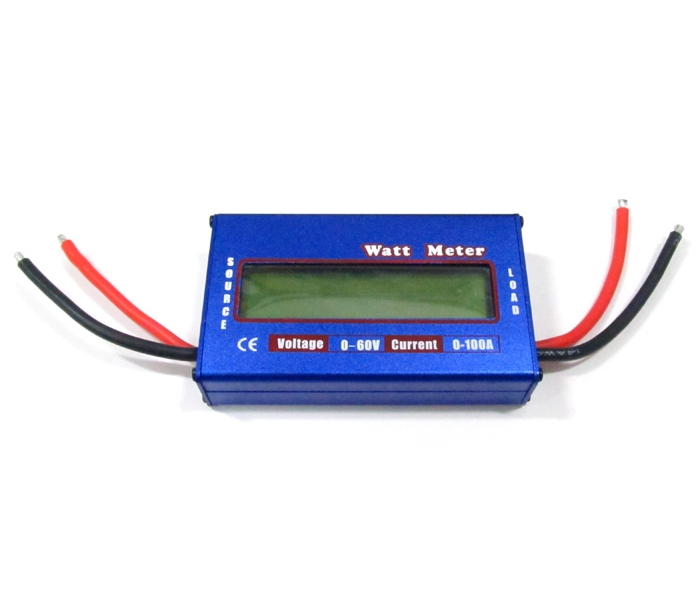

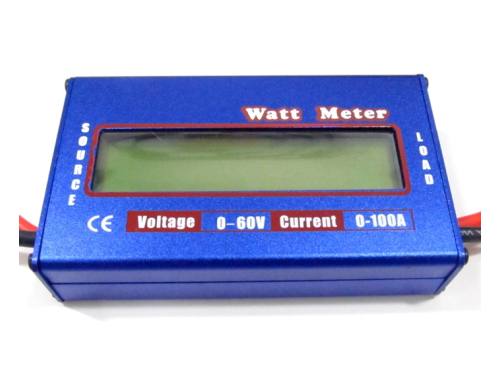

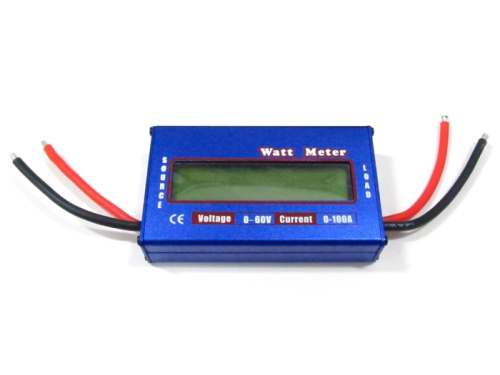

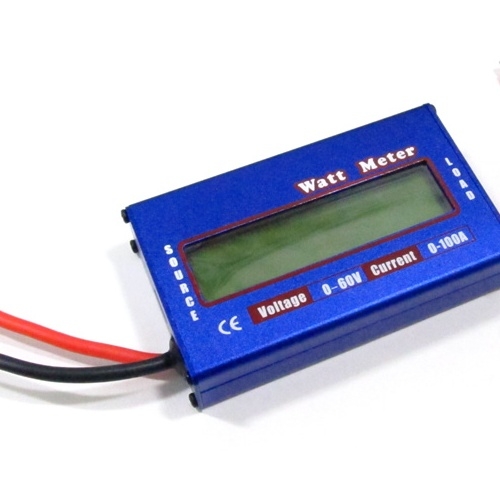

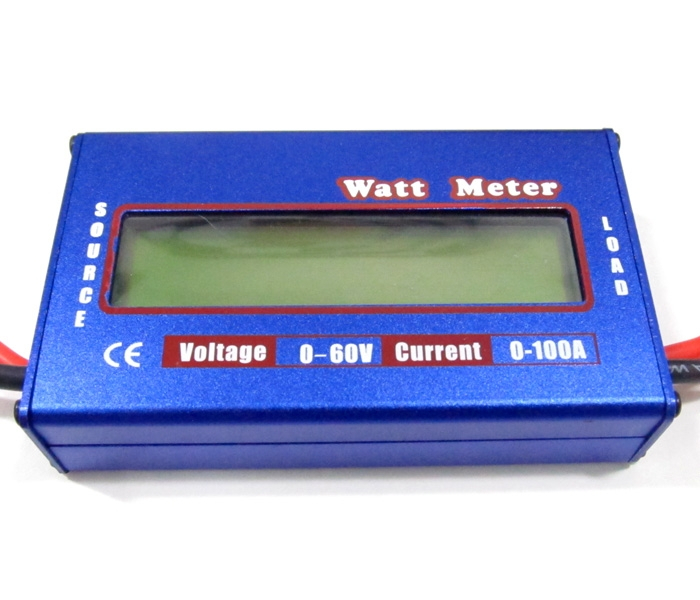

Voltage Reader Watt Meter Inspector

USD $17.74 USD $15.00

Part #: BRCHT01


LOADING IMAGES

Voltage Reader Watt Meter Inspector

USD $17.74 USD $15.00

Part #: BRCHT01

Notify me when this item is in stock.
Add to favorites

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

PRODUCT DESCRIPTION

Specification Tables

Parameter Range Resolution Notes
Voltage 0~60V 0.01V oV min w/auxiliary power
E.g.a receiver battery. Elae 4.0V
Current 0~100A peak 0.01A
Charge 0~65Ah 0.001Ah 0~6554Ah for Doc Wattson
0.1Ah resolution
Energy 0~6554Wh 0.1Wh 0~655Kwh for Doc Wattson
0.01KWh resolution

Features
  • Measure energy(Wh),charge(Ah),Power(W),current(A)and voltage(V)
  • Connector to use an optional receiver battery for measurement down to 0V
  • Accurate & precise 0.01A current and 0.01V voltage resolutions
  • Measure peak Amps, peak Watts (except for Doc Wattson) and voltage minimum
  • Rugged-handles 50A continuous and 100A peak at 60V
