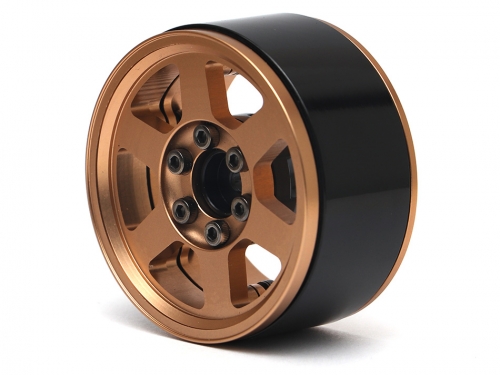

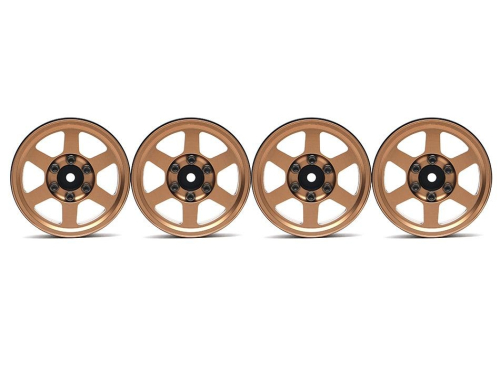

TE37X KRAIT™ 1.9 Aluminum Beadlock Wheels w/ XT606 Hubs (4) Bronze

USD $75.90

Part #: BRW780912BZ


LOADING IMAGES

TE37X KRAIT™ 1.9 Aluminum Beadlock Wheels w/ XT606 Hubs (4) Bronze

USD $75.90

Part #: BRW780912BZ

All available colors:
Notify me when this item is in stock.
Add to favorites

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 1.9 Beadlock WheelsKrait Parts

PRODUCT DESCRIPTION

Product Resources

The TE37X KRAIT Beadlock Wheel is heavy duty and designed to withstand abuse. It uses a 6-bolt design to assemble the wheel.

KRAIT wheels are used in crawling and U4 rock racing, with many wins under its belt.

XT6 Hub Series is Boom Racing's removable aluminum 6-lug hubs. They are available in multiple sizes for the desired offset.

XT6 hubs will fit M4 and M5 (non-flanged) locknuts.

Specifications:

  • Width: 28mm
  • Offset with XT606 Hubs (without hex): 1mm negative
  • Weight: 67.5 grams / wheel


Features:

  • Stylish aluminum 6 lug beadlock
  • Lightweight performance based
  • Easy to mount (6 bolts behind)
  • High grade nickel plated M2.5 bolts
  • Pre-assembled
  • Improved center ring design enables longer lasting tires


Fits:

  • Traxxas TRX4
  • Axial SCX10 and SCX10 II
  • Most other 1.9" tire crawler trucks

Included:
  • 4x TE37X KRAIT Aluminum Wheel
  • 4x Aluminum Center Wheel Ring
  • 4x XT605 Aluminum Hex
  • 48x M2.5x8 Bolts
  • KRAIT Decal Sheet

Optional Wheel Hub Adapter Sizes:
  • XT6015PINV2 - 1.5mm Pin Alum Offset #BRXT6015PINV2
  • XT601V2 - 1mm Alum Offset #BRXT601V2
  • XT604V2 - 4mm Alum Offset #BRXT604V2 (Included)
  • XT606V2 - 6mm Alum Offset #BRXT606V2
  • XT608V2 - 8mm Alum Offset #BRXT608V2
  • XT612V2 - 12mm Alum Offset #BRXT612V2
  • XT616V2 - 16mm Alum Offset #BRXT616V2

Optional Scale Screws:
  • Mag Seat Lug Nut M2.5x12mm Scale Hardware BRPROB-10 (Black / Gold / Silver)
  • Mag Seat Lug Nut M2.5x6mm Scale Hardware BRPROB-09 (Black / Gold / Silver)

Optional Hex:
  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

Optional Part:

  • BRW780900J - 1.9" Delrin Center Wheel Ring

Reviews (12)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.
