SWD (Selective RWD/4WD) Transfer Case Set for BRX02 88

USD $109.00

Part #: BRX02335


LOADING IMAGES

SWD (Selective RWD/4WD) Transfer Case Set for BRX02 88

USD $109.00

Part #: BRX02335

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Transfer BoxBRX02 88 Optional PartsBRX02 88 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---swd-transfer-case-for-brx02-88-brx02335_1707988553.pdf

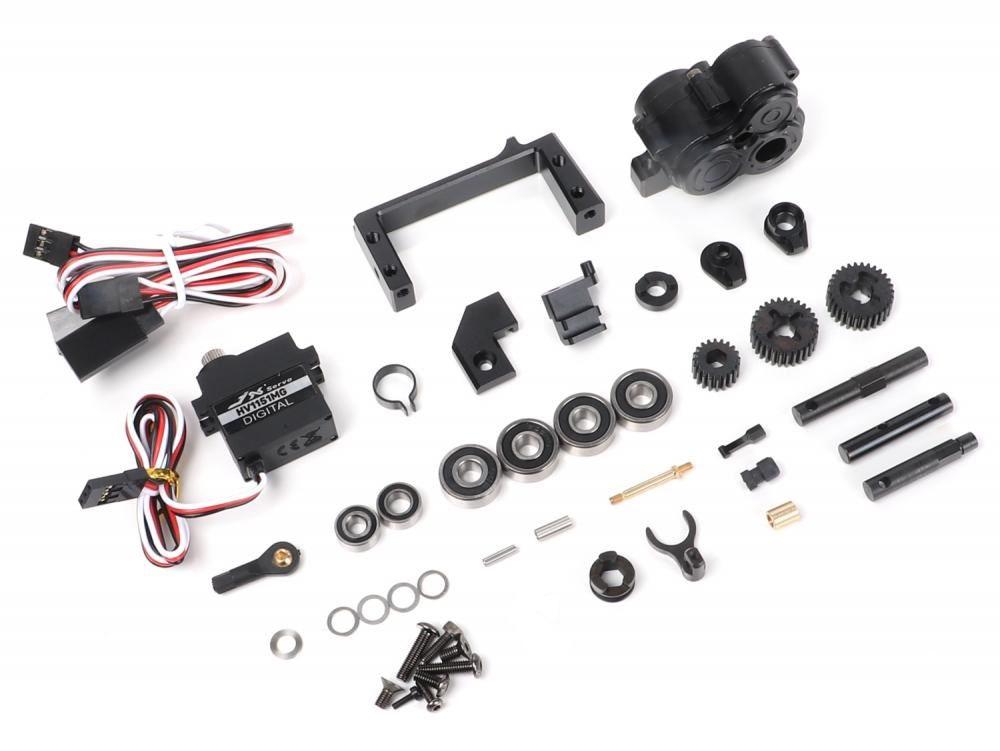

This is a complete SWD (Selective RWD/4WD) Transfer Case Set with JX mini servo and aluminum mounts for the BRX02 88 chassis.

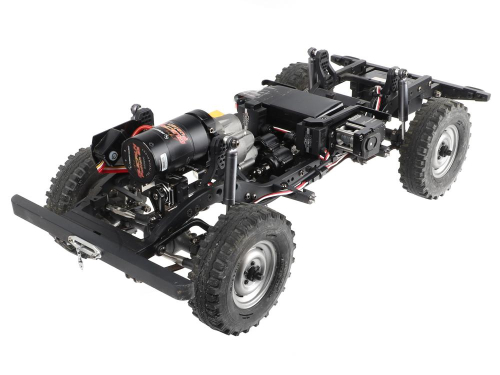

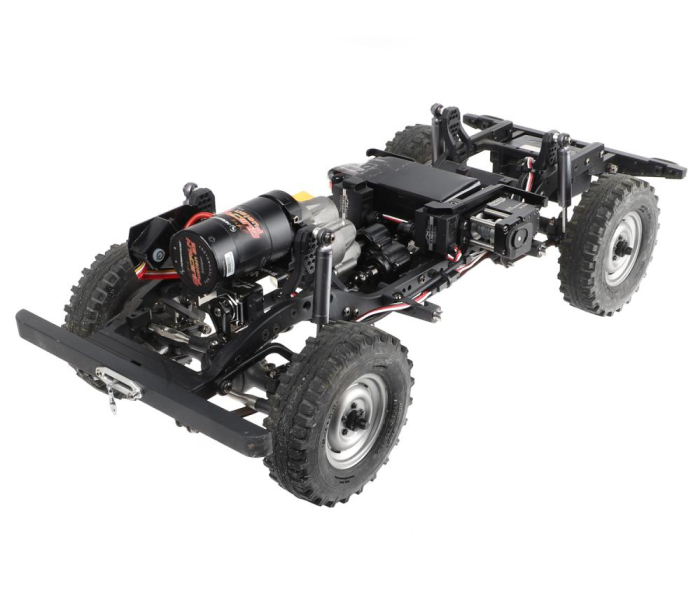

Switch between 2WD (rear-wheel-drive) and 4WD of your BRX02 88 chassis with this all-new SWD (Selective RWD/4WD) Transfer Case Kit.

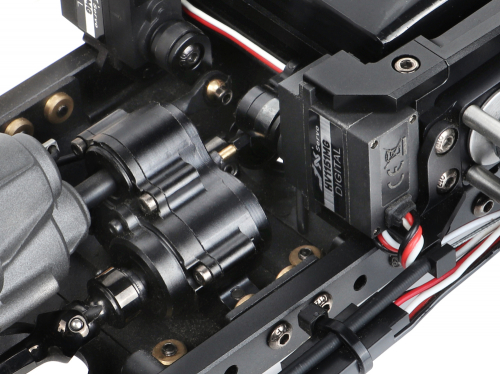

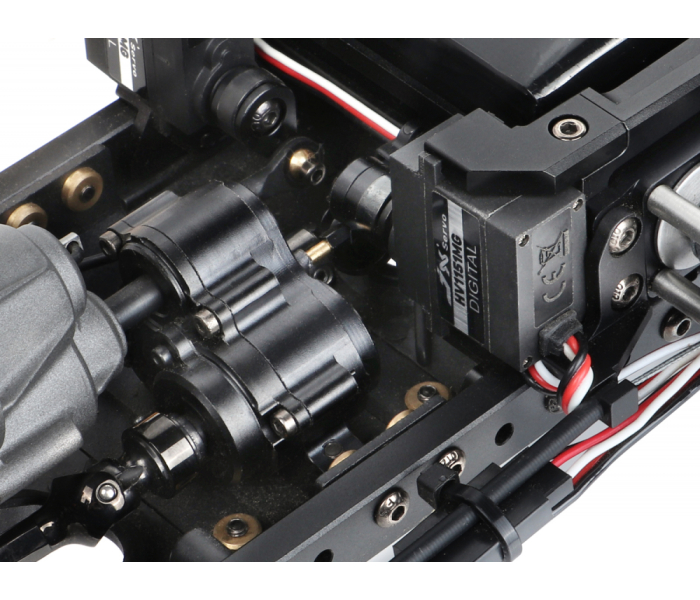

To set up the SWD T-Case, replace the stock transfer case with the SWD T-Case and use the provided JX mini servo and mini servo mount.

This SWD T-Case will fit the optional Overdrive HD Gear Set (33T, 25T, 16T) #BRLC70201-GEAR, which adds 32% overdrive to the front wheels.

The extended bracket, which attaches to the included servo winch mount, fits the mini servo for t-case shifting.

Note that the included servo winch mount sits on the battery plate and will restrict the battery size. The suggested maximum battery size after this installation is 88x44x25mm.

Features:

  • Realistic 2WD/4WD fun just like your 1:1 off-roader
  • Heavy-duty steel gear set
  • Billet aluminum transfer case
  • Full rubber-sealed ball bearings
  • Keeps the original anti-torque twist feature (counter-rotating output shafts)
  • JX high voltage mini servo included
  • Aluminum mounts included for installation

Mini Servo Specifications:
  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal

Fits:
  • BRX02 88

Note: This does not fit BRX01, BRX02 109 or BRX02.

Optional:
  • Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR

Parts:
  • SWD & DIG Transfer Case Shift Rod Set for BRX02-88 BRX02379
