Servo Winch Mount Kit for BRX01

USD $43.00

Part #: BRLC7200


LOADING IMAGES

Servo Winch Mount Kit for BRX01

USD $43.00

Part #: BRLC7200

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords WinchesBRX01 PartsBRX01 Optional Parts

PRODUCT DESCRIPTION

Product Resources
servo-winch-mount-kit-interior-cut-out-guideline-for-lc70_1635825758.pdf
instruction-manual---servo-winch-mount-kit-for-brx01-brlc7200_1708313260.pdf

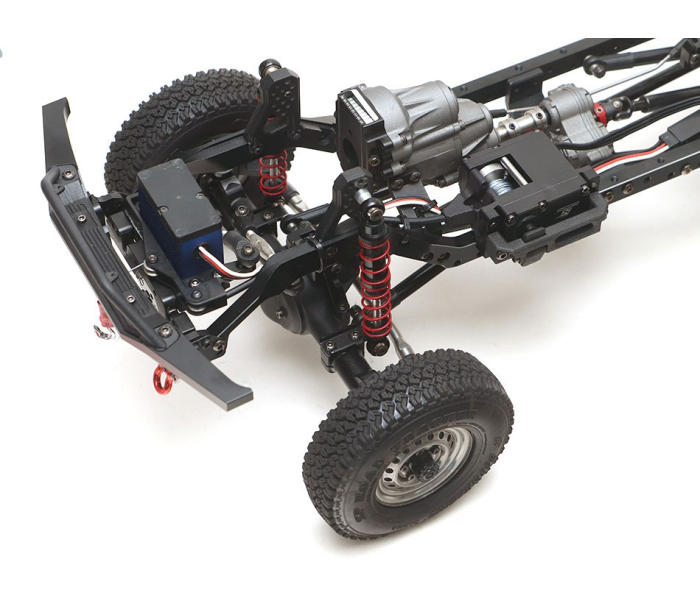

This is a Servo Winch Mount Kit for the BRX01 chassis.

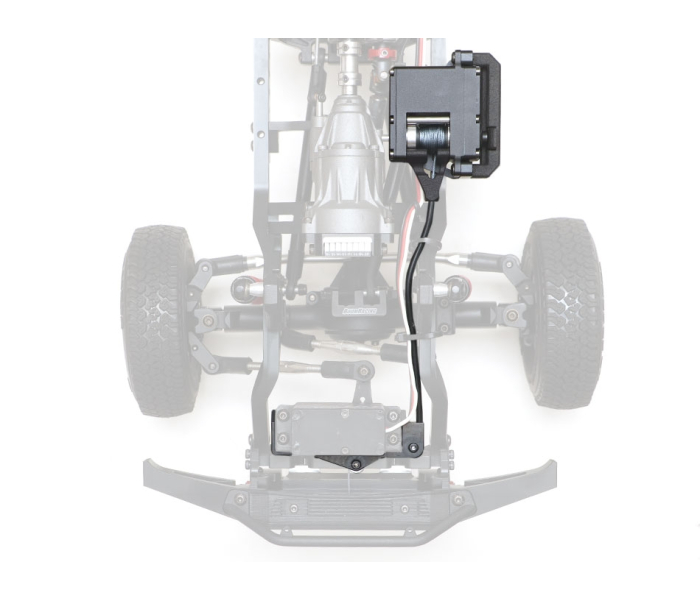

This kit includes is a complete setup for running an internal servo winch for the BRX01.

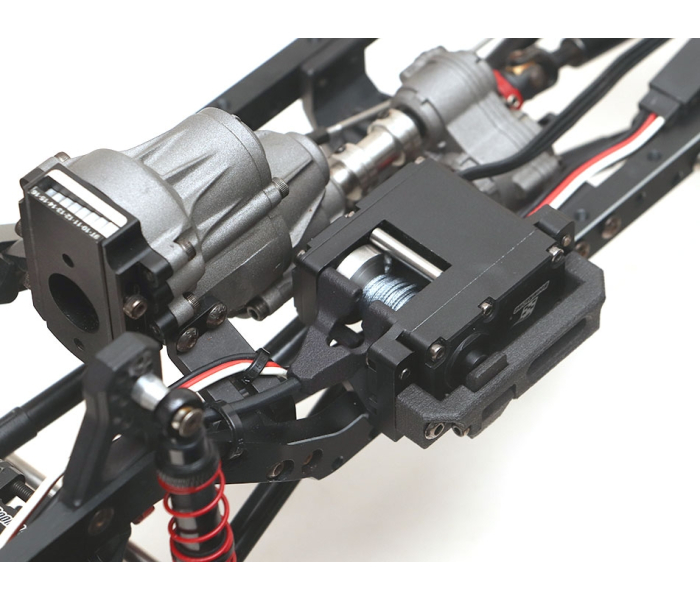

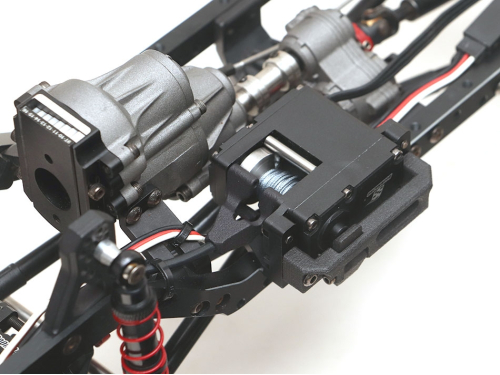

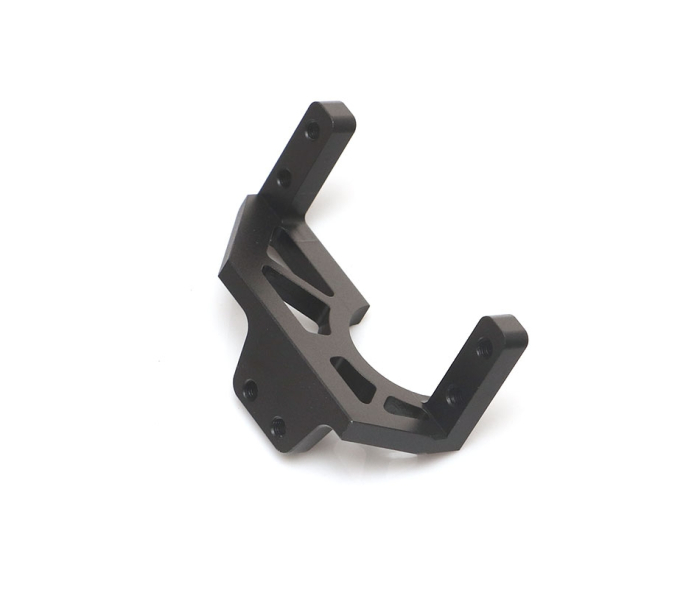

A CNC aluminum winch mount secures a standard servo winch on the BRX01 chassis.

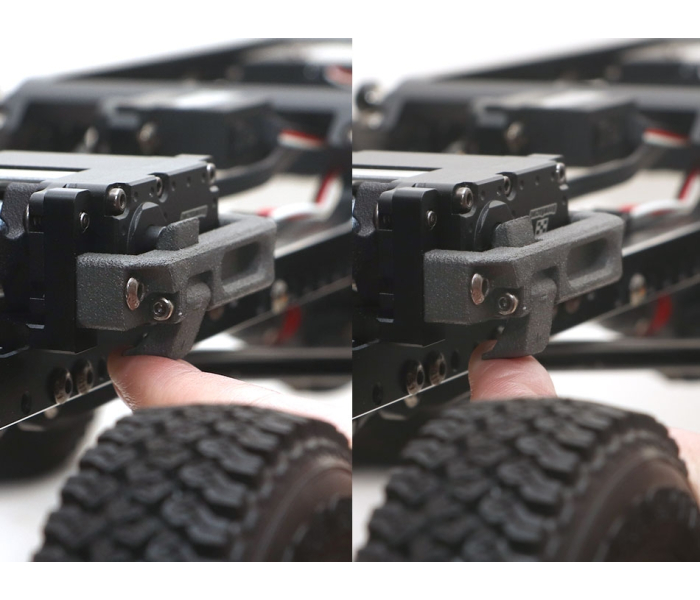

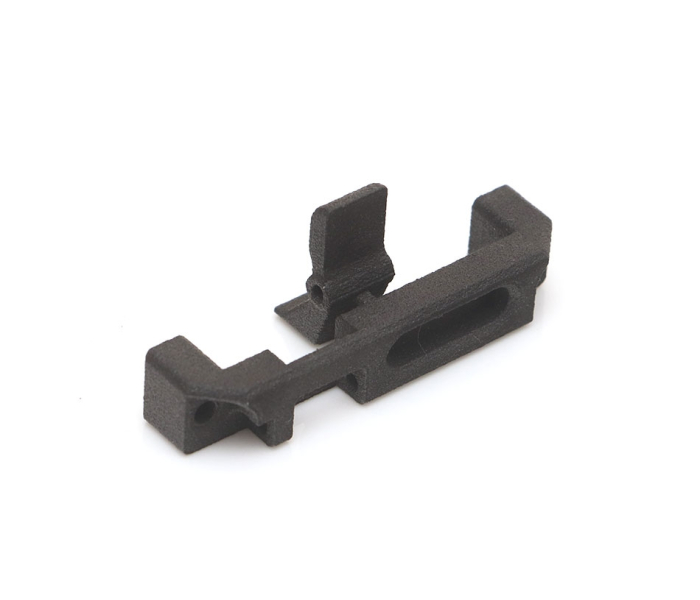

A switch and switch retainer together are designed specifically for using the Boom Racing Muscle Winch. The combined unit has an easy-access knob to engage the push button of the Muscle Winch.

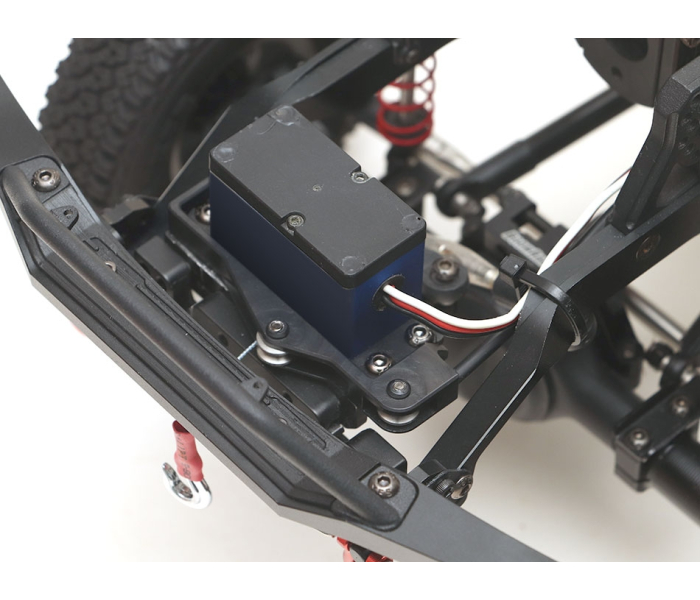

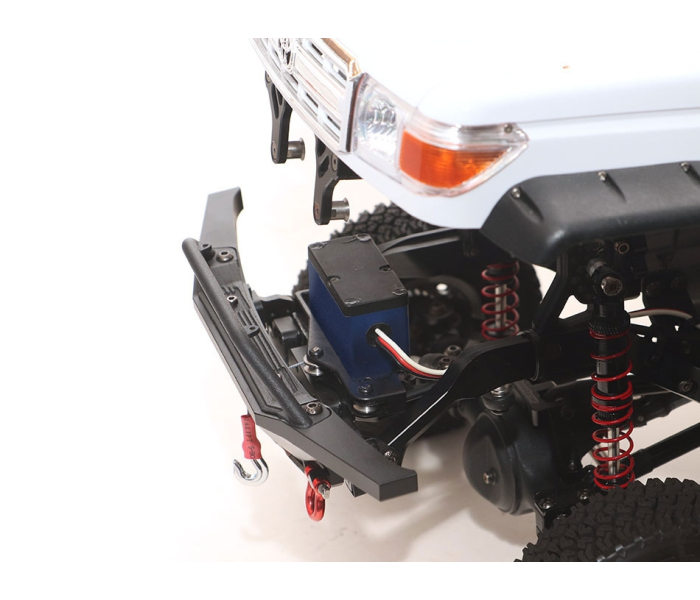

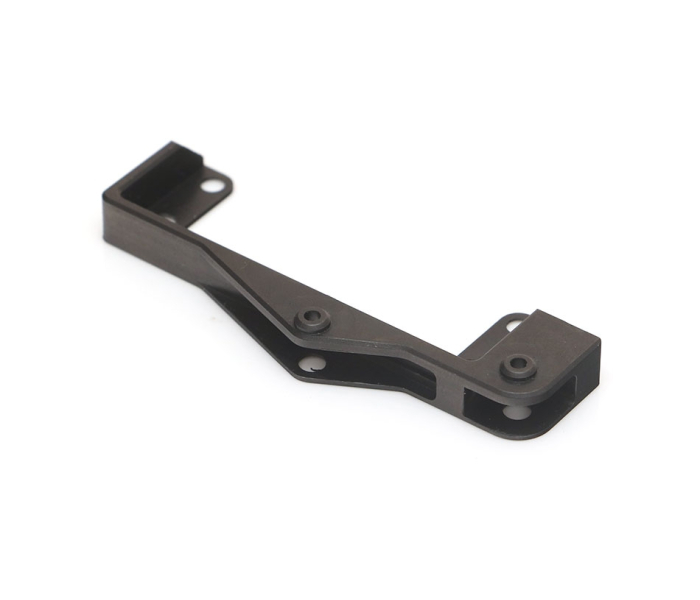

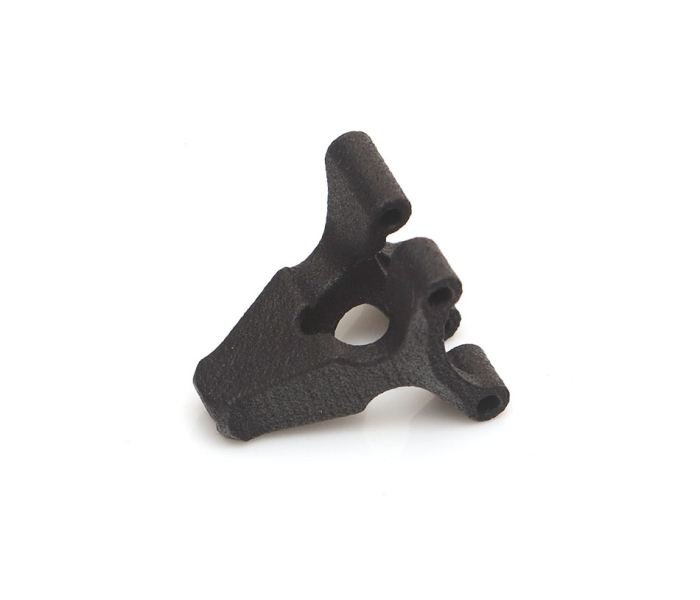

A front-mounted hardened steel router unit has two pulleys to guide the winch line and change of direction. A routing tube and routing tube retainer are included to guide the winch line from the Muscle Winch to the router unit for smooth operations.

An optional LC70 CNC hardbody mount #BRLC7098 is required to maintain the quick release feature and winch line directly passing through.

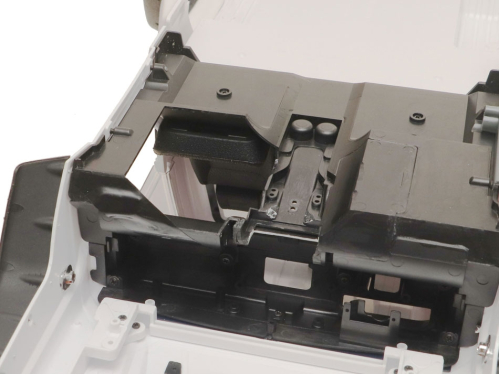

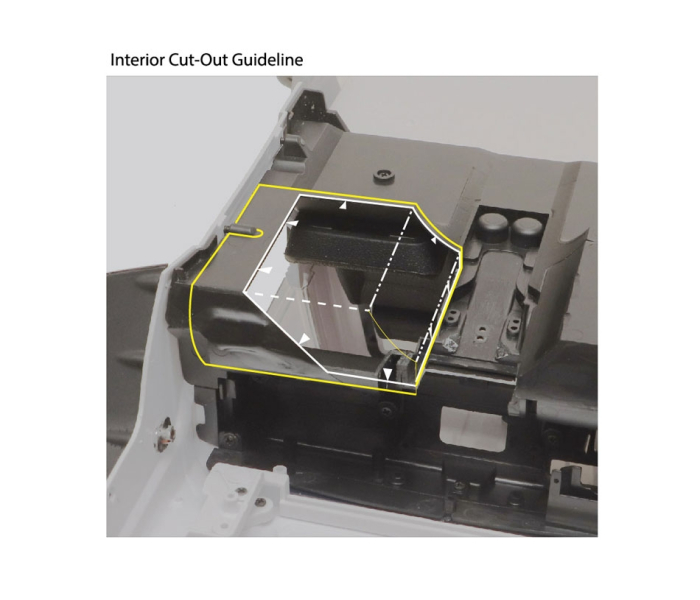

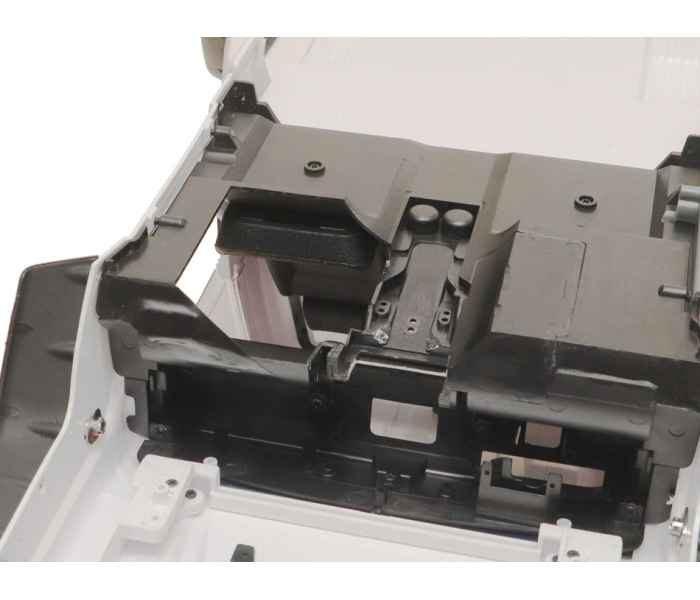

If you have the LC70 interior installed, a cut-out guideline is included. Place the guideline onto the interior (as shown in Step 6 in the manual) and follow the solid white lines to remove the material.

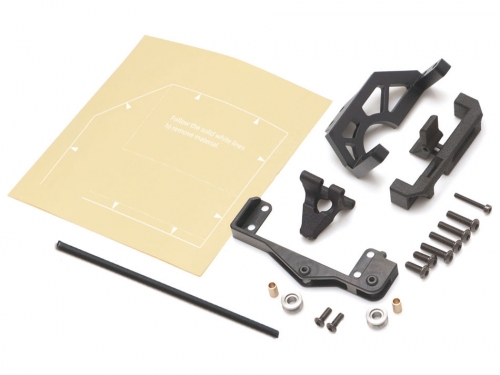

Includes:

  • 1x Aluminum Winch Mount
  • 1x Switch Retainer
  • 1x Switch
  • 1x Routing Tube Retainer
  • 1x Hardened Steel Router
  • 2x Stainless Steel Pulley
  • 2x Pivot Tube
  • 1x Routing Tube
  • 1x M2x16 SC Screw #BRASCH2016
  • 2x M2.5x8 RS Screw #BRASCH2508
  • 2x M3x8 RS Screw #BRASCH3008
  • 4x M3x12 RS Screw #BRASCH3012
  • 1x Interior Cut-Out Guideline for Killerbody LC70 interior

Optional Part:
  • Pass-Thru Aluminum Front Body Mount for LC70 #BRLC7098

Compatibility:
  • This Servo Winch Mount Kit is designed for the BRX01 using the Muscle Winch. The servo winch Mount will fit other standard servos. It is intended to be installed on the left-hand side of the BRX01 chassis. The Switch and Switch Retainer is specifically designed for the Muscle Winch.
