Rear Portal Axle Conversion Kit for BRX90 PHAT™ Axle

USD $85.00

Part #: BRPT9023KIT

Rear Portal Axle Conversion Kit for BRX90 PHAT™ Axle

USD $85.00

Part #: BRPT9023KIT

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Axle Conversion KitsPhat Axle PartsRECON G6 Certified

PRODUCT DESCRIPTION

Product Resources

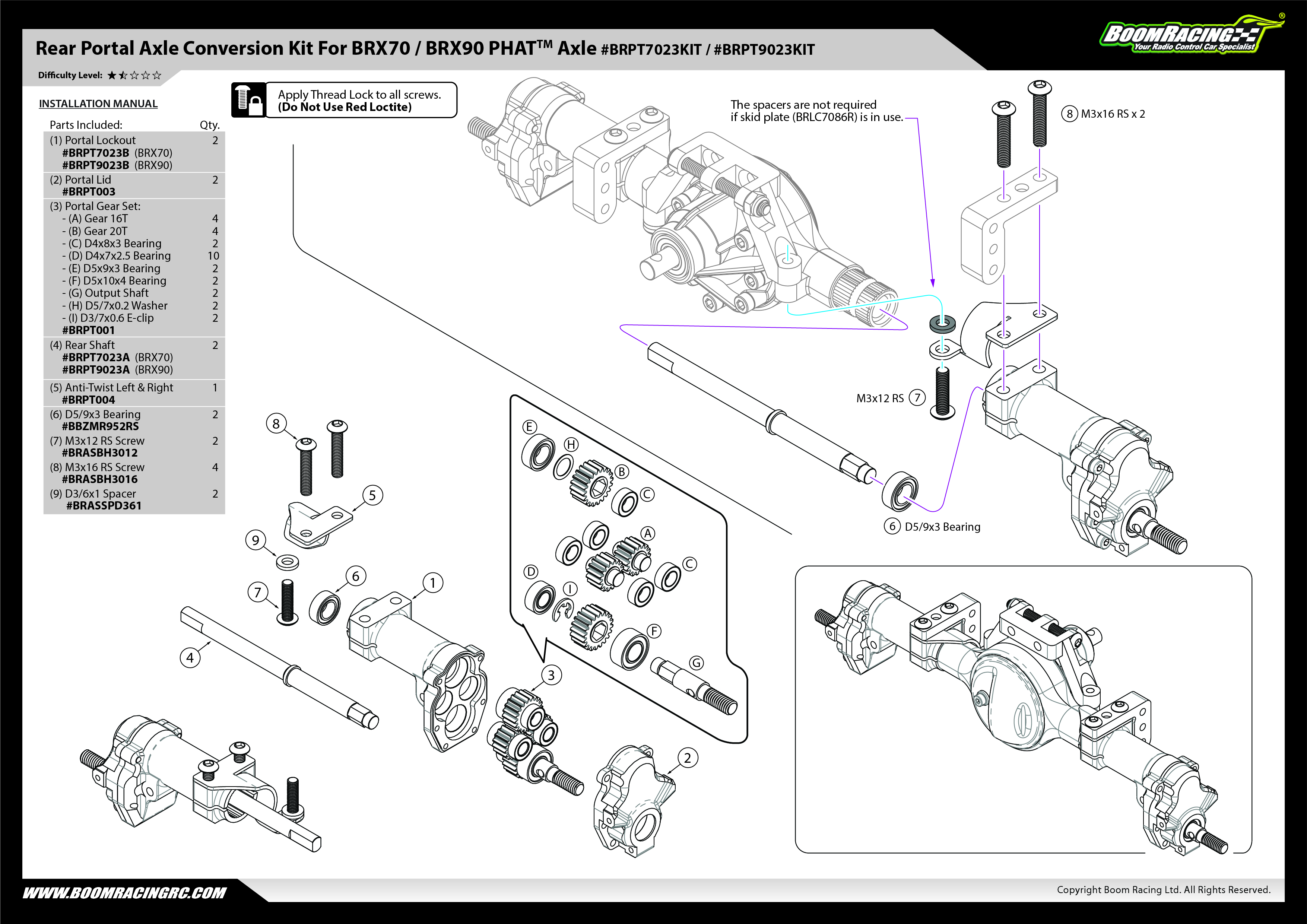

instruction-manual---rear-portal-axle-conversion-kit-for-brx70---brx90-brpt7023kit_brpt9023kit-20221117_1668675833.jpg

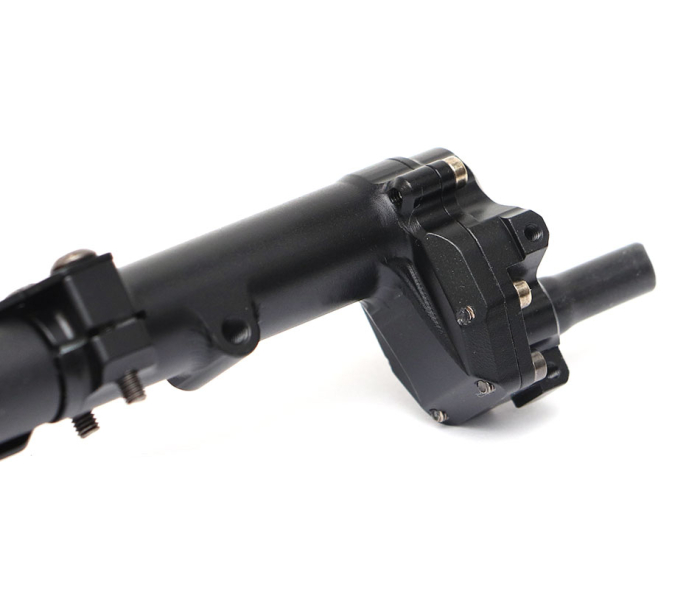

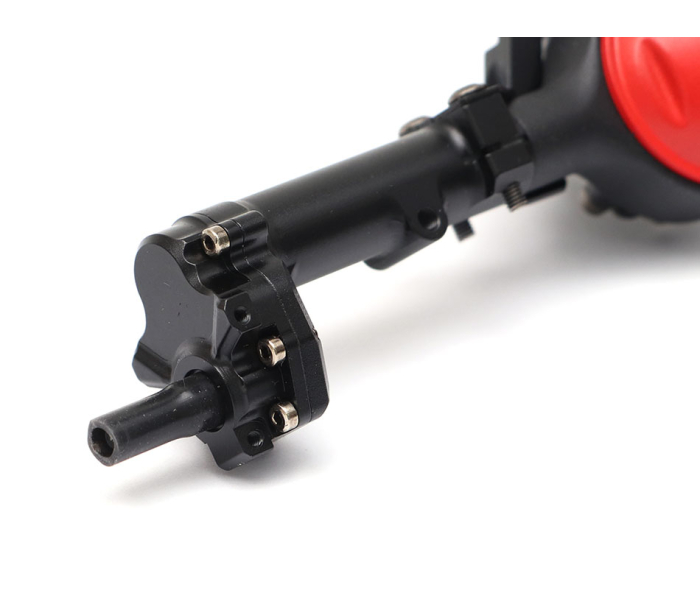

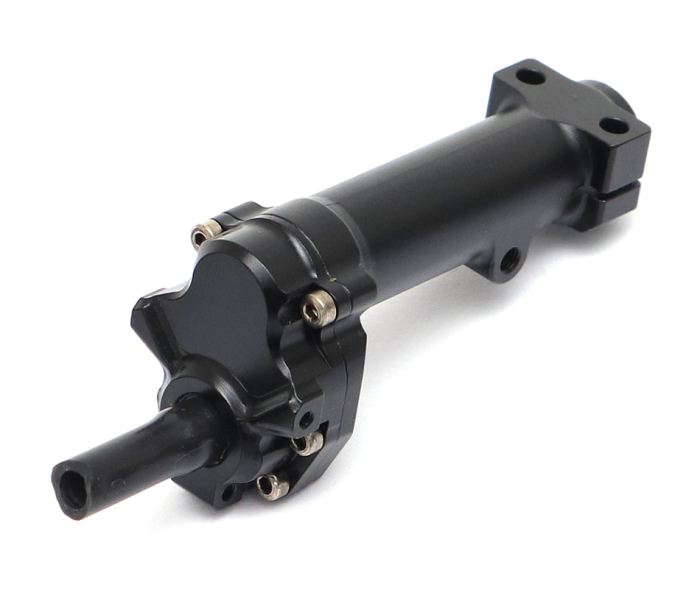

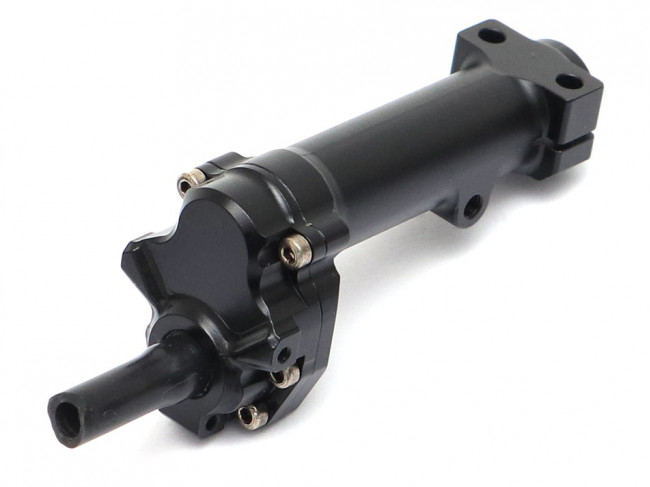

This is a set of rear portal axle conversion kit for the BRX90 PHAT™ axle. The portal gearbox has four heavy-duty steel gears each with a 1:1 output ratio.

Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin
  • CNC aluminum portal lockout & cover

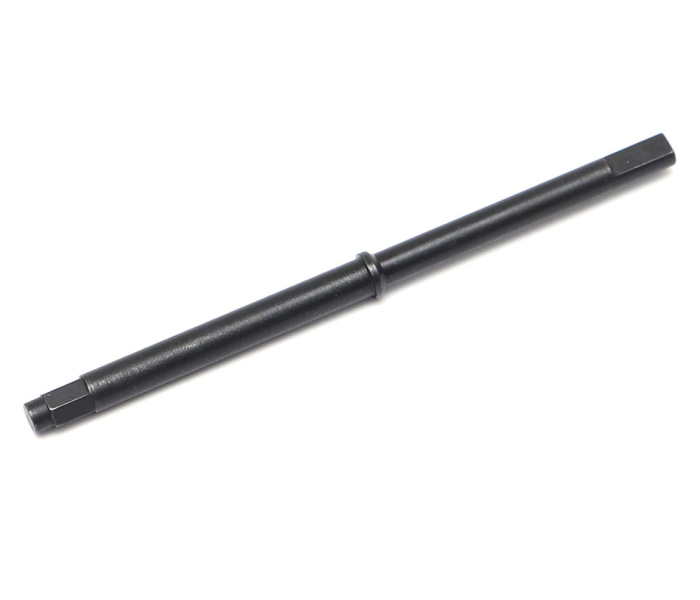

  • BADASS™ heavy-duty steel rear straight driveshafts
  • BADASS™ heavy-duty steel rear portal driveshafts
  • Four heavy-duty hardened steel metal gears in each portal gearbox
  • Anti-twist steel brackets to prevent axle twist
  • Full rubber sealed bearings
  • Full 12.9-grade hardware
  • Compatible with PHAT™ Axle brake disc and caliper (requires optional adapter)

Specification:
  • Width: 188.3mm / 7.41" (pin-to-pin)

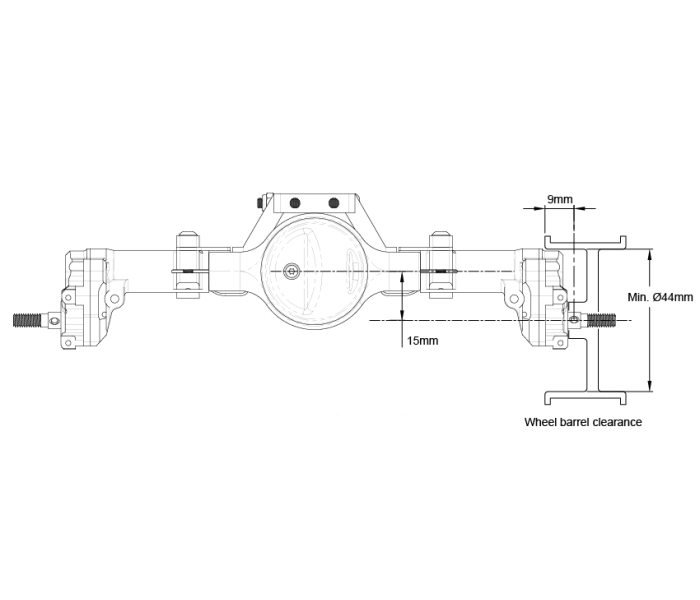

  • Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
  • Portal gearbox ratio: 1:1

Fits:
  • BRX90 Rear PHAT™ Axle
  • 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

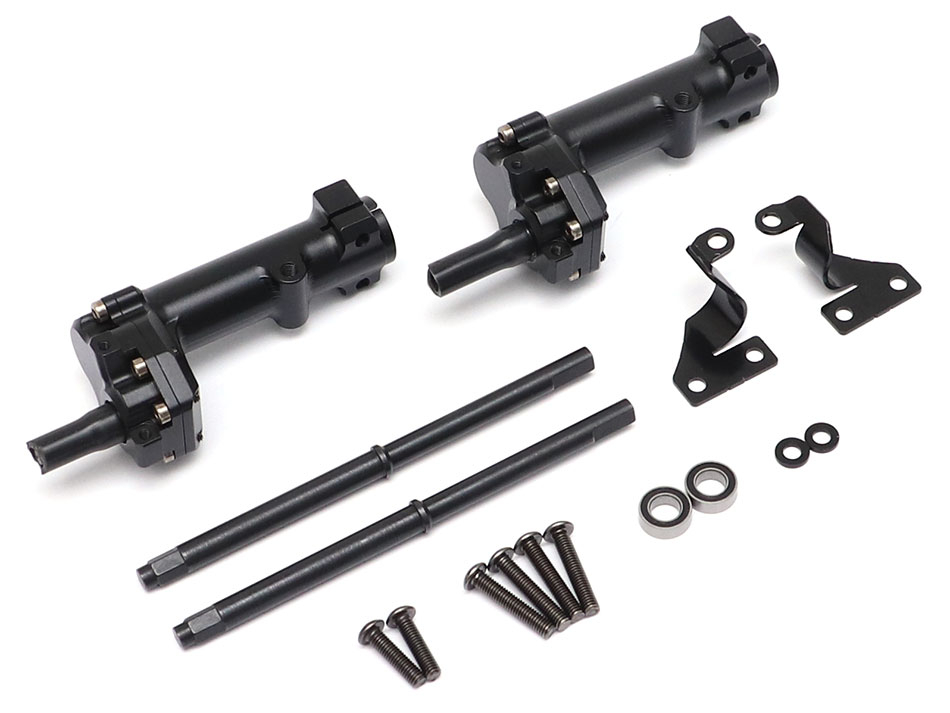

Includes:

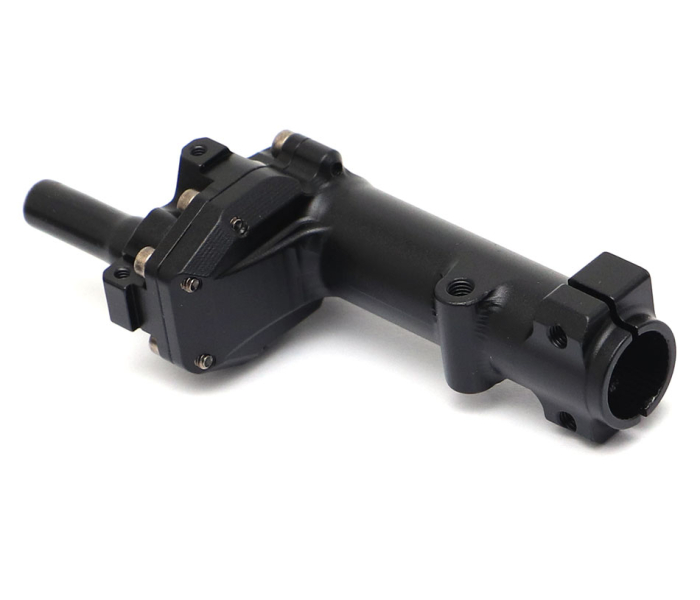

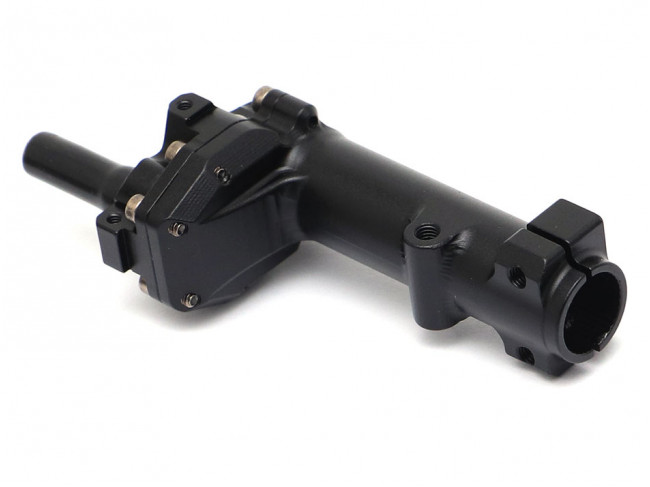

  • 1x Left Side Portal Conversion Unit
  • 1x Right Side Portal Conversion Unit
  • 2x BADASS Rear Driveshaft for BRX90 Portal PHAT™ Axle
  • 1x Left Side Steel Anti-Twist Bracket
  • 1x Right Side Steel Anti-Twist Bracket
  • 2x Spacer
  • Full Rubber Sealed Bearings
  • Full 12.9-Grade Hardware

Bearing Sizes:
  • D4x7x2.5 #BBZMR742RS x10
  • D5x10x4 #BBZMR1052RS x2
  • D5x9x3 #BBZMR952RS x4
  • D4x8x3 #BBZMR842RS x2

Requires:
  • BRX90 Rear PHAT™ Axle
