Rear Portal Axle Conversion Kit for AR44 PHAT™ BR955023

USD $93.00

Part #: BRPT955023KIT


LOADING IMAGES

Rear Portal Axle Conversion Kit for AR44 PHAT™ BR955023

USD $93.00

Part #: BRPT955023KIT

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Axle PartsPhat Axle Parts

PRODUCT DESCRIPTION

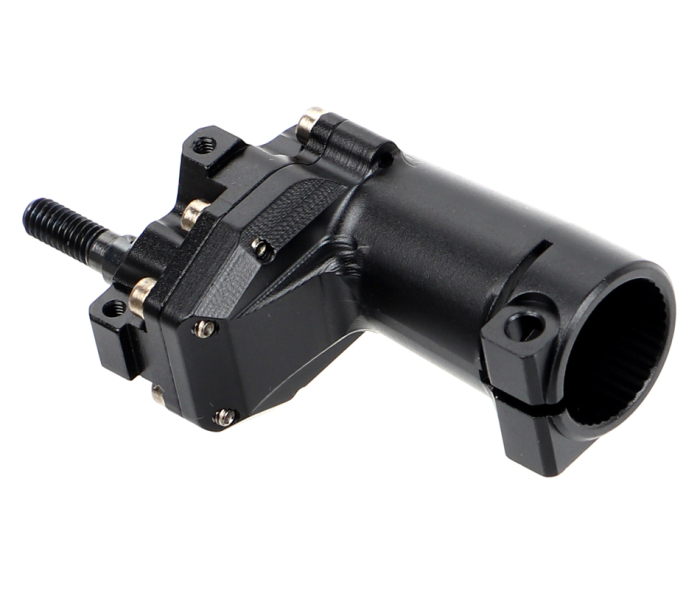

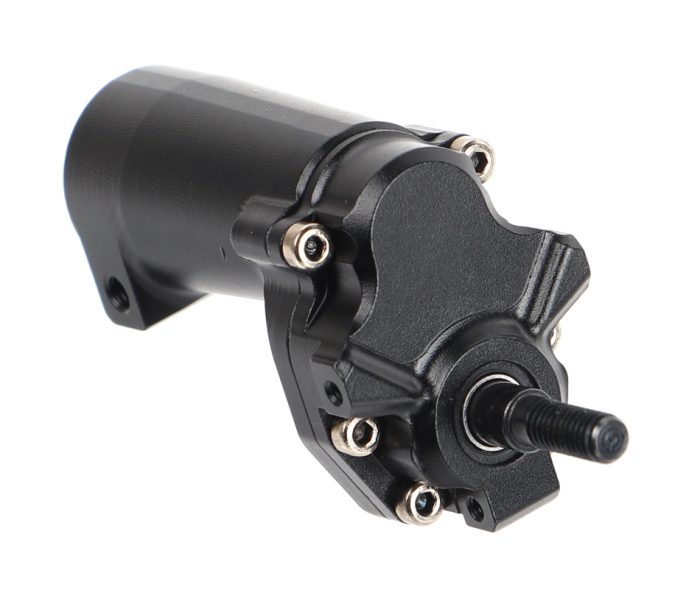

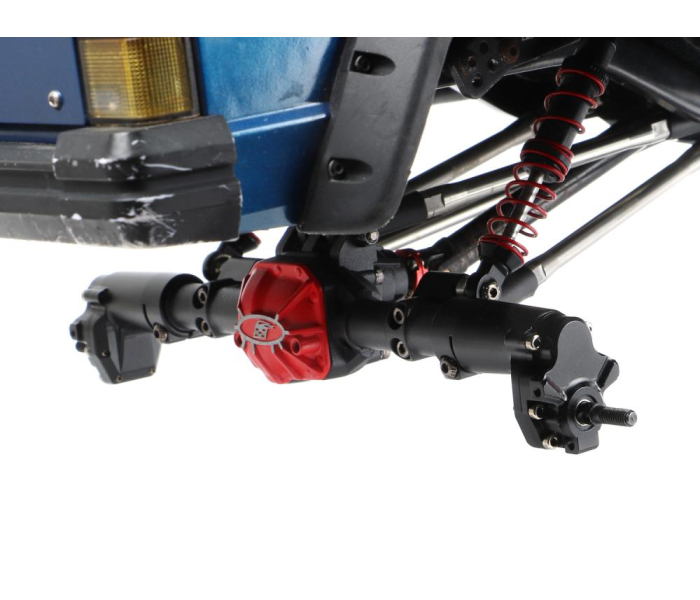

This is a complete set of rear portal axle conversion kit for the AR44 rear PHAT™ straight axle.

Specifications:

  • Hole to Hole: 193mm (7.6")
  • Weight: 270grams / 9.5oz (fully assembled)


Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin over AR44 PHAT™ straight axle
  • CNC aluminum portal lockouts & portal covers
  • BADASS™ heavy-duty steel rear straight driveshafts and portal driveshafts
  • Four heavy-duty hardened steel metal gears in each portal gearbox
  • Anti-twist steel brackets to prevent axle twist
  • Full rubber sealed bearings
  • Full 12.9-grade hardware
  • Compatible with PHAT™ Axle brake disc and caliper (requires optional adapter)


Fits:

  • AR44 rear PHAT™ straight axle
  • 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

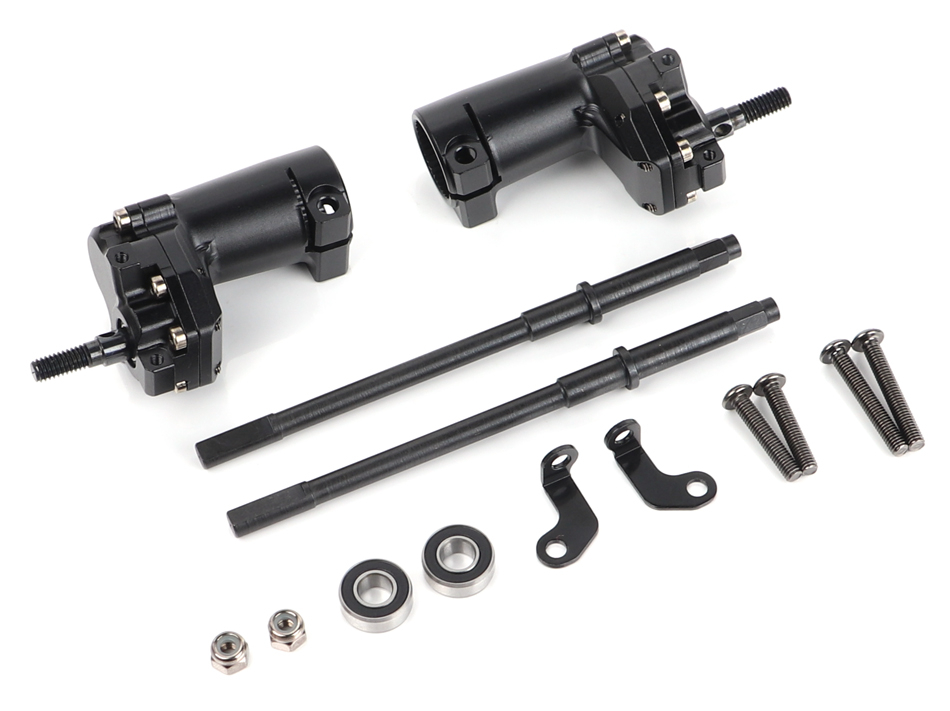

Includes:

  • 1x Left Side Portal Conversion Unit
  • 1x Right Side Portal Conversion Unit
  • 2x BADASS Rear Portal Driveshaft for AR44 Portal PHAT™ Rear Straight Axle
  • 1x Left Side Steel Anti-Twist Bracket
  • 1x Right Side Steel Anti-Twist Bracket
  • 2x Spacer
  • Full Rubber Sealed Bearings
  • Full 12.9-Grade Hardware


Requires:

  • AR44 Rear PHAT™ Straight Axle
