Rear Leaf Spring Kit for BRX01 & BRX02

USD $35.00

Part #: BRLC7064


LOADING IMAGES

Rear Leaf Spring Kit for BRX01 & BRX02

USD $35.00

Part #: BRLC7064

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Leaf SpringsBRX01 PartsBRX02 PartsBRX02 Optional PartsBRX01 Optional PartsUpgrade Lovers

PRODUCT DESCRIPTION

Product Resources

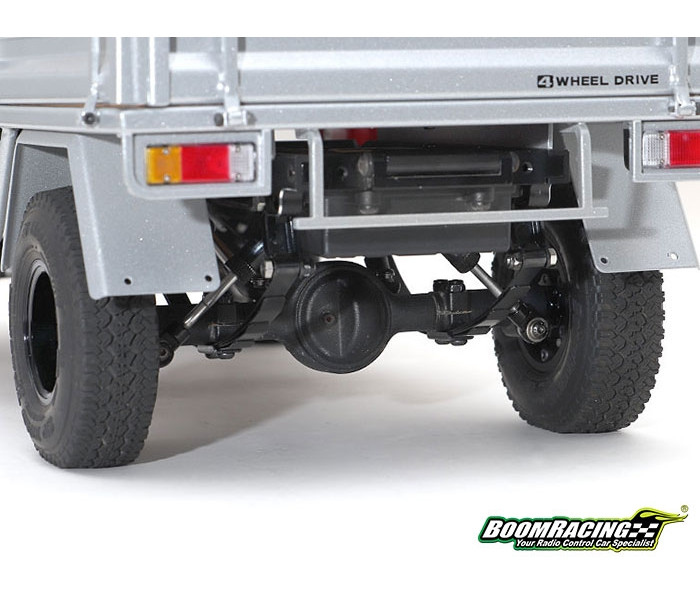

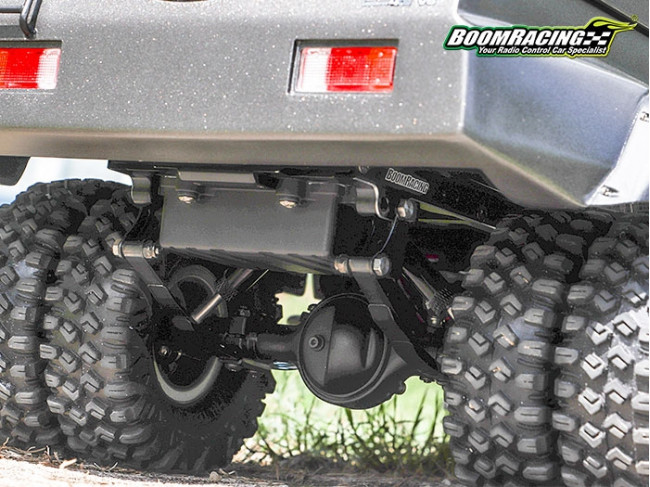

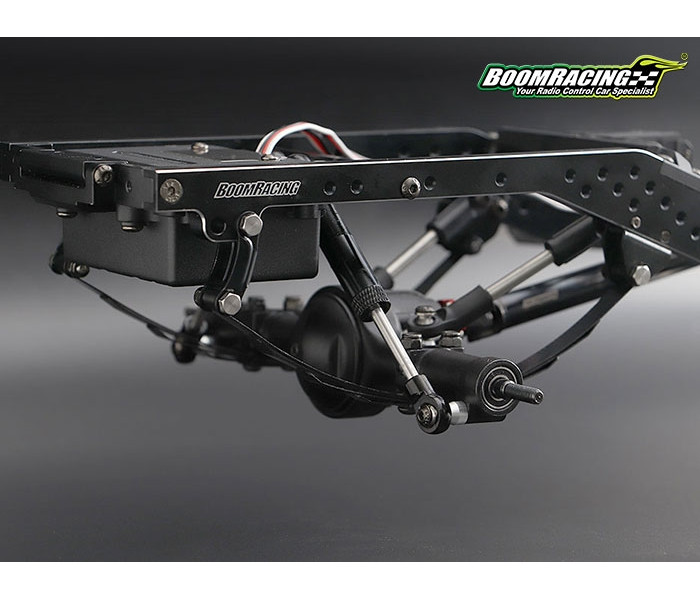

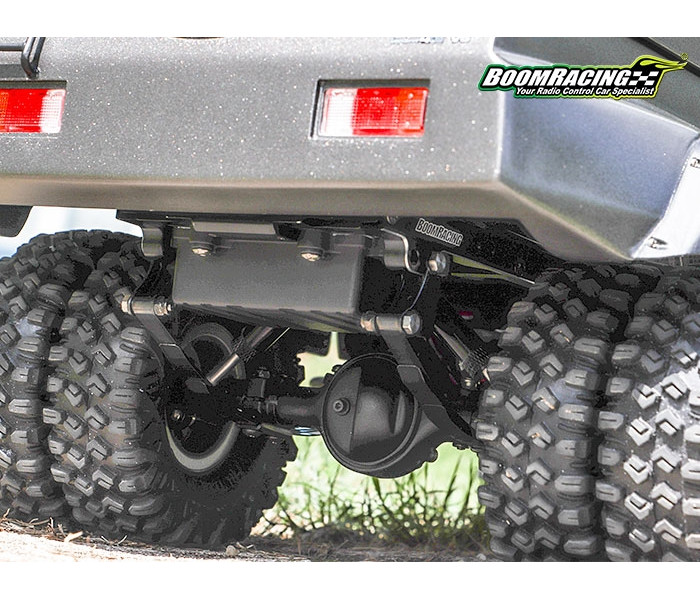

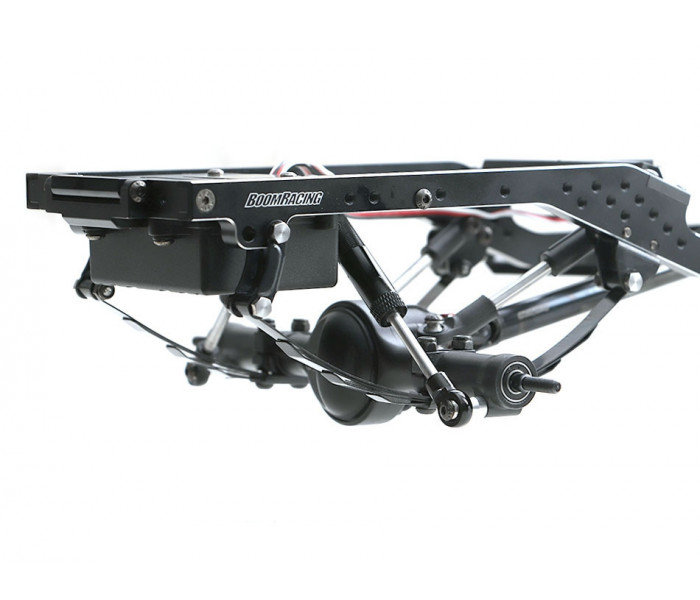

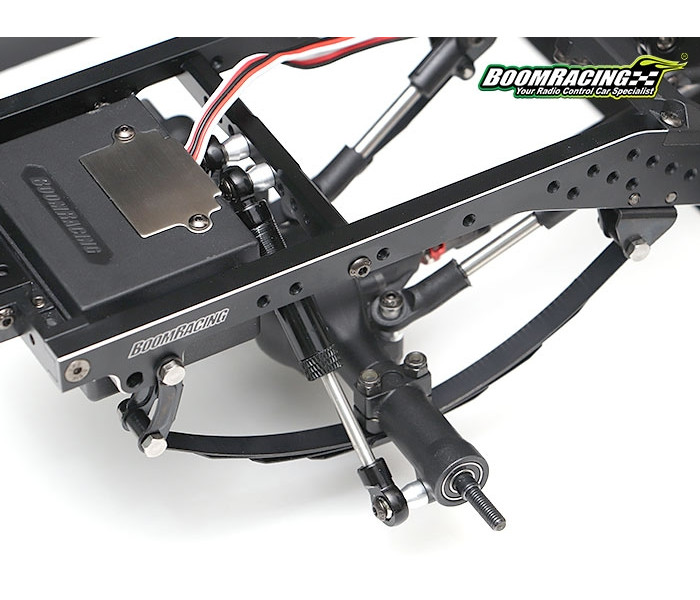

This is a set of Rear Leaf Spring Kit which fits BRX01 and BRX02.

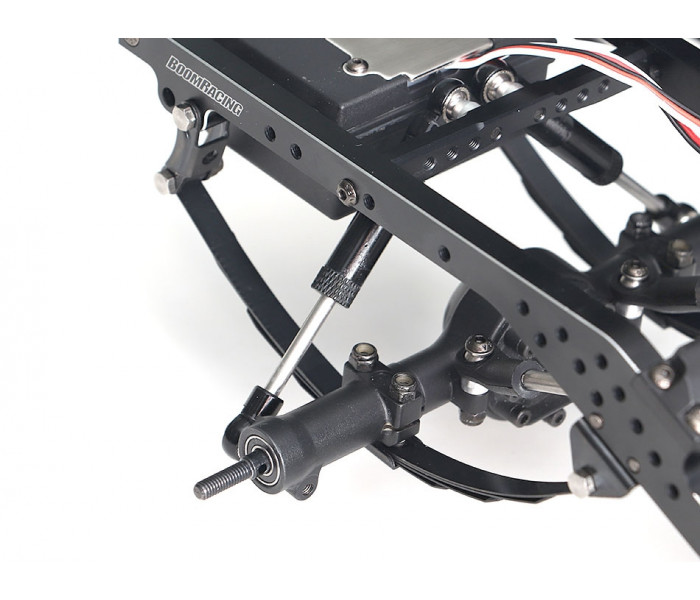

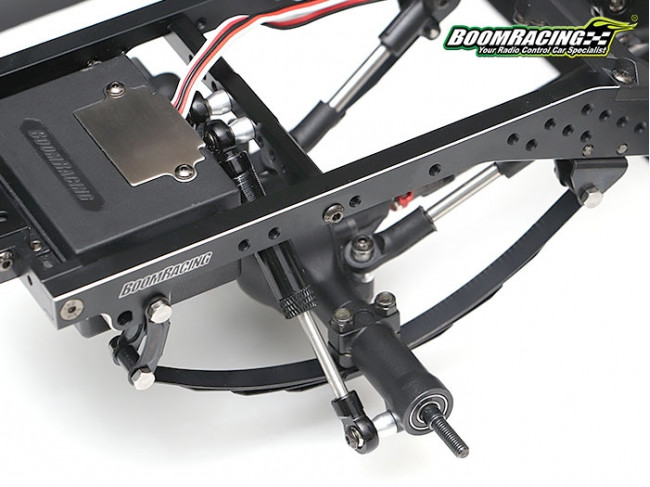

The leaf spring unit has a master leaf and three graduated leaves for adjustability. The leaves have an all-new shape design and use new proprietary steel material for durability and strength. You may use up to four leaves for adjusting the rebound strength.

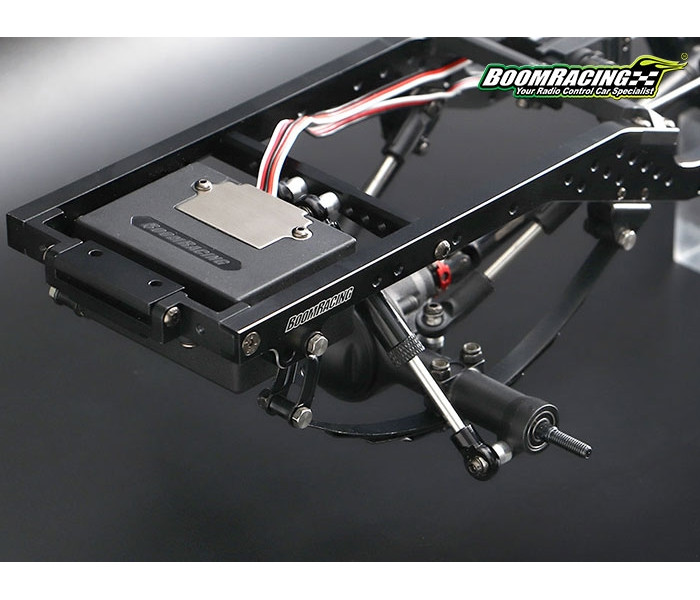

The Aluminum Rear Shock Crossmember has multiple mounting positions for adjustments. For the BRX01, the original shocks can be used with this leaf spring conversion kit.

Two Aluminum Anti-wrap Bars are included. Axle wrap is a problem that plagues leaf sprung vehicles, even in tiny trucks. It is unwanted suspension movement that allows the pinion angle to change, which can cause drivelines to bind and break. The bars will prevent this.

Realistic shackle bolts for ultimate scale realism, are included.

Specification:
  • 127mm eye-to-eye

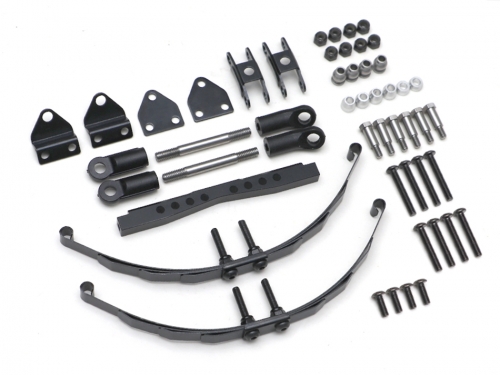

Includes:
  • Aluminum Rear Shock Crossmember #BRLC7064B (fits BRX01 only)
  • Rear Steel Leaf Spring Shackle #BRLC7064D
  • Rear Steel Leaf Spring Retainer #BRLC7064F
  • Master & Graduated Leaves (4 each) with Steel Leaf Channel (2) #BRLC7064A
  • Anti-wrap Bar #BRLC7064C
  • Spacers

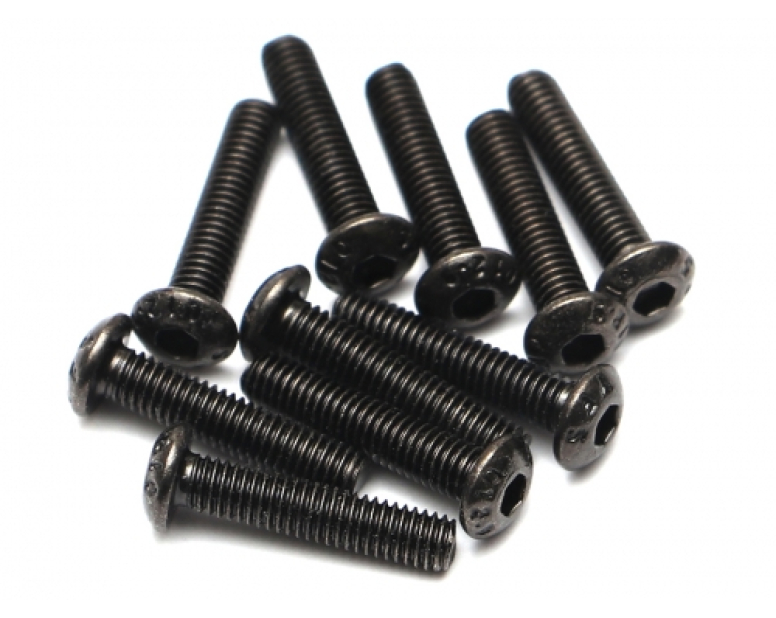

  • Stainless Steel Bolts #BRLC7064E
  • Hardware

Fits:
  • BRX01 (Rear Only)
  • BRX02 (Rear Only)

Optional Parts:
  • Center Slider (Rear) for BRX01 Center Skid Plate #BRLC7072
  • Center Slider (Rear) for BRX01 with BRX02 #BRX020020 High Clearance Skid Plate #BRLC7080 (4.5mm clearance gain)
  • Center Slider (Front & Rear) for BRX01 with BRX02 #BRX020020LF High Clearance Skid Plate #BRLC7095 (6mm clearance gain)

Installation Tip:
The receiver box should be installed first. Use a long nose plier to hold the nut between the chassis and the receiver box.

Note: the rear shock crossmember does not fit the BRX02.

Reviews (22)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.
