ProBuild™ XT6015Pin V2 6-Lug Aluminum Wheel Hub Adapters 1.5MM Pin Offset (2)

USD $12.00

Part #: BRXT6015PINV2


LOADING IMAGES

ProBuild™ XT6015Pin V2 6-Lug Aluminum Wheel Hub Adapters 1.5MM Pin Offset (2)

USD $12.00

Part #: BRXT6015PINV2

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HubsProbuild Parts

PRODUCT DESCRIPTION

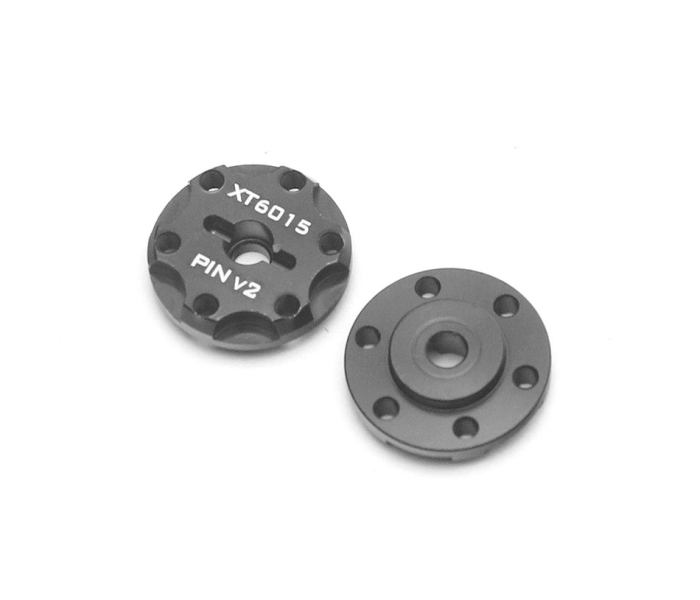

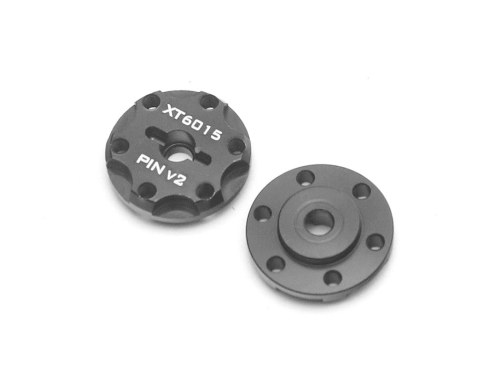

This is a pair of ProBuild™ XT6015PIN V2 aluminum wheel hub adapters for ProBuild™ 1.9" and 2.2" and TE37 KRAIT™ beadlock wheels.

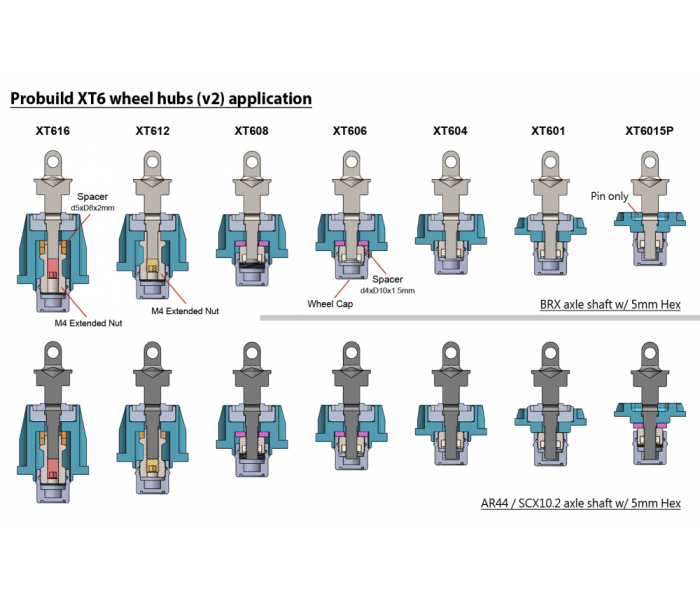

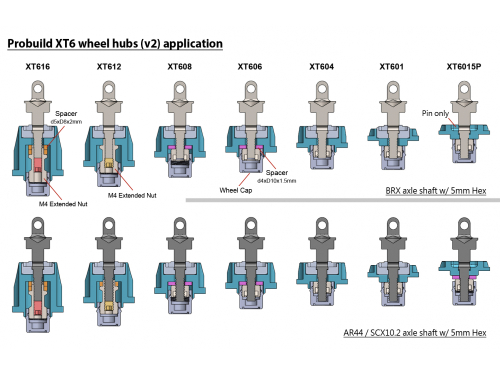

XT6015PIN is six lugs and 1.5mm pin offset. Uses M2.5 bolts. This hub does not require using hex. They use the hex pin instead of the wheel hex to provide the narrowest tuck.

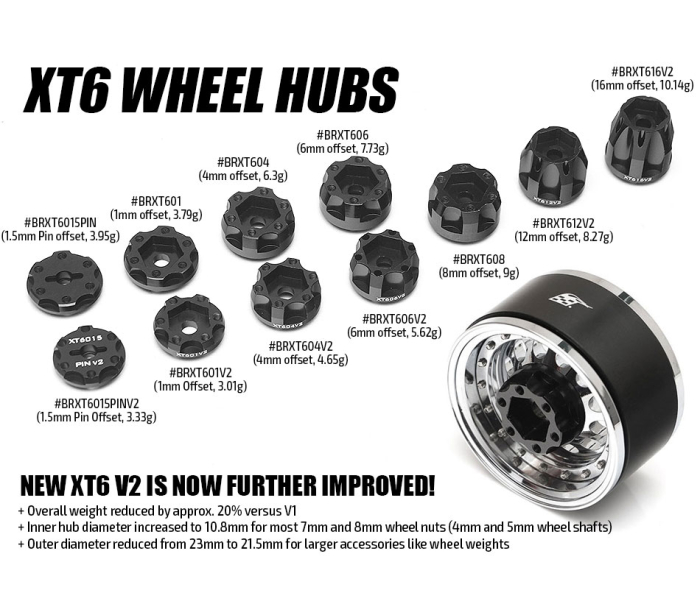

V2 is now further improved!
Overall weight is reduced in V2 by 20%. The outer diameter is reduced from 23mm to 21.5mm to allow for larger accessories like wheel weights. The inner hub diameter is increased to 10.8mm to fit most wheel shafts using M4 or M5 wheel nuts.

Specification:

  • Weight: 3.33g
  • Diameter: 21.5mm
  • Bolt Pattern: 6-Lugs
  • Offset: 1.5mm
  • Bolt Type: M2.5
  • Fits most 7mm and 8mm wheel nut wrenches (or M4 and M5 wheel nuts)

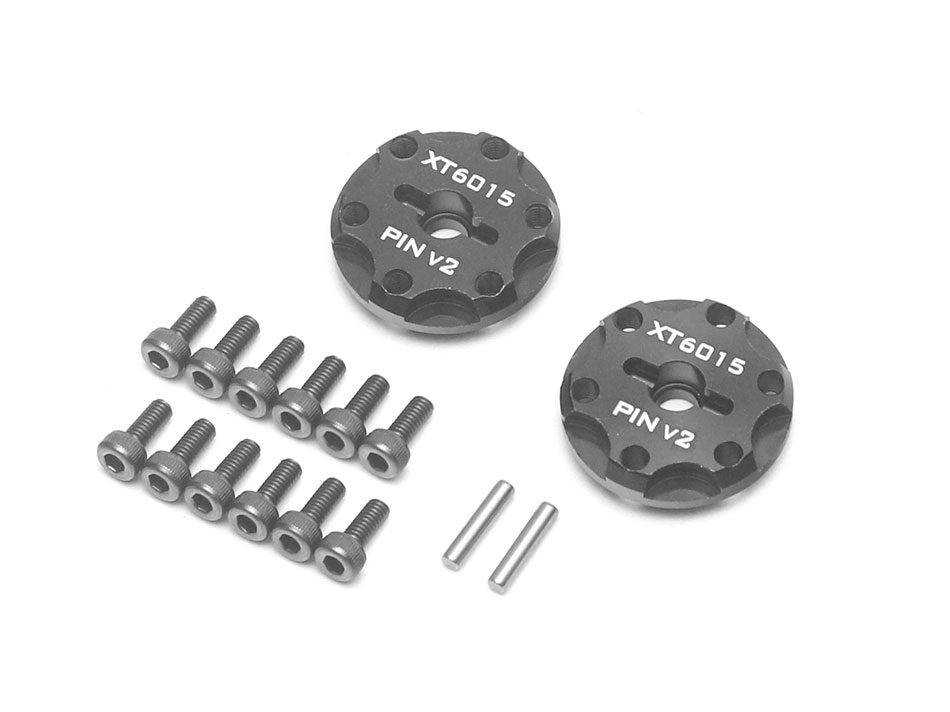

Includes:
  • 2x XT6015PIN V2 Aluminum Hubs (1.5mm Pin Offset)
  • 12x M2.5x6mm
  • 2x M2x10 Wheel Pin #BRASPIN210

Optional Parts:
  • ProBuild™ Mag Seat Lug Nut M2.5x6mm Scale Hardware Set (20) BRPROB-09

Optional Tool:
  • 7mm to 8mm (Thin-Walled) Nut Driver Adapter for M5 Locknuts BRT10056

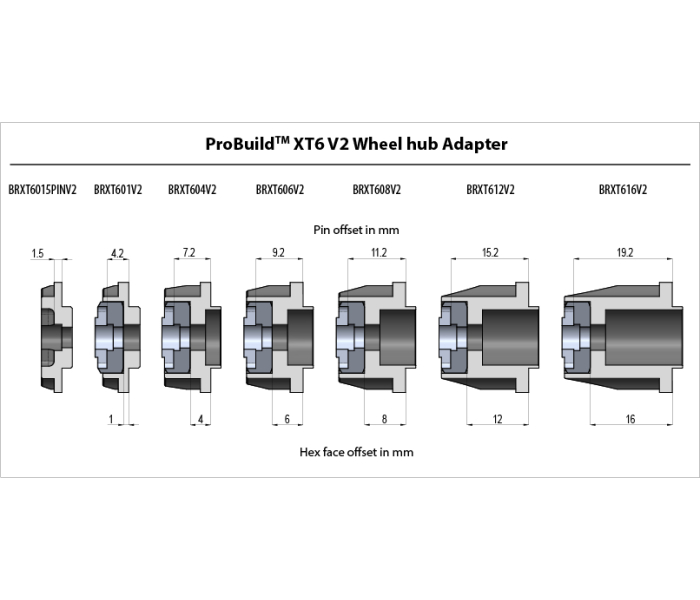

To measure the total wheel offset, add the hub offset to the wheel offset e.g. TE37X has a 5mm positive offset (without hubs), add the XT6015PIN hub (1.5mm pin offset) and it will give you a positive 3.5mm total offset.
