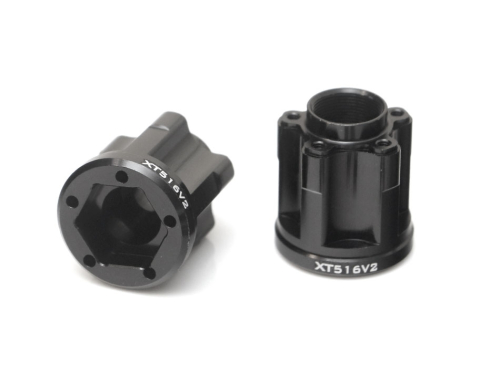

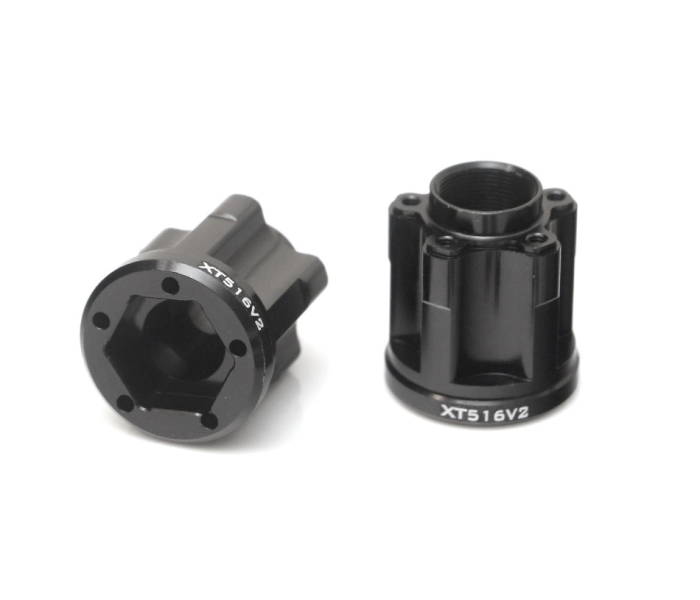

ProBuild™ XT516 V2 5-Lug Aluminum 12mm Wheel Hub Adapters 16mm Offset (2) Black

USD $17.50

Part #: BRXT516V2


LOADING IMAGES

ProBuild™ XT516 V2 5-Lug Aluminum 12mm Wheel Hub Adapters 16mm Offset (2) Black

USD $17.50

Part #: BRXT516V2

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HubsBRX01 PartsProbuild PartsBRX02 PartsBRX02 Optional PartsBRX01 Optional Parts

PRODUCT DESCRIPTION

XT5 Hub Series is a wheel hub adapter designed for Boom Racing 5-Lug beadlock wheels. Made out of CNC aluminum.

Two barrel nuts are included to accommodate shorter driveshafts.

Weight is further reduced in V2 version.

Note: XT5 hubs do not fit M5 wheel nuts or 8mm nut wrenches.

Specification:

  • 5 Bolt Design
  • Diameter: 20mm
  • Offset: 16mm
  • Hardware Type: M2
  • Barrel Nut: M4

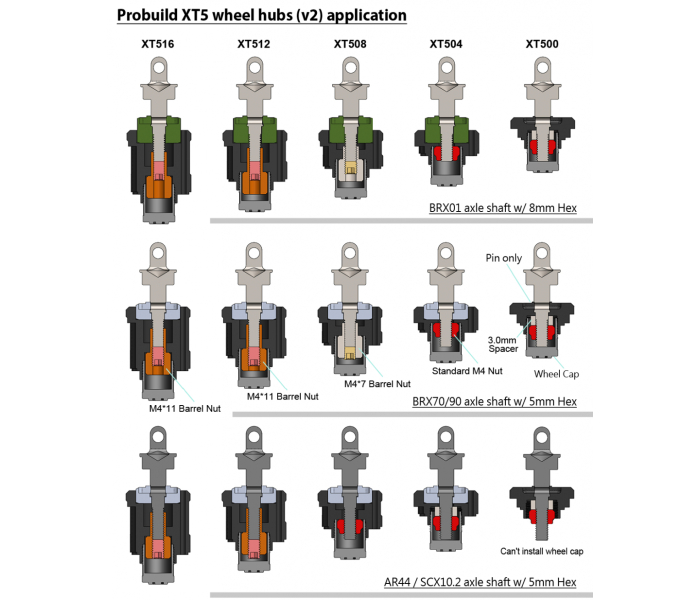

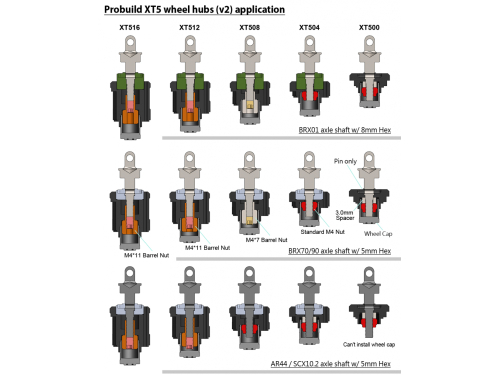

Fits:
  • All wheel shafts using M4 wheel nuts
  • 1.55" 16-Hole Steelie Beadlock (Front/Rear) BRW780955 (F/R)
  • 1.9" 16-Hole Steelie Beadlock (Front/Rear) BRW780919 (F/R)
  • 1.9" Narrow 16-Hole Steelie Beadlock (Front/Rear) BRW780920 (F/R)
  • 1.9" S100 Steelie Reversible Beadlock Wheels BRW780922
  • 1.9" S200 Steelie Reversible Beadlock Wheels BRW780933
  • 1.55"/1.9" ProBuild Wheels (5-Lug Faceplates)

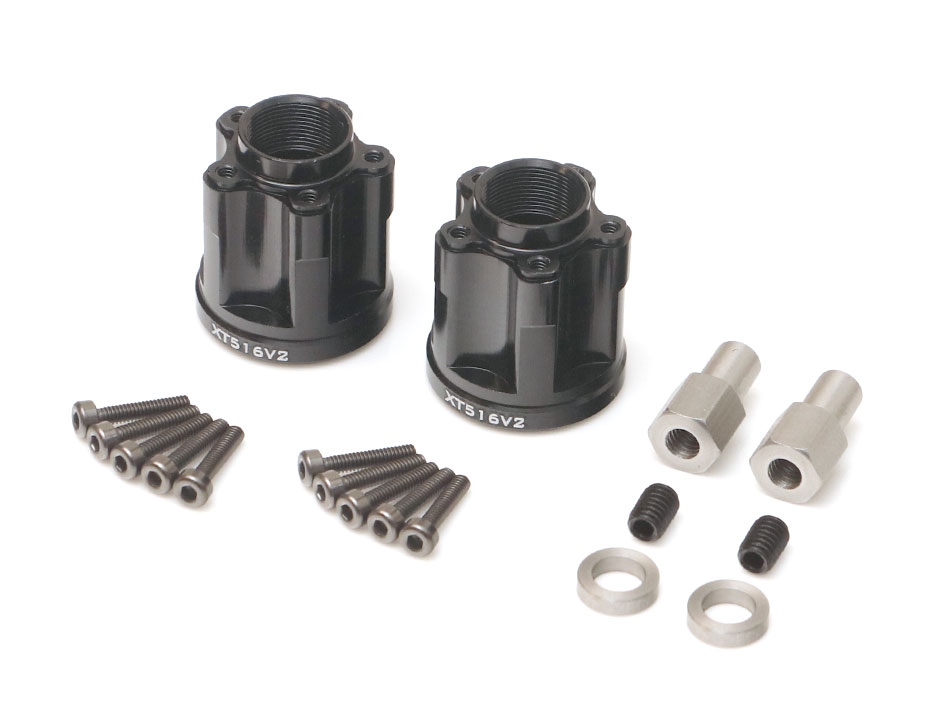

Includes:
  • 2x XT516V2 Aluminum Hubs (16mm Offset)
  • 10x M2x10mm
  • 2x Barrel Nut
  • 2x Set Screw
  • 2x Spacer

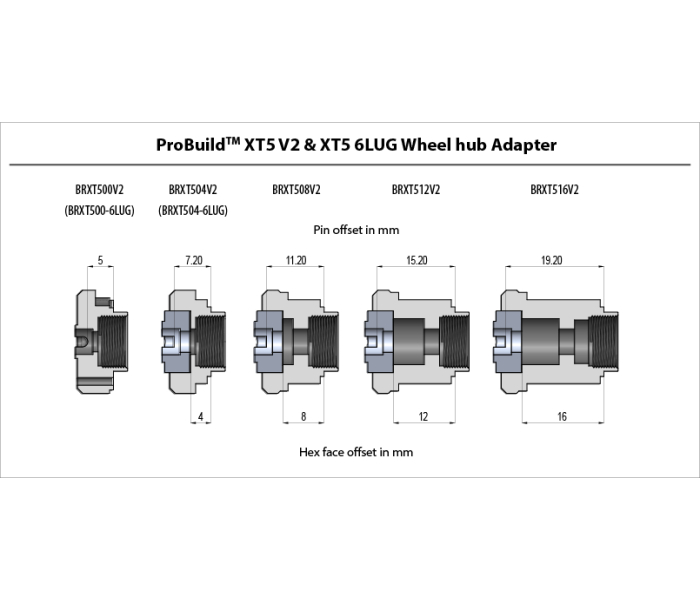

All 5-Lug Hub Size Options:
  • XT500 0mm Pin Wheel Hub BRXT500
  • XT504 4mm Wheel Hub BRXT504V2
  • XT508 8mm Wheel Hub BRXT508
  • XT512 12mm Wheel Hub BRXT512
  • XT516V2 16mm Wheel Hub BRXT516V2

Optional Parts:
  • ProBuild™ Mag Seat Lug Nut M2x8mm Scale Hardware Set (20) BRPROB-11
