ProBuild™ XT504 V2 5-Lug Aluminum 12mm Wheel Hub Adapters 4MM Offset Version 2 (2) Black

USD $14.00

Part #: BRXT504V2


LOADING IMAGES

ProBuild™ XT504 V2 5-Lug Aluminum 12mm Wheel Hub Adapters 4MM Offset Version 2 (2) Black

USD $14.00

Part #: BRXT504V2

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HubsBRX01 PartsProbuild PartsBRX02 PartsBRX02 Optional Parts

PRODUCT DESCRIPTION

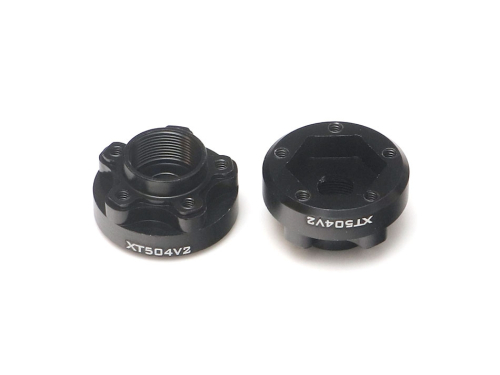

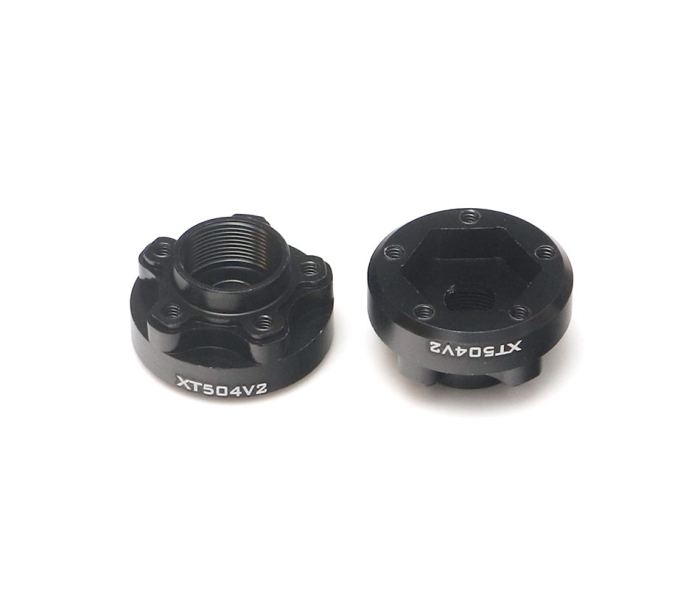

This is a pair XT5 V2 hub adapter designed for Boom Racing 5-Lug beadlock wheels. Made out of CNC aluminum.

Note: XT5 hubs do not fit M5 wheel nuts or 8mm nut wrenches.

Specification:

  • 5 Bolt Design
  • Diameter: 20mm
  • Offset: 4mm
  • Hardware Type: M2

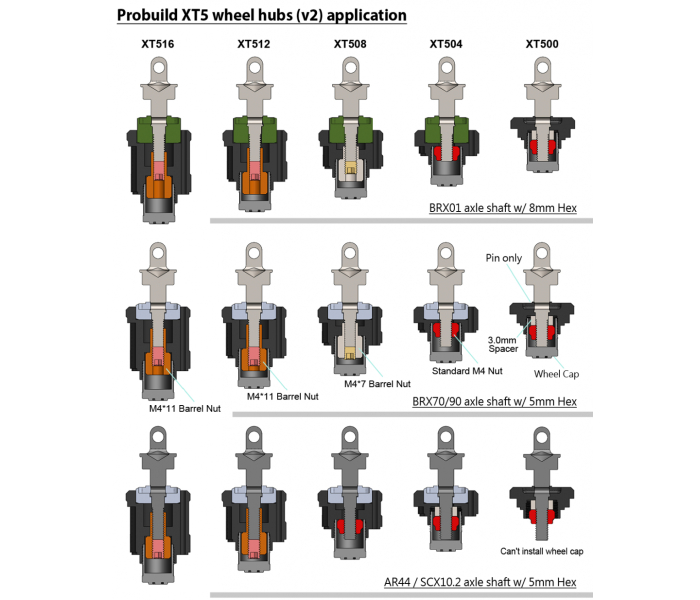

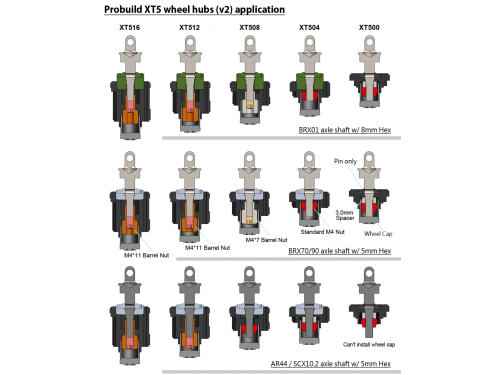

Fits:
  • All wheel shafts using M4 wheel nuts
  • 1.55" 16-Hole Steelie Beadlock (Front/Rear) BRW780955 (F/R)
  • 1.9" 16-Hole Steelie Beadlock (Front/Rear) BRW780919 (F/R)
  • 1.9" Narrow 16-Hole Steelie Beadlock (Front/Rear) BRW780920 (F/R)
  • 1.9" S100 Steelie Reversible Beadlock Wheels BRW780922
  • 1.9" S200 Steelie Reversible Beadlock Wheels BRW780933
  • 1.55"/1.9" ProBuild Wheels (5-Lug Faceplates)

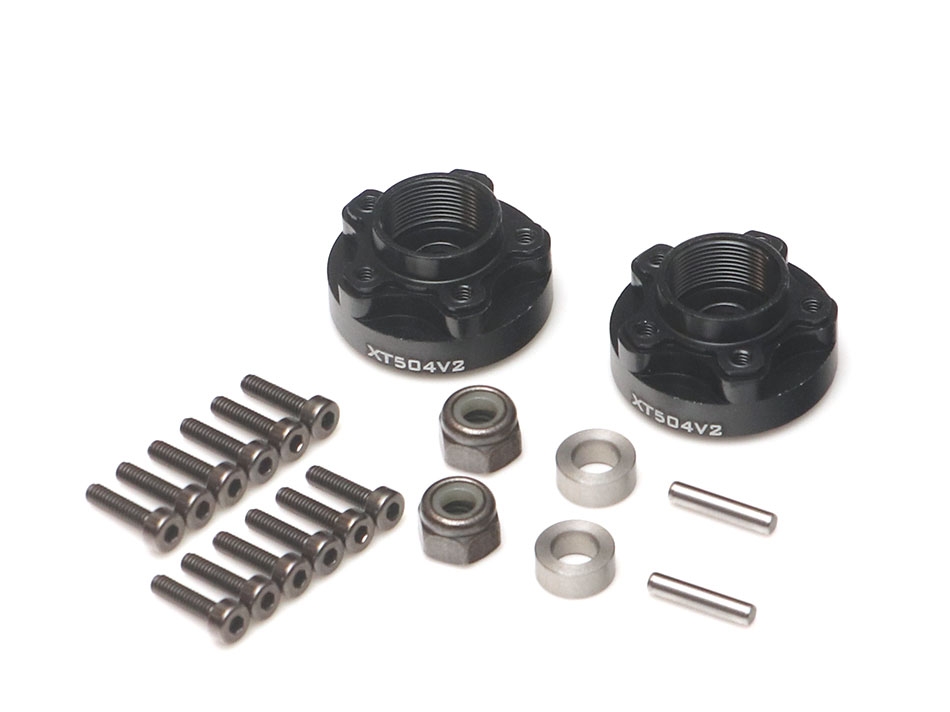

Includes:
  • 2x XT504 aluminum hub (4mm Offset)
  • 2x wheel pin
  • 2x aluminum wheel spacer
  • 2x non-flanged stainless steel rubber wheel nut
  • 10x 12.9 grade M2x10mm hardware

Optional Parts:
  • ProBuild™ Mag Seat Lug Nut M2x8mm Scale Hardware Set (20) BRPROB-11
