ProBuild™ XT500 6-Lug Aluminum 12mm Wheel Pin Hub Adapters 0MM Offset (2) Black

USD $16.00

Part #: BRXT500-6LUG


LOADING IMAGES

ProBuild™ XT500 6-Lug Aluminum 12mm Wheel Pin Hub Adapters 0MM Offset (2) Black

USD $16.00

Part #: BRXT500-6LUG

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HubsProbuild Parts

PRODUCT DESCRIPTION

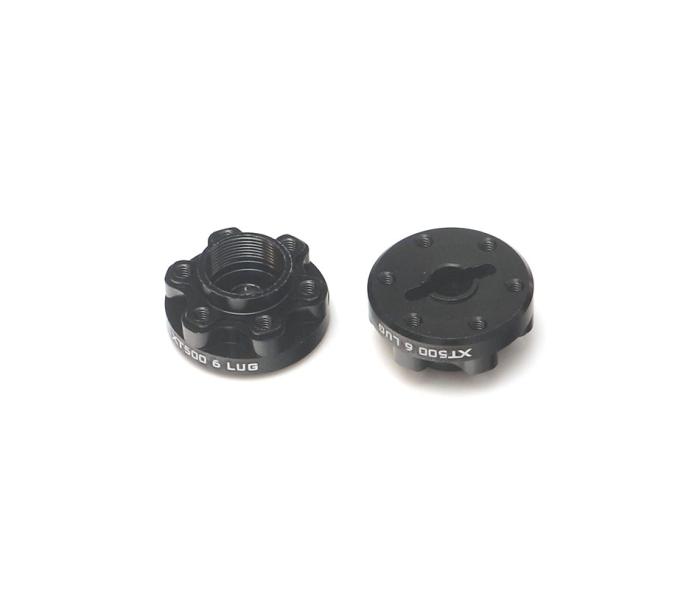

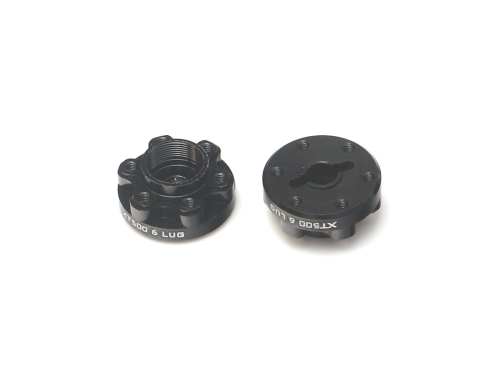

This is a pair of XT5-6Lug aluminum hubs, a six-lug hub specially designed for Boom Racing 1.55" ProBuild wheels. This hub uses the XT5 center cap system, with a six-lug bolt pattern. The XT5-6Lug hub bolts are less spaced out than the XT6 six-lug hub bolts for a more realistic scale look.

Made of billet CNC aluminum.

This hub does not require wheel hex, it uses a pin to secure directly on the drive shaft.

Note: This is not the same as the six lug XT6 wheel hubs. XT5-6LUG is smaller than XT6 made for 1.55 six lug faceplates.

Note: The XT5 hubs do not fit M5 wheel nuts or 8mm nut wrenches.

Specification:

  • 6 Bolt Design
  • Diameter: 20mm
  • Offset: 0mm
  • Hardware Type: M2
  • Wheel Hub Type: Pin (No Hex)

Fits:
  • All wheel shafts using M4 wheel nuts
  • 1.55" ProBuild 6-Bolt faceplates

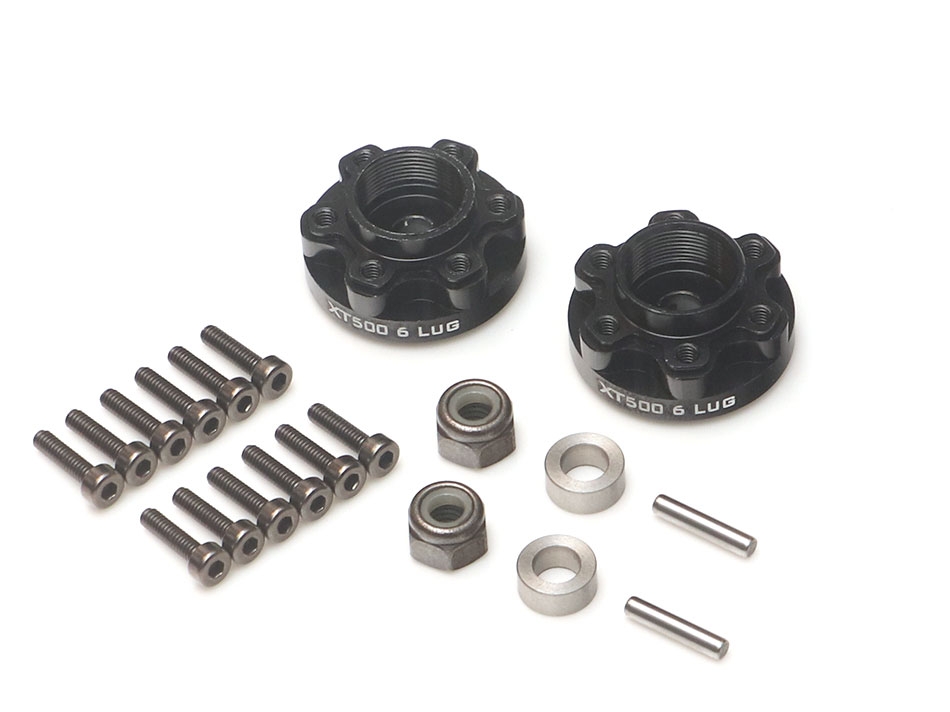

Includes:
  • 2x XT500-6Lug Aluminum Hubs (0mm Offset)
  • 10x M2x8mm
  • 2x Nyloc
  • 2x Spacer
  • 2x M2x10 Wheel Pin #BRASPIN210

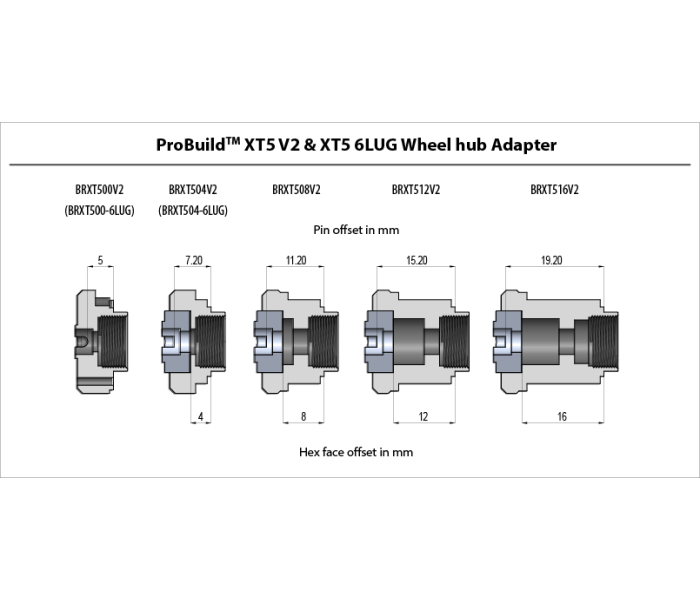

All XT5-6Lug Hub Size Options:
  • XT500-6Lug 0mm Pin Wheel Hub BRXT500-6LUG
  • XT504-6Lug 4mm Wheel Hub BRXT504-6LUG

Optional Parts:
  • ProBuild™ Mag Seat Lug Nut M2x8mm Scale Hardware Set (20) BRPROB-11
