ProBuild™ 2.2" Ultra Lightweight Performance CR6 Adjustable Offset Beadlock Wheels (2) White/Carbon Fiber

USD $53.00

Part #: BRPB2210WCF


LOADING IMAGES

ProBuild™ 2.2" Ultra Lightweight Performance CR6 Adjustable Offset Beadlock Wheels (2) White/Carbon Fiber

USD $53.00

Part #: BRPB2210WCF

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 2.2 Beadlock WheelsProbuild Ready Sets

PRODUCT DESCRIPTION

Product Resources
instruction-manual---probuild_22_beadlock-wheels-v1_1650455770_1664265981.pdf

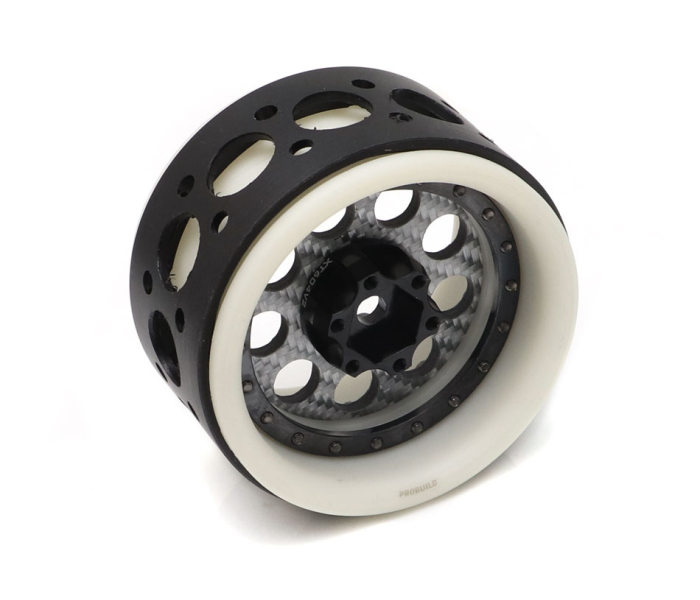

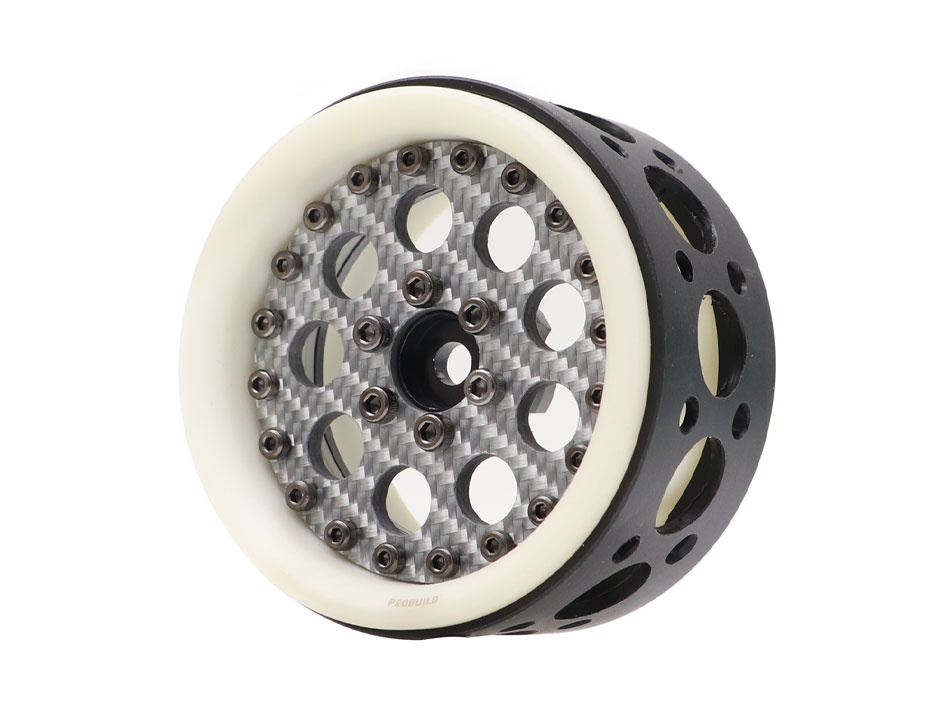

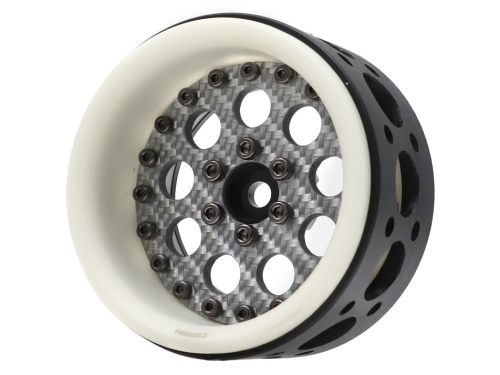

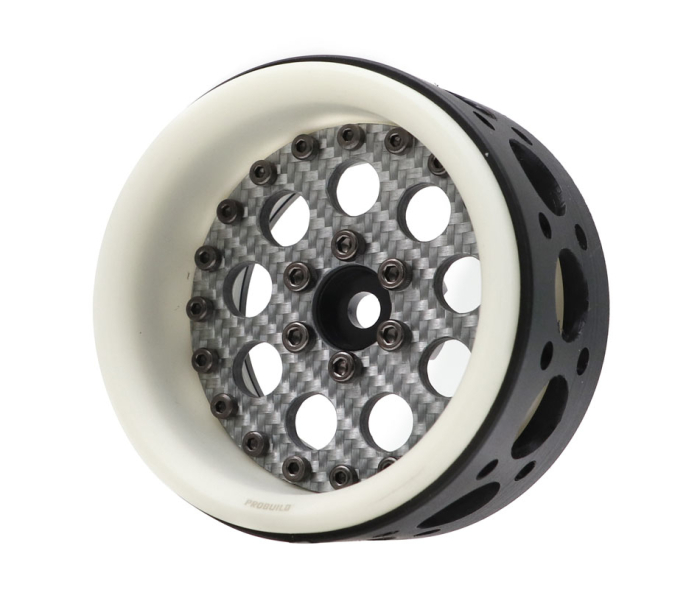

This is ProBuild 2.2" Ultra Lightweight CR6 Mesh Adjustable Offset Aluminum Beadlock Wheels (2). The Boom Racing ProBuild wheels use a patented design for quick and easy installation and setup.

Features:

  • Ultra-lightweight at 60.6g fully assembled
  • Four fully adjustable offsets built-in
  • ABS barrels can be painted
  • Less stress on the drivetrain by reducing rotational mass
  • Control over where to add weight - exactly where you need it
  • Large inner wheel diameter for adding weights
  • CNC machined billet ABS barrels with reinforced sidewalls for maximum weight reduction and durability
  • Delrin center ring for durable and lightweight construction
  • Performance cut CNC machined center ring design to maximum weight reduction and reduce rotational mass
  • Carbon fiber faceplate for superb looks and lightweight performance
  • New smooth barrel lip style for sliding through rocks
  • XT6 V2 alum hubs are lightweight, and fit driveshafts using M4 and M5 wheel nuts
  • 7mm to 8mm wheel wrench adapter included
  • 12.9-grade hardware

Wheel Combination:
  • Size: 2.2"
  • Width: Standard
  • Barrel Color: White
  • Barrel Material: ABS
  • Center Ring Material: Delrin
  • Center Ring Style: Performance Cut
  • Faceplate Style: CR6
  • Faceplate Color: Silver
  • Faceplate Material: Carbon Fiber
  • Outer hardware: Cap Head 12.9
  • Bolt Pattern: 6-Lug
  • Hub: XT604V2 (4mm Offset)
  • Hub Hardware: Cap Head 12.9

Build your wheels exactly the way you want with Boom Racing's all-new ProBuild Wheels.
The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

What makes PROBUILD probuild?
  • High changeability, unlimited possibilities
  • Built-in offset options
  • Revolutionary and cutting-edge designs
  • Engineered to the exact specifications of world-class drivers

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

Specification:
  • Diameter: 2.2"
  • Width: 36.5mm (1.437")
  • Inner Wheel Clearance: 52.5mm (2.067")
  • Weight:
    • 60.6 grams per wheel (fully assembled)
    • 46.4 grams per wheel (without hub and hardware)

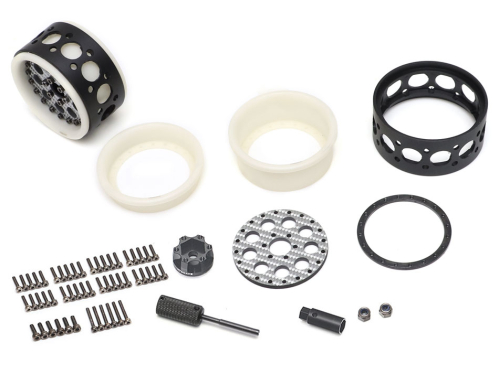

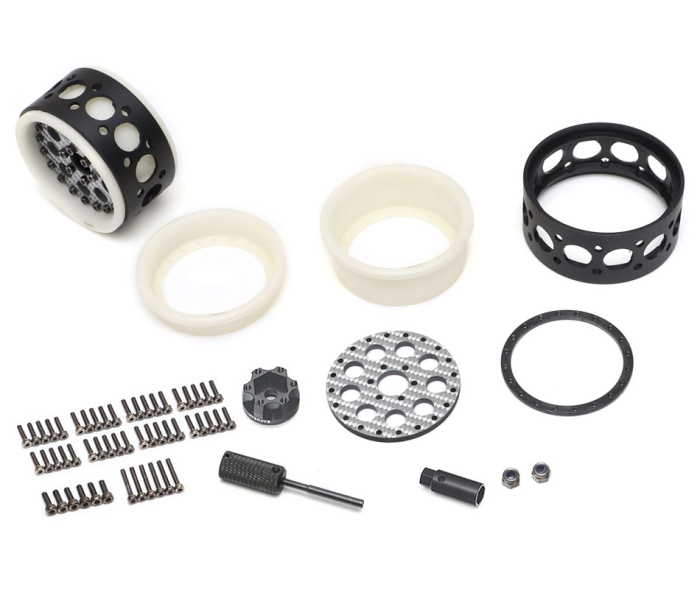

What's Included?
  • 2x ABS 13.5mm Barrel
  • 2x ABS 23mm Barrel
  • 2x Delrin 29.5mm Beadlock Performance Cut Center Lock Ring
  • 2x Carbon Fiber Faceplate
  • 2x XT604V2 Alum Wheel Hub Adapter #BRXT604V2
  • 20x M2x8mm 12.9 Grade Socket Cap Screw for wheel #BRPROB-07BK
  • 12x M2.5x8mm 12.9 Grade Socket Cap Screw for hub #BRPROB-08
  • 6x M2x14 12.9 Grade Socket Cap Pilot Screw
  • 2x M4 Nyloc Nut
  • 2x M5 Nyloc Nut
  • 1x 7m to 8mm (Thin-Walled) Nut Driver Adapter #BRT10056
  • 1x Decal Sheet

Fits:

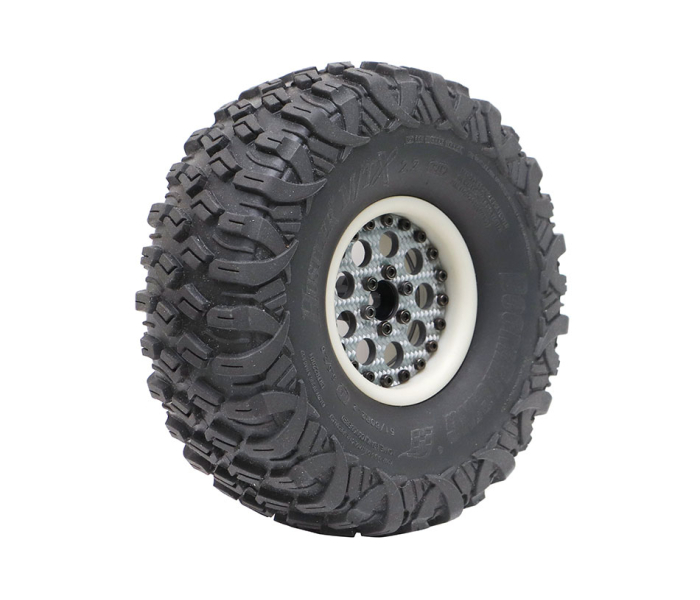

  • 2.2" Crawler Tires
  • XT6 V2 hubs fit M4 and M5 locknuts (fits 7mm and 8mm wrenches with diameters smaller than 10.8mm)

Optional Wheel Hub Adapter Sizes:
  • XT6015PINV2 - 1.5mm Pin Alum Offset #BRXT6015PINV2
  • XT601V2 - 1mm Alum Offset #BRXT601V2
  • XT604V2 - 4mm Alum Offset #BRXT604V2 (Included)
  • XT606V2 - 6mm Alum Offset #BRXT606V2
  • XT608V2 - 8mm Alum Offset #BRXT608V2
  • XT612V2 - 12mm Alum Offset #BRXT612V2
  • XT616V2 - 16mm Alum Offset #BRXT616V2

Optional Hex:
  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

7mm to 8mm (Thin-Walled) Nut Driver Adapter #BRT10056

This is a hardened steel 7mm to 8mm socket nut wrench adapter. Eliminate the need for an 8mm socket nut wrench. This thin-walled 8mm (10.5mm) wrench adapter fits the Boom Racing XT6 V2 hubs. Use this if your vehicle uses M5 locknuts for the drive shafts. Features a center hole for better torquing.

Build your beadlock wheels exactly the way you want like a Pro!
