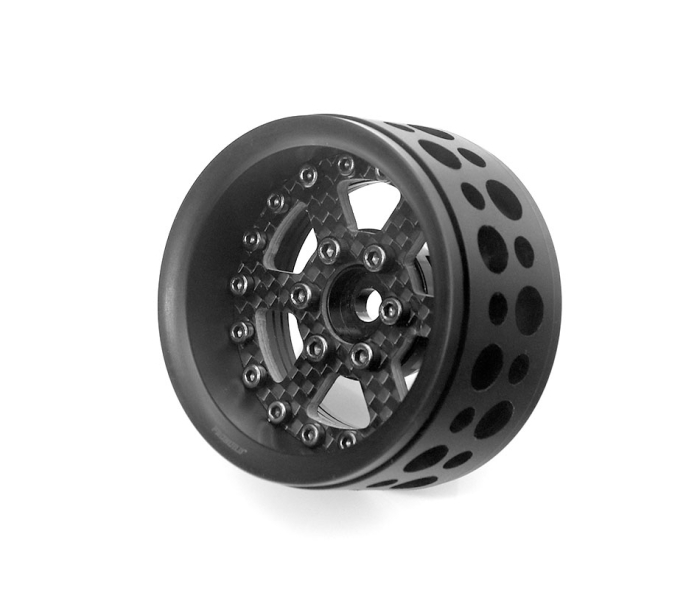

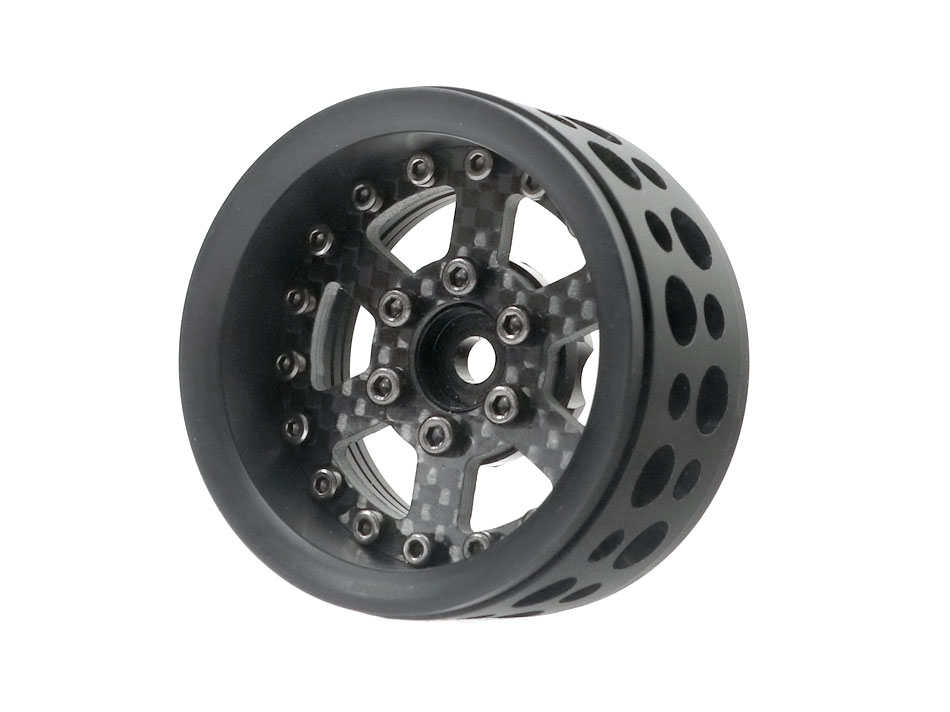

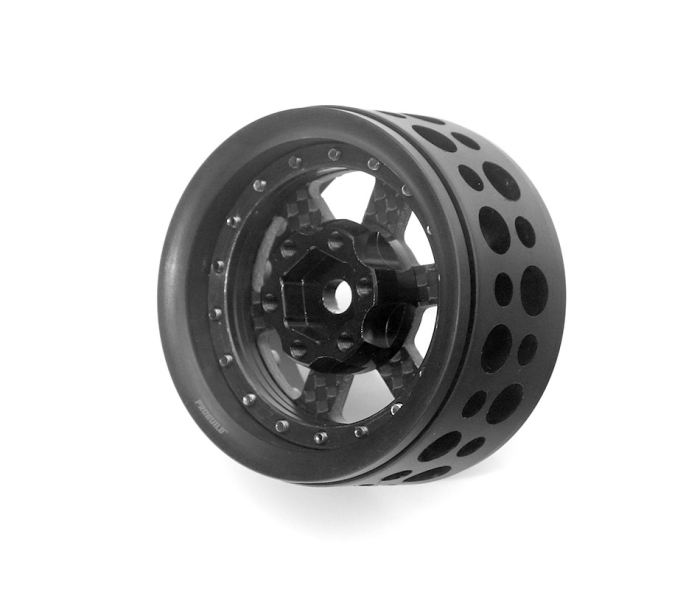

ProBuild™ 1.9" Ultra Lightweight Performance CF6 Adjustable Offset Beadlock Wheels (2) Black/Carbon Fiber

USD $49.50

Part #: BRPB049BKCF


LOADING IMAGES

ProBuild™ 1.9" Ultra Lightweight Performance CF6 Adjustable Offset Beadlock Wheels (2) Black/Carbon Fiber

USD $49.50

Part #: BRPB049BKCF

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 1.9 Beadlock WheelsProbuild Ready Sets

PRODUCT DESCRIPTION

Product Resources
installation-manual-probuild-19-beadlock-wheels-v1_4_1649318924.pdf

This is ProBuild™ 1.9" Ultra Lightweight Performance CF6 Adjustable Offset Beadlock Wheels (2) Black/Carbon Fiber (2). The Boom Racing ProBuild wheels use a patented design for quick and easy installation and setup.

Introducing the ultra-lightweight version of ProBuild 1.9" wheels in a 6-lug bolt pattern.

This lightweight ProBuild wheel is performance-oriented, designed to reduce weight and rotational mass.

The construction of the wheel is designed to be durable and lightweight. The plastic barrels are machined from billet ABS blocks. The carbon fiber faceplate is inset which is designed to protect it from impact damages on the trails. The all-new barrel lip design helps the rig slide through rocks and whatever the terrain throws at it.

The performance cut CNC machined Delrin center ring helps reduce rotational mass and maintains a strong structure to clamp the beads securely.

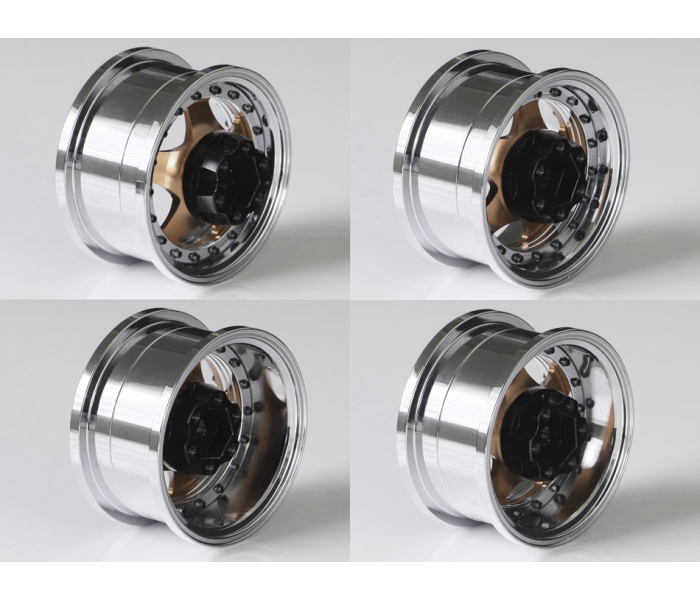

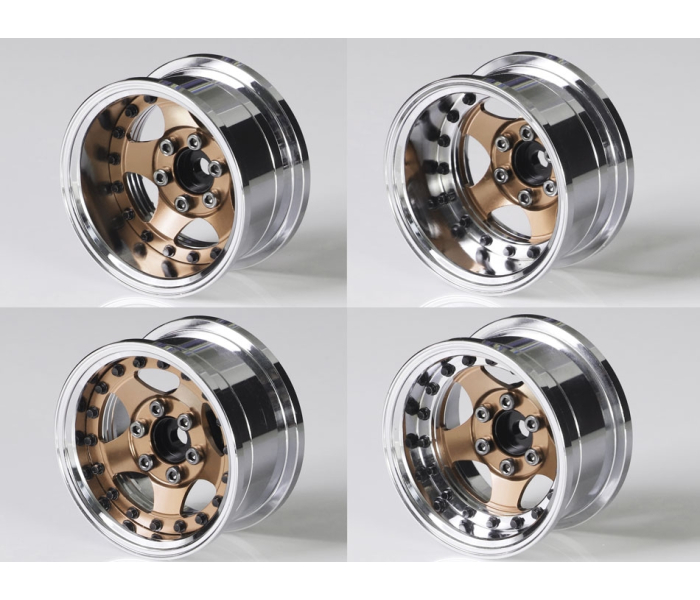

This lightweight ProBuild version has the same built-in offsets ProBuild is known for - four fully adjustable offsets built-in, and are interchangeable with all existing 1.9" ProBuild parts.

It can typically reduce up to 30-50 grams per wheel versus standard aluminum wheels.

Features:

  • Ultra-lightweight at 42g fully assembled (28g without hub) with 18 bolts
  • Four fully adjustable offsets built-in
  • Less stress on drivetrain by reducing rotational mass
  • Control over where to add weight - exactly where you need it

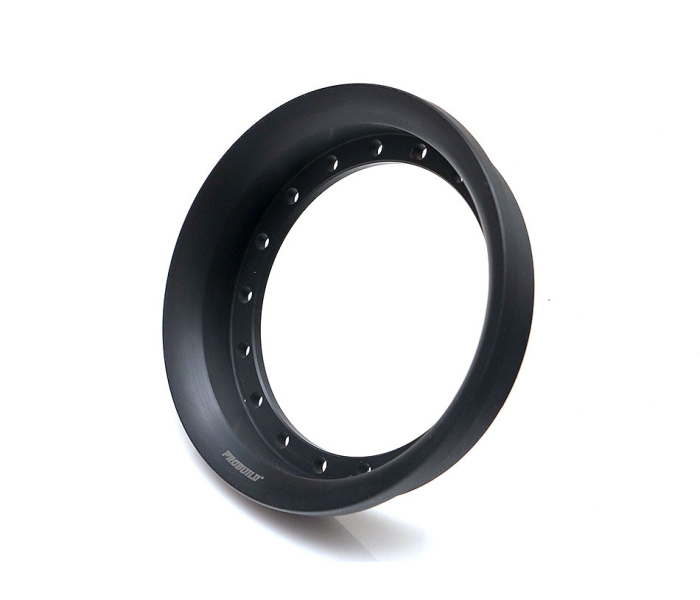

  • CNC machined billet ABS barrels for maximum weight reduction and durability
  • Large inner wheel diameter for adding weights
  • Delrin center ring for durable and lightweight construction
  • Performance cut CNC machined center ring design to maximum weight reduction and reduce rotational mass

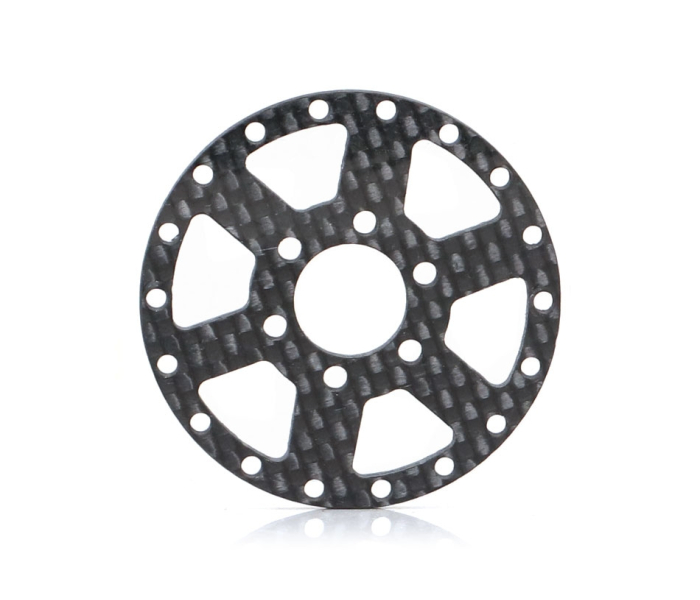

  • Carbon fiber faceplate for superb looks and lightweight performance
  • New smooth barrel lip style for sliding through rocks
  • XT6 V2 alum hubs are lightweight, and fit driveshafts using M4 and M5 wheel nuts
  • Alum hubs, 12.9-grade hardware, and 7mm wheel wrench adapter included

Wheel Combination:
  • Size: 1.9"
  • Width: Standard
  • Barrel Color: Black
  • Barrel Material: Billet ABS Plastic
  • Center Ring Material: Delrin (Performance Cut)
  • Center Ring Style: CNC Machined
  • Faceplate Style: CF6
  • Faceplate Material: Black Carbon Fiber (3mm)
  • Outer hardware: Cap Head 12.9
  • Bolt Pattern: 6-Lug
  • Hub Size: XT604 (4mm Offset)
  • Hub Hardware: Black
  • Lock Ring: Black

Build your wheels exactly the way you want with Boom Racing's all-new ProBuild Wheels [Patent Pending].

The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

What makes PROBUILD probuild?
  • High changeability, unlimited possibilities
  • Built-in offset options
  • Revolutionary and cutting edge designs
  • Engineered to the exact specifications of world-class drivers

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

Specification:
  • Diameter: 1.9"
  • Width: 29.4mm (1.157")
  • Inner Wheel Clearance: 45mm (1.771")
  • Weight:
    • 43 grams per wheel (fully assembled)
    • 29 grams per wheel (without hub and hardware)

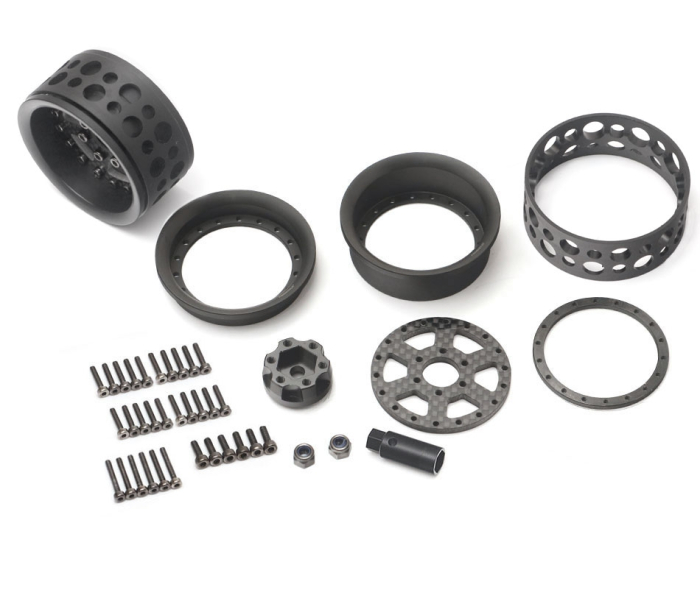

What's Included? All Ready-Sets come with the following:

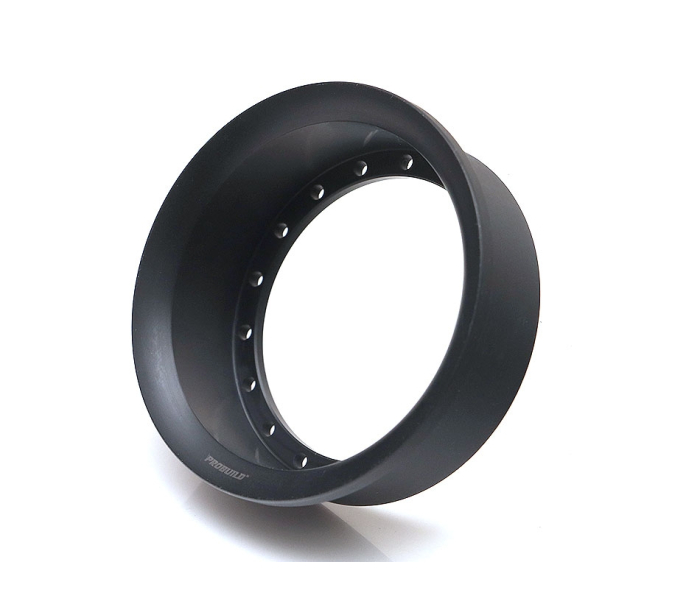

  • 2x ABS Machined 7.5mm Barrel #BRPROB-01
  • 2x ABS Machined 15mm Barrel #BRPROB-02

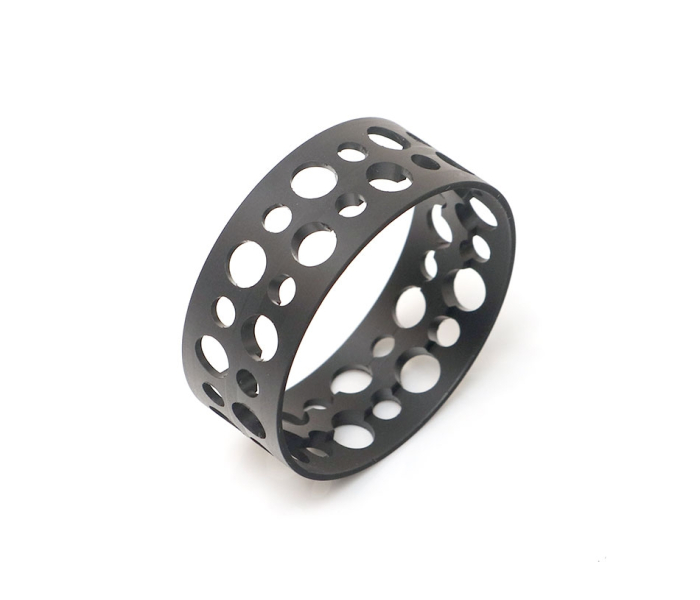

  • 2x Delrin (Lightweight Version) 21.5mm Beadlock Center Piece
  • 2x Carbon Fiber Faceplate
  • 2x Steel Lock Ring #BRPROB-05

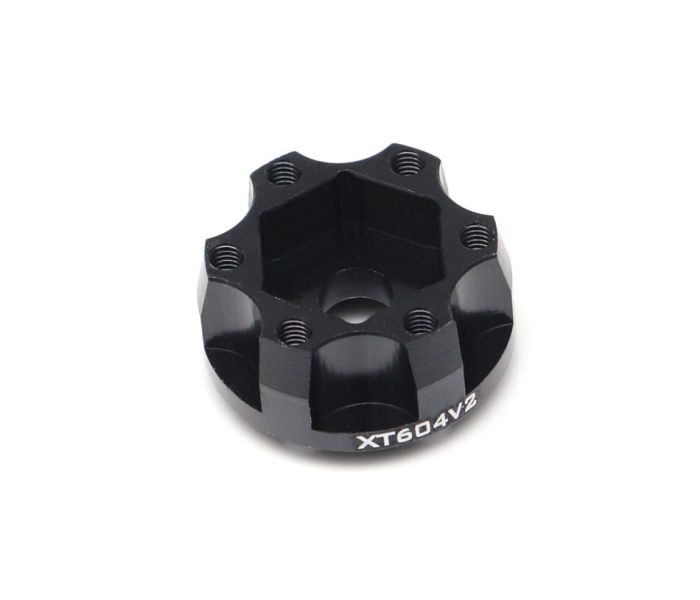

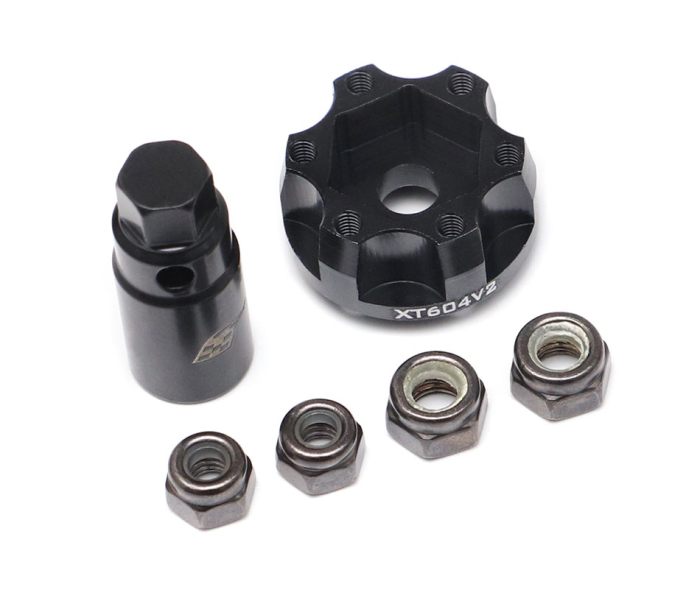

  • 2x XT604 Alum Wheel Hub Adapter #BRXT604
  • 40x M2x10 12.9 Grade Socket Cap Screw for wheel #BRASCH2010
  • 12x M2.5x8 12.9 Grade Socket Cap Screw for hub #BRPROB-08
  • 6x M2x14 12.9 Grade Socket Cap Pilot Screw

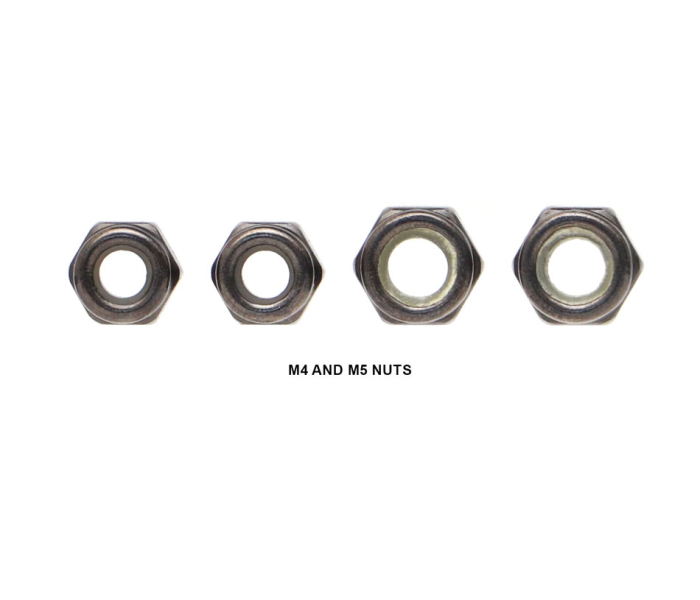

  • 2x M4 Nyloc Nut
  • 2x M5 Nyloc Nut
  • 1x 7mm to 8mm Thin-Walled Nut Driver Adapter #BRT10056
  • 1x Decal Sheet

Fits:
  • 1.9" Crawler Tires
  • Clears BRX70/BRX90, TRX4 and SCX10.3 portal axles
  • XT6 hubs will fit driveshafts using M4 and M5 wheel nuts

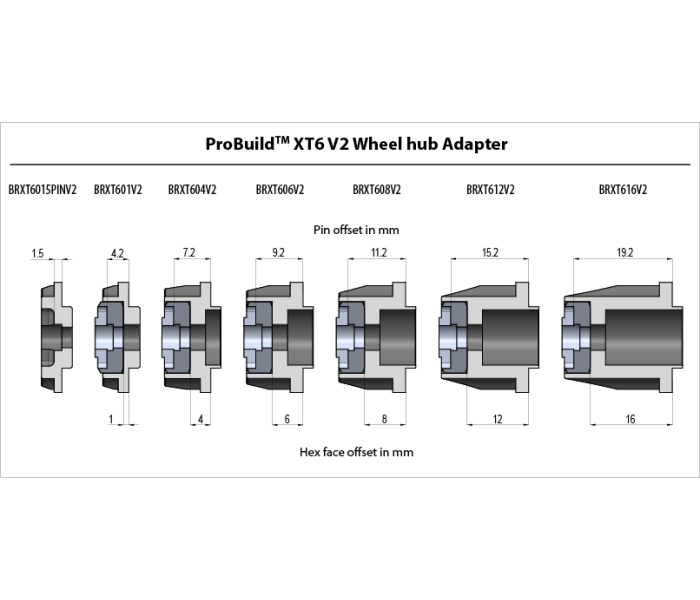

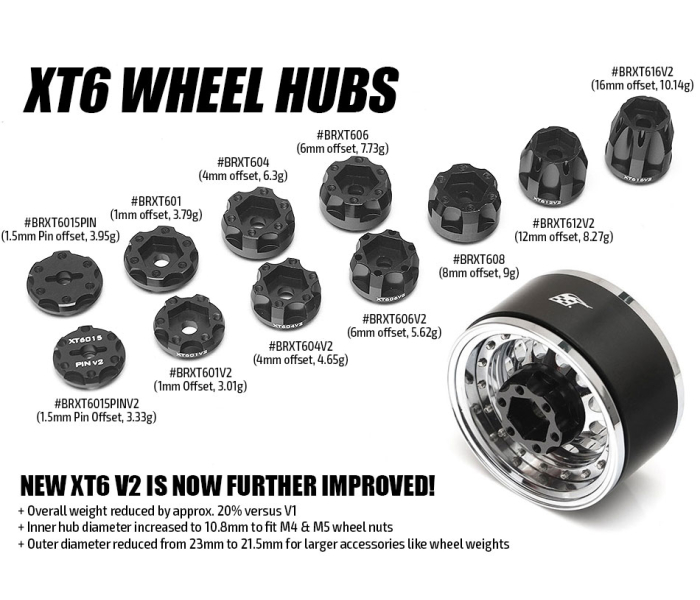

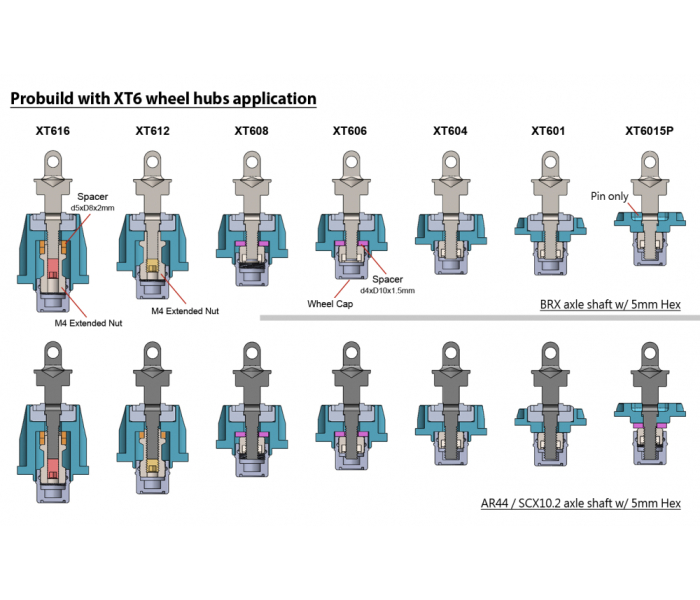

Optional Wheel Hub Adapter Sizes:
  • XT6015PINV2 - 1.5mm Pin Alum Offset #BRXT6015PINV2
  • XT601V2 - 1mm Alum Offset #BRXT601V2
  • XT604V2 - 4mm Alum Offset #BRXT604V2 (Included)
  • XT606V2 - 6mm Alum Offset #BRXT606V2
  • XT608V2 - 8mm Alum Offset #BRXT608V2
  • XT612V2 - 12mm Alum Offset #BRXT612V2
  • XT616V2 - 16mm Alum Offset #BRXT616V2

Barrels available in white color:
  • ProBuild™ Ultra Lightweight Performance 7.5mm Wheel Barrel (1) White BRPROB-12W
  • ProBuild™ Ultra Lightweight Performance 15mm Wheel Barrel (1) White BRPROB-13W

Optional Hex:
  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

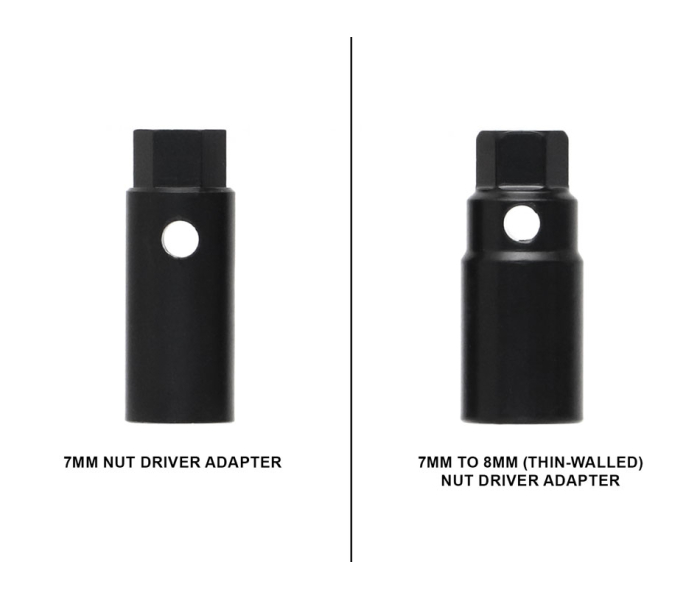

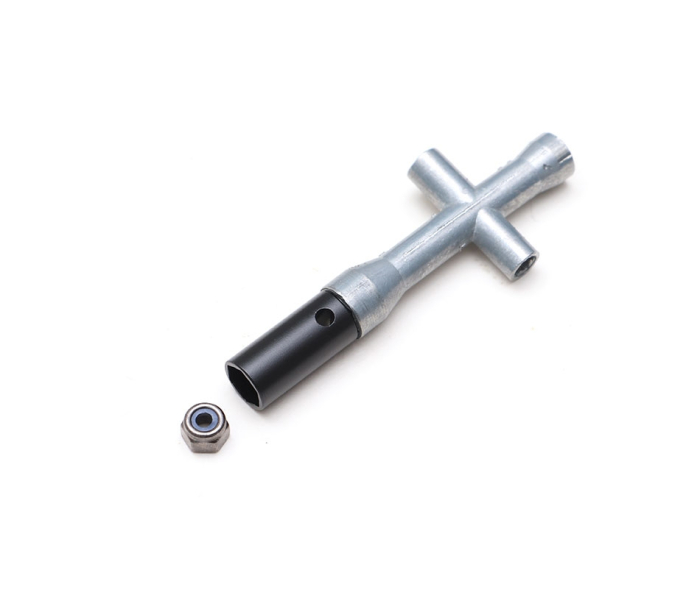

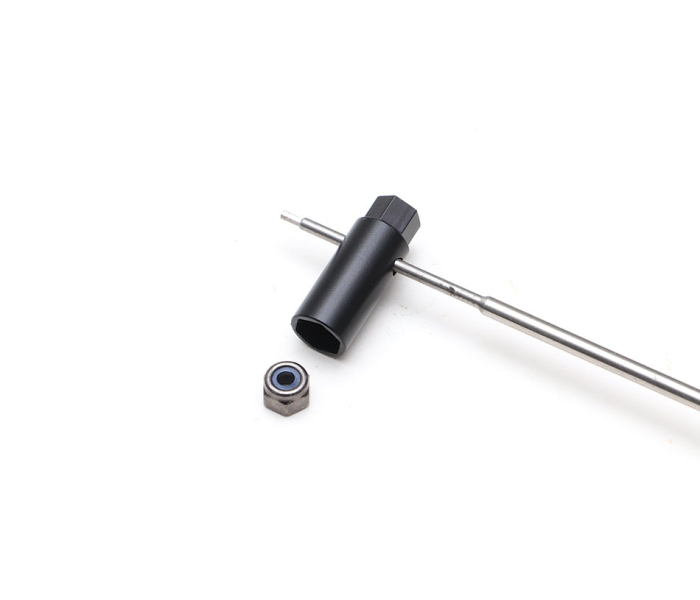

7mm to 8mm (Thin-Walled) Nut Driver Adapter #BRT10056

This is a hardened steel 7mm to 8mm socket nut wrench adapter. Eliminate the need for an 8mm socket nut wrench. This thin-walled 8mm (10.5mm) wrench adapter fits the Boom Racing XT6 V2 hubs. Use this if your vehicle uses M5 locknuts for the drive shafts. Features a center hole for easy torquing.

*Note: The new 7mm to 8mm nut driver adapter will replace the thin-walled 7mm nut driver adapter for all ProBuild ready sets that come with the XT6 V2 hubs manufactured after June 1, 2022.

2mm Scale Socket Driver Tool #BRT10049

This new 2mm Scale Socket Driver Tool will be released with the upcoming ProBuild wheels. Every pack of ProBuild wheels will include one 2mm Scale Socket Driver Tool, which means you will get two of these when you get a full set of wheels.

An awesome handy tool to have in any toolbox. You can also hang this on a keyring for convenience.

Build your Beadlock wheels exactly the way you want like a Pro!
