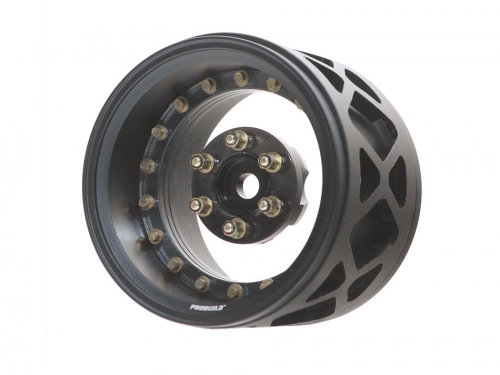

ProBuild™ 1.9" Lightweight Extra Wide CAL-6 Adjustable Offset Beadlock Wheels (2) Matte Black/Clear

USD $55.00

Part #: BRPB044MBKA-EX


LOADING IMAGES

ProBuild™ 1.9" Lightweight Extra Wide CAL-6 Adjustable Offset Beadlock Wheels (2) Matte Black/Clear

USD $55.00

Part #: BRPB044MBKA-EX

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Probuild Ready Sets

PRODUCT DESCRIPTION

Product Resources
installation-manual-probuild-19-beadlock-wheels-extra-wide-v1_1_1649648356.pdf

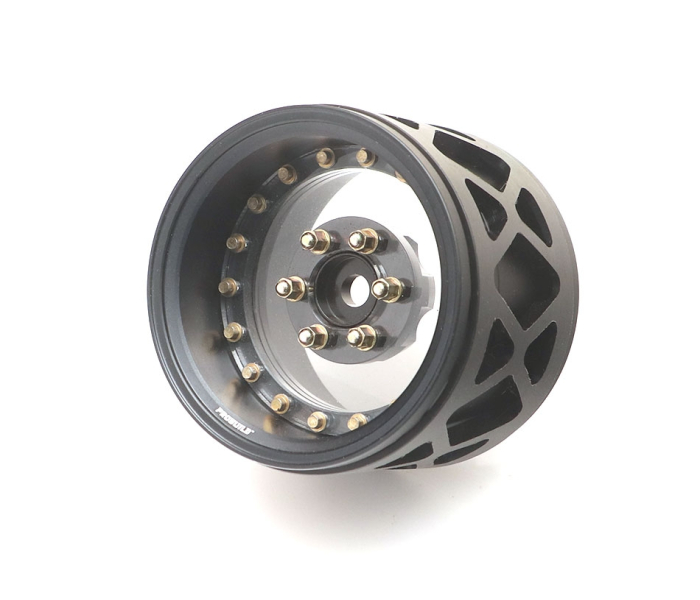

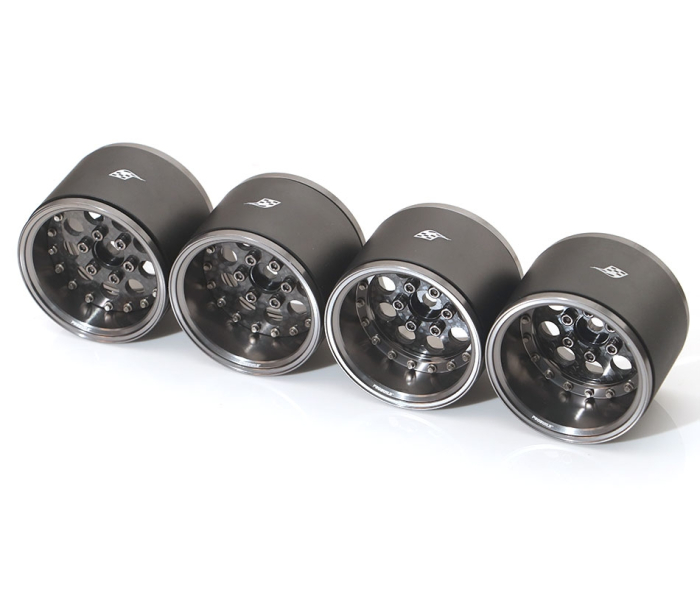

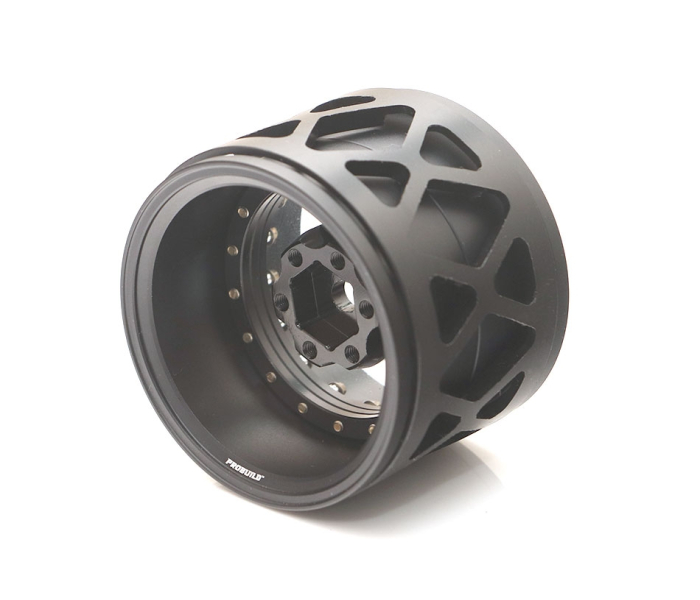

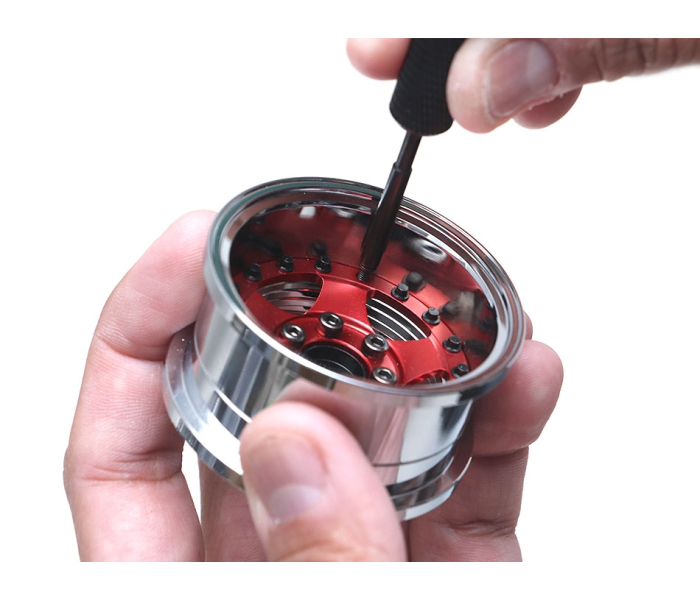

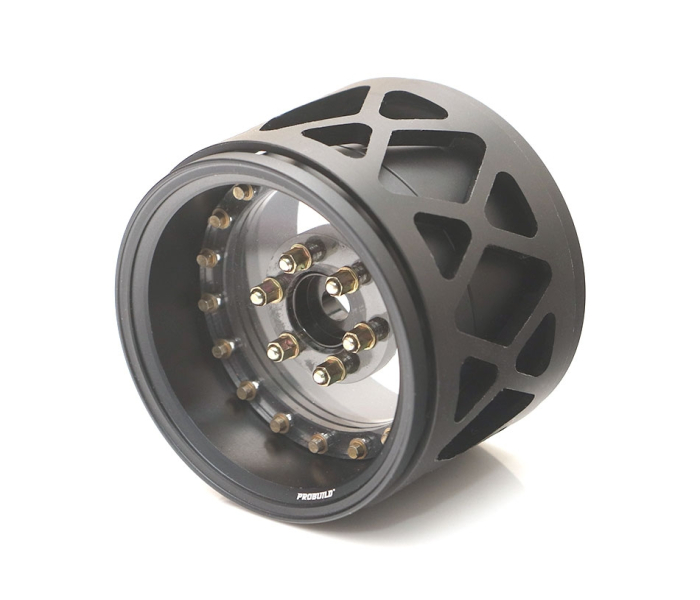

This is Lightweight Extra Wide ProBuild 1.9" CR6 Adjustable Offset Carbon Fiber / Aluminum Beadlock Wheels (2). The Boom Racing ProBuild wheels use a patented design for quick and easy installation and setup.

Wheel Combination:

  • Type: 1.9" Extra Wide
  • Barrel Color: Matte Black
  • Center Ring Material: Delrin (Performance Cut)
  • Faceplate Style: CAL 6-Lug
  • Faceplate Material: Acrylic (3mm)
  • Faceplate Color: Clear
  • Outer hardware: Scale Hex (Gold) + Cap Head 12.9
  • Bolt Pattern: 6-Lug
  • Hub Size: XT604 (4mm Offset)
  • Hub Hardware Color: Black
  • Hub Hardware: M2.5x6mm Mag Seat Scale Lug Nut
  • Lock Ring: Black

Build your wheels exactly the way you want with Boom Racing's all-new ProBuild Wheels [Patent Pending].

The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

What makes PROBUILD probuild?
  • High changeability, unlimited possibilities
  • Built-in offset options
  • Revolutionary and cutting edge designs
  • Engineered to the exact specifications of world-class drivers

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

Specification:
  • Diameter: 1.9"
  • Width: 41.35mm (1.628")
  • Inner Wheel Clearance: 45mm (1.771")
  • Weight (per wheel):
    • Delrin (Performance Cut) Center Ring: 7 grams
    • Barrels: 29 grams
    • 66 grams per wheel (fully assembled)
    • 54 grams per wheel (without hub and hardware)

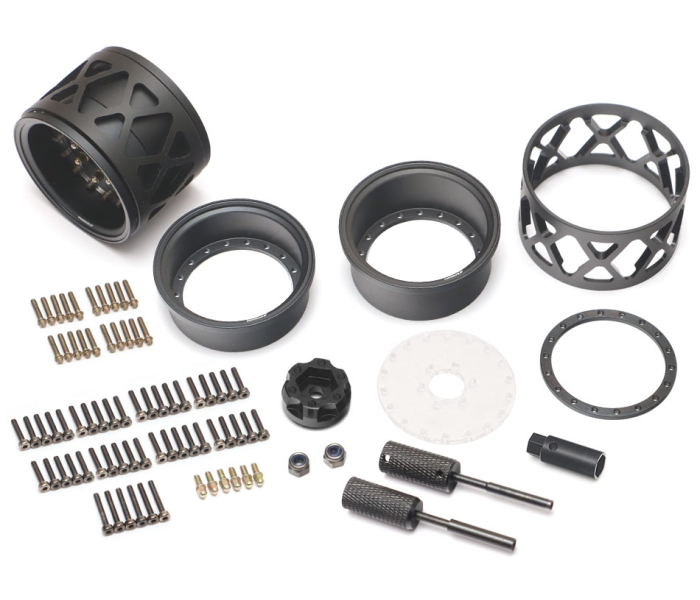

What's Included? All Ready-Sets come with the following:

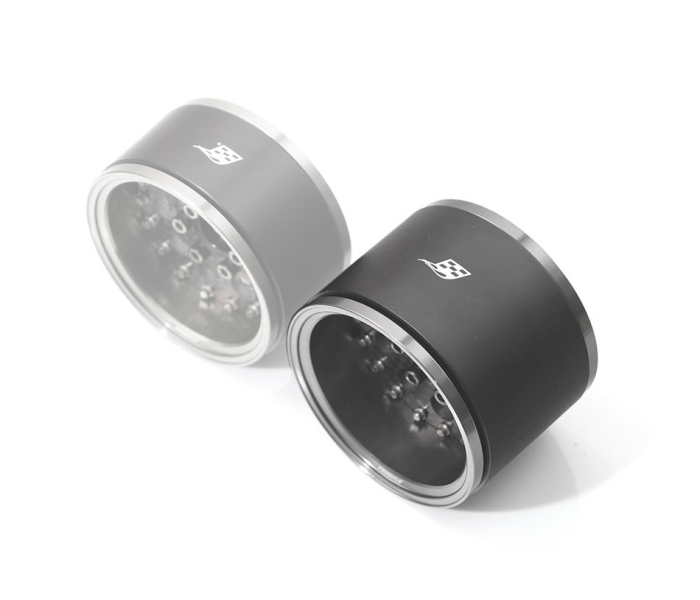

  • 2x Alum 19.5mm Barrel
  • 2x Alum 15mm Barrel
  • 2x Delrin (Performance Cut) 33mm Beadlock Center Piece #BRPROB-03EW-L
  • 2x Carbon Fiber Faceplate
  • 2x Steel Lock Ring
  • 2x XT604 Alum Wheel Hub Adapter
  • 40x M2x9 Scale Hex Bolt Screw
  • 40x M2x10 12.9 Grade Socket Cap Screw for wheel
  • 12x M2.5x6 12.9 Grade Mag Seat Scale Lug Nut Hardware for hub #BRPROB-09
  • 6x M2x14 12.9 Grade Socket Cap Pilot Screw
  • 2x M4 Nyloc Nut
  • 1x 7mm Nut Driver Adapter #BRT10045
  • 1x 2.0mm Scale Socket Driver #BRT10049
  • 1x 3.0mm Scale Socket Driver #BRPROB-17
  • 1x Decal Sheet

Fits:
  • 1.9" Crawler Tires
  • Clears BRX70/BRX90, TRX4 and SCX10.3 portal axles

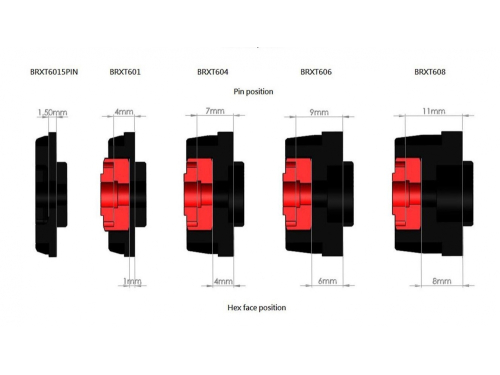

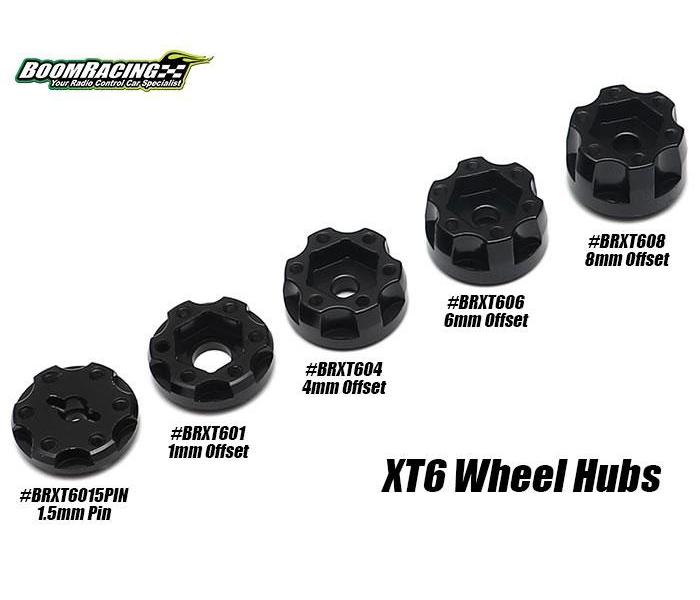

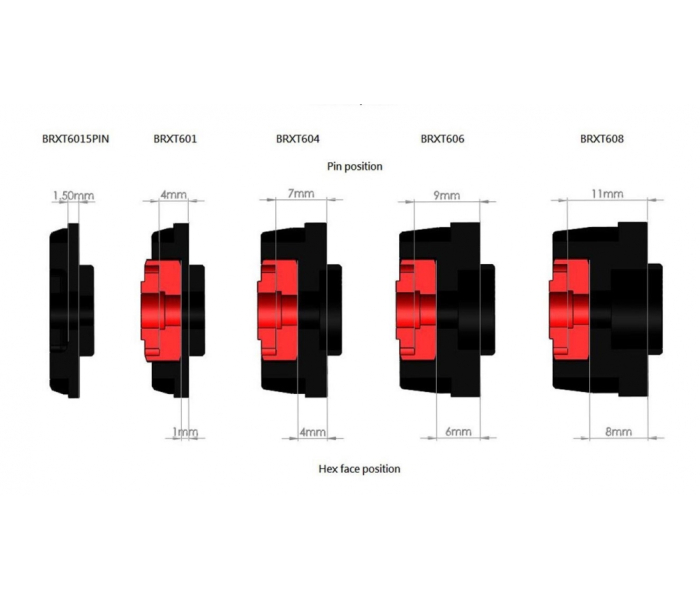

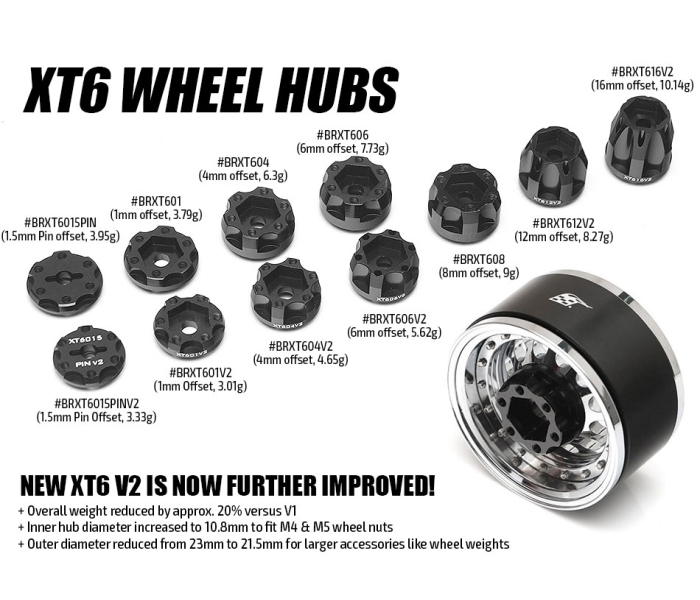

Optional Wheel Hubs:
  • XT6015PIN - 1.5mm Pin Alum Offset #BRXT6015PIN
  • XT601 - 1mm Alum Offset #BRXT601
  • XT604 - 4mm Alum Offset #BRXT604 (Included)
  • XT606 - 6mm Alum Offset #BRXT606
  • XT608 - 8mm Alum Offset #BRXT608

Optional Parts:
  • ProBuild™ 1.9" Extra Wide Brass Center Ring w/ Lead Weight Set (2) BRW790740
  • ProBuild™ 1.9" Extra Wide Brass Center Ring (2) BRW790740A

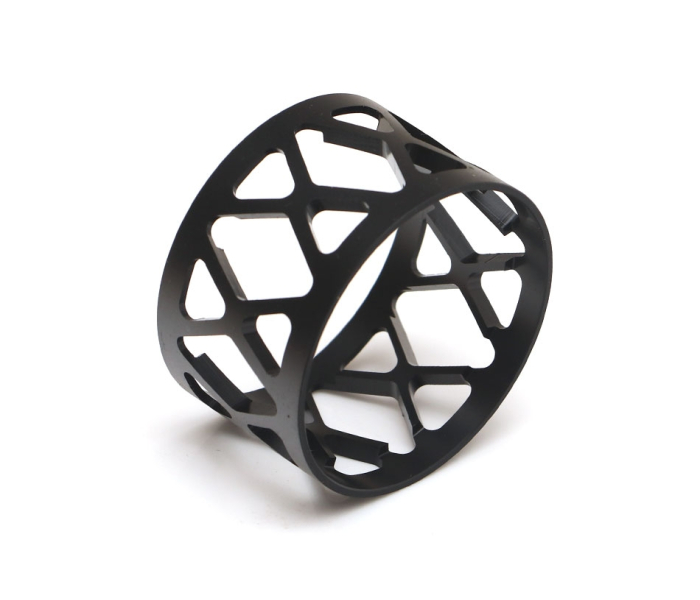

  • ProBuild™ 1.9" Alum Extra Wide & Lightweight Beadlock Center Ring BRPROB-03EW

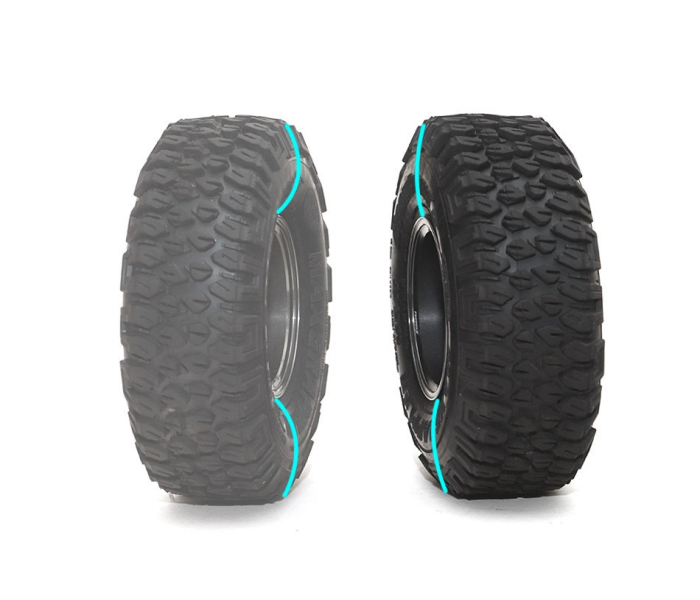

Optional Extra Wide Foam Inserts:
  • 1.9" 4.45in (113mm) Extra Wide Dual Stage Open (Soft) / Closed (Medium) Cell Foam Inserts for (2) BRTR29001EXW-SM
  • 1.9" 4.75in (120mm) Extra Wide Dual Stage Open (Soft) / Closed (Medium) Cell Foam Insert for (2) BRTR29002EXW-SM
  • 1.9" 4.75in (120mm) Extra Wide Dual Stage Open (Soft) / Closed (Hard) Cell Foam Insert for (2) BRTR29002EXW-SH

Optional Hex:
  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

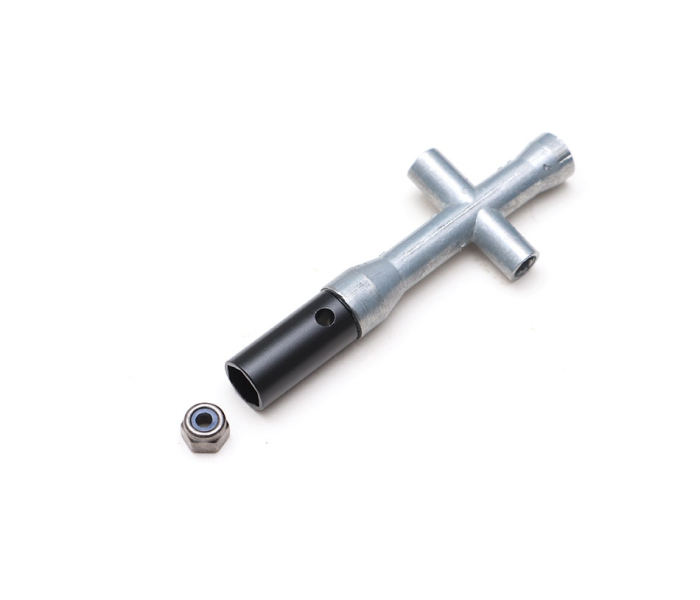

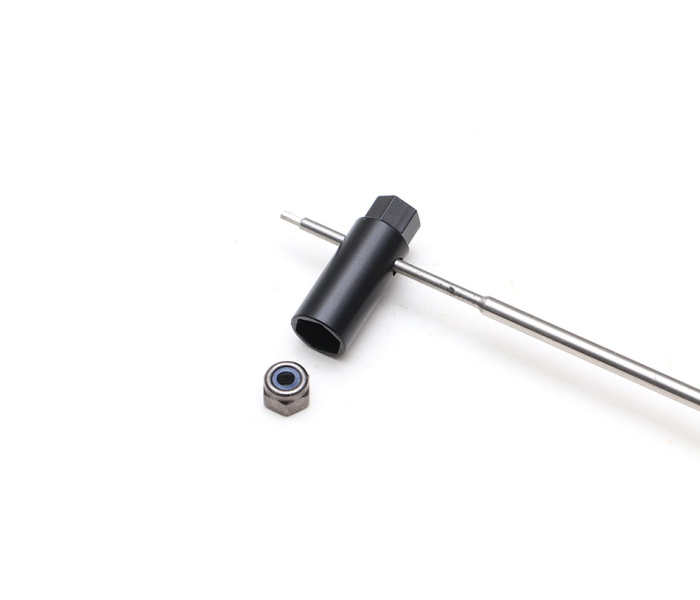

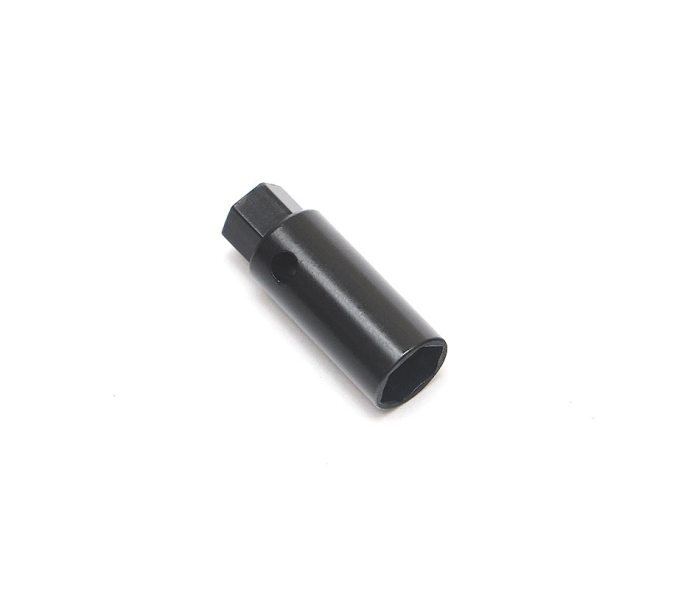

7mm Nut Driver Adapter #BRT10045

Have you ever had issues with nut drivers being too large? Since there are no industry standards for nut driver head sizes, a lot of wheels are designed with a bigger "hole in the middle" to fit the most common nut drivers out there.

When drawing up new designs we always aim for the best possible looking wheels. Minimizing the center area means there is more room to play with on the face design. This new 7mm Nut Driver Adapter has a smaller hex head diameter, which guarantees any hex nut driver to work with most likely any wheels out there, especially newer 1.9s and 1.55s.

We believe everyone in RC should have this in their toolboxes, and so for every pair of the upcoming ProBuild wheels, we are including one 7mm Nut Driver Adapter each, which means you will get two of them for every set of ProBuild wheels.

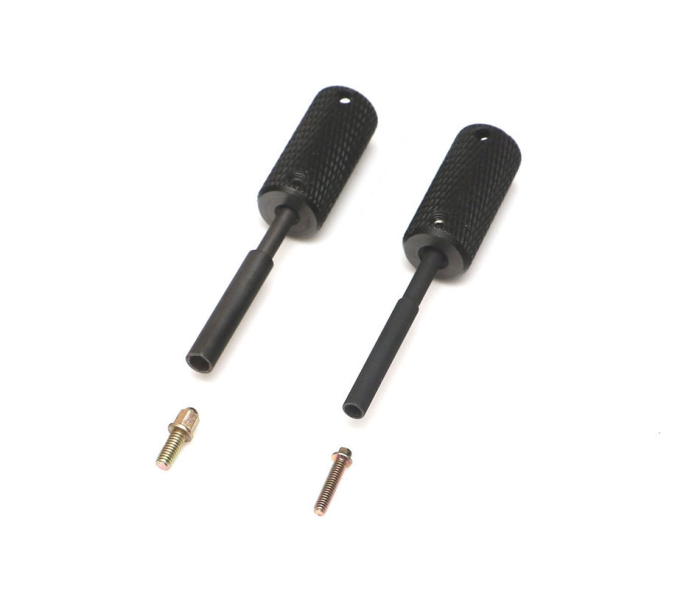

2.0mm/3.0mm Scale Socket Driver Tool

This ProBuild readyset includes one 2.0mm and one 3.0mm Scale Socket Driver Tools each, which means you will get two of each when you get two pairs of wheels.

An awesome handy tool to have in any toolbox. You can also hang this on a keyring for convenience.

Build your beadlock wheels exactly the way you want like a Pro!
