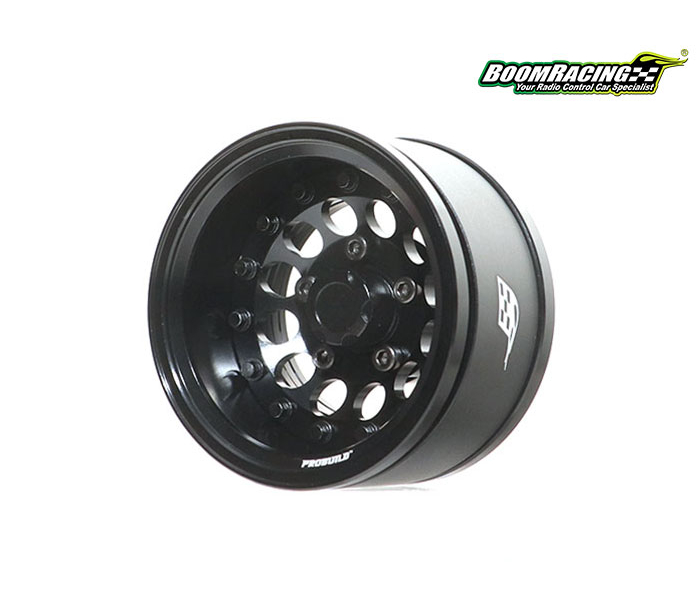

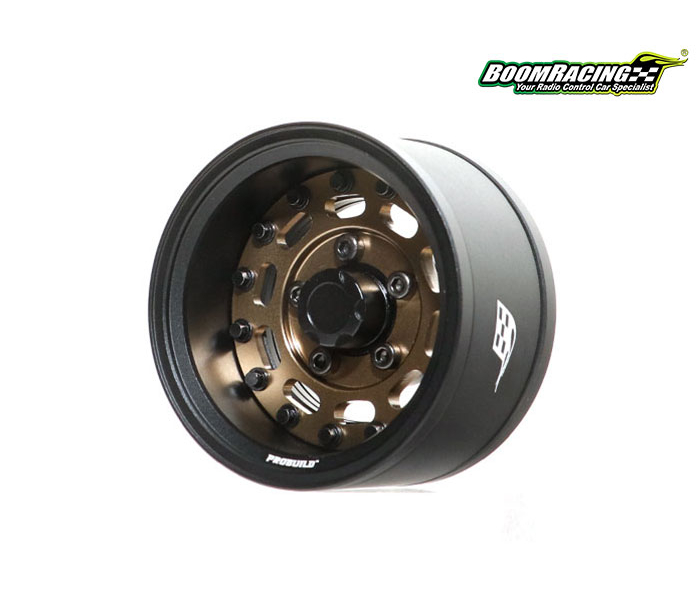

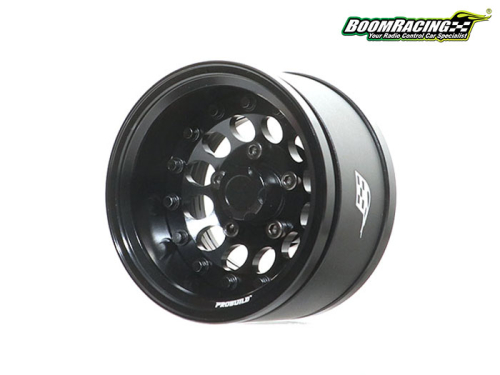

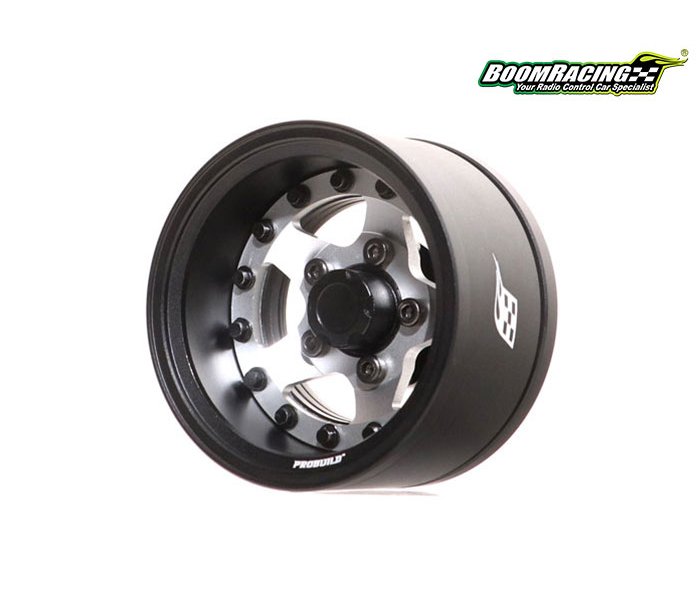

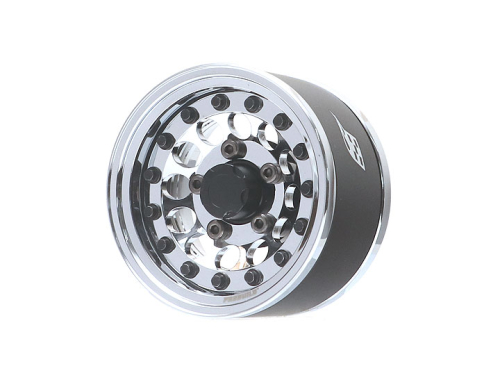

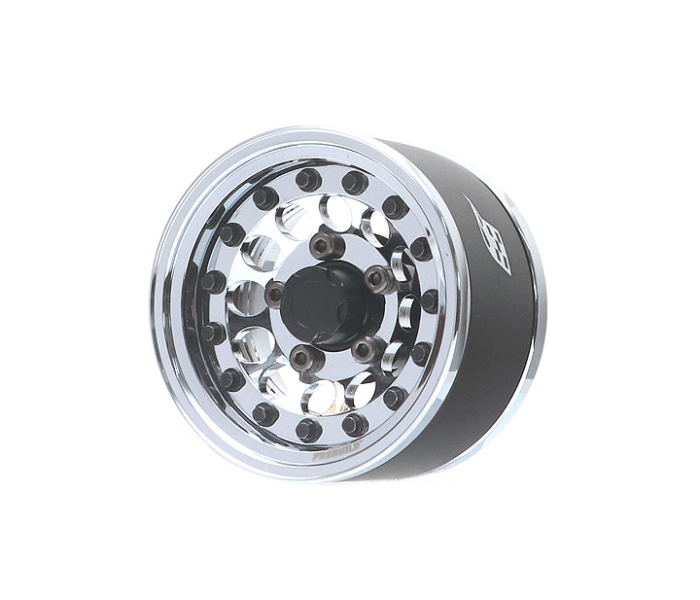

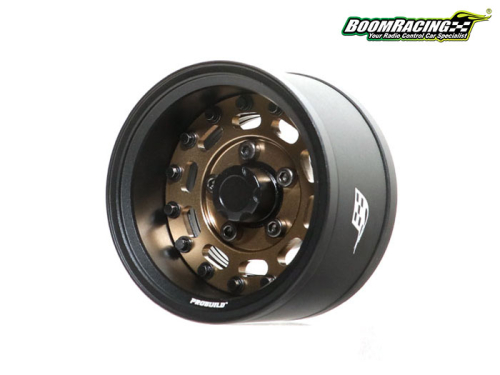

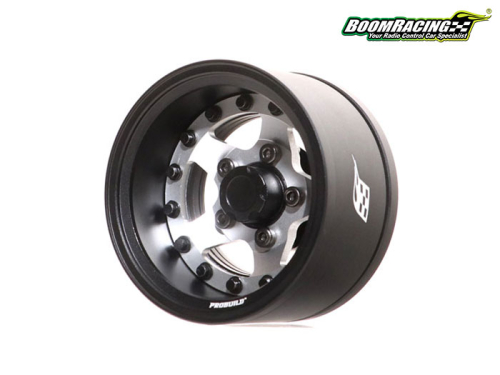

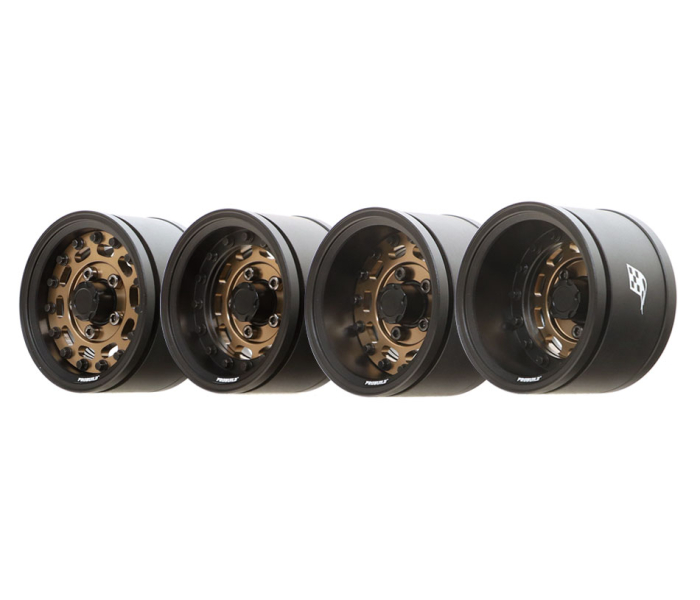

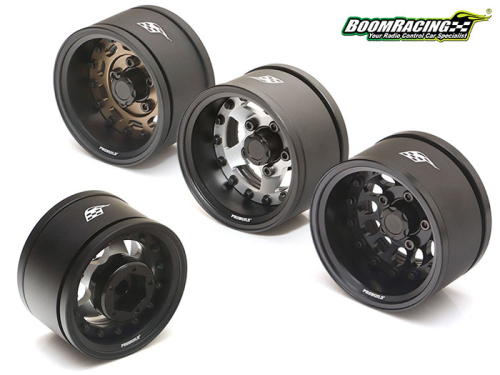

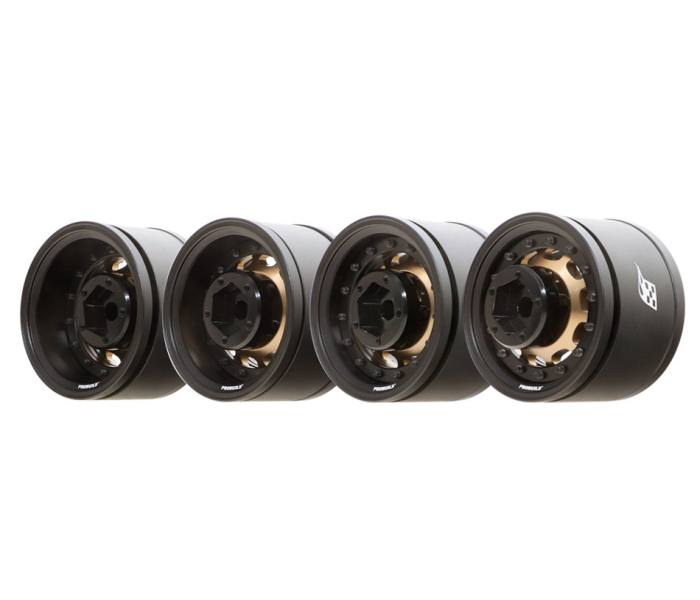

Boom Racing 1.55" Probuild Customizable Beadlock Wheels

LOADING IMAGES

Price: USD $25.00

Number of Wheels:

Available Options

* Wheel Size:

* Wheel Barrel 1.55":

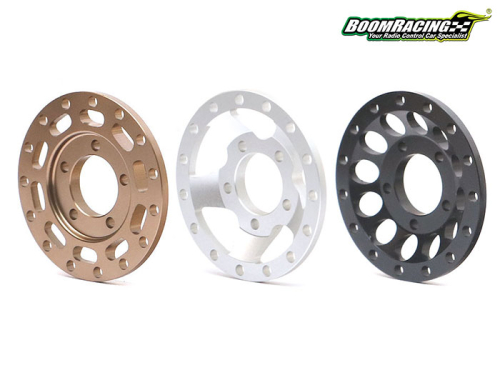

* Faceplate Style 1.55":

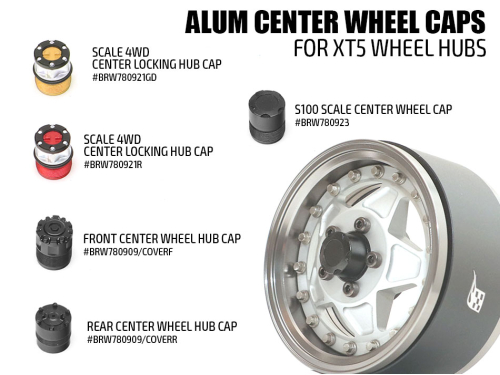

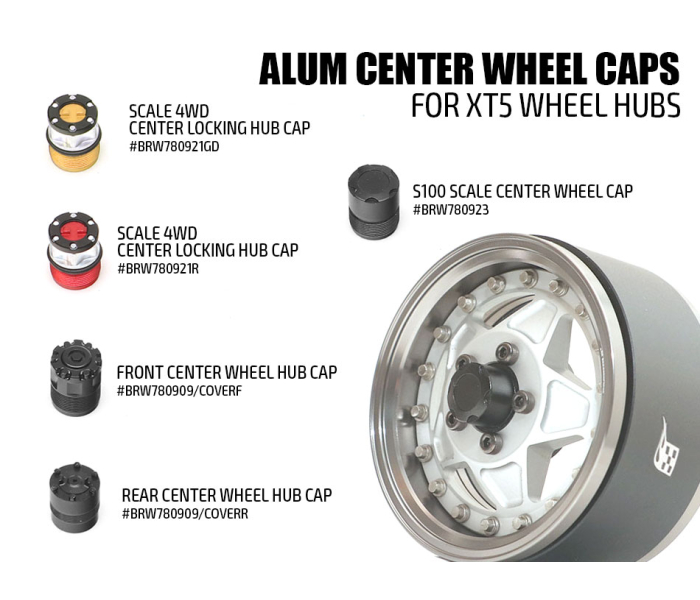

Wheel Center Cap 1.55":

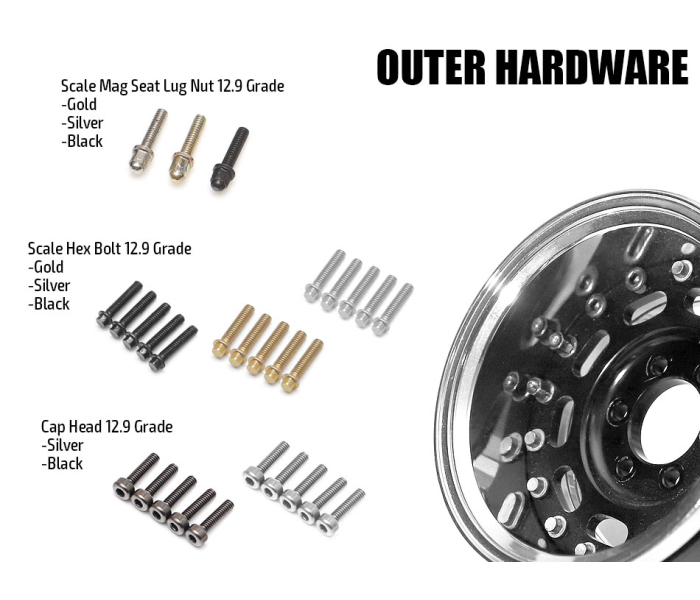

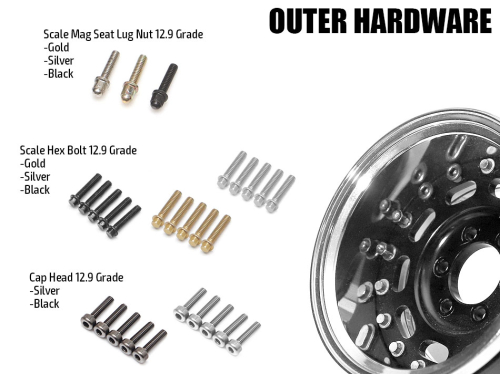

* Outer Hardware 1.55":

* Steel Lock Ring 1.55":

Part #: PRO-WHEEL-BR-155

Weight: 90 Gram

Availability: In Stock

*Note: ProBuild Custom Wheels take up to 7 business days to process.

Description
Manual
Reviews (0)

All custom ProBuild wheels are built to your specifications. Once an order is placed, the build process takes up to 7 business days. Please allow for extra time for us to prepare your custom wheels.

We will notify you once there is a tracking number available. We understand this is a longer process than ordering off the rack, but with many proven satisfied customers, the extra time is well worth it!

We are proud to say that ProBuild wheels are the most customizable offroad wheel in R/C. There are hundreds of interchangeable parts and it is impossible for us to keep everything in stock. We are constantly replenishing out-of-stock parts. If an item is discontinued, it will be removed from the drop-down selection.

The computer-generated images are for your reference only. Actual wheels are much nicer, guaranteed!

Note: The ProBuild Customization Tool page is priced PER wheel. For example, if you want a set of wheels plus a spare, select Number of Wheels to 5.

Custom Probuild wheels are interchangeable with ready set ProBuild wheels. All ProBuild parts are interchangeable with each other.

BUILD LIKE A PRO

The idea behind PROBUILD was to find a way to make a fully customizable and adjustable wheel with multiple setup options. Today, that sounds really smart, but back when we started most people thought we were crazy. That’s alright, everything has its time!

THE MOST CUSTOMIZABLE OFF-ROAD WHEELS IN RC

In order to provide a platform to express individuality and creativity, we created this ProBuild Customization Tool page by offering user-selectable components. Choose the exact parts you desire and build your own unique wheels that are like no one else's.

EXACTLY THE WAY YOU LIKE

Quality off-road wheels are not always affordable. Most of us save our money to get a nice set. Deciding on the right set of wheels can end up being a scary and expensive learning lesson. Our proprietary customizable design completely removes any fear of getting another set of wheels that are “almost right”. We took into consideration all of the desirable wheel features - style, color, offset, material, total width, weight, hub size, hardware styling, etc., and provide the options to adjust the wheel to the way you like.

What makes PROBUILD probuild?

High changeability, unlimited possibilities
Built-in offset options
Revolutionary and cutting edge designs
Engineered to the exact specifications of world-class drivers

With unlimited combinations of colors, faceplates, multiple offset options, etc, ProBuild wheels is a game-changing design for how we build and match custom rigs. No longer are we stuck with a full set of wheels that remain the same for too long.

Specification:

Diameter: 1.55"
Width: 26.3mm (1.035")
Inner Wheel Clearance: 36mm (Barrel)
See the Weight section for approximate estimate

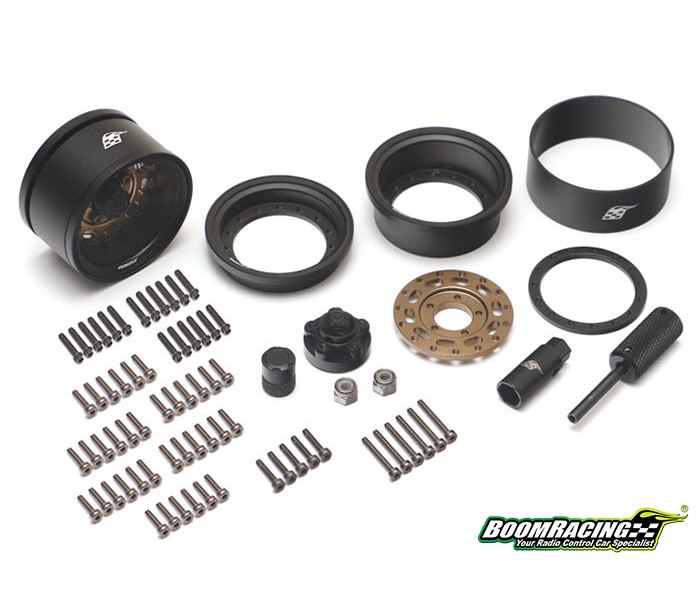

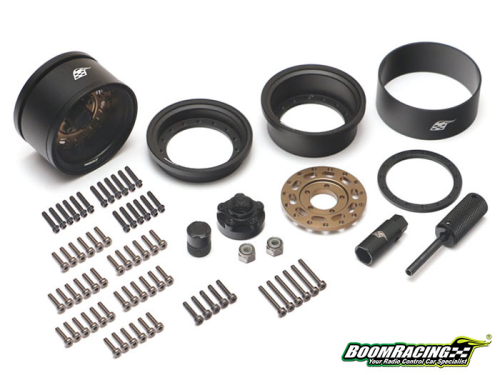

What's Included?

1x Alum Barrel (Front)*
1x Alum Barrel (Rear)*
1x Alum Beadlock Center Piece*

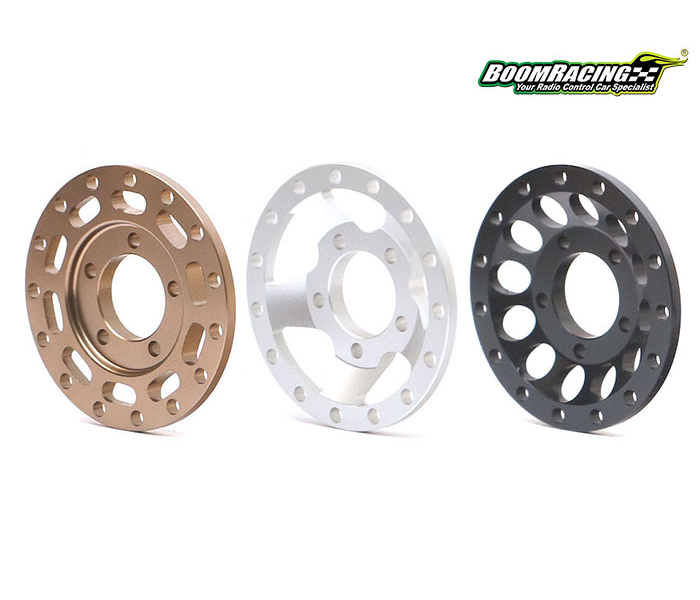

1x Alum Faceplate
1x Steel Lock Ring
1x Alum Wheel Hub Adapter
18x M2x9 Scale Screw or M2x8 12.9 Grade Socket Cap Screw
6x M2x10 12.9 Grade Socket Cap Screw
3x M2x14 12.9 Grade Socket Cap Pilot Screw
1x M4 Nyloc Nut
7mm Nut Driver Tool** #BRT10045
2mm Scale Socket Driver Thumb Tool** #BRT10049

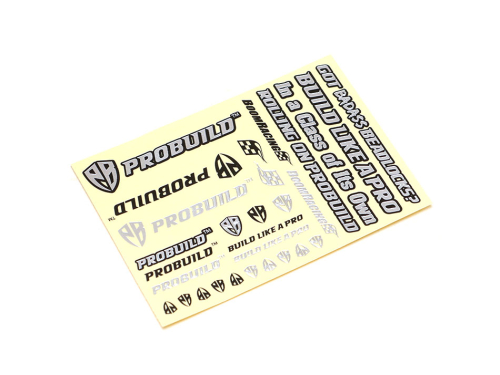

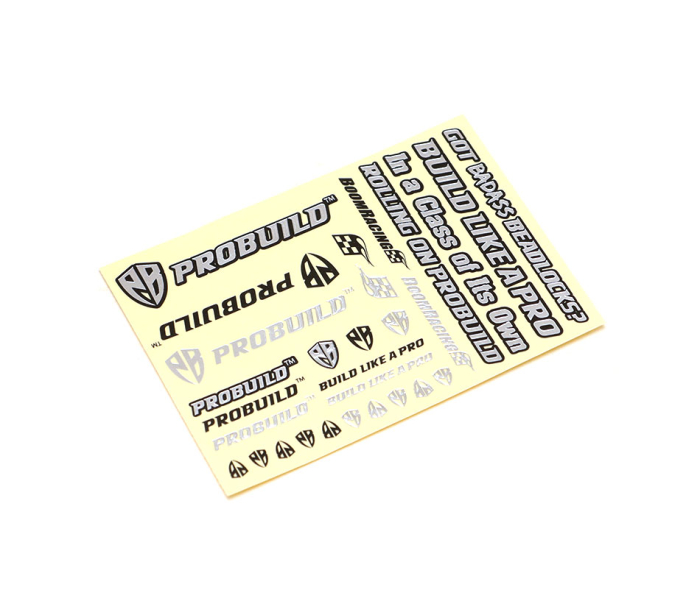

1x Decal Sheet

**One of each will be provided for each pair of wheels.

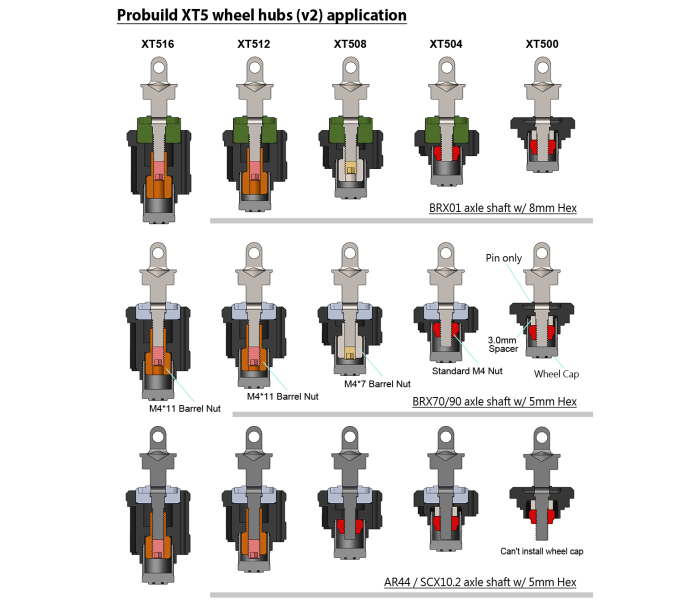

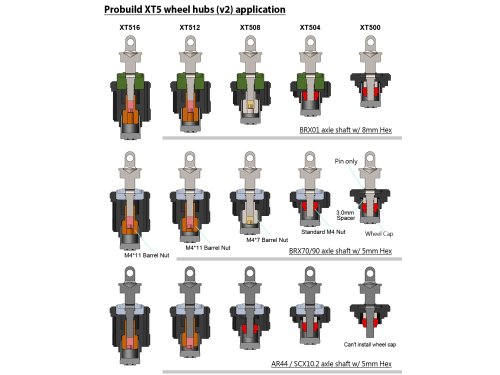

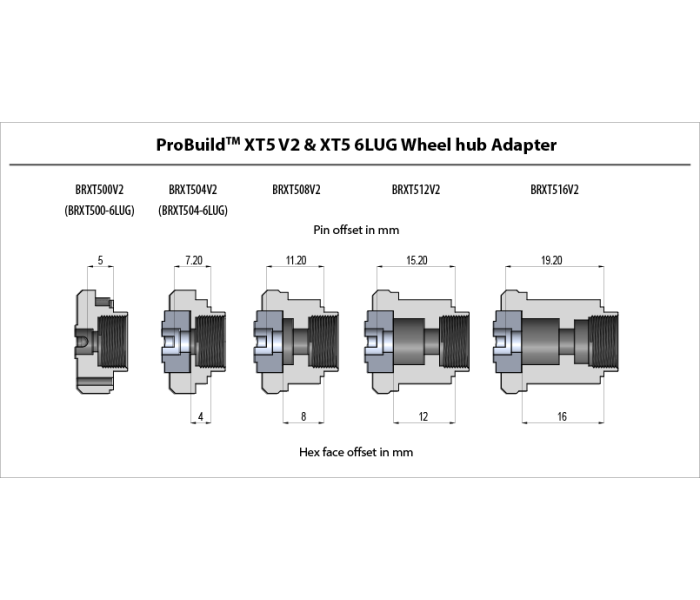

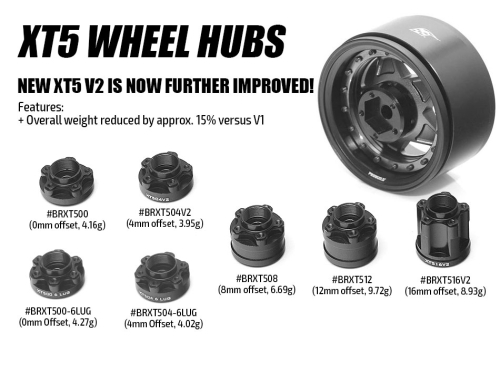

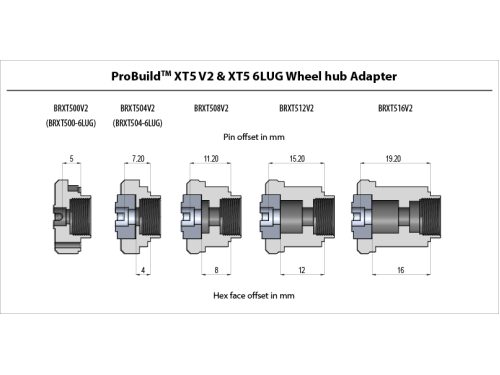

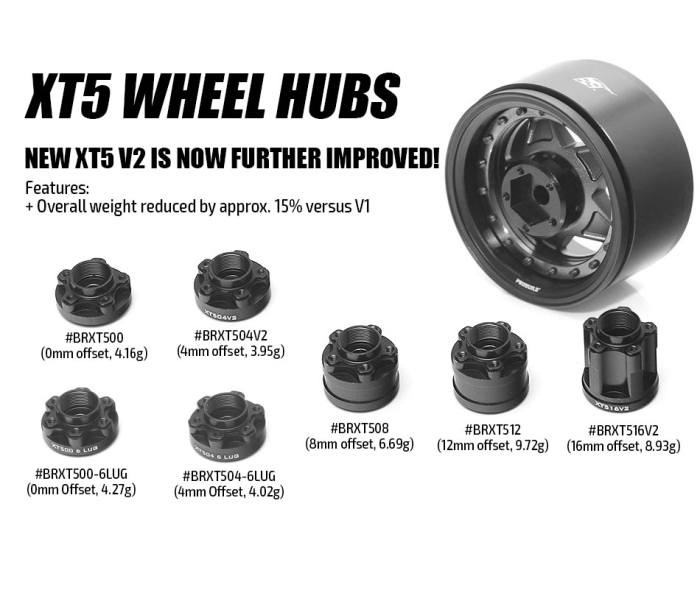

Optional Wheel Hub Adapter Sizes:

XT5
- 0mm Pin (no hex) #BRXT500 (most narrow)
- 4mm #BRXT504V2
- 8mm #BRXT508V2
- 12mm #BRXT512V2
- 16mm #BRXT516V2 (widest)

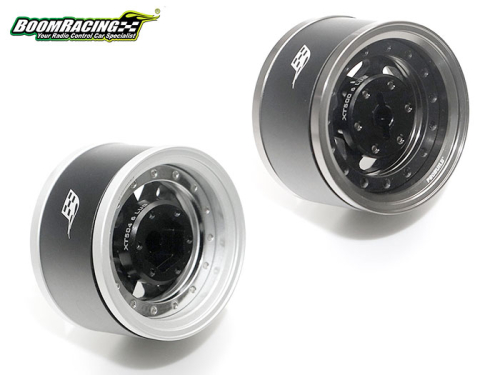

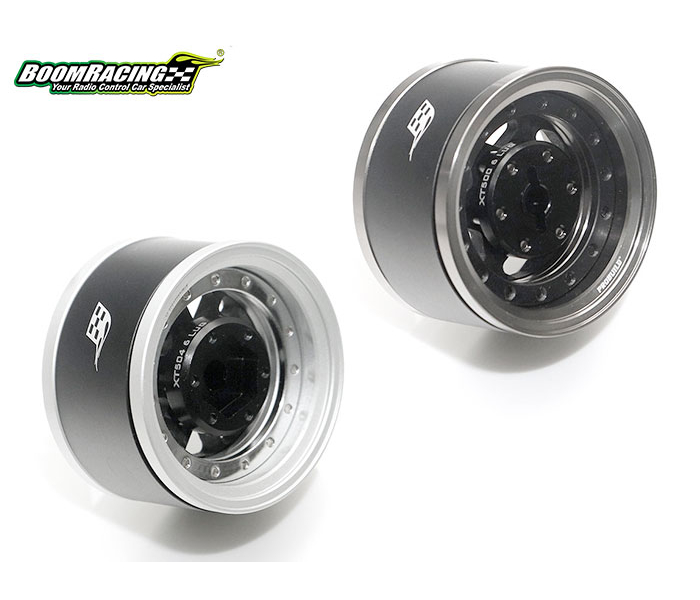

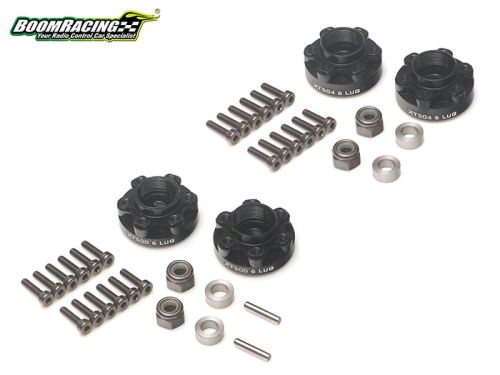

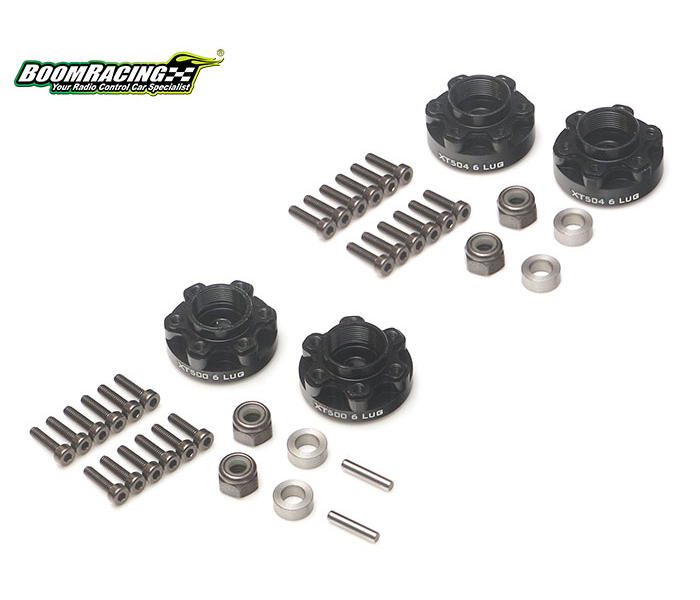

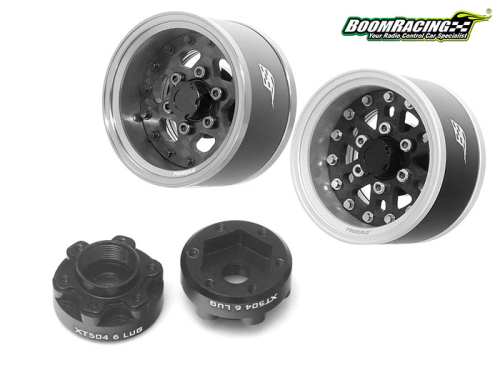

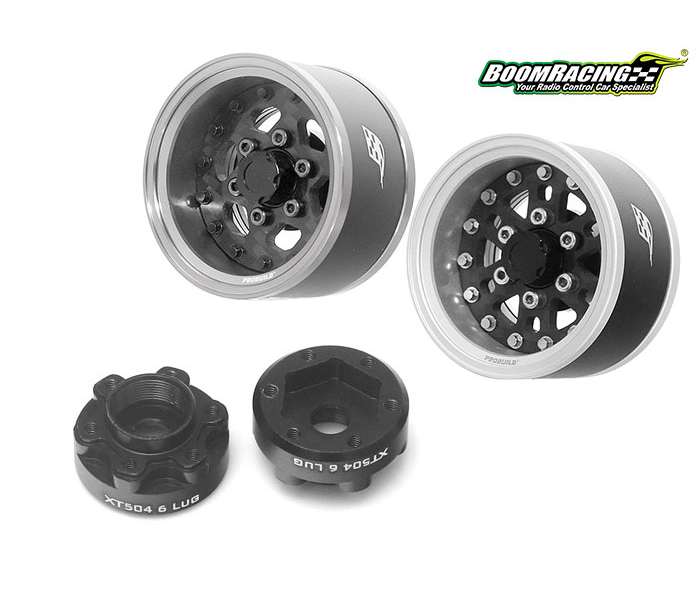

XT5 6-Lug
- 0mm Pin (no hex) #BRXT500-6LUG
- 4mm #BRXT504-6LUG

7mm Nut Driver Adapter (#BRT10045)

Have you ever had issues with nut drivers being too large? Since there are no industry standards for nut driver head sizes, a lot of wheels are designed with a bigger "hole in the middle" to fit the most common nut drivers out there.

When drawing up new designs we always aim for the best possible looking wheels. Minimizing the center area means there is more room to play with on the face design. This new 7mm Nut Driver Adapter has a smaller hex head diameter, which guarantees any hex nut driver to work with most likely any wheels out there, especially newer 1.9s and 1.55s.

We believe everyone in RC should have this in their toolboxes, and so for every pair of the upcoming ProBuild wheels, we are including one 7mm Nut Driver Adapter each, which means you will get two of them for every set of ProBuild wheels.

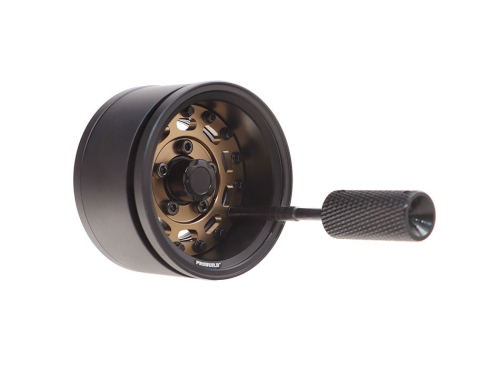

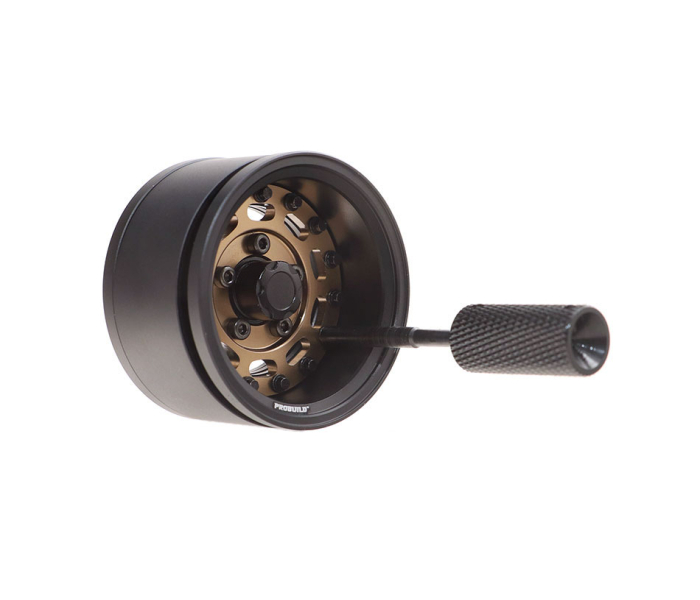

2mm Scale Socket Driver Tool (#BRT10049)

This new 2mm Scale Socket Driver Tool will be released with the upcoming ProBuild wheels. Every pack of ProBuild wheels will include one 2mm Scale Socket Driver Tool, which means you will get two of these when you get a full set of wheels.

An awesome handy tool to have in any toolbox. You can also hang this on a keyring for convenience.

Build your beadlock wheels exactly the way you want like a Pro!

Download Here:

Installation-Manual-ProBuild-19-Beadlock-Wheels-V1_3.pdf
