Mini Servo Mount Set for BRX02 & BRX02 109 w/ Mini Servo @ 8.4v

USD $39.90

Part #: BRD901101KIT


LOADING IMAGES

Mini Servo Mount Set for BRX02 & BRX02 109 w/ Mini Servo @ 8.4v

USD $39.90

Part #: BRD901101KIT

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Servos & HornsServo MountsBRX02 PartsBRX02 Optional PartsBRX02 109 Optional PartsBRX02 109 Parts

PRODUCT DESCRIPTION

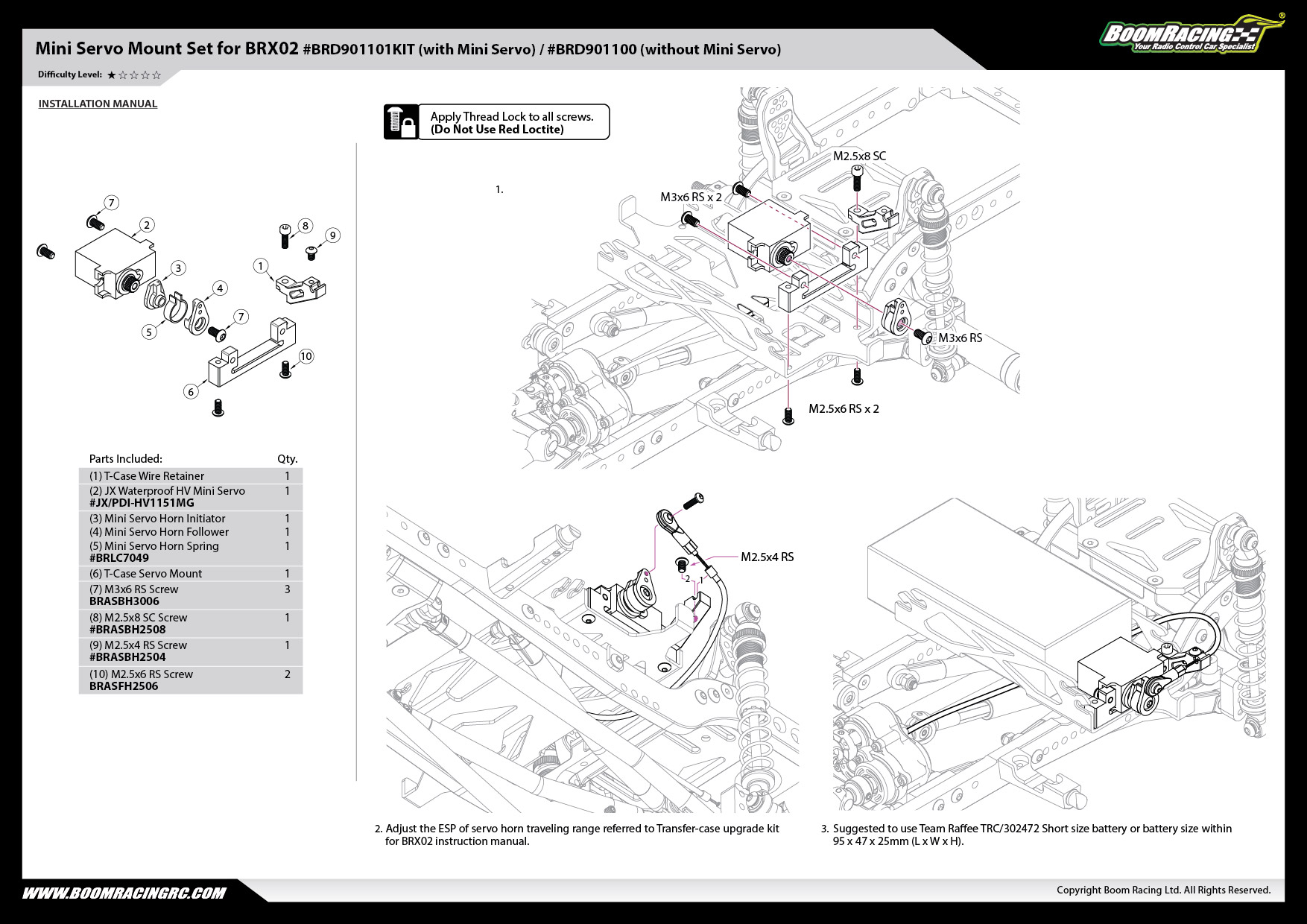

Product Resources

This is a mini servo mount with JX high voltage mini servo. This is for the optional SWD/DIG transfer case.

Includes:

  • Mini Servo Mount Set BRD901101
  • Aluminum 2 Speed Servo Horn Set BRLC7049
  • JX HV Mini Servo JX/PDI-HV1151MG
  • 12.9-Grade Hardware

For:
  • BRX02
  • BRX02 109

Mini Servo Specifications:
  • Brand: JX Servo
  • Model: JX/PDI-HV1151MG
  • Working voltage: 6V~8.4V
  • Working temperature: -20C°~ +60C°
  • Dead band: 4usec
  • Motor type: Core Motor
  • Signal booster type: Digital
  • Gear material: Metal gear
  • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
  • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
  • Idle Current: 150mA (6.0V) | 180mA (8.4V)
  • Load Current: 260mA (6.0V) | 340mA (8.4V)
  • Size: 23.2 x 12.5 x 25.6mm
  • Weight: 15g
  • Tooth Count: 25
  • Wire length: 310mm JR plug
  • Black: Negative Red: Positive White: Signal
