KUDU™ High Clearance Bumper Kit for BRX01 w/ LC70

USD $75.00

Part #: BRLC7094


LOADING IMAGES

KUDU™ High Clearance Bumper Kit for BRX01 w/ LC70

USD $75.00

Part #: BRLC7094

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords BumpersBRX01 PartsKudu PartsBRX01 Optional PartsTrail & Scale Lovers

PRODUCT DESCRIPTION

Product Resources
installation-manual---kudu-high-clearance-bumper-kit-brlc7094_1623983849.pdf

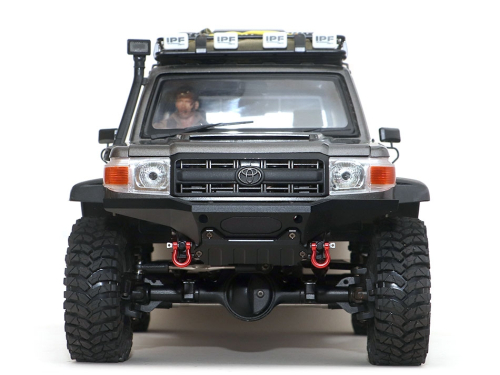

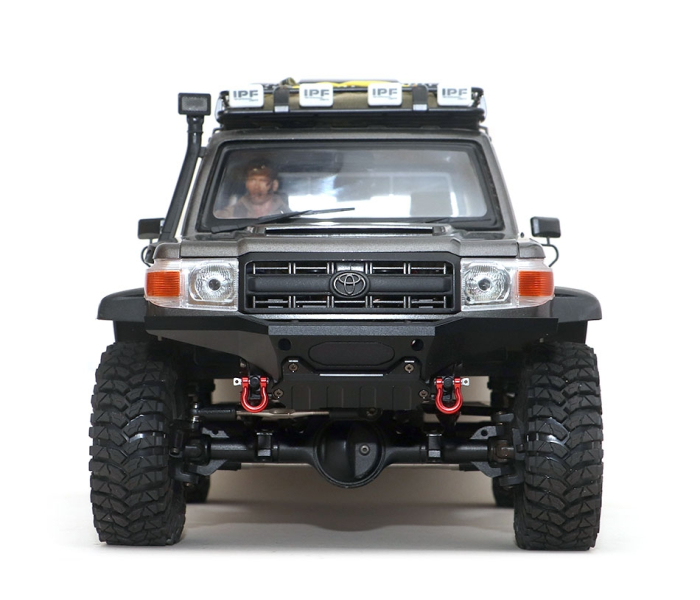

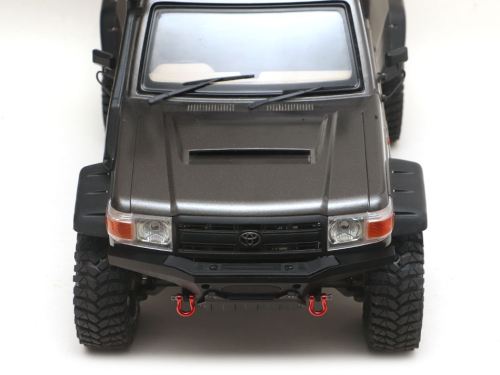

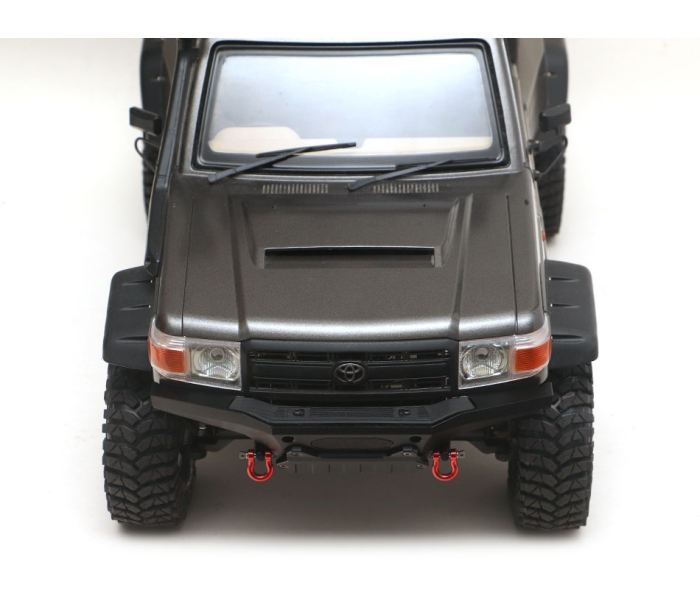

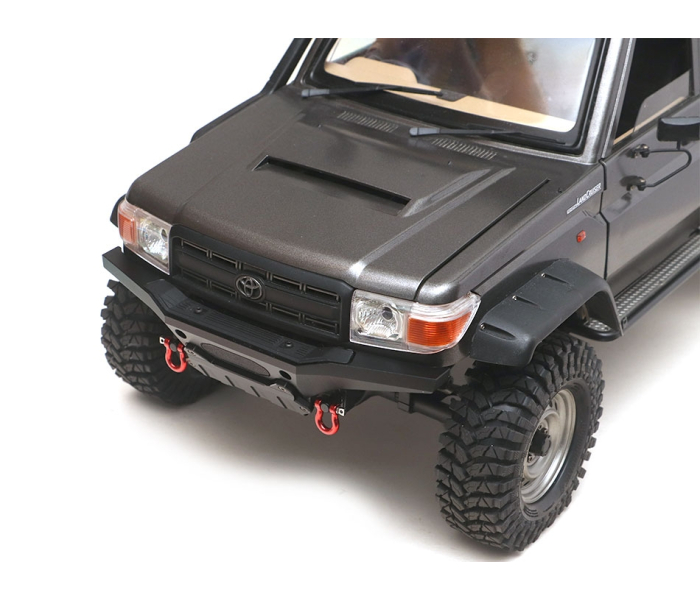

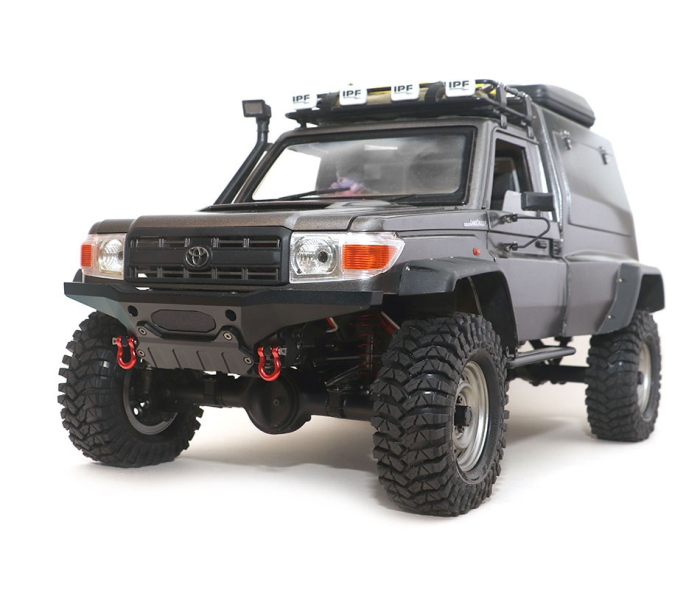

All-new KUDU High Clearance Bumper Kit for the BRX01 chassis. This is a heavy-duty front bumper made from CNC billet aluminum to use with the LC70 body.

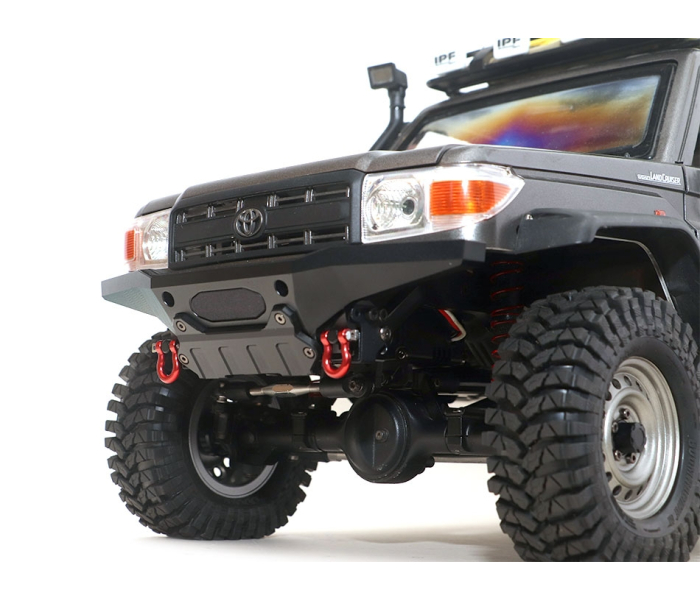

The aggressive Bumper sits higher than normal, giving the truck more clearance to go over bigger obstacles. The KUDU Bumper directly mounts onto the BRX01 and fits perfectly with the Toyota LC70 body. This bumper kit includes a realistic scale aluminum fair lead, a pair of heavy-duty red anodized aluminum shackles and a delrin skid plate.

The optional KUDU Bumper accessories offer different looks and features. Multiple add-ons including the Stubby Bull Bar and the Stinger Bull Bar, a stainless steel slotted skid plate and a perforated version are available for the ultimate bumper conversion.

The Bumper Kit includes a Bull Bar Delete Plate and a Fairlead Delete Cover if you choose to keep the original look and/or do not use an internal winch.

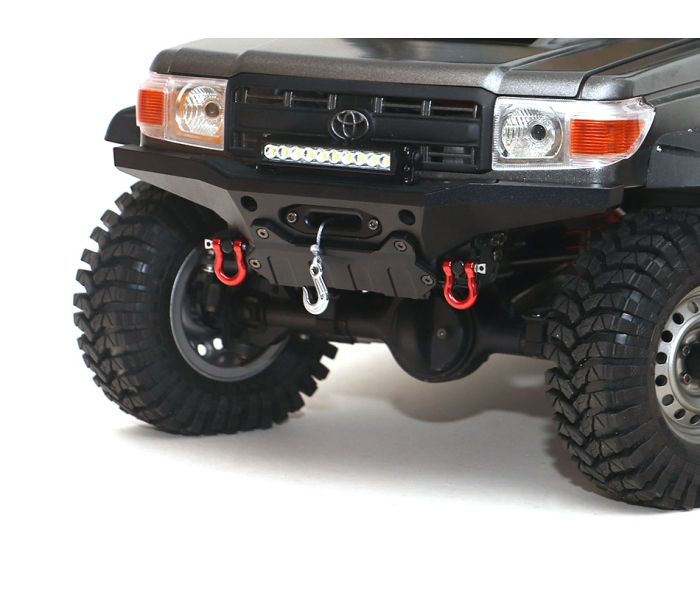

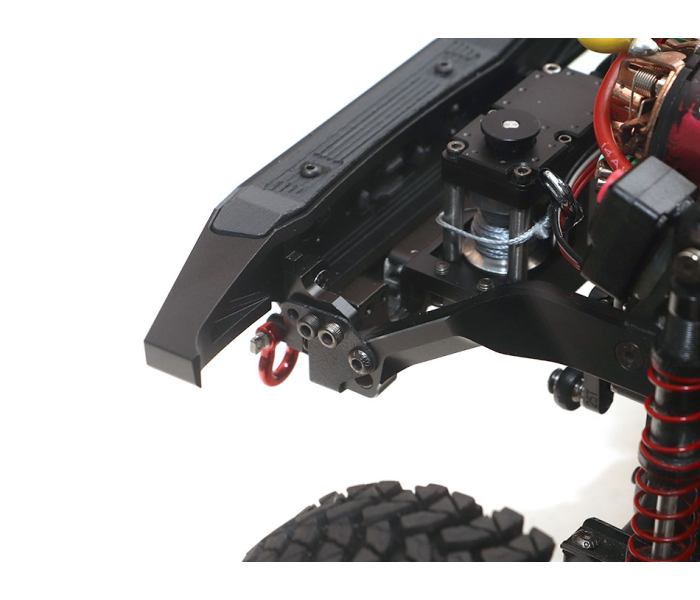

Using an internal winch:
This Bumper is designed to work with an internal winch. External winches do not fit due to the high approach angle of the Bumper. A new Pass-Thru Front Body Mount BRLC7098 is available, which is designed for those who would like to use an internal winch with the "Tool Free" Aluminum Quick Release Latch BRLC7062. The winch line directly passes through this U-shaped body mount, which you can directly lift up and release the body from the front.

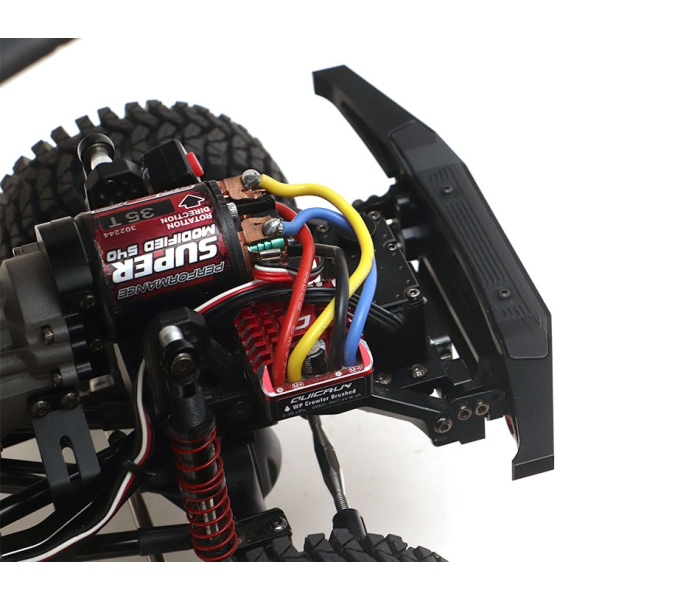

Currently, in order to use an internal winch, we recommend mounting the Muscle Winch or any internal winch in the original steering servo position, by replacing the steering servo from chassis mounted (CMS) to servo-on-axle setup. This requires 1. Python Black Servo 2. 4-Link Conversion Kit 3. flip the motor mount upside down and use the smallest pinion gear to gain the maximum clearance room for the steering servo. The shocks will need to be adjusted slightly higher. 4. Pass-Thru Front Body Mount

Features:

  • Heavy-duty billet CNC aluminum bumper
  • High clearance design
  • High approach angle
  • Adjustable bumper mount for multiple bumper positions
  • Modular design with optional bumper accessories including Stubby Bull Bar, Stinger Bull Bar, Stainless Steel Slotted Skid Plate and Stainless Steel Perforated Skid Plate
  • 2x 5mm hole for optional LED lights
  • Alum anodized shackles included
  • Alum fair lead included
  • Mount for optional KUDU Light Bar Set 50mm
  • Easy installation, four screws hold the bumper in place securely

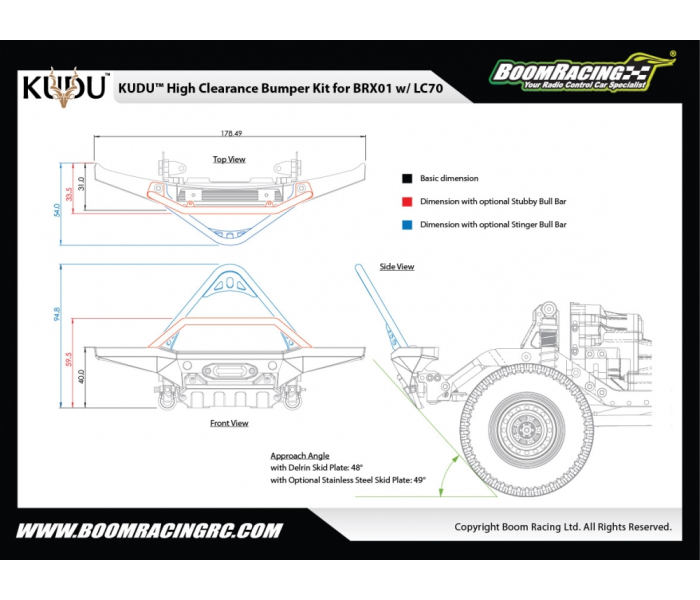

Specification:
  • Length: 178.5mm
  • Height: 40mm / 59.5mm (Stubby) / 94.8mm (Stinger)
  • Width: 31mm / 33.5mm (Stubby) / 54mm (Stinger)
  • Weight: 110g (full kit installation)
  • Approach Angle: 48 deg (Delrin Skid Plate) / 49 deg (SS Skid Plate)

Fits:
  • BRX01 chassis
  • Directly fits Toyota LC70 Body
  • Adjustable bumper mount for custom fit to other bodies (please refer to the installation manual for exact bumper specification)

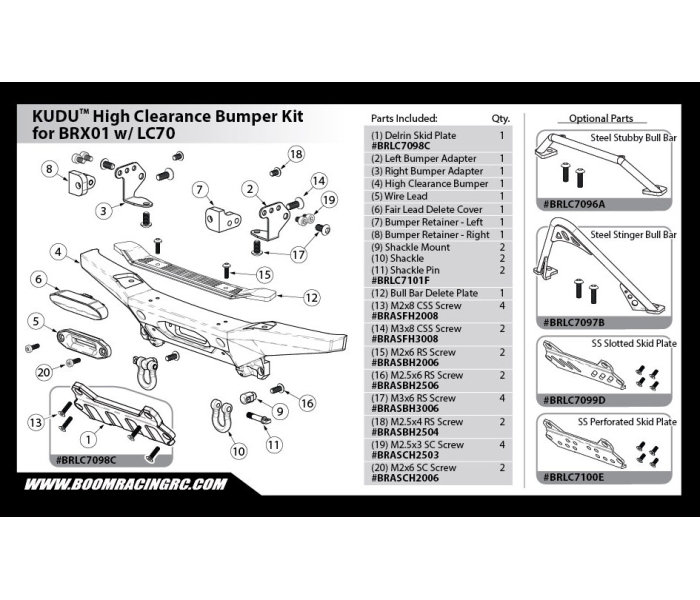

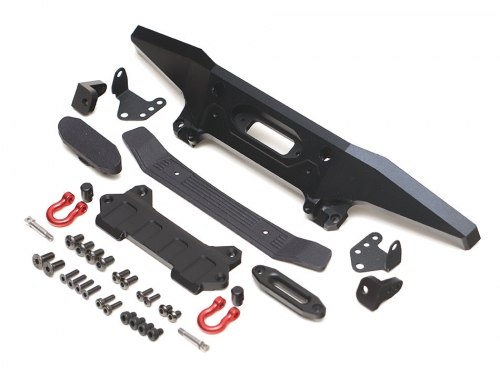

Includes:
  • KUDU High Clearance Alum Bumper
  • Delrin Skid Plate
  • Alum Bumper Adapter & Reinforced Steel Mount (Left & Right)
  • Alum Fair Lead
  • Fair Lead Delete Cover
  • Bull Bar Delete Plate
  • Shackle Mount Set BRLC70103
  • 12.9 High-grade Hardware

Optional:
  • Steel Stubby Bull Bar BRLC7096A
  • Steel Stinger Bull Bar BRLC7097B
  • Stainless Steel Slotted Skid Plate BRLC7099D
  • Stainless Steel Perforated Skid Plate BRLC7100E
  • Waterproof Alum LED Light Bar Set (3S Capable) 50mm BRTLB50

Spare Parts:
  • Alum Scale Shackle & Shackle Mount Set (2) BRLC70103
