KUDU™ Big Bore Coilover Aluminum Scale Performance Shocks 90mm (2)

USD $32.00

Part #: BRSP0090


LOADING IMAGES

KUDU™ Big Bore Coilover Aluminum Scale Performance Shocks 90mm (2)

USD $32.00

Part #: BRSP0090

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 81mm - 100mm ShocksKudu PartsBRX02 PartsBRX02 Optional Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---kudu_coilover_big-bore_shocks_v1_1654849509.pdf

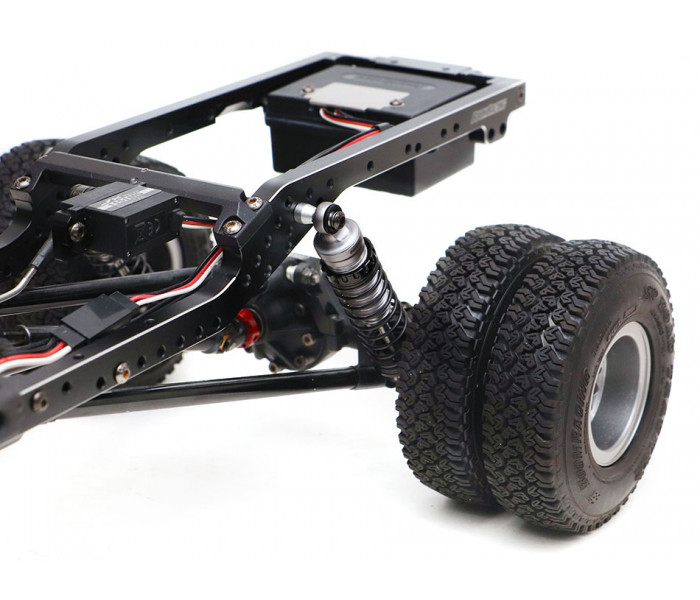

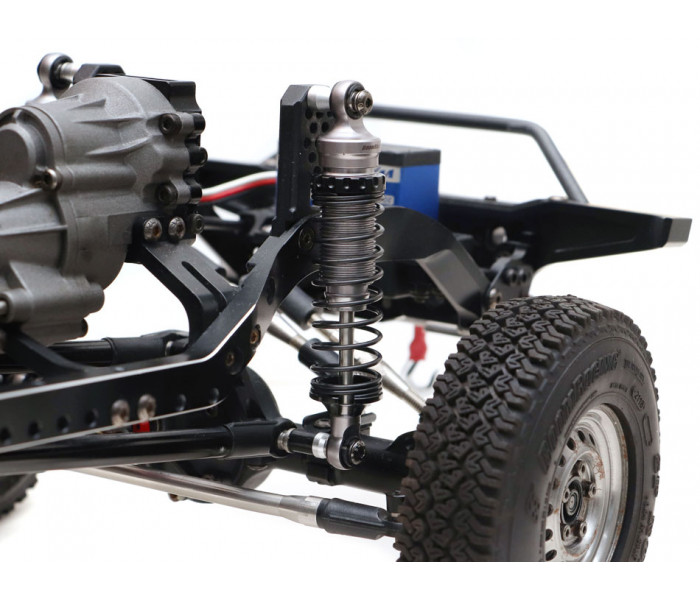

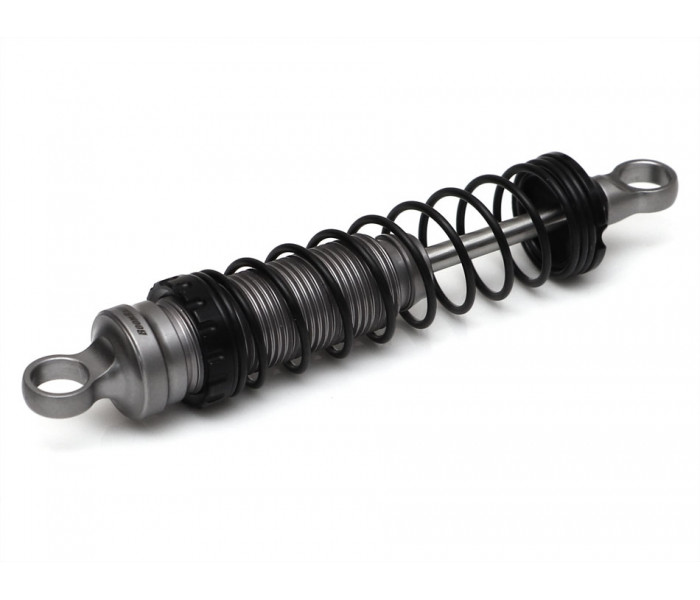

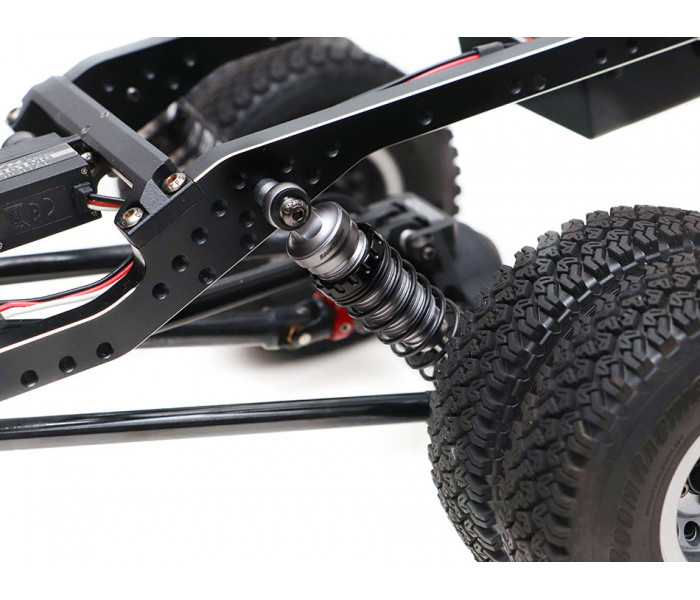

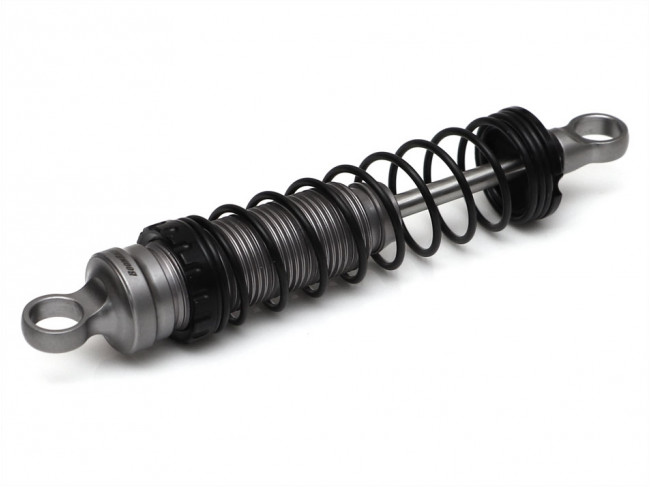

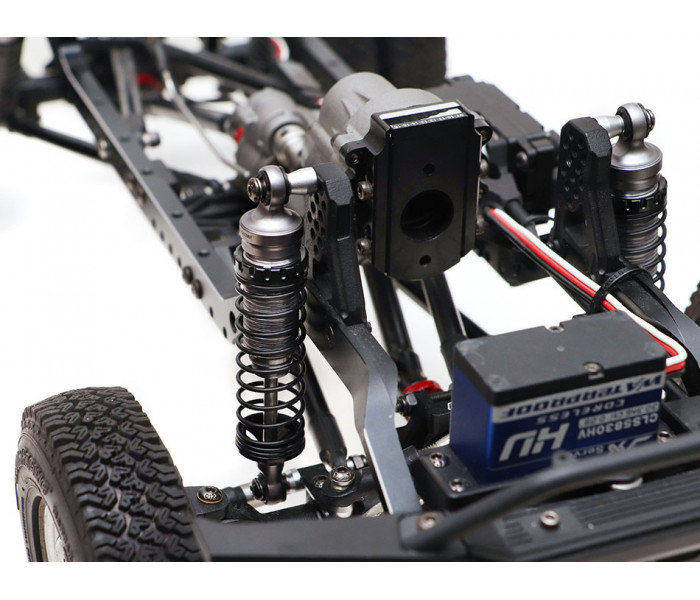

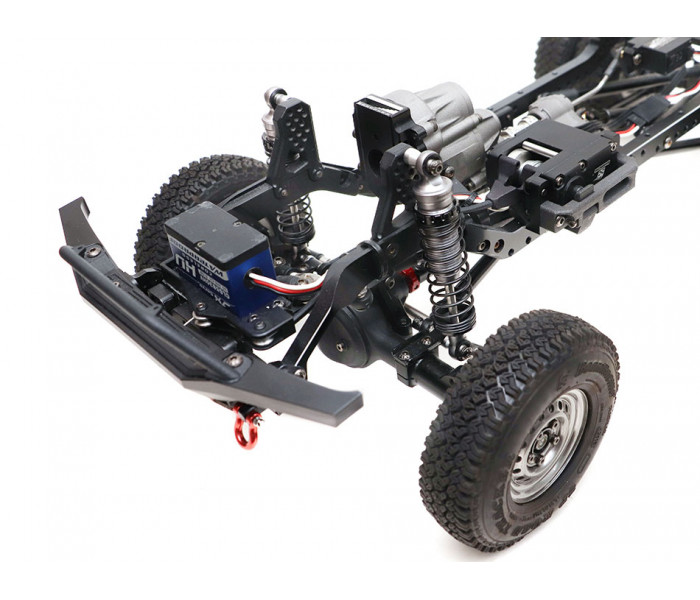

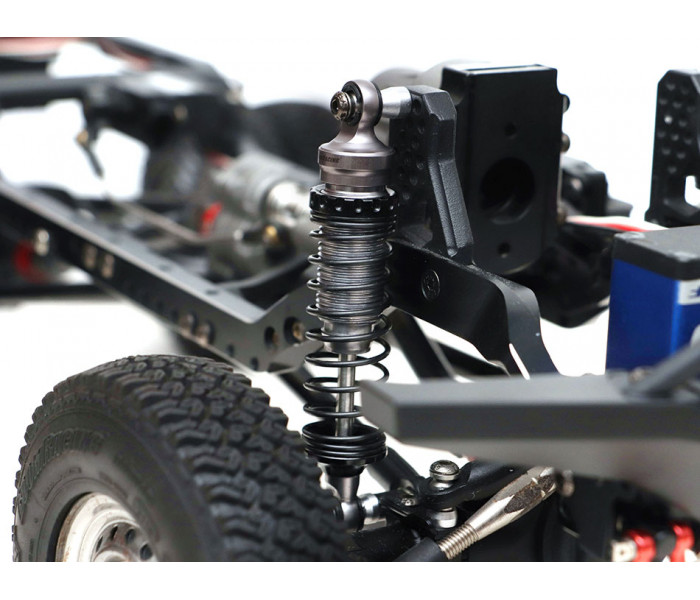

This is a pair of KUDU Big Bore 90mm coilover scale shock absorbers. Every aspect of these shocks has been optimized to deliver scale performance and precision adjustability.

Features:

  • Big bore scale performance shocks for off-road vehicles
  • Sealing diaphragm for more consistent oil pressure throughout
  • Billet aluminum cylinder body for strength and durability
  • Threaded cylinder body for adjustability
  • Long suspension travel design
  • Plastic pivot retainers for smoother swivel movements and replaceable
  • High degree pivot angle for better articulation
  • Double oil seal rings design
  • Cylinder and Friction seals prevent leaks and contaminants from entering
  • Stainless steel pivot balls for stainless, corrosion-resisting pivot rotation
  • Aluminum pivot ball tool included for hassle-free maintenance

Specification:
  • Length (eye-to-eye):
    • 90mm extended
    • 66mm compressed
  • Diameter:
    • Cylinder: 15mm
    • Spring: 17mm
  • Shocks available in 70mm / 80mm / 90mm
  • Difficulty Level: 1 out of 5

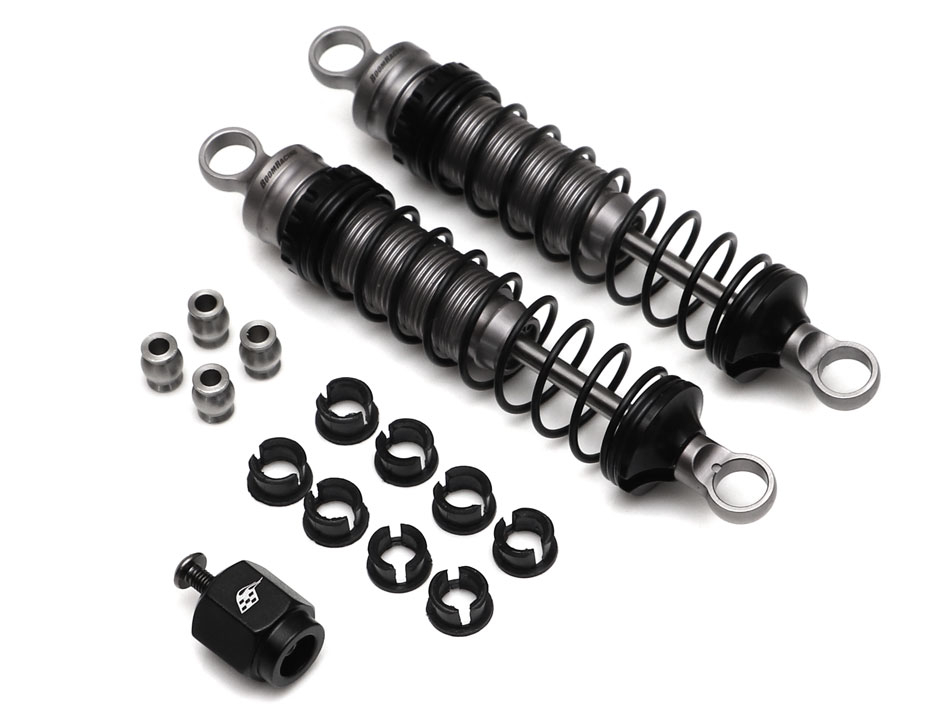

Includes:
  • 2x Piston
  • 4x E-Clip
  • 2x Piston Rod
  • 4x Oil Seal Ring
  • 2x Separator
  • 2x Rod Guide
  • 2x C-Clip
  • 2x Cylinder
  • 2x Sealing Diaghragm
  • 2x Spring Preload Adjustor
  • 2x Friction Ring
  • 2x Upper Mount
  • 2x Lower Mount
  • 2x Spring (Medium)
  • 2x Spring Retainer
  • 4x Pivot Retainer #BRSHJR
  • 4x Pivot Ball #BRW750310

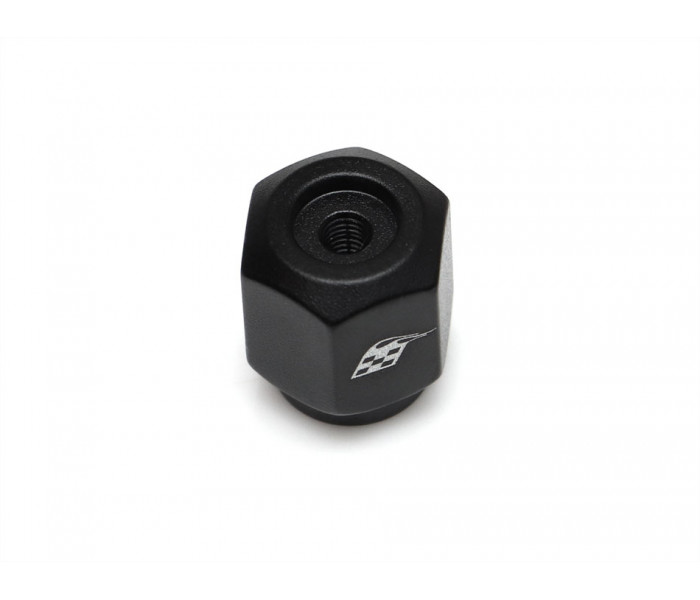

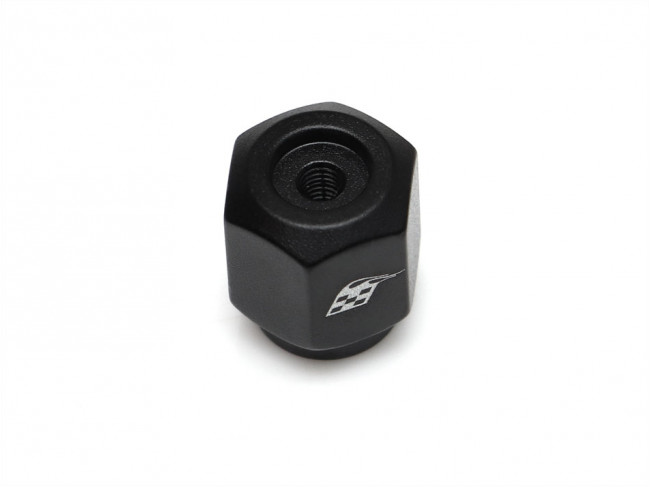

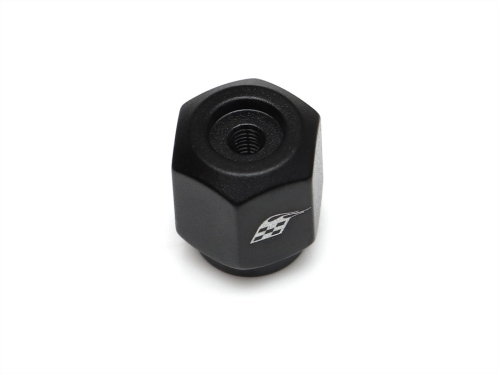

  • 1x Alum Pivot Ball Tool #BRT10053

Optional Springs:
  • KUDU™ Shock Springs Soft (Blue) for Big Bore 90mm Shocks BRSP90-SPRINGB
  • KUDU™ Shock Springs Medium (Green) for Big Bore 90mm Shocks BRSP90-SPRINGG

Recommended:
  • Boom Racing BADASS Shock Oil (not included)
  • Boom Racing Silicone Grease #BRGRS10274-20 (not included)
  • Thread Lock (not included)

Replacement Parts:
  • Rebuild Kit #BRSPKIT
  • Pivot Retainer #BRSHJR
  • Pivot Ball #BRW750310
  • Alum Pivot Ball Tool #BRT10053
