KUDU™ 70mm Scale Shock Absorbers (2)

USD $27.50

Part #: BRSH0070


LOADING IMAGES

KUDU™ 70mm Scale Shock Absorbers (2)

USD $27.50

Part #: BRSH0070

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 61mm - 80mm ShocksBRX01 PartsKudu PartsBRX02 PartsBRX02 Optional PartsBRX01 Optional PartsBRX02 109 Optional PartsBRX02 109 PartsBRX02 88 Optional PartsBRX02 88 Parts

PRODUCT DESCRIPTION

Product Resources

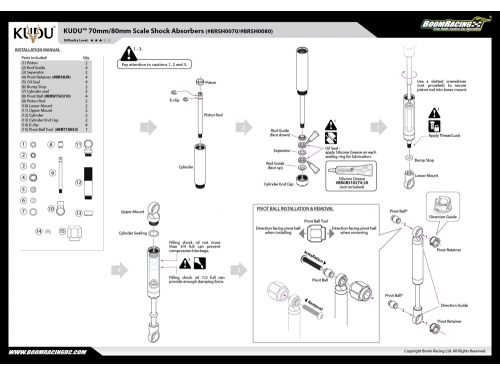

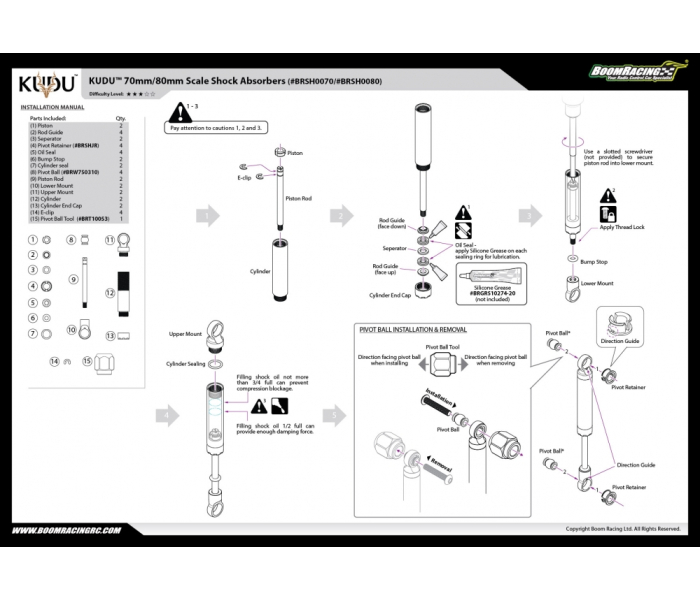

instruction-manual---kudu_scale_shock_absorbers_1644227249.pdf

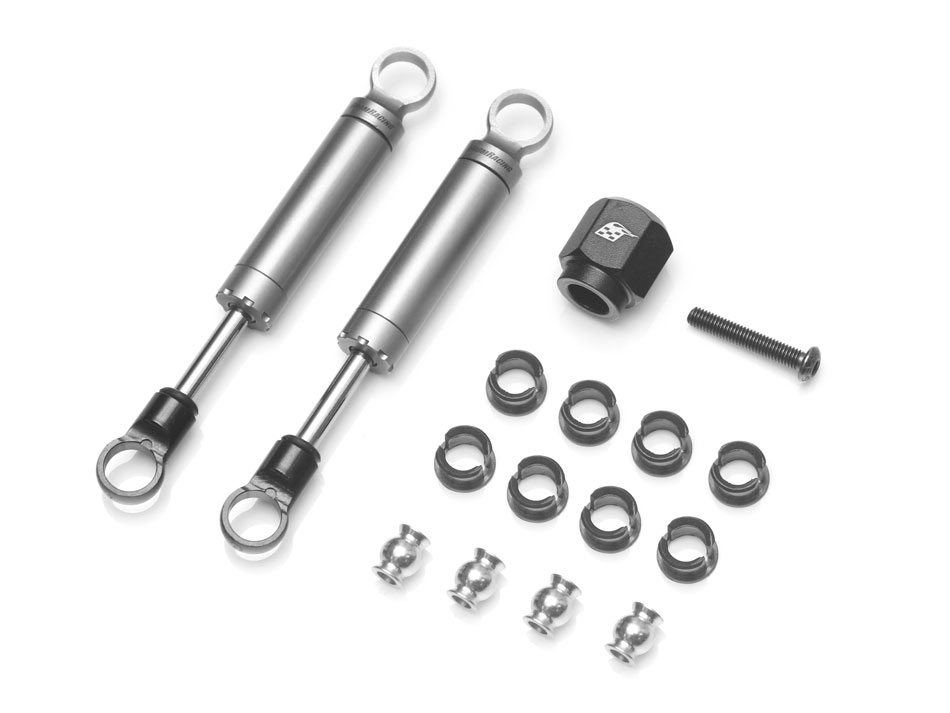

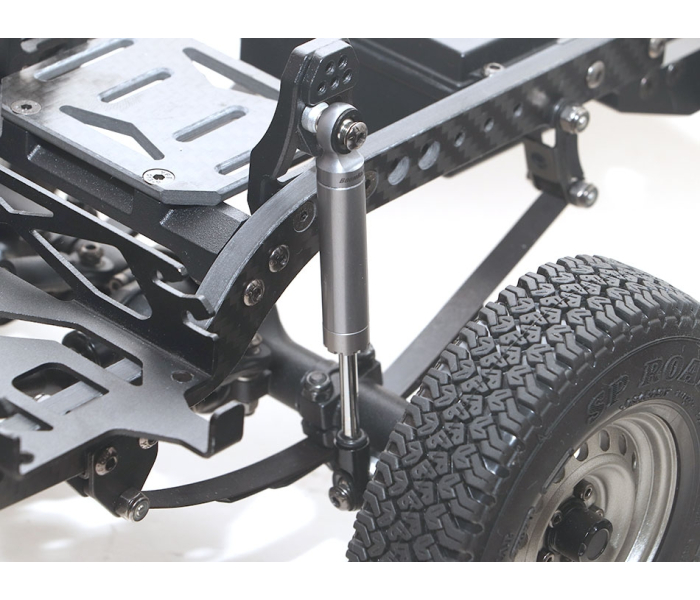

This is a pair of KUDU 70mm scale shock absorbers. Every aspect of these shocks has been optimized to deliver scale performance and precision adjustability.

Features:

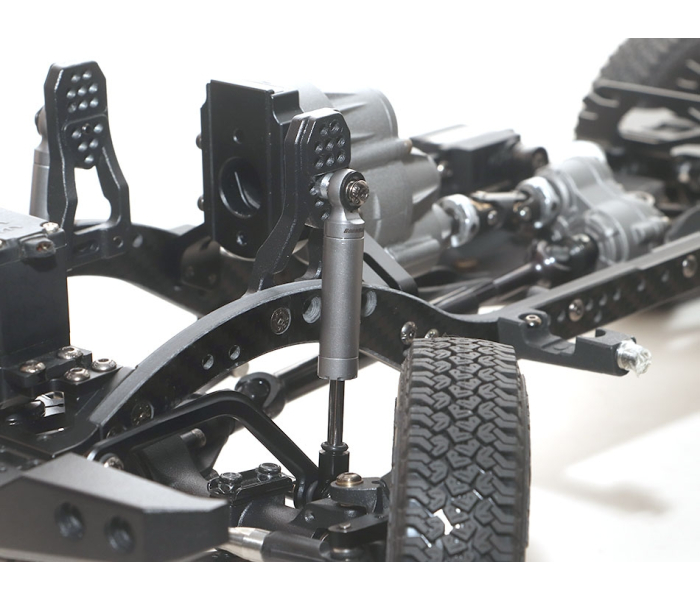

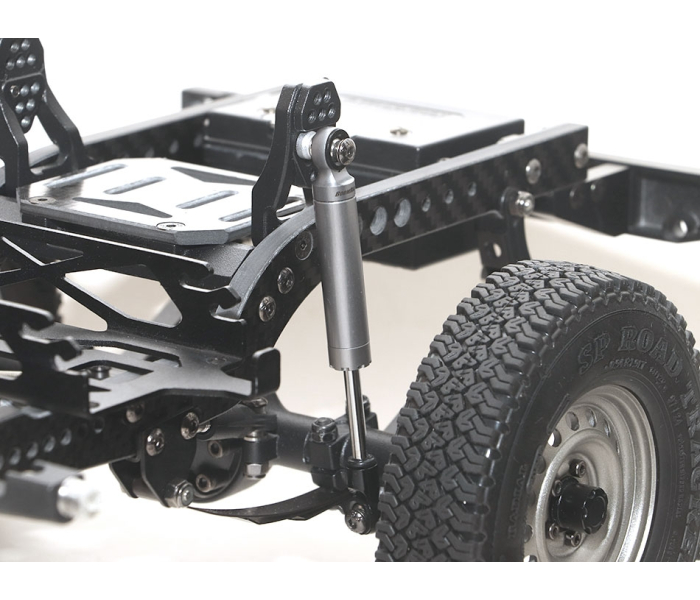

  • Scale performance shocks for off-road vehicles
  • Billet aluminum cylinder body for strength and durability
  • Steel Shock Shaft with Titanium Nitride Coating
  • Plastic pivot retainers for smoother swivel movements and replaceable
  • High degree pivot angle for high-angle articulation
  • Double X-Ring oil seals design
  • Cylinder and Friction seals prevent leaks and contaminants from entering
  • Bump stops provide an additional level of bottoming control
  • Stainless steel pivot balls for stainless, corrosion-resisting pivot rotation

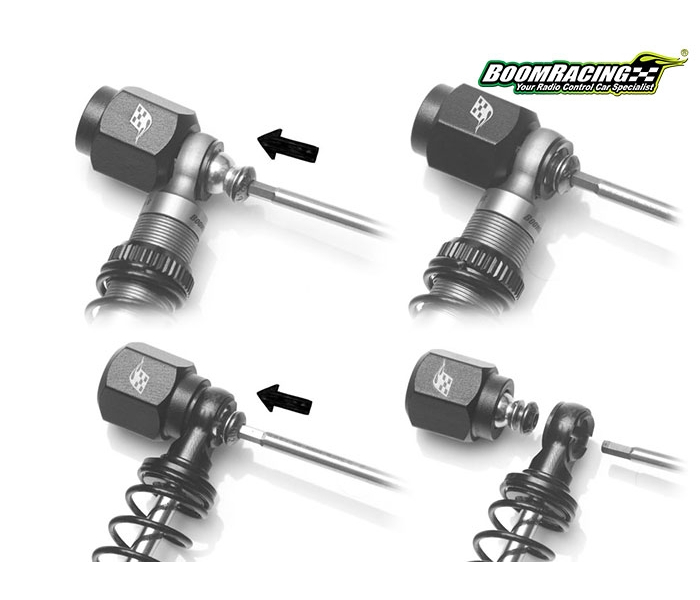

  • Aluminum pivot ball tool included for hassle-free maintenance

Specification:
  • Length (eye-to-eye):
    • 70mm extended
    • 55mm compressed
    • Spring: 45mm
  • Cylinder Diameter: 10.2mm
  • Shocks available in 70mm / 80mm / 90mm
  • Difficulty Level: 3 out of 5

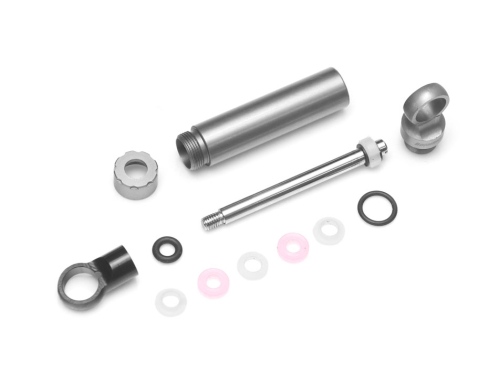

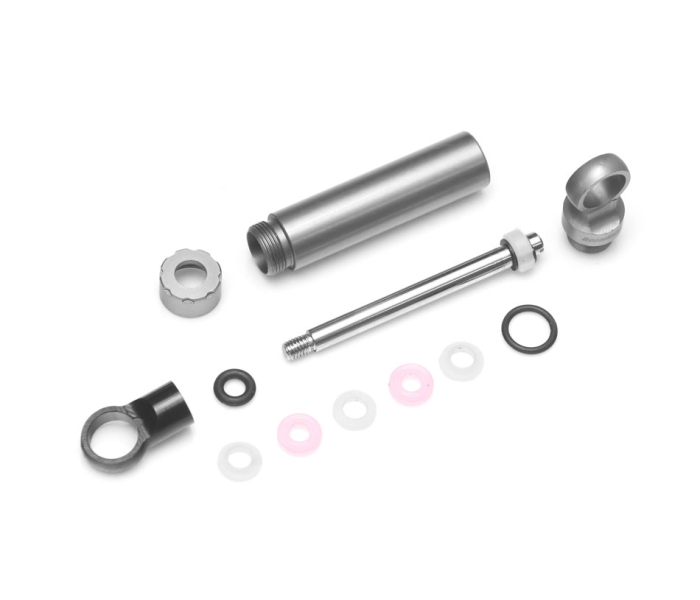

Includes:
  • 2x Piston
  • 4x Rod Guide
  • 2x Separator
  • 4x Pivot Retainer #BRSHJR
  • 4x Oil Seal
  • 2x Bump Stop (6x1.5mm)
  • 2x Cylinder Seal (8x1.0mm)
  • 4x Pivot Ball #BRW750310
  • 2x Piston Rod
  • 2x Lower Mount
  • 2x Upper Mount
  • 2x Cylinder
  • 2x Cylinder End Cap
  • 4x E-Clip (2x5x0.4mm)
  • 1x Alum Pivot Ball Tool #BRT10053

Recommended:
  • Boom Racing BADASS Shock Oil (not included)
  • Boom Racing Silicone Grease #BRGRS10274-20 (not included)
  • Thread Lock (not included)

Replacement Parts:
  • Pivot Retainer #BRSHJR
  • Pivot Ball #BRW750310
  • Alum Pivot Ball Tool #BRT10053
  • Rebuilt Kit (X-Ring, Separator, Rod Guide) #BRSHKIT
