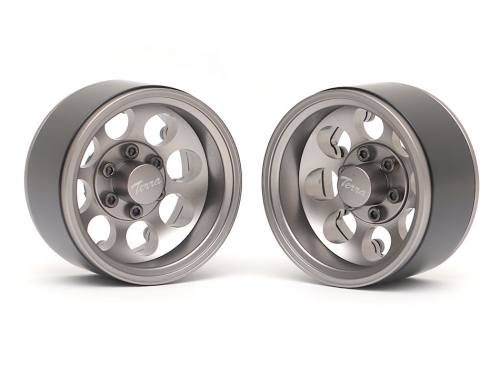

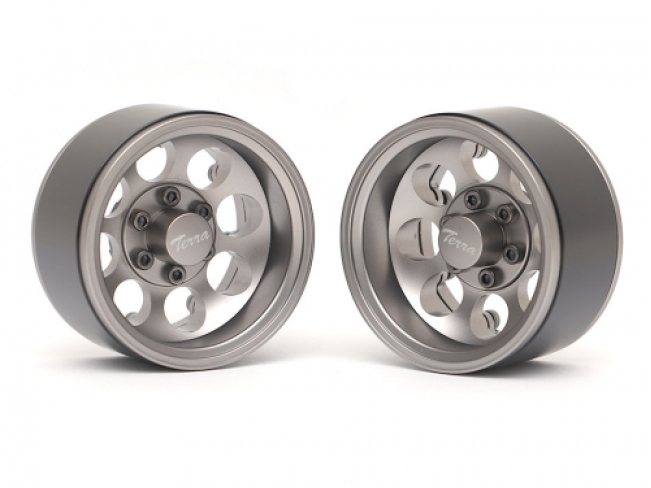

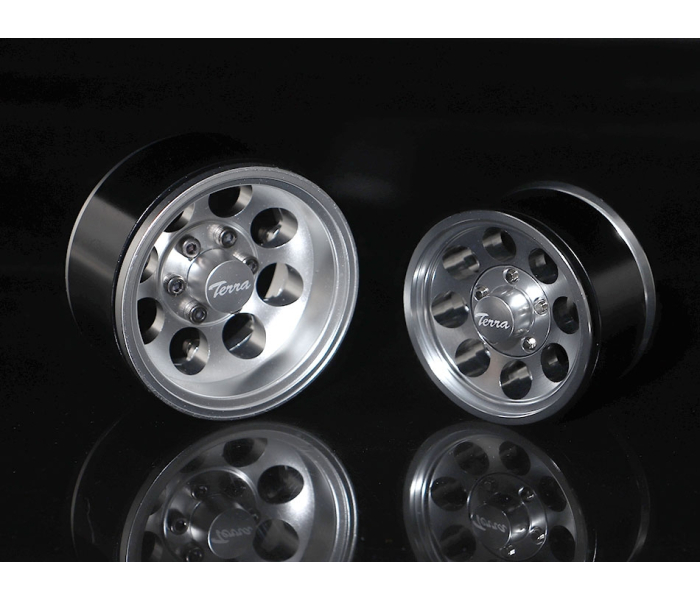

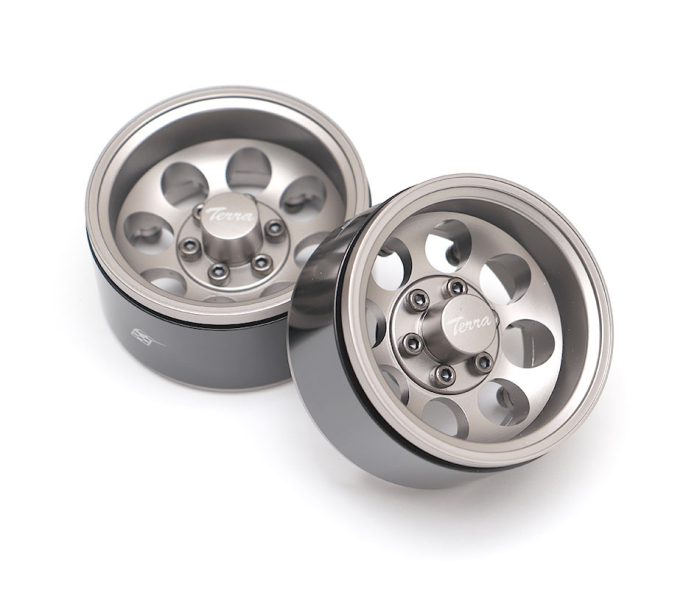

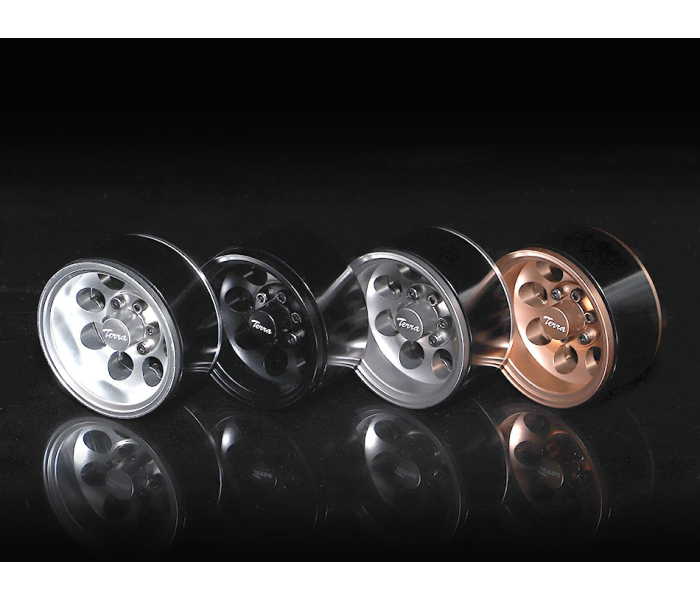

KRAIT™ 1.9 Terra Classic 8-Hole Aluminum Deep Dish Beadlock Wheels w/ XT601 Hubs (2) Gun Metal

USD $36.90

Part #: BRW780917GM


LOADING IMAGES

KRAIT™ 1.9 Terra Classic 8-Hole Aluminum Deep Dish Beadlock Wheels w/ XT601 Hubs (2) Gun Metal

USD $36.90

Part #: BRW780917GM

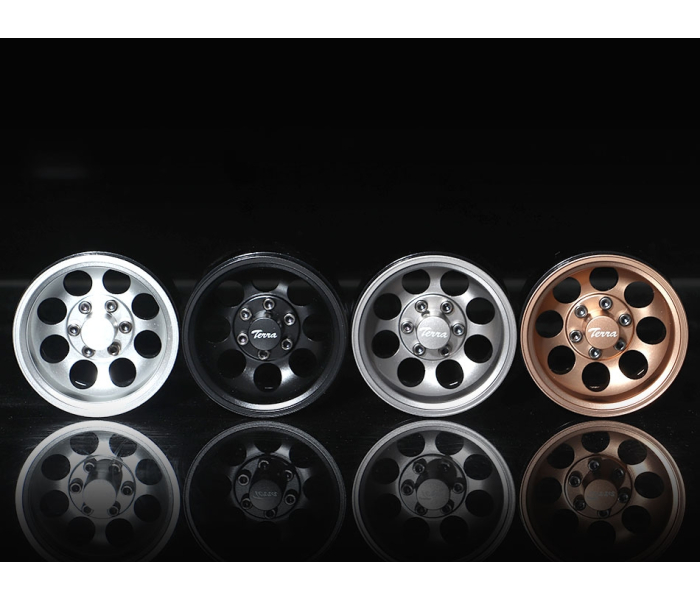

All available colors:
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 1.9 Beadlock WheelsKrait Parts

PRODUCT DESCRIPTION

Product Resources

Based on the popular 1.55" Terra Classic beadlock wheel that scale fans around the world love, this is a KRAIT™ 1.9" deep dish version with some new improved features.

The Terra Classic 8-Hole is a scaled-down version of the popular 1:1 offroad 8-Hole beadlock wheels.

Features:
  • Improved bead design to protect against bead damage from wheel impact and high speed rotation
  • Uses Boom Racing XT6 Series aluminum removable hubs for multiple offset options
  • Billet aluminum for durability and strength

Specification:
  • Size: 1.9"
  • Width: 28.05mm
  • Offset: 6.7mm (without XT601 hub)
  • Offset: 7.7mm (without hex)
  • Hex: Standard 12mm

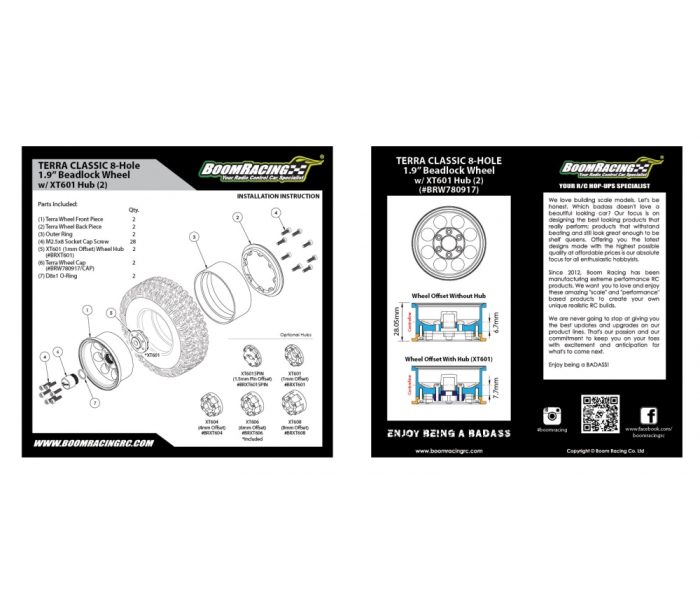

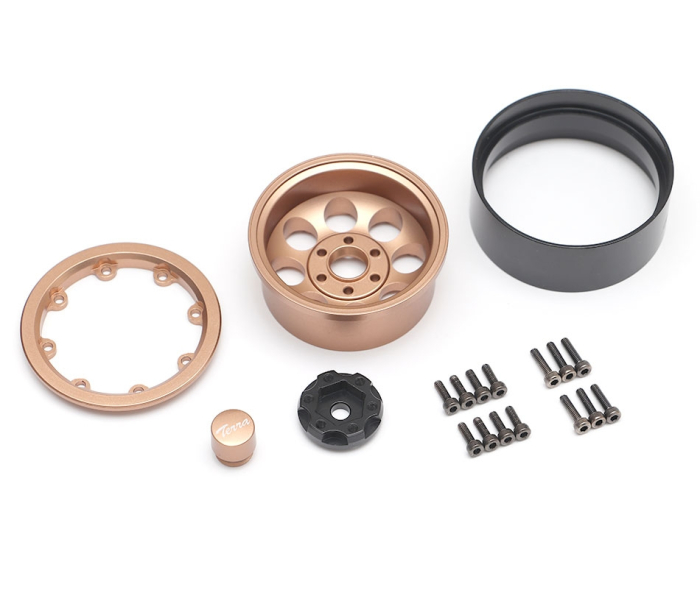

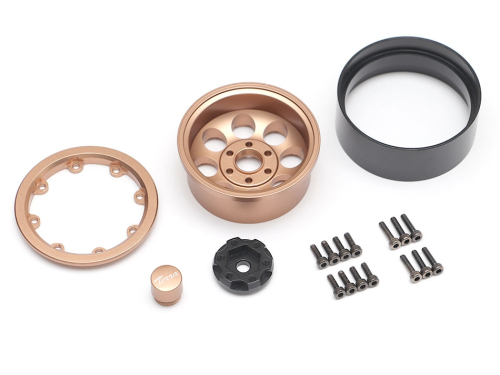

Includes:
  • 2x  KRAIT™ Terra 1.9" Classic Aluminum Beadlock Wheel
  • 2x Aluminum Center Wheel Ring
  • 2x Terra Wheel Cap #BRX780917/CAP
  • 2x XT601 Wheel Hub #BRXT601 (1mm offset)
  • 28x M2.5x8 Screw
  • 2x D8x1 O-Ring

Optional Wheel Hub Adapter Sizes:
  • XT6015PINV2 - 1.5mm Pin Alum Offset #BRXT6015PINV2
  • XT601V2 - 1mm Alum Offset #BRXT601V2
  • XT604V2 - 4mm Alum Offset #BRXT604V2 (Included)
  • XT606V2 - 6mm Alum Offset #BRXT606V2
  • XT608V2 - 8mm Alum Offset #BRXT608V2
  • XT612V2 - 12mm Alum Offset #BRXT612V2
  • XT616V2 - 16mm Alum Offset #BRXT616V2

Optional Scale Screws:
  • Mag Seat Lug Nut M2.5x12mm Scale Hardware BRPROB-10 (Black / Gold / Silver)
  • Mag Seat Lug Nut M2.5x6mm Scale Hardware BRPROB-09 (Black / Gold / Silver)

Optional Hex:
  • VT8 12mm Alum Hex for wheel shafts using 6mm Shaft (at wheel pin) and 5mm (threads) #BRT10054

Optional Part:
  • BRW780900J - 1.9" Delrin Center Wheel Ring

Replacement caps:
  • BRW780917/CAP
- Replacement Wheel Cap (2)

Reviews (5)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.

Loadinggg....

You May Also Like

Frequently Bought Together

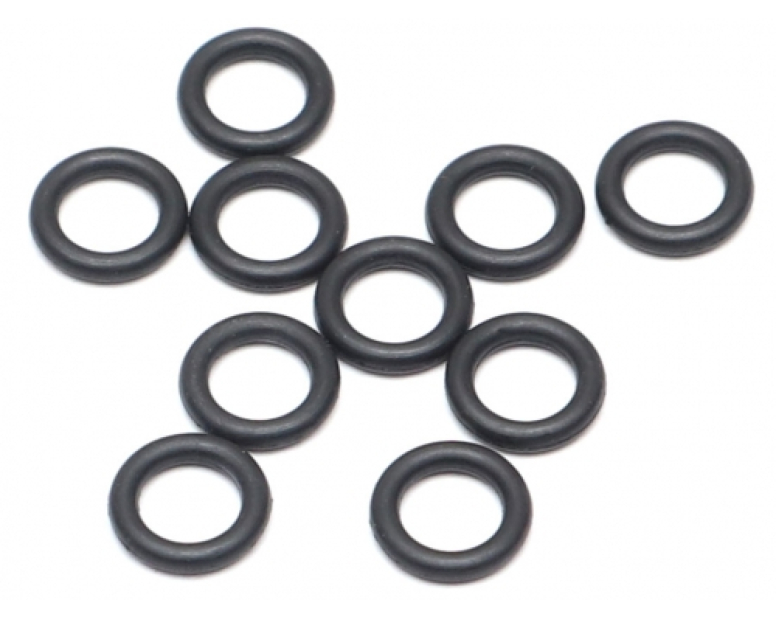

D8x1.5 Rubber O-ring (10)
