KRAIT™ 1.0" Terra Beadlock Wheel Lite Version (4) Silver

USD $49.00

Part #: BRW780939TERRA-S


LOADING IMAGES

KRAIT™ 1.0" Terra Beadlock Wheel Lite Version (4) Silver

USD $49.00

Part #: BRW780939TERRA-S

All available colors:
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Krait Parts1.0 Beadlock Wheels

PRODUCT DESCRIPTION

Product Resources

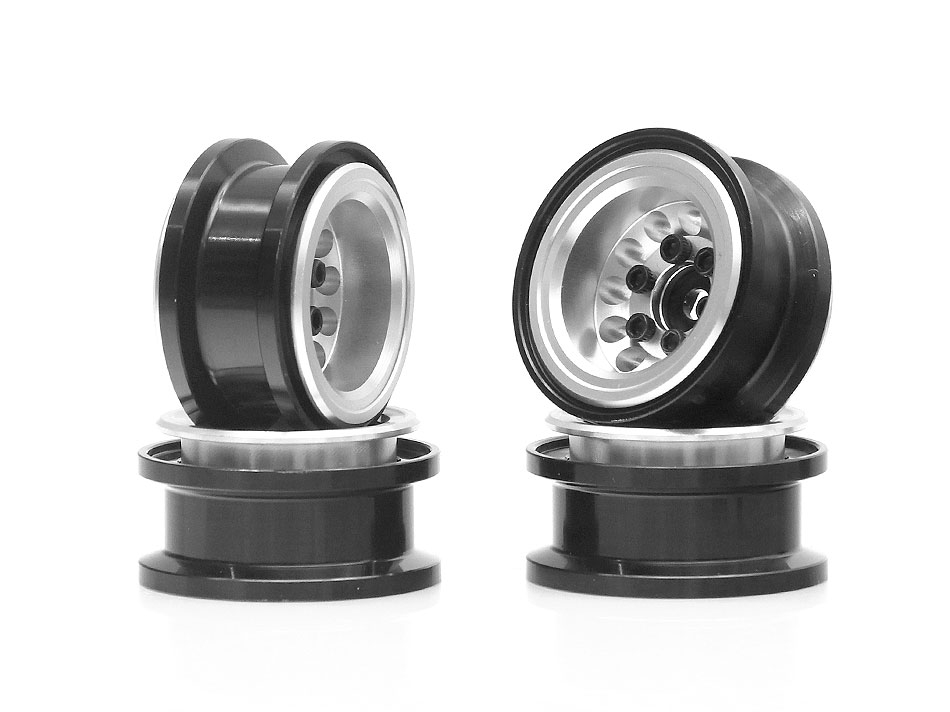

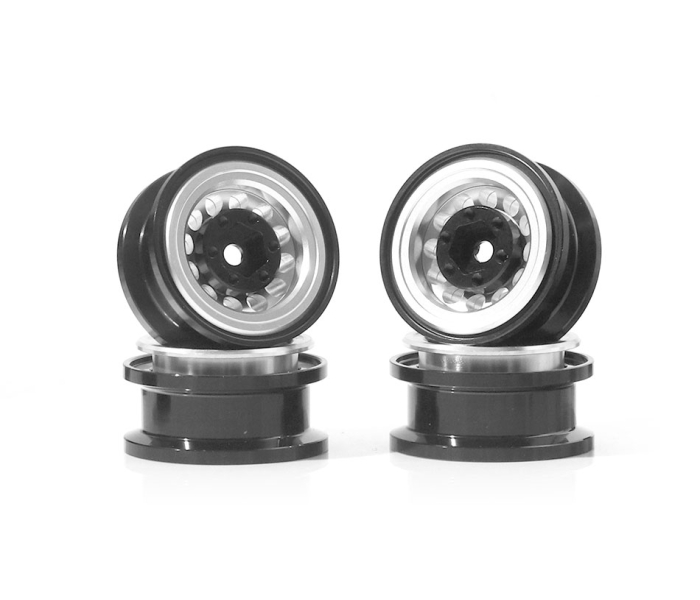

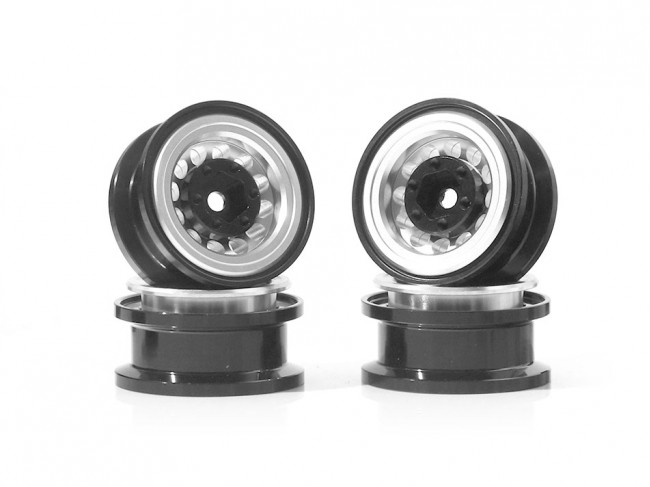

This is a set of KRAIT™ 1.0" TERRA Beadlock Wheel Lite Version Set (4).

KRAIT™ wheels come from a heritage in OG crawlers and Ultra 4 racing, winning multiple U4RC races around the world and certified tough and durable in extreme events. The new KRAIT™ 1.0" Beadlock Wheel for mini crawlers is where functionality meets performance and scale appearance.

The new KRAIT™ 1.0" Beadlock Wheel for mini crawlers is where functionality meets performance and scale appearance.

This Lite Version is made of machined billet aluminum. No matter if you are going for more performance or simply want better-looking wheels, upgrading your wheels is one of the first things you can do to your mini crawler. The major advantage for keeping the truck light is to have less rotating weight, which translates to less stress on the drivetrain. The aluminum center ring is designed to hold the foam insert in place.

These 1.0" wheels have the latest features updated such as reversible design for standard and deep-dish setup, and slotted removable hubs for durability and added adjustability.

Features:

  • Billet aluminum Beadlock wheels for lightweight performance
  • Reversible wheels - with "tuck-in" and "deep-dish" looks option
  • Strong and durable construction using high precision CNC billet machining
  • Removable wheel hub design
  • Highly adjustable - one set (4) of aluminum wheel hubs included (0.5mm offset)
  • Clamps down tire bead properly
  • Easy to assemble - six lugs straightforward design

Specification:
  • Size:
    • Height: 1.0" (25.4mm)
    • Width: 0.63" (16mm)
  • Weight:
    • Fully Assembled: 11.5g per wheel
    • Without Hub & Hardware: 9.5g per wheel
    • MXT6-1050: 0.5g
  • Offset
    • Standard Setup
      • 0.0mm w/ MXT6-1005
      • 2.0mm w/ MXT6-1025 (optional)
      • 4.5mm w/ MXT6-1050 (optional)
    • Deep Dish Setup
      • 3.0mm w/ MXT6-1005
      • 5.0mm w/ MXT6-1025 (optional)
      • 7.5mm w/ MXT6-1050 (optional)
  • Bolt Pattern: 6-Lug

Fits:
  • Boom Racing 1.0" MAXGRAPPLER 48.5mm X 19mm
  • Boom Racing 1.0" MAXGRAPPLER 51.5mm X 19mm
  • Boom Racing 1.0" MAXGRAPPLER 55.5mm X 19mm
  • Boom Racing 1.0" AGGRESSOR 61mm X 19mm
  • Boom Racing 1.0" HUSTLER M/TX 60mm X 19mm
  • Boom Racing 1.0" TPD 59mm X 19mm
  • Boom Racing 1.0" AGGRESSOR 53mm X 19mm
  • Boom Racing 1.0" HUSTLER M/TX 52mm X 19mm
  • Boom Racing 1.0" TPD 51mm X 19mm
  • RGT 1.0" Crawler Tire
    • #RGT/13616 46mm X 21mm X 18mm
  • Hobby Plus 1.0" Crawler Tire
    • #HBPLUS/240054 56mm X 21mm X 18.5mm
    • #HBPLUS/240055 56mm X 21mm X 18.5mm
    • #HBPLUS/GP+604001 46mm X 21mm X 17.5mm
  • Axial 1.0" Tires

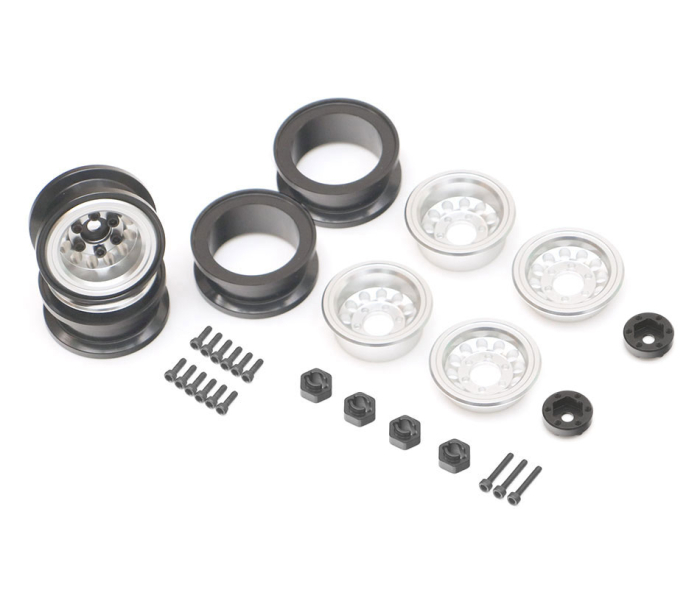

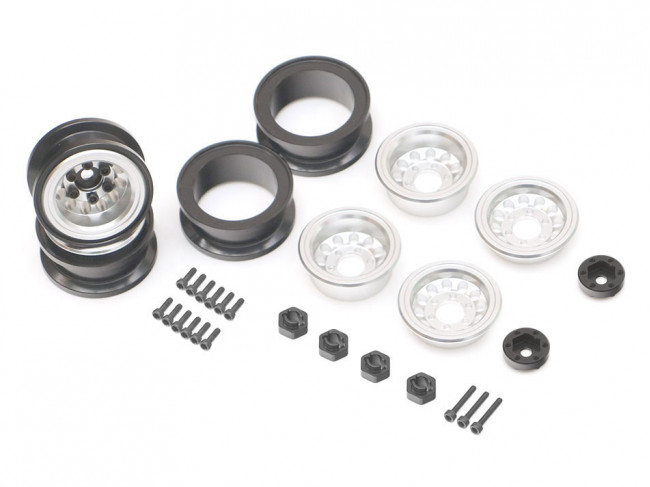

Includes:
  • 4x Front Alum Wheel Barrel
  • 4x Rear Alum Wheel Barrel
  • 4x Alum Center Ring
  • 4x 0.5mm Alum Wheel Hub Adapter #BRMXT6-1005
  • 4x Alum Wheel Hex
  • 3x M1.6x12 Pilot Screw
  • 24x M1.6x5 Hex Screw (Black)
