How To Install An Internal Winch In A Boom Racing BRX01

5589 Views

Since the release of the new KUDU Bumper Kit, we've been asked how to integrate an internal winch with the Bumper. Read on to find out how.

Since the release of the new KUDU Bumper Kit, we've been asked how to integrate an internal winch with the Bumper Kit. Below is a list of parts you will need for the BRX01, with an internal winch and the KUDU Bumper Kit.

You will need:

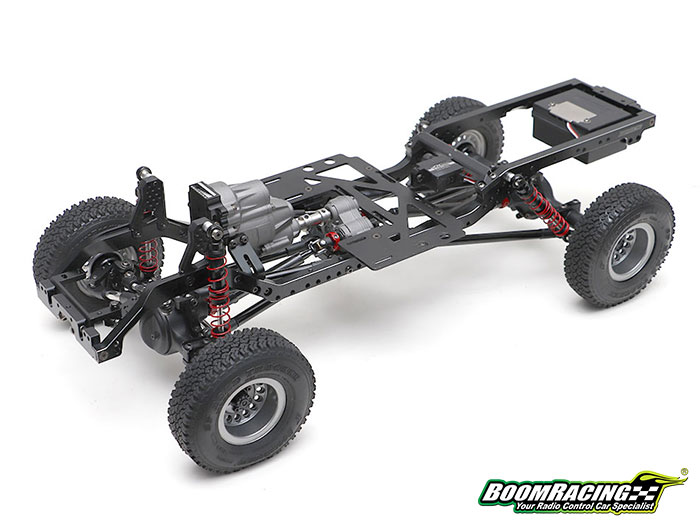

BRX01™ Chassis Kit (#BR8001 or #BR8002)

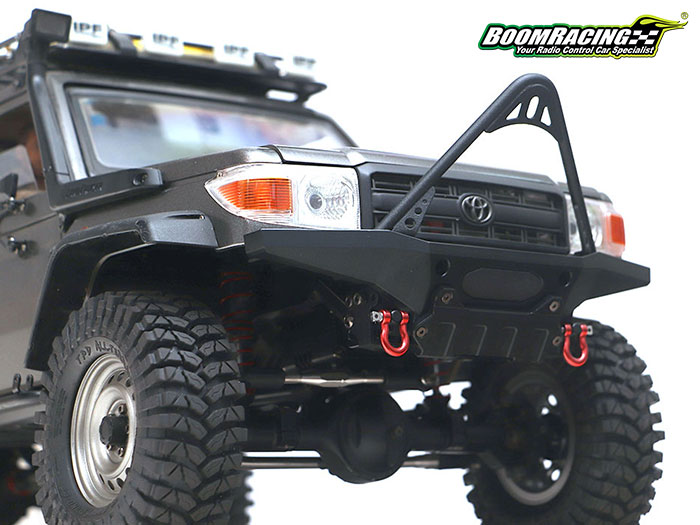

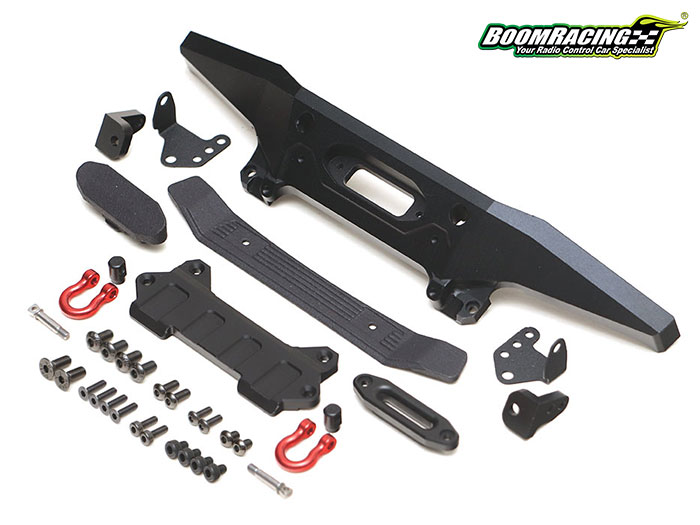

KUDU™ High Clearance Bumper Kit #BRLC7094

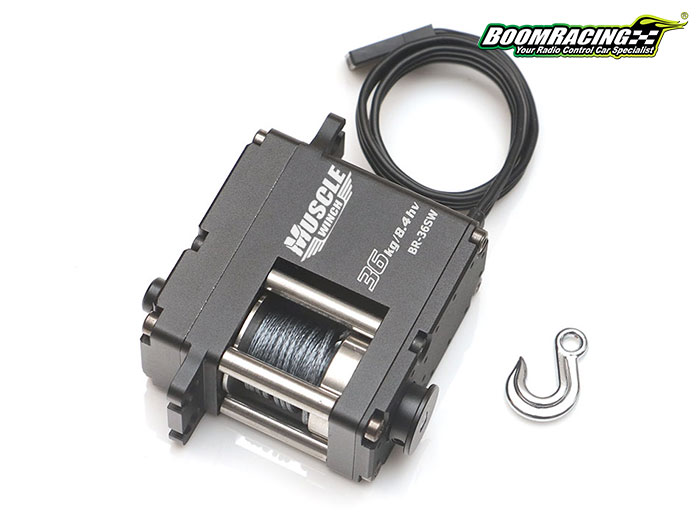

Muscle Winch™ #BR-36SW or any internal winch of your choice

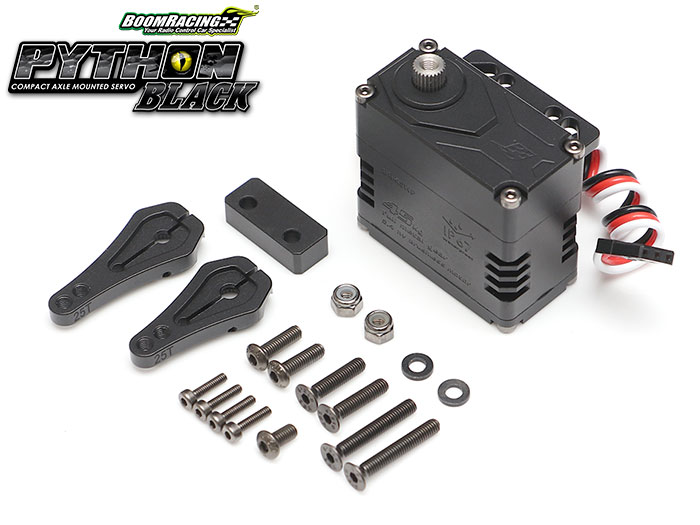

PYTHON™ BLACK BR-45WP HV Waterproof 45kg/0.11s @8.4v Axle Mounted Servo #BRT10043

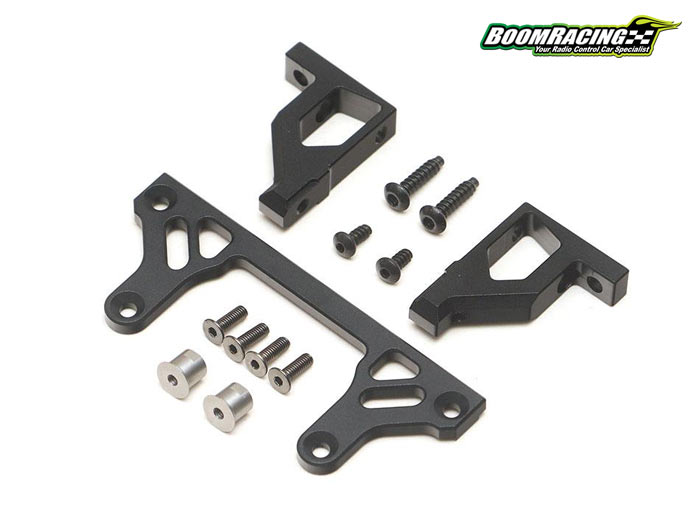

Pass-Thru Aluminum Front Body Mount #BRLC7098

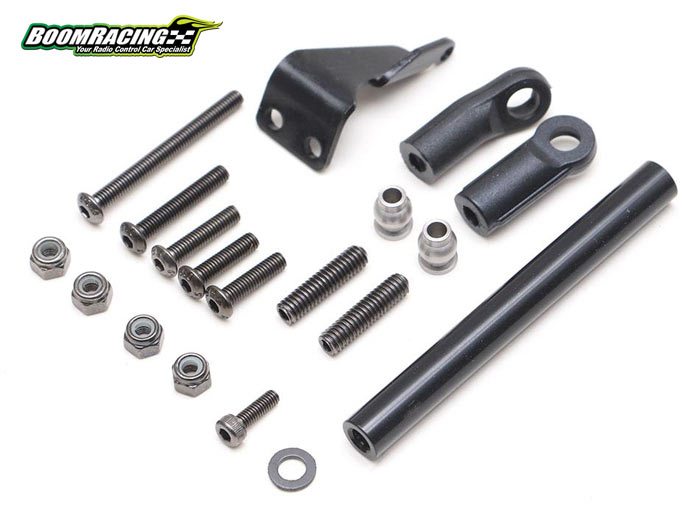

4-Link Conversion Kit for BRX01 #BRLC7079

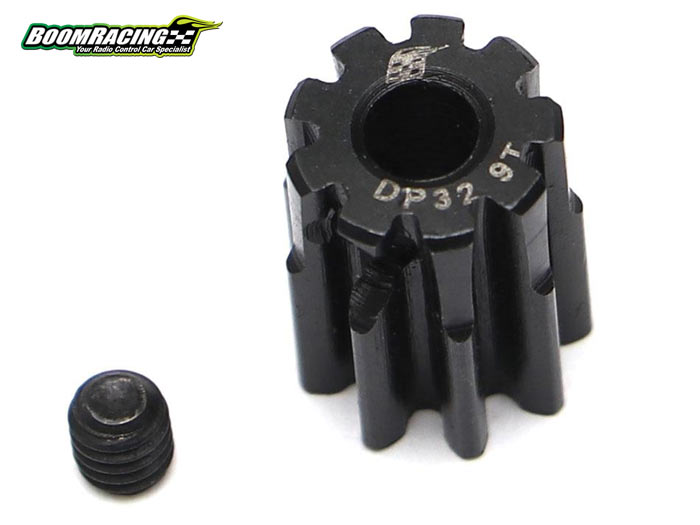

9T (Smallest) Pinion Gear BRPG3209-3

At the moment of this article, the only way to use KUDU Bumper Kit with an internal servo winch is to move the steering servo from the chassis (CMS) to the front axle. You can achieve this by using the Boom Racing PYTHON BLACK axle-mounted servo and convert the truck to a 4-link setup.

Switching the servo from chassis mounted to axle mounted requires the change in suspension geometry setup from 3-link (CMS) to 4-link (servo-on-axle) setup.

Follow the steps:

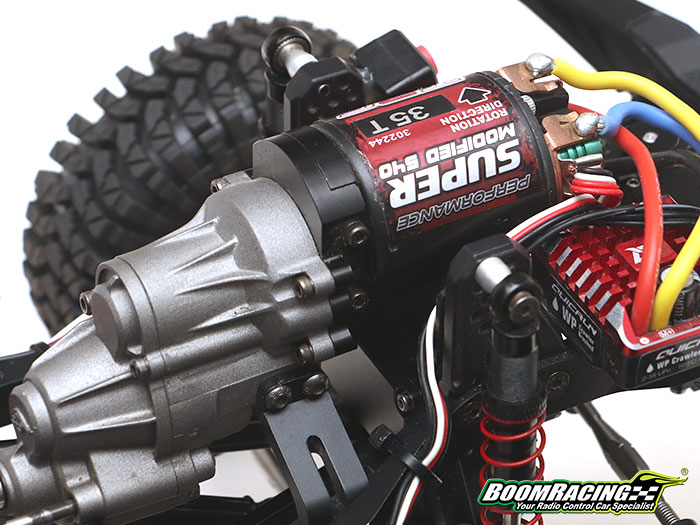

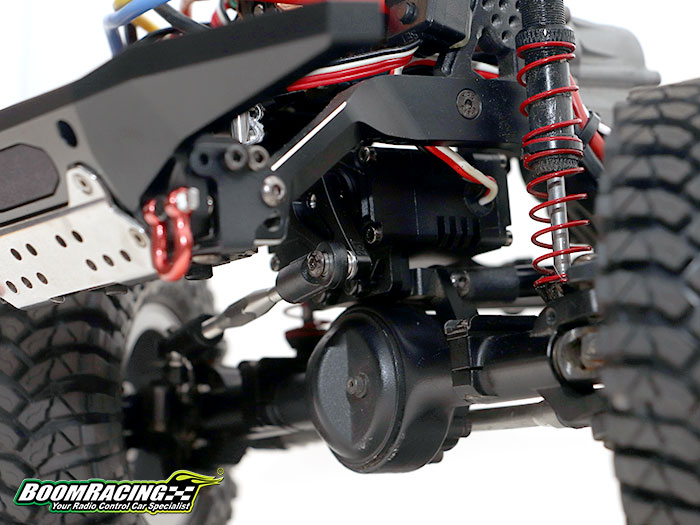

To be able to mount the PYTHON BLACK axle-mounted servo BRT10043, rotate the BRX01 motor mount upside down and use the smallest pinion gear (9T) BRPG3209-3 to get the maximum clearance for the servo.
Adjust the shocks to a slightly higher position based on your setup

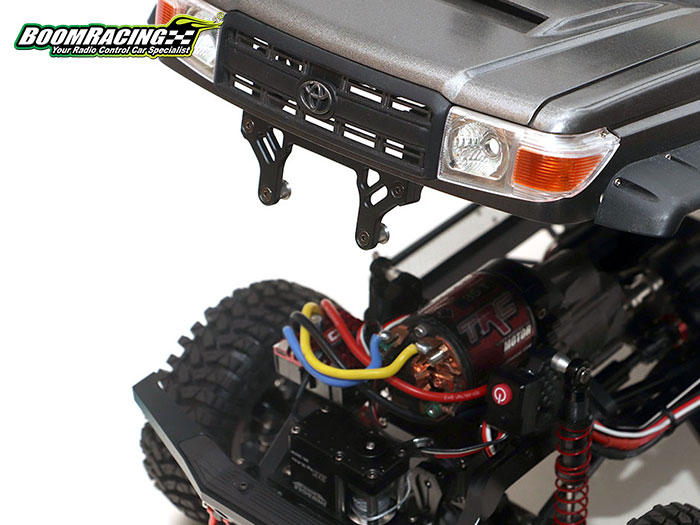

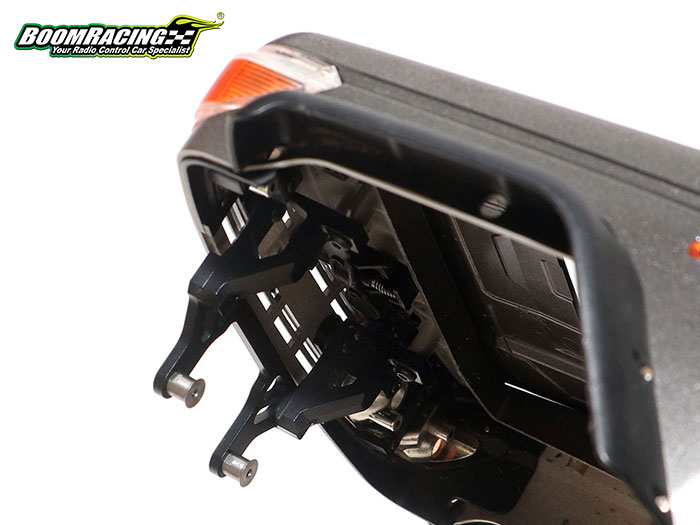

Replace the front body mount with the Pass-Thru Aluminum Front Body Mount BRLC7098

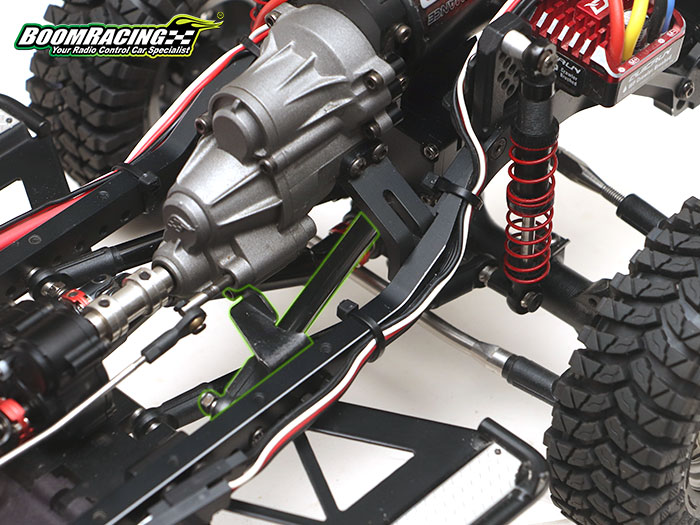

Install the 4-Link Conversion Kit for BRX01 BRLC7079

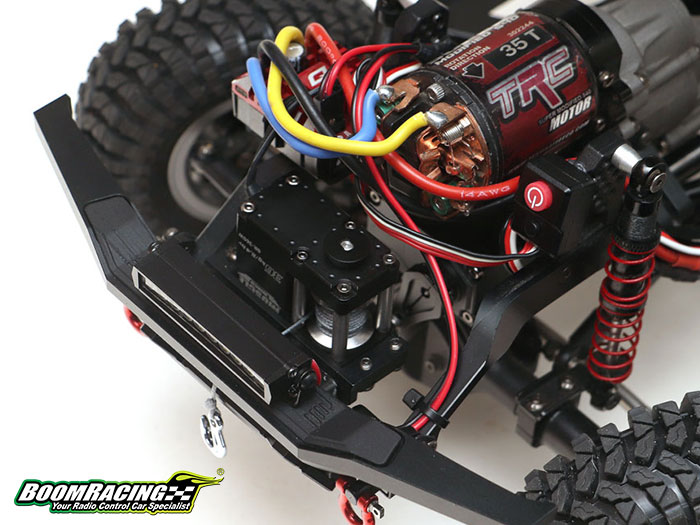

Install the internal servo winch replacing the steering servo

We hope this installation helps! Please feel free to leave your questions and comments below.
