Heavy Duty Keyed Bevel Helical Overdrive Gear 27/8T + Differential Locker Set for BRX70/BRX80/BRX90 PHAT™ & AR44/45/Capra Axles

USD $32.90

Part #: BR955029


LOADING IMAGES

Heavy Duty Keyed Bevel Helical Overdrive Gear 27/8T + Differential Locker Set for BRX70/BRX80/BRX90 PHAT™ & AR44/45/Capra Axles

USD $32.90

Part #: BR955029

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Diff GearsBRX01 PartsPhat Axle PartsBRX02 PartsBRX02 Optional PartsBRX01 Optional PartsBRX02 109 Optional PartsBRX02 109 PartsBRX02 88 Optional PartsBRX02 88 Parts

PRODUCT DESCRIPTION

Introducing the strongest AR44 axle gears to date: Keyed Overdrive 27/8T HD Helical Bevel Gears + Differential Locker Set for AR44 housings #BR955029.

The SCX10 II stock axle gears are known to be a weak point in the housing. After we released the popular Keyed 30/8T Hardened Steel Gears last year, fans of Boom Racing inquired about an OD version. So YOU asked, and we listened!

Here is the new heavy duty overdrive 27/8T helical bevel gear & diff locker set.

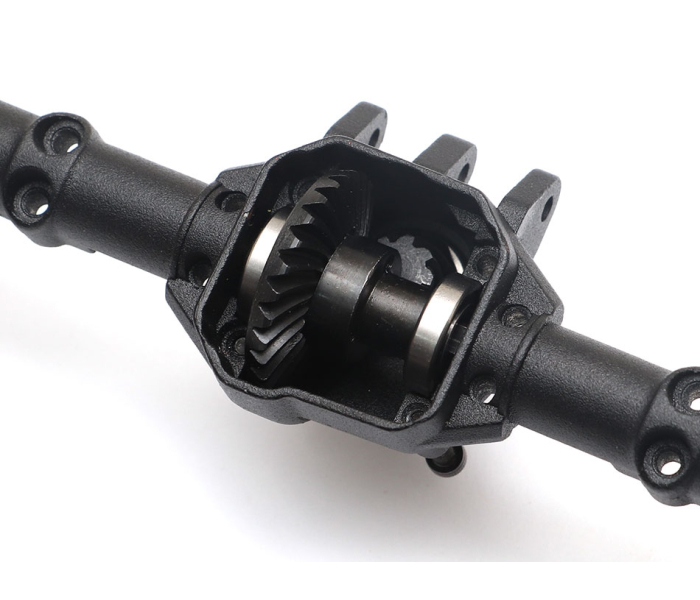

Designed for the Axial SCX10 II AR44 Axle Housing (AX-31401) or Boom Racing PHAT Axle Housing (BR955015) / the BRX70 and BRX90 PHAT Axles.

Use this gear to improve performance of your crawler. Run them in the front axle for a faster wheel speed in the front tires. Overdrive gears help steering in sharp turns like how a dig does and climbing by pulling forward the rear end.

Features:
Overdrive gears create faster wheel speed to help steering and climbing
Hardened steel gears for maximum strength and durability

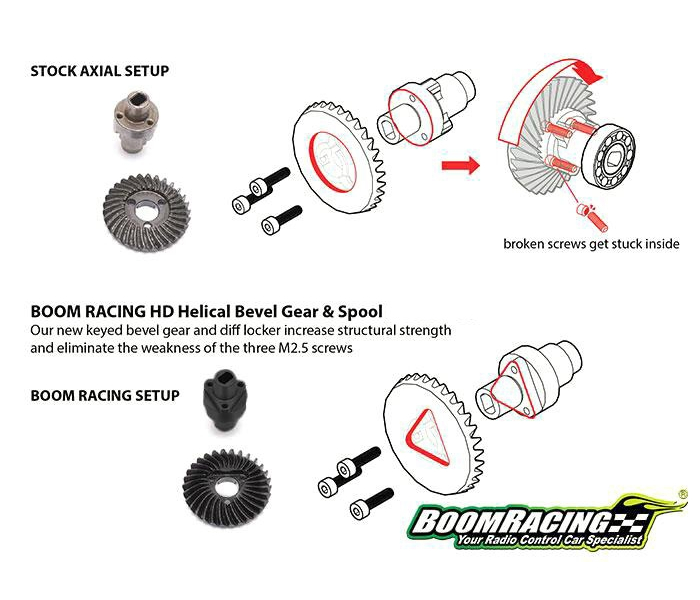

Keyed spool to increase structural strength and to eliminate weakness of the M2.5 screws
Tight tolerance of the diff locker and the axle shaft
Tight tolerance of the bevel gear and input shaft to increase efficiency in the drivetrain

Fits:
Boom Racing BRX70 PHAT Axle
Boom Racing BRX80 PHAT Axle
Boom Racing BRX90 PHAT Axle
Boom Racing PHAT AR44 Axle (BR955015)
Axial AR44 Stock Axle
Axial AR45 Stock Axle
Axial Capra Currie F9 Portal Axle

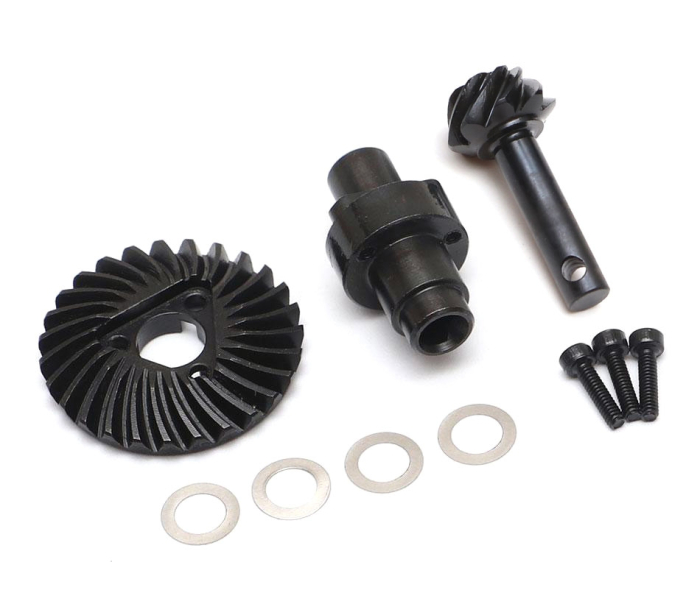

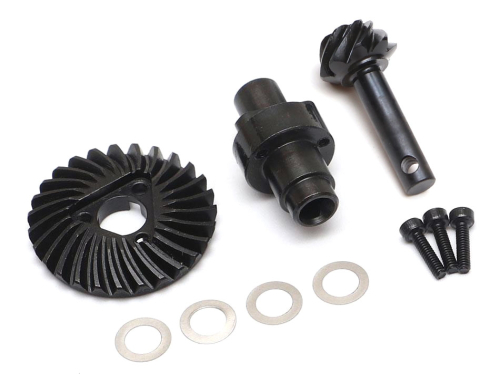

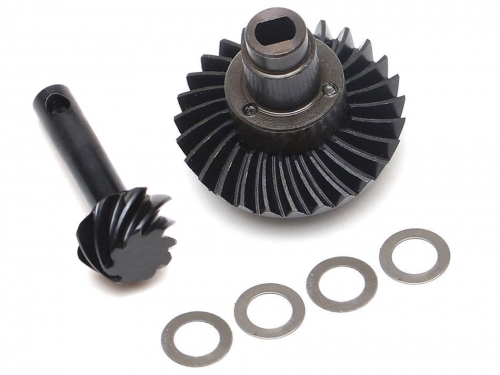

Includes:

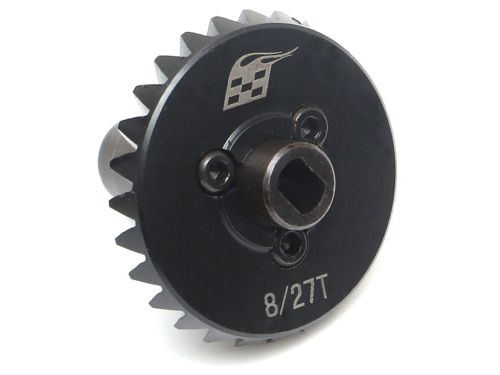

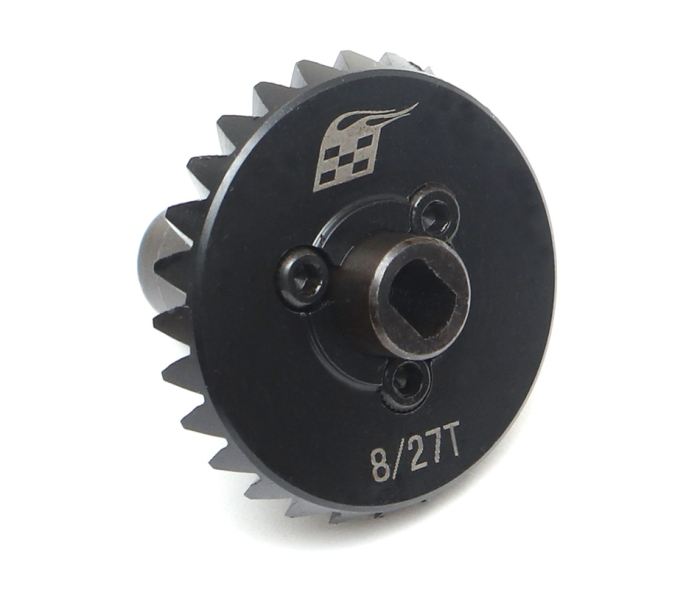

1x Keyed Heavy Duty Bevel Gear 27T

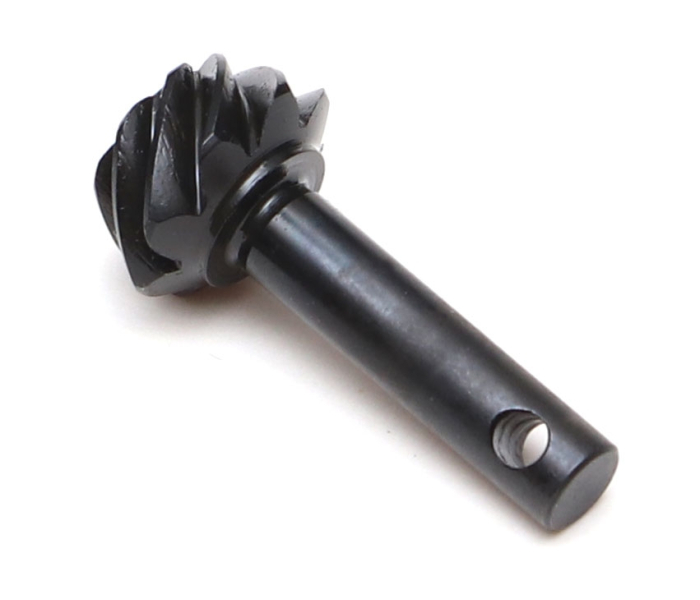

1x Heavy Duty Input Shaft 8T
1x Keyed Differential Locker (Spool)
3x M2 hardware
4x 1mm washer

Bearing Size:
D5x9x3 #BBZMR952RS x2 (not included)

Replaces the following stock Axial parts:
AX-31404- AR44 Differential Locker
AX-31405 - Heavy Duty Bevel Gear Set 30T/8T

This product will only fit one axle housing.

Individual compenents are available separately.

Replacements are available:
27T Main Gear
8T Input Shaft
Diff Lock Spool
