Front Portal Axle Conversion Kit for BRX70 PHAT™ Axle

USD $85.00

Part #: BRPT7022KIT


LOADING IMAGES

Front Portal Axle Conversion Kit for BRX70 PHAT™ Axle

USD $85.00

Part #: BRPT7022KIT

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Axle Conversion KitsPhat Axle Parts

PRODUCT DESCRIPTION

Product Resources

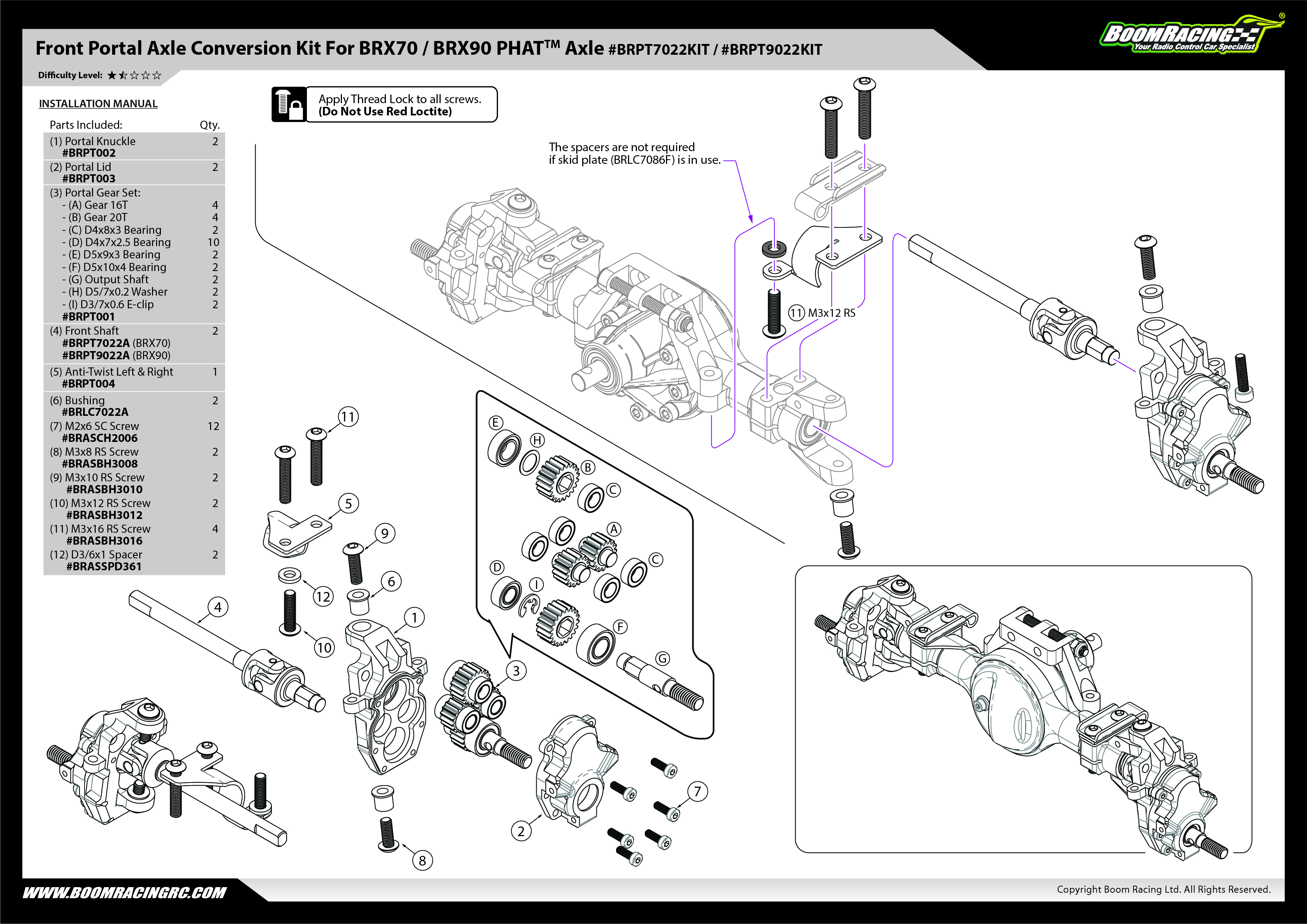

instruction-manual---front-portal-axle-conversion-kit-for-brx70---brx90-brpt7022kit_brpt9022kit-20221117_1668675894.jpg

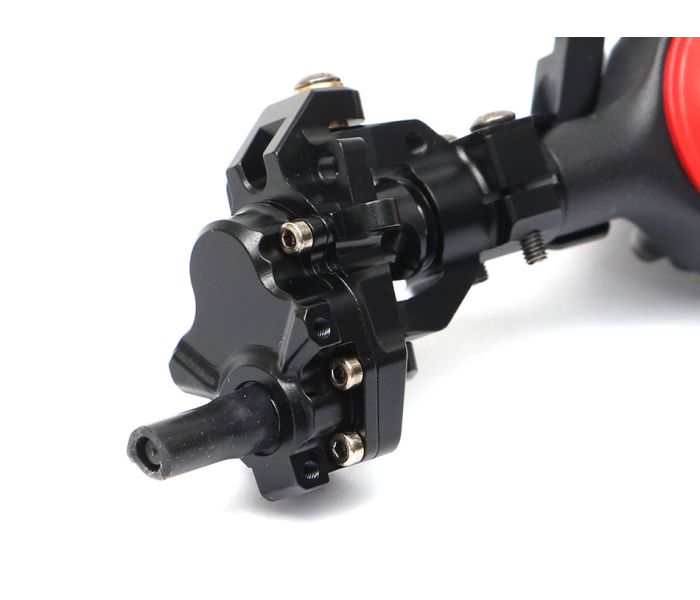

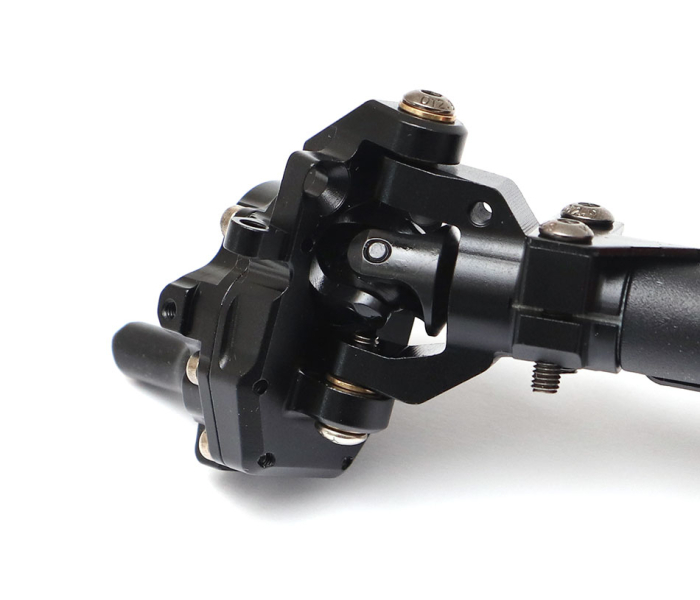

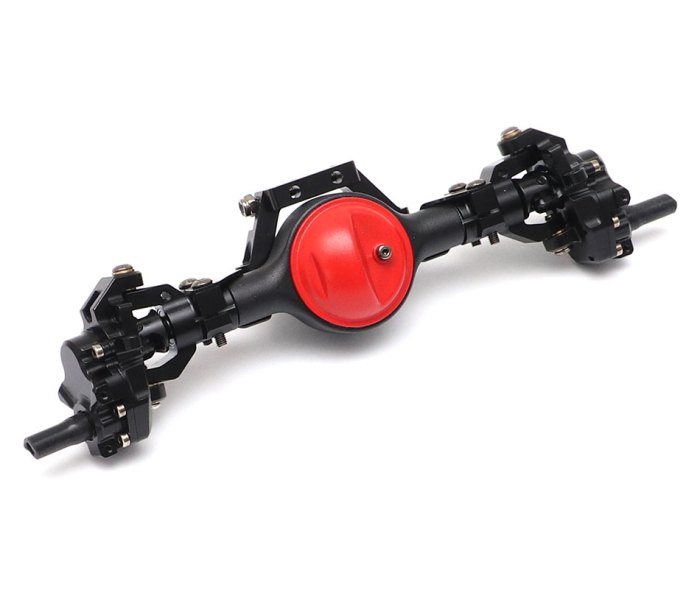

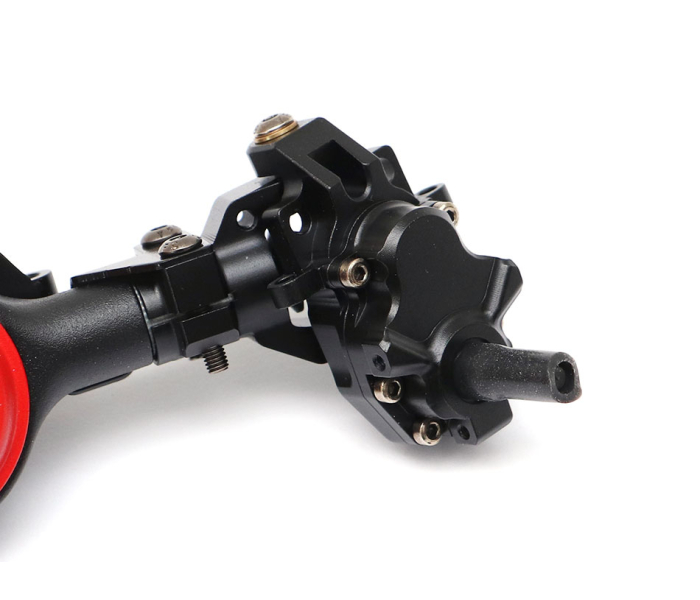

This is a set of front portal axle conversion kit for the BRX70 PHAT™ axle. The new portal gearbox has four heavy-duty steel gears each for strength and durability.

Note: The knuckle arms from the BRX70 axle can be used on the portal knuckle. Dimensions are exactly the same.

Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin

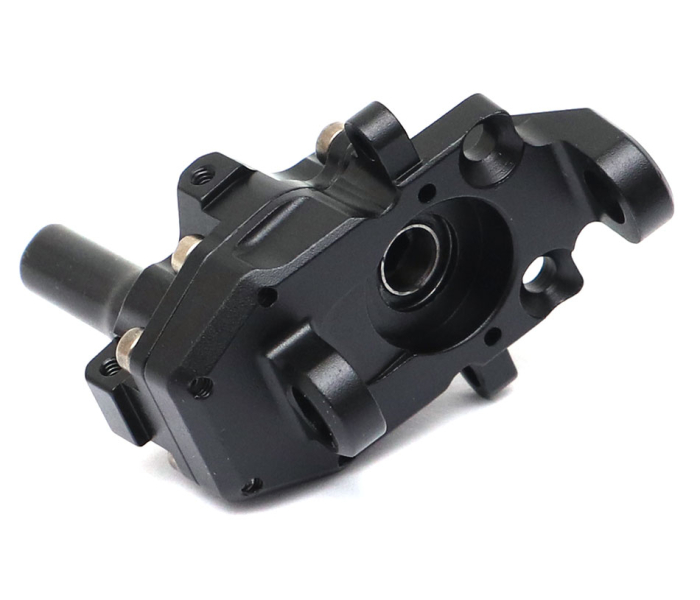

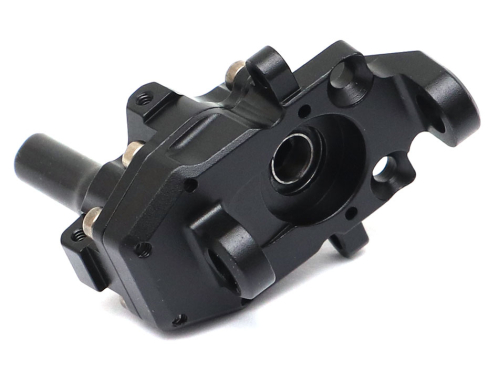

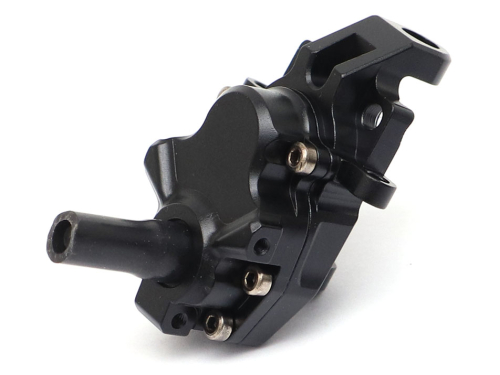

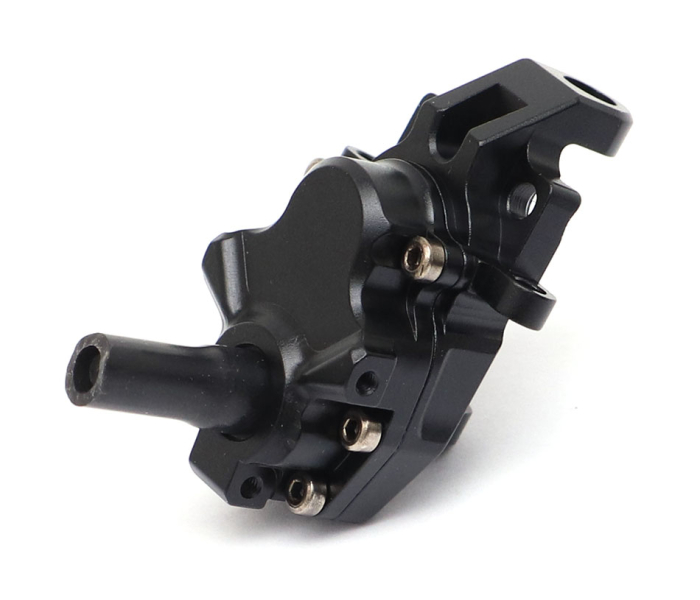

  • CNC aluminum portal knuckle & cover

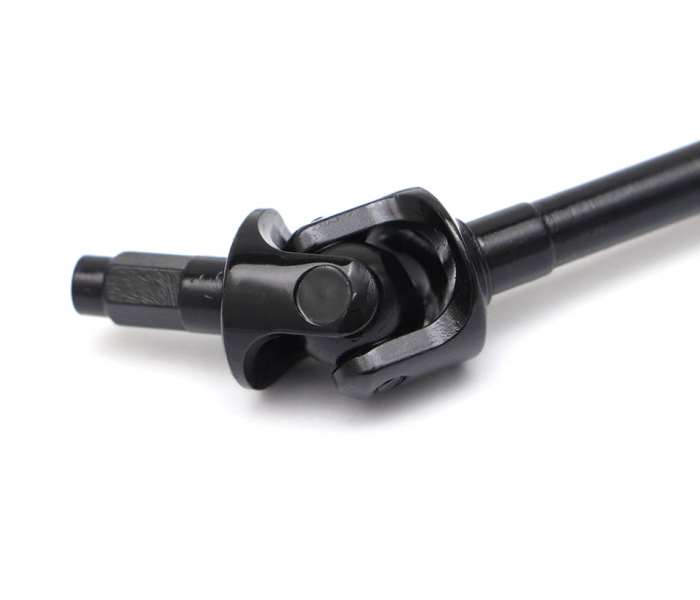

  • BADASS™ heavy-duty steel front universal driveshafts
  • BADASS™ heavy-duty steel front portal driveshafts

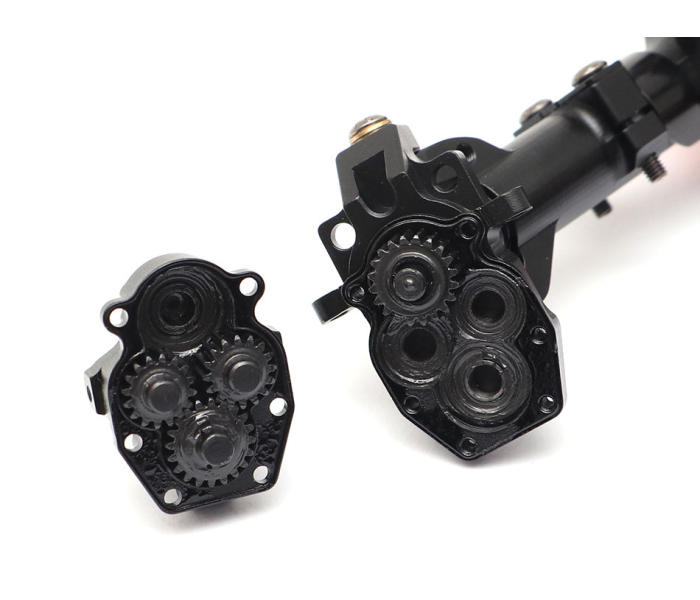

  • Four heavy-duty hardened steel metal gears in each portal gearbox
  • Anti-twist steel brackets to prevent axle twist
  • Full rubber sealed bearings
  • Full 12.9-grade hardware
  • Compatible with PHAT™ Axle brake disc and caliper (requires optional adapter)

Specification:

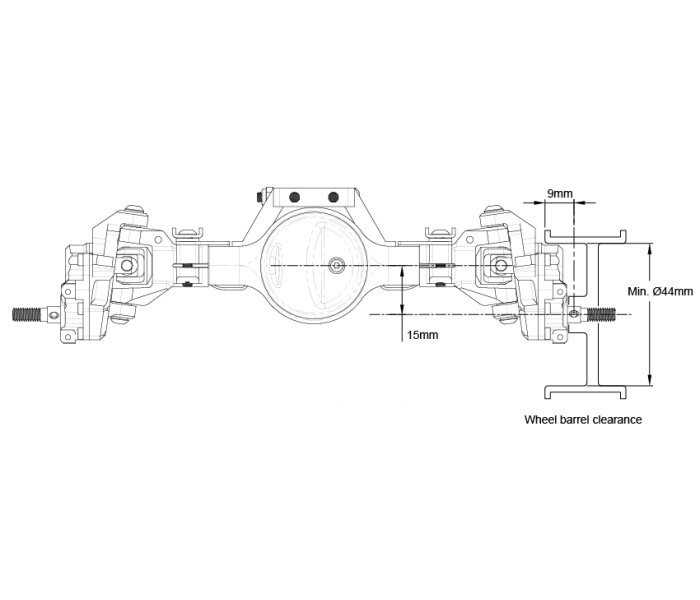

  • Width: 160.4mm / 6.31" (pin-to-pin)
  • Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)
  • Portal gearbox ratio: 1:1

Fits:
  • BRX70 Front PHAT™ Axle
  • 1.55" / 1.9 / 2.2" wheels (will fit 1.55" wheels depending on offset)

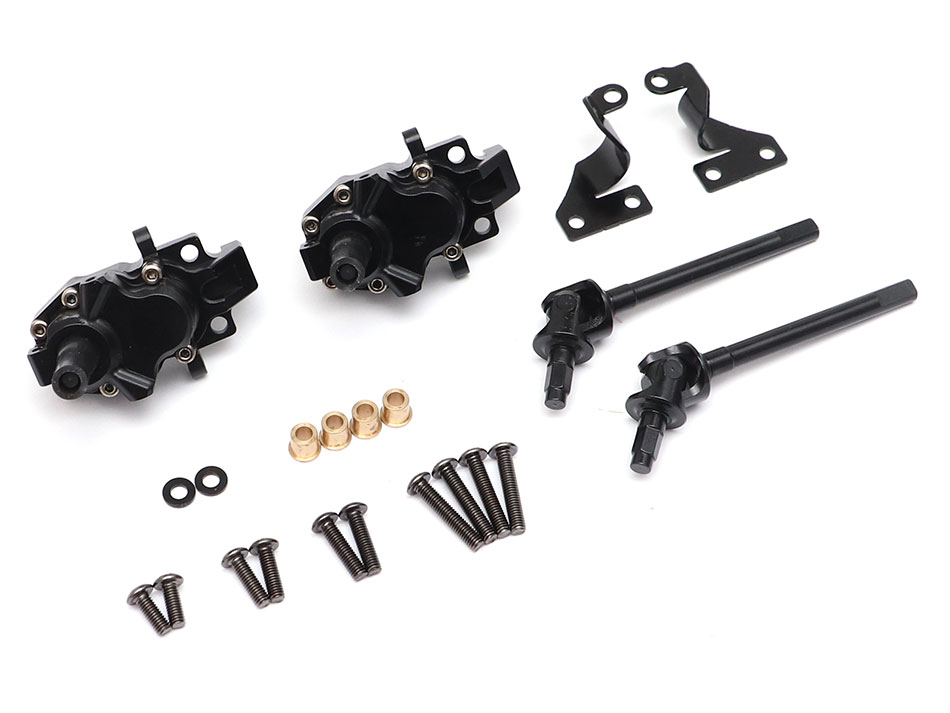

Includes:
  • 1x Left Side Portal Conversion Unit
  • 1x Right Side Portal Conversion Unit

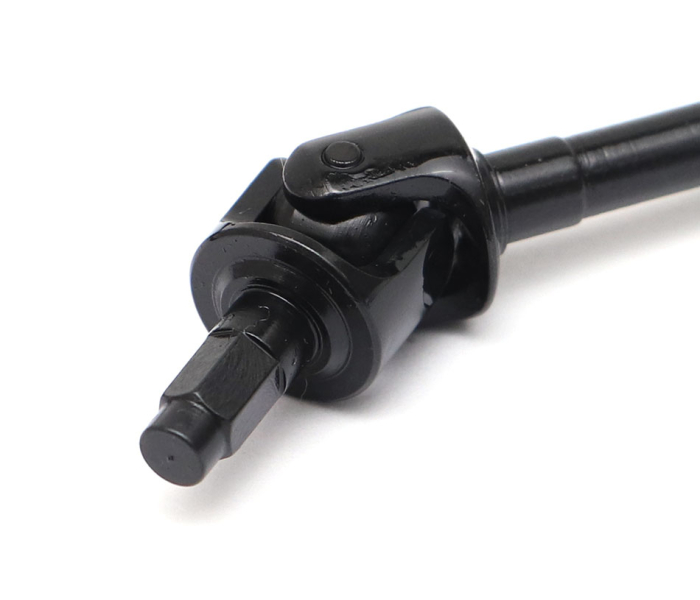

  • 2x BADASS Front Universal Driveshaft for BRX70 Portal PHAT™ Axle
  • 1x Left Side Steel Anti-Twist Bracket
  • 1x Right Side Steel Anti-Twist Bracket
  • 4x Brass Washer
  • 2x Spacer
  • Full Rubber Sealed Bearings
  • Full 12.9-Grade Hardware

Bearing Sizes:
  • D4x7x2.5 #BBZMR742RS x10
  • D5x10x4 #BBZMR1052RS x2
  • D5x9x3 #BBZMR952RS x2
  • D4x8x3 #BBZMR842RS x2

Requires:
  • BRX70 Front PHAT™ Axle
