Front Leaf Spring Conversion Kit

USD $39.00

Part #: BRLC7201


LOADING IMAGES

Front Leaf Spring Conversion Kit

USD $39.00

Part #: BRLC7201

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Leaf SpringsBRX01 PartsBRX01 Optional Parts

PRODUCT DESCRIPTION

Product Resources

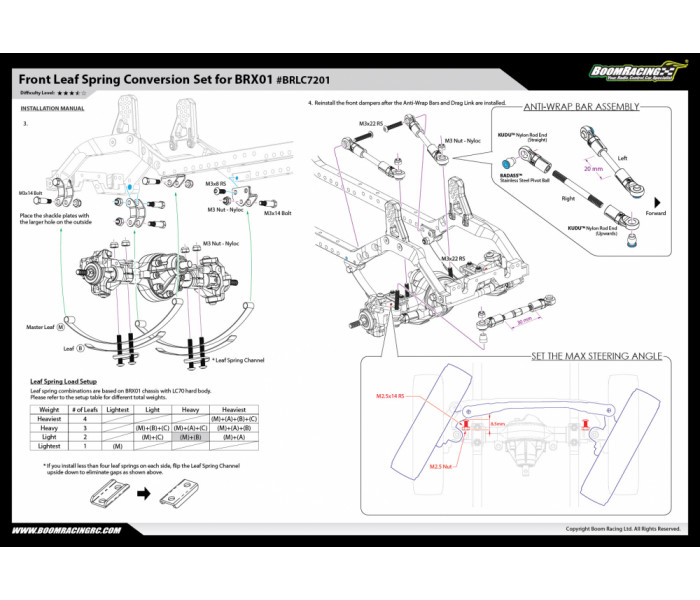

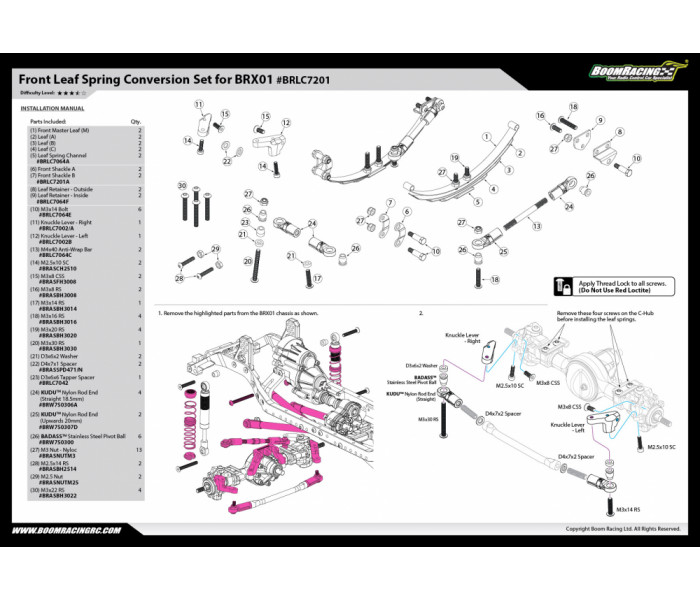

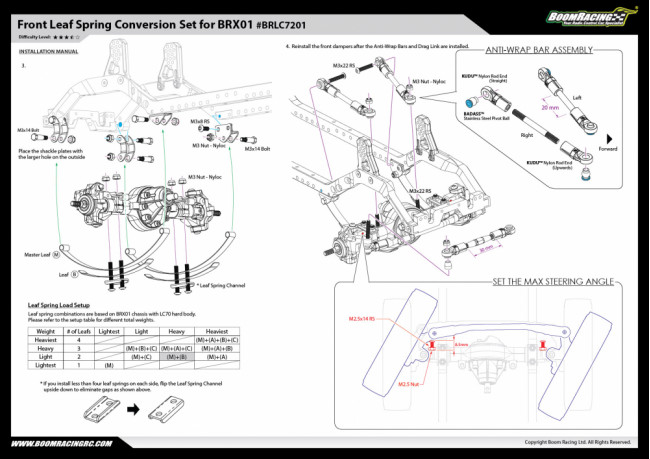

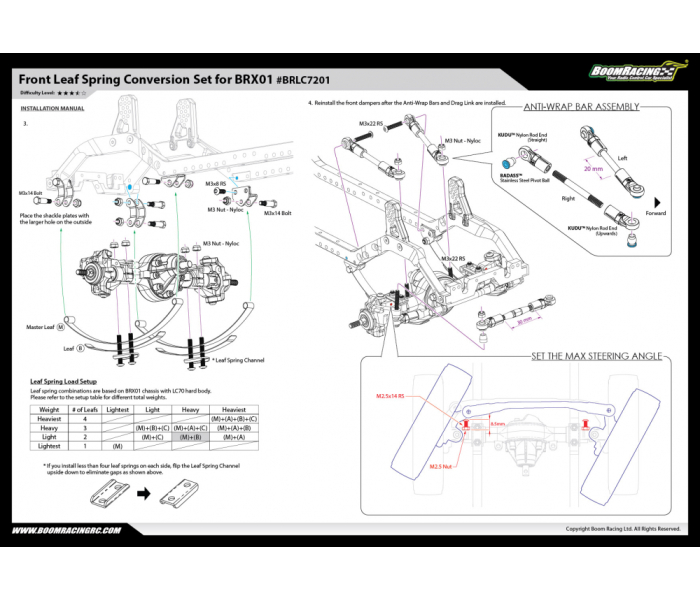

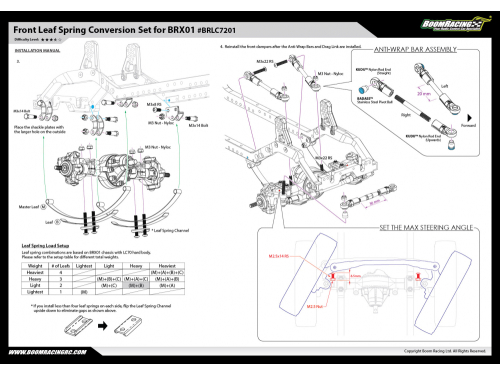

instruction-manual---front-leaf-spring-conversion-set-for-brx01-brlc7201_1649649064.jpg

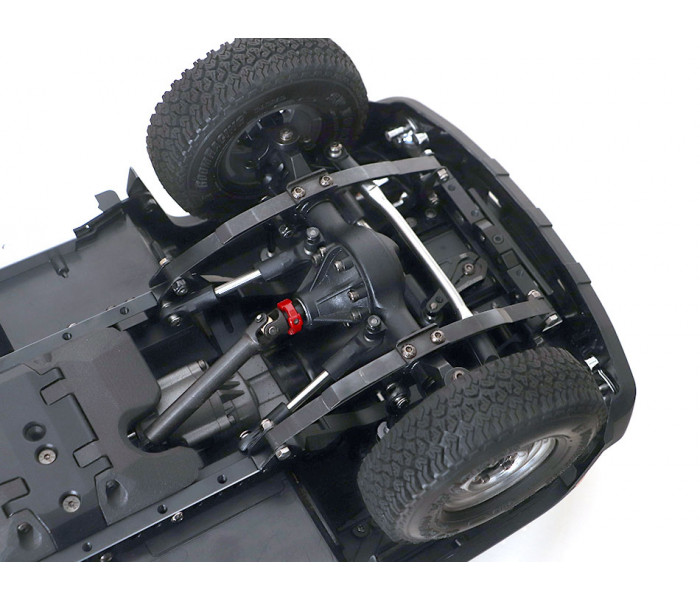

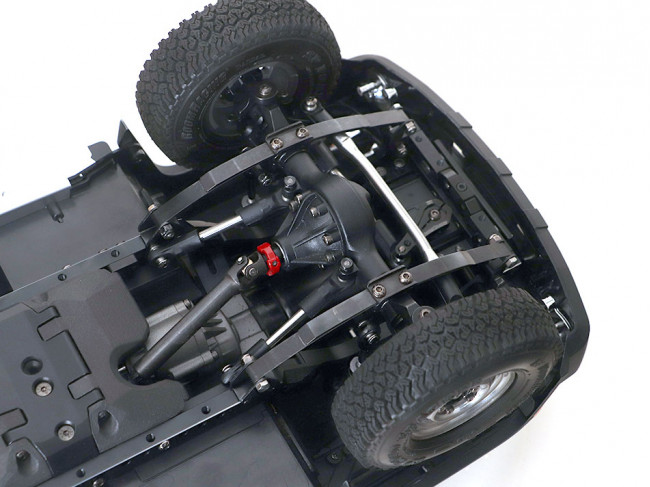

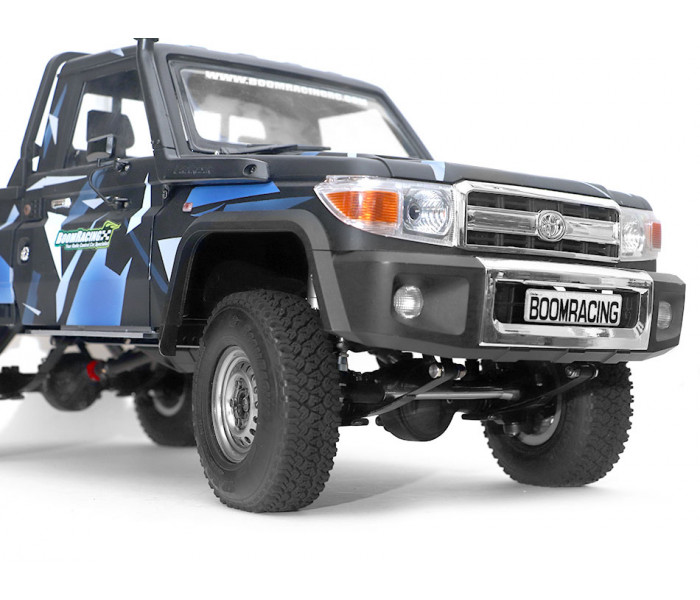

This is a complete front leaf spring conversion kit for the BRX01. Convert the original link suspension geometry into leaf spring suspension.

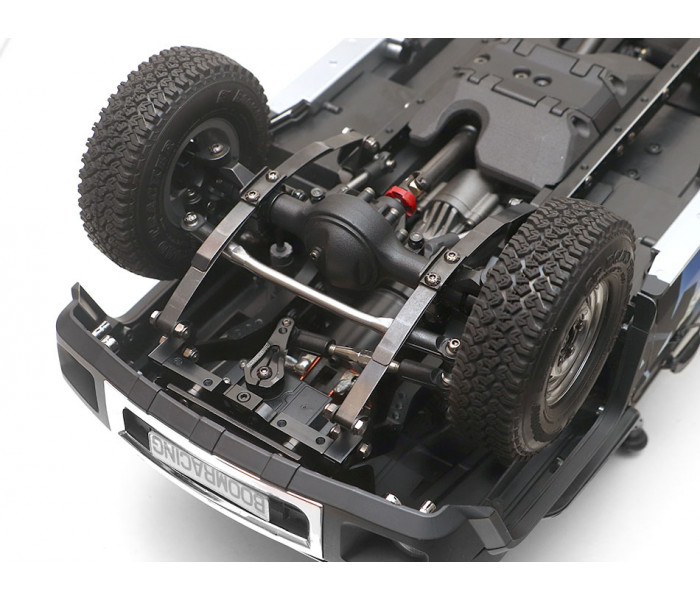

The leaf spring unit has a master leaf and three graduated leaves for adjustability. The leaves have an all-new shape design and use new proprietary steel material for durability and strength. You may use up to four leaves for adjusting the rebound strength.

The original shocks on the BRX01 can be used with this leaf spring conversion kit.

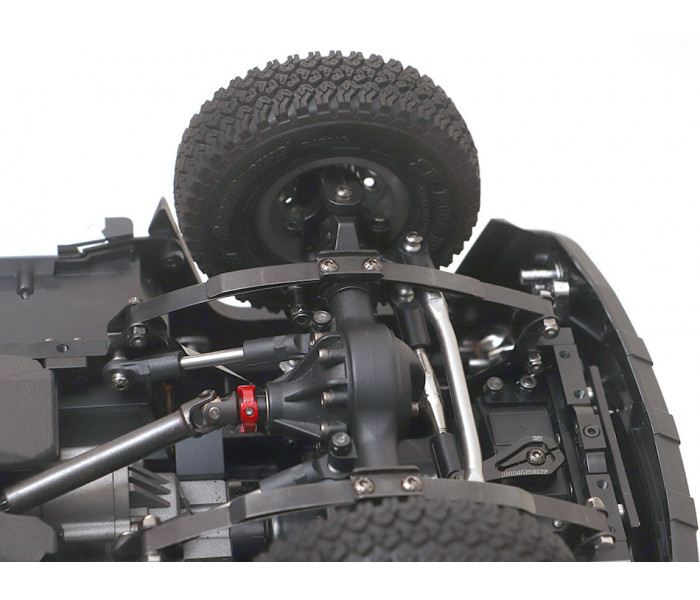

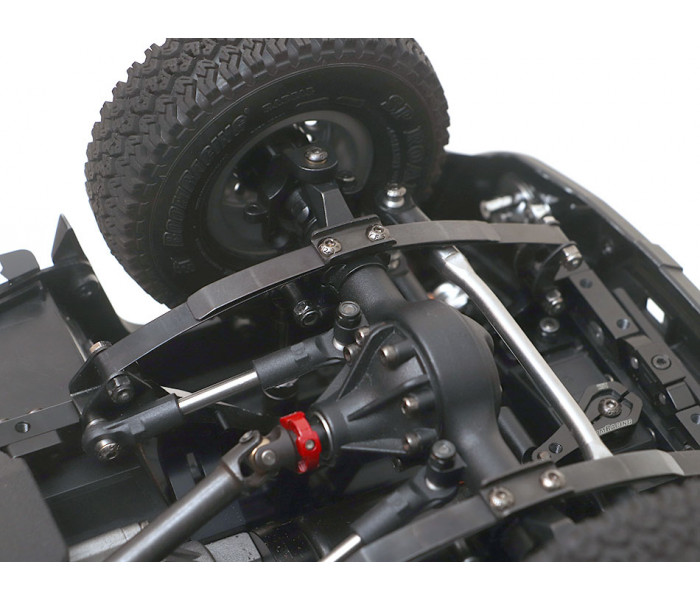

Two Aluminum Anti-wrap Bars are included. Axle wrap is a problem that plagues leaf sprung vehicles, even tiny trucks. It is unwanted suspension movement that allows the pinion angle to change, which can cause drivelines to bind and break. The bars will prevent this.

Realistic shackle bolts for ultimate scale realism, are included.

The steering link moves to the front of the axle with the aluminum knuckle levers provided.

Specification:
  • 116mm eye-to-eye

Fits:
  • BRX01 (Front Only). Note: front leaf springs will not work with optional front bumpers

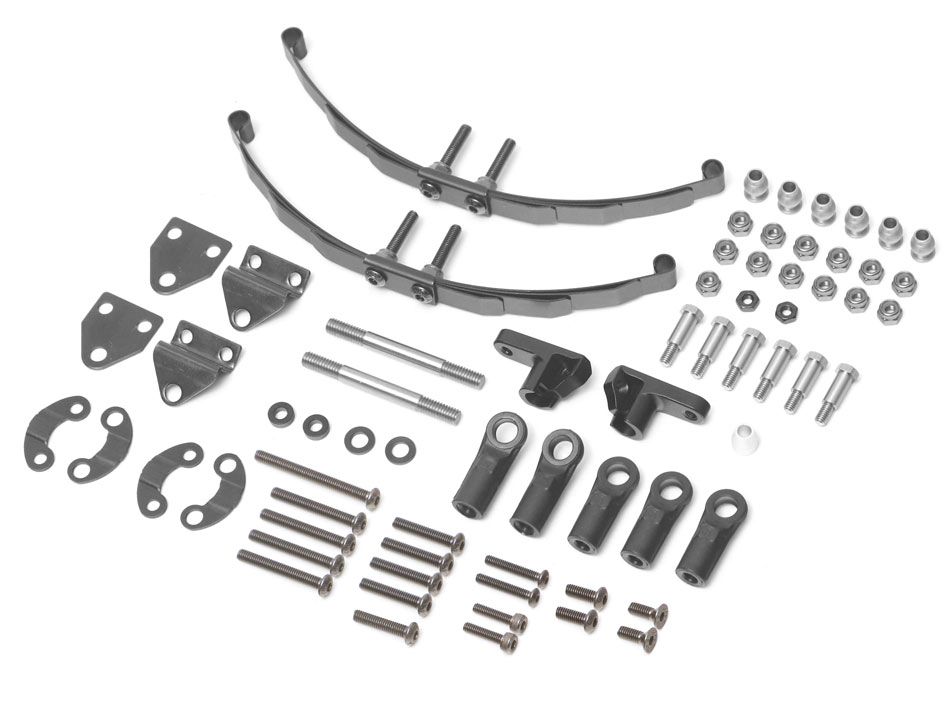

Includes:
  • 2x Front Master Leaf
  • 2x each Leaf A/B/C
  • 2x Leaf Spring Channel #BRLC7046A
  • 2x each Front Shackle A & B #BRLC7021A
  • 2x each Leaf Retainer - Outside and Inside #BRLC7046F
  • 6x M3x14 Bolt #BRLC7064E
  • 1x Knuckle Lever - Right #BRLC7002/A
  • 1x Knuckle Lever - Left #BRLC7002B
  • 2x M4x40 Anti-Wrap Bar #BRLC7064C
  • 2x D3x6x2 Washer
  • 2x D4x7x1 Spacer #BRASSPD471/N
  • 1x D3x6x6 Tapper Spacer #BRLC7042
  • 4x KUDU Nylon Rod End (Straight 18.5mm) #BRW750306A
  • 2x KUDU Nylon Rod End (Upwards 20.0mm) #BRW750306D
  • 6x BADASS Stainless Steel Pivot Ball XBRW750300
  • 13x M3 Nyloc Nut #BRASNUTM3
  • 2x M2.5 Nut #BRASNUTM25
  • Complete Hardware

Optional Parts:
  • Center Slider (Front) for BRX01 Center Skid Plate #BRLC7077
  • Center Slider (Front & Rear) for BRX01 with BRX02 #BRX020020LF High Clearance Skid Plate #BRLC7095 (6mm clearance gain)
