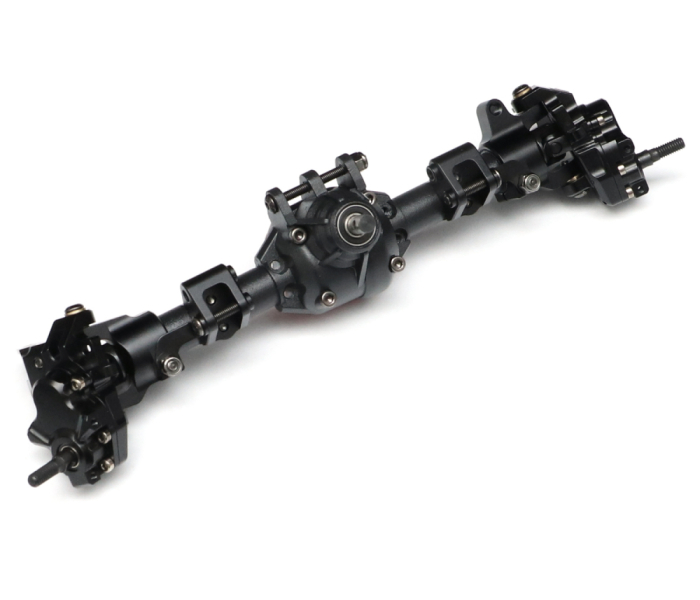

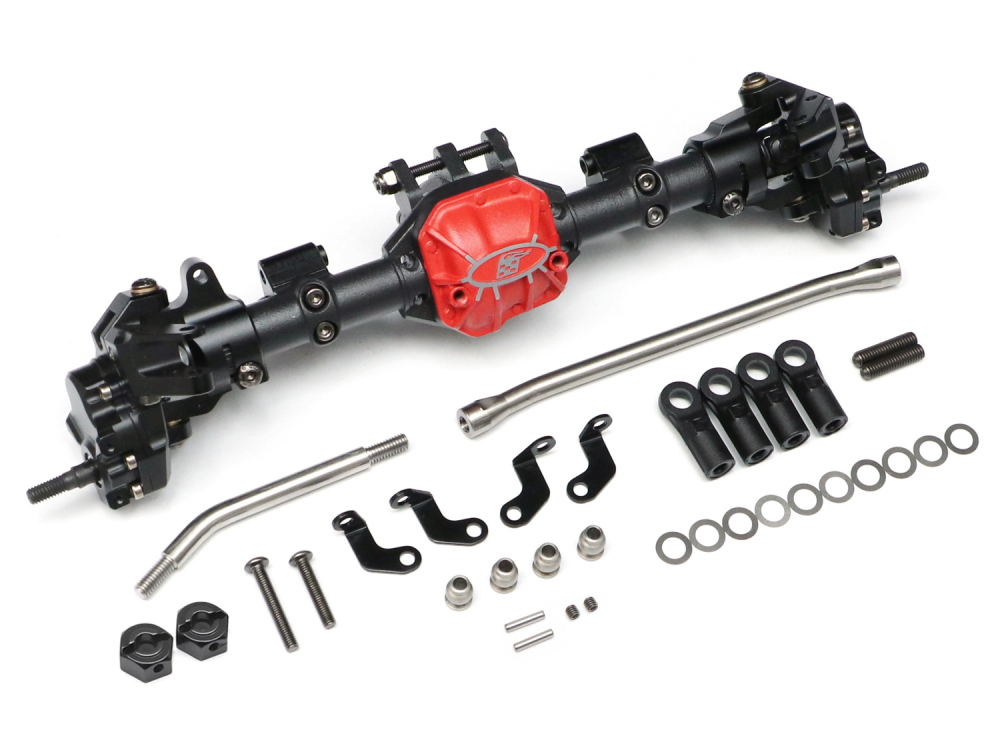

Complete Front Assembled AR44 Portal PHAT™ Axle

USD $179.00

Part #: BRPT955022


LOADING IMAGES

Complete Front Assembled AR44 Portal PHAT™ Axle

USD $179.00

Part #: BRPT955022

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle Parts

PRODUCT DESCRIPTION

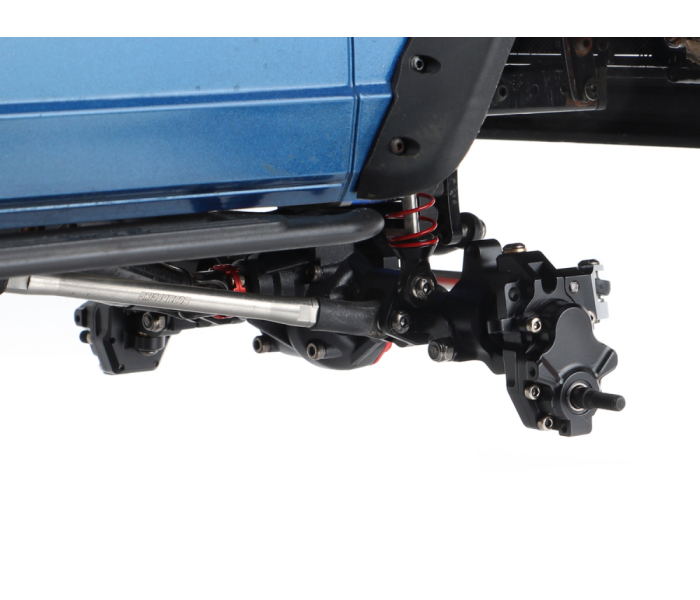

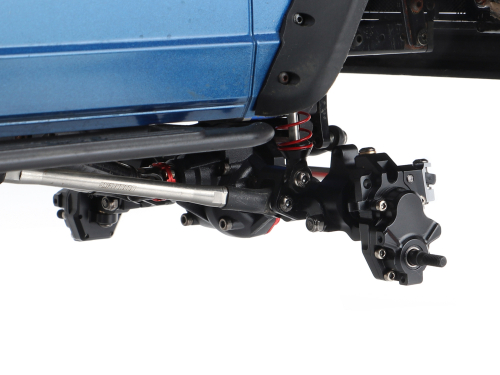

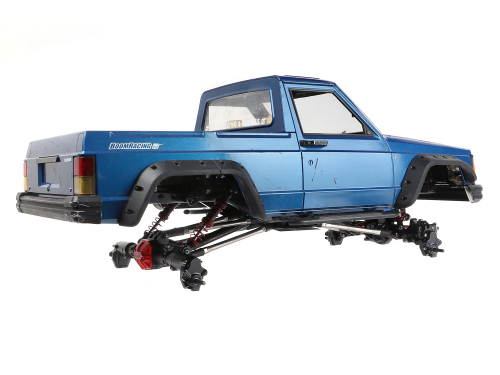

Looking for the ultimate scale performance axles? Check out Boom Racing's AR44 PHAT portal axles, factory-installed by Boom Racing.

PHAT axles are heavier than most axles, a desirable feature for crawlers to maintain a low center of gravity.

In addition to its weight, the AR44 PHAT portal axles are smooth and durable. The gears are made of heavy-duty hardened steel for added durability and strength. The BADASS universal driveshafts are constructed from high-strength alloy steel for maximum durability.

Specifications:

  • Hole to Hole: 193mm (7.6")
  • Weight: 322grams / 11.4oz (fully assembled)
  • Input pinion shaft: 5mm


Features:

  • Additional 15mm / 0.59" ground clearance at the pumpkin over AR44 straight axle
  • Heavy and low CG AR44 PHAT axle housing

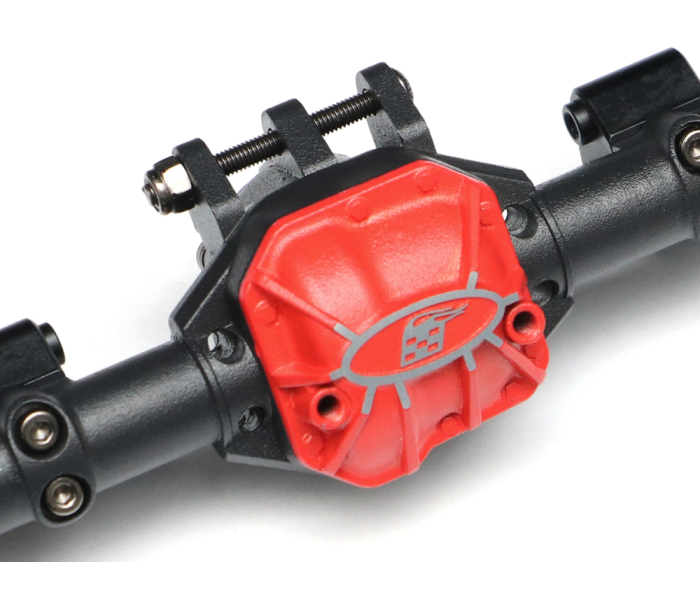

  • Heavy and low CG AR44 PHAT diff cover

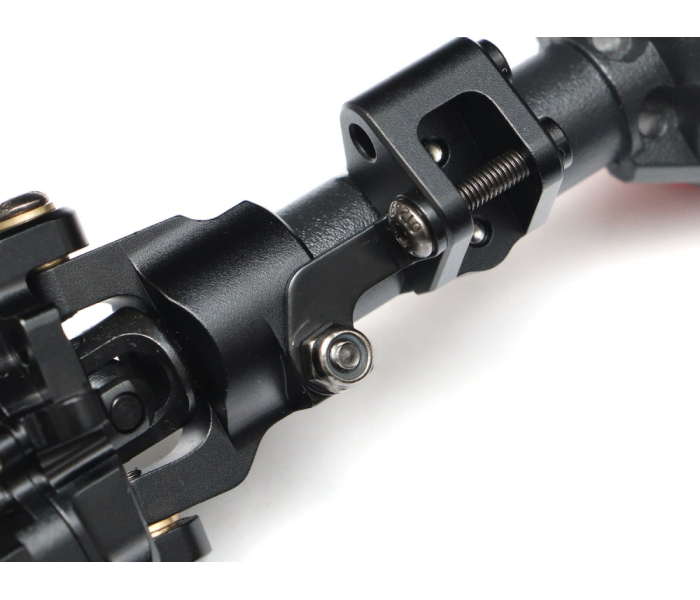

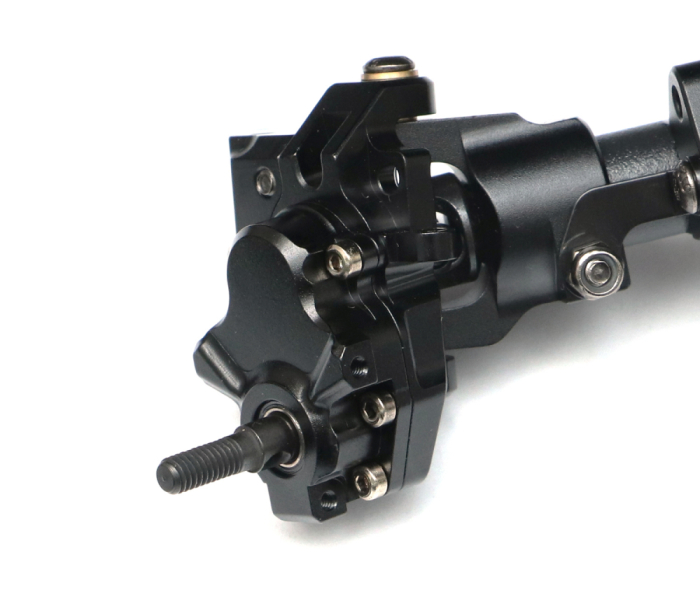

  • CNC anodized aluminum knuckles, portal cover, and c-hubs with high steering angle (over 45 degrees)
  • Detachable knuckle lever for front tie-rod or behind-the-axle steering setup
  • BADASS™ heavy-duty steel universal driveshafts and portal driveshafts for ultimate durability, performance, and strength for the axle drivetrain
  • Four heavy-duty hardened steel metal gears in each portal gearbox for ultimate durability; easy to set up as standard rotational drivetrain
  • Steel brackets included (0/10/20 degrees) for adjustable caster angles for additional steering adjustability

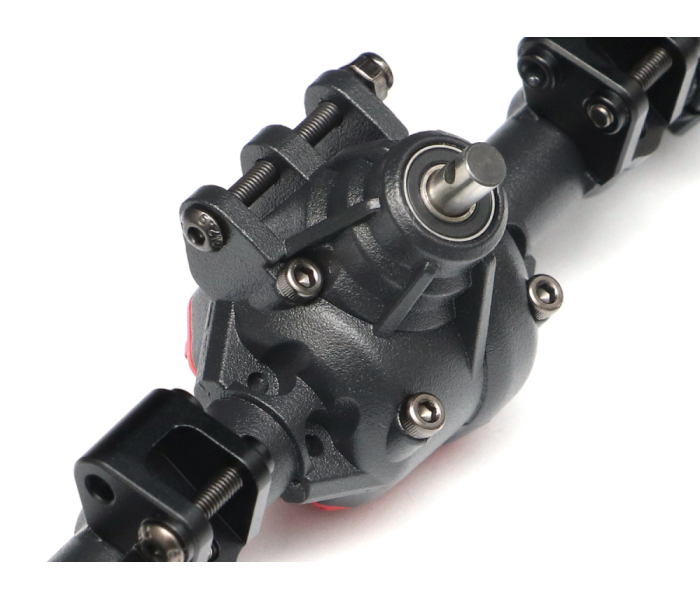

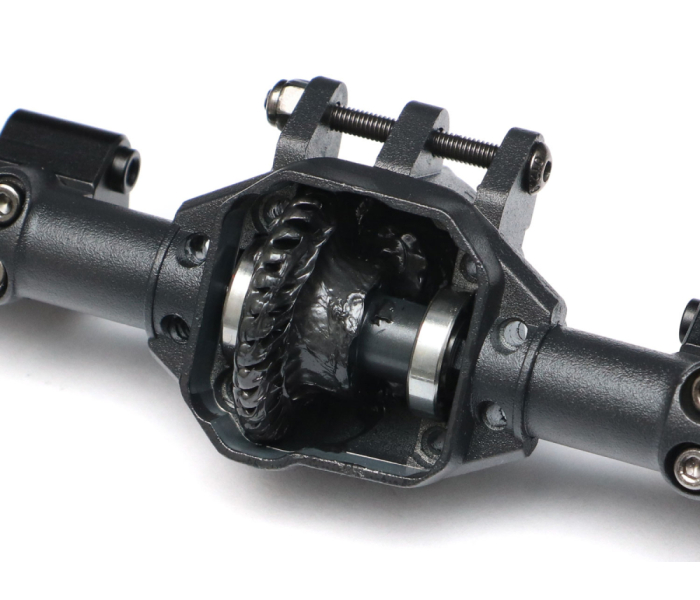

  • Triangular keyed AR44 (30/8T) high pinion gear, input shaft, and triangulated spool (optional overdrive and underdrive gears are available)
  • High pinion axle setup for improved clearance
  • Reversible ring gear position in the housing and optional reversed AR44 gear for counter-rotating center drivetrain setup
  • Chassis-mounted servo (CMS) and servo-on-axle setup
  • Compatible with PHAT™ axle brake disc and caliper (requires optional adapter #BRPT005)
  • Anodized aluminum lower link mounts
  • Stainless steel steering tie rod & drag links (M4 Threads)
  • KUDU M4 nylon rod ends
  • Stainless steel pivot ball (for low CG weight and corrosion-free)
  • Aluminum 12mm wheel hex
  • Full rubber shielded ball bearings
  • Full 12.9-grade hardware
  • Shims for fine tuning
