BRX90 Conversion Kit for BRX01 & BRX70/BRX80 PHAT™ Axle

USD $89.00

Part #: BRLC7078


LOADING IMAGES

BRX90 Conversion Kit for BRX01 & BRX70/BRX80 PHAT™ Axle

USD $89.00

Part #: BRLC7078

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Axle Conversion KitsC-Hubs & KnucklesLockoutBRX01 PartsPhat Axle PartsBRX01 Optional Parts

PRODUCT DESCRIPTION

Product Resources

This is a Conversion Kit for the BRX70 or BRX80 axles to BRX90 axles.

The BRX70 axles come with the BRX01 chassis, if you want the option to run a wider axle than the BRX70 widths, this Conversion Kit widens the front axle by 27.5mm (front) and 30mm (rear).

The Conversion Kit includes a pair of wider C-Hubs and Lockouts, and longer Front Universal Driveshafts and Rear Drive Shafts. Also included is a longer Stainless Steel Tie Rod Steering Link.

Please download the Installation Manual for detailed instructions.

CNC machining upgrades are manufactured from billet materials.

All hardware is included.

Width Comparison:

  • Before: BRX70 Front Axle 148.5mm / 5.846" pin-to-pin
  • Before: BRX70 Rear Axle 146mm / 5.748" pin-to-pin
  • Before: BRX80 162mm / 6.378" pin-to-pin (front and rear)
  • After Conversion: BRX90 176mm / 6.93" pin-to-pin (front and rear)

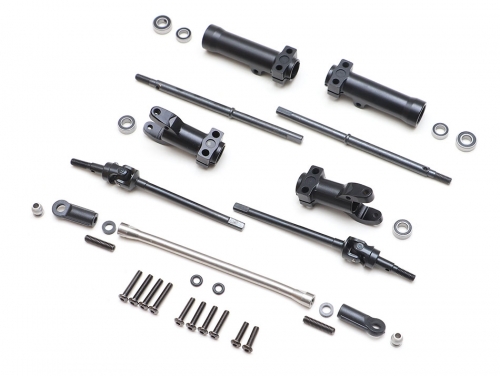

Includes:

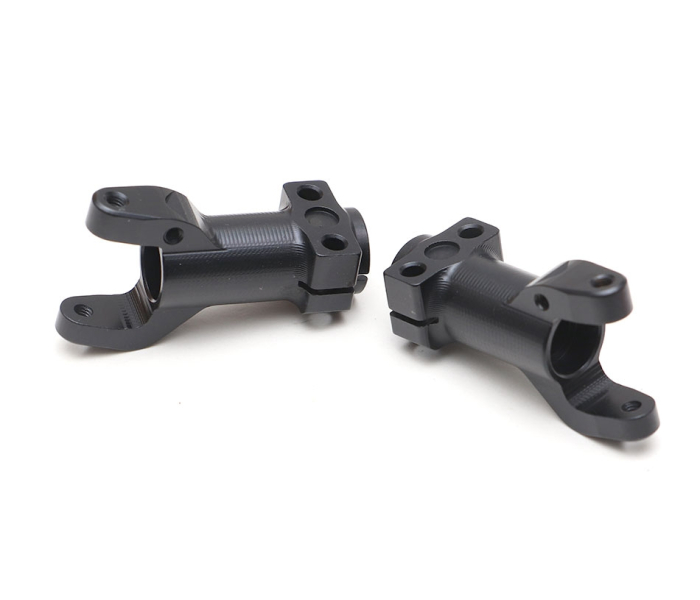

  • 2x Aluminum C-Hub #BRD9011
  • 2x Aluminum Lock Out #BRD9012

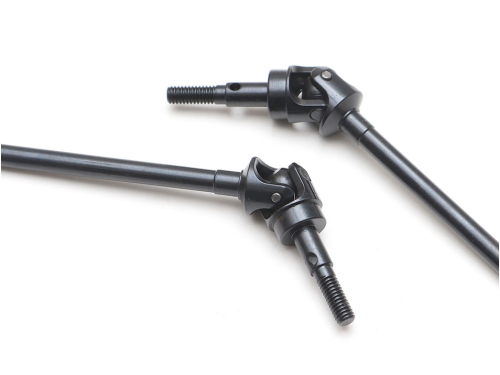

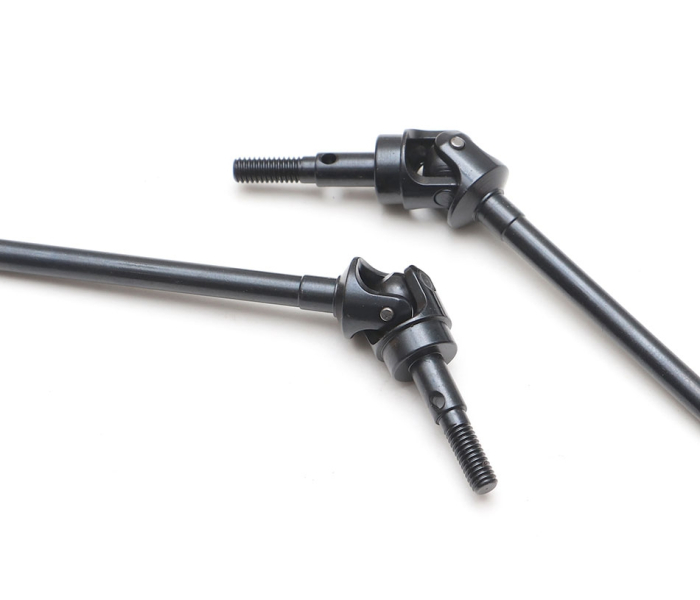

  • 2x BADASS HD Universal Drive Shaft for BRX90 Axle #BRBD9001

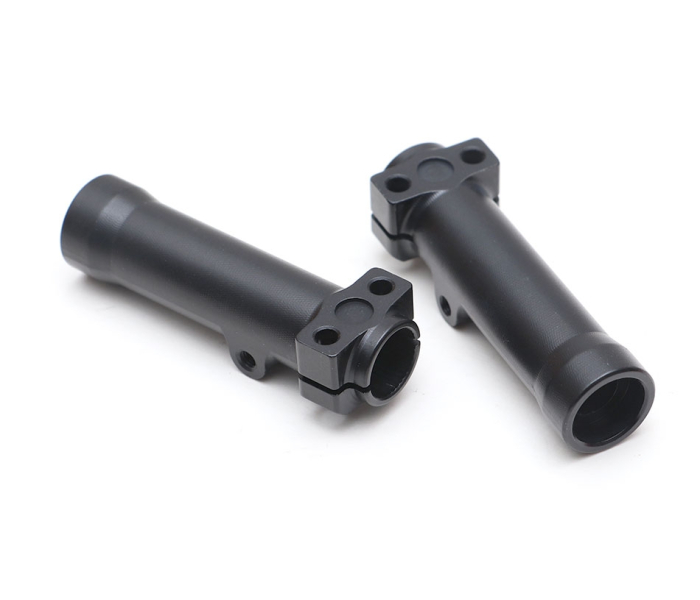

  • 2x BADASS HD Rear Shaft for BRX90 Axle #BRBD9002
  • 1x Steering Link #BRD9022A
  • 2x D5x9x3 Bearing #BBZMR952RS
  • 2x D5x11x4 Bearing BBZMR115RS
  • 2x D4x10x4 Bearing #BBZMR1052RS
  • 2x Straight Rod End #BRW750303
  • 2x Stainless Steel Pivot Ball #BRW750300
  • 4x M3x16 RS Screw #BRASBH3016
  • 2x M3x12 RS Screw #BRASBH3012
  • 4x M3x14 RS Screw #BRASBH3014
  • 2x M4x16 SS Screw #BRASSPD427/N
  • 2x D4x7x2 Spacer #BRASSPD427/N
  • 2x O-Ring #BRSORD6-15

Reviews (3)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.
