BRX90 Complete Front PHAT™ Axle for BRX02 D110 Leaf Kit

USD $115.00

Part #: BRX020022LF


LOADING IMAGES

BRX90 Complete Front PHAT™ Axle for BRX02 D110 Leaf Kit

USD $115.00

Part #: BRX020022LF

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Complete AxlePhat Axle PartsBRX02 Parts

PRODUCT DESCRIPTION

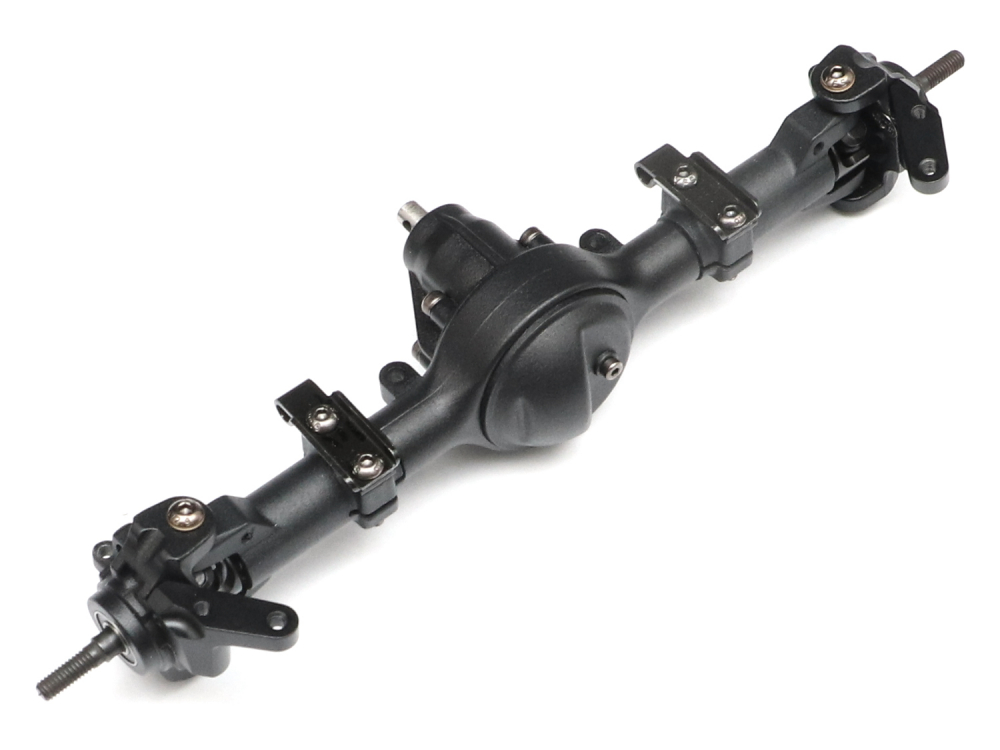

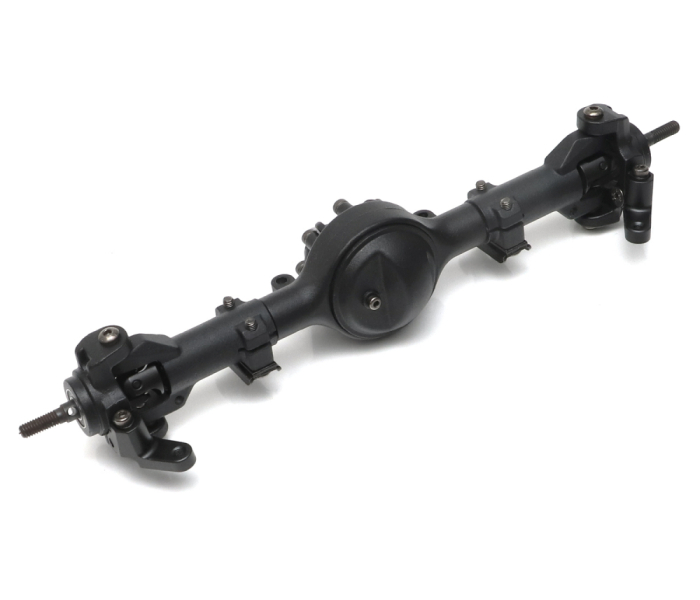

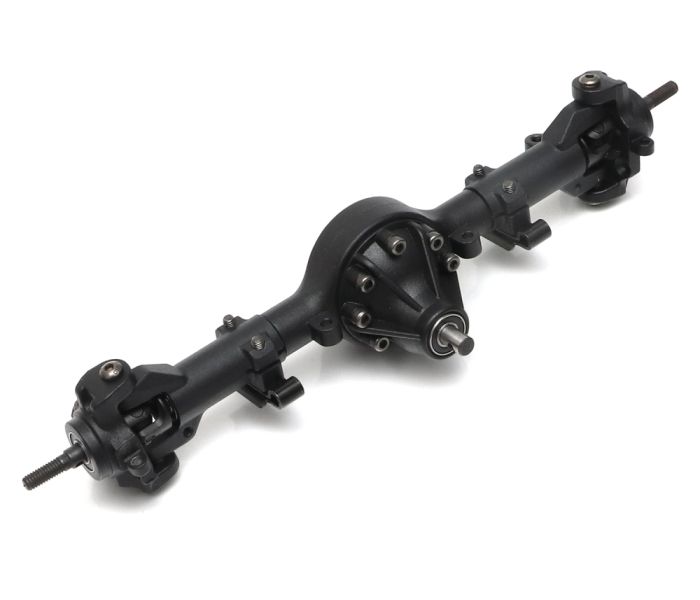

This is a BRX90 Complete Front PHAT™ Axle for BRX02 Leaf version. This is a complete replacement front axle for the BRX02 D110 Leaf Chassis Kit [BR8005].

Features:

  • PHAT axle 280grams total weight (front)
  • Keyed HD AR44 Helical Bevel Gear Set. Bevel gears are keyed for extra durability and strength. Standard AR44 high pinion gear & input shaft
  • High pinion axle setup for better clearance
  • Removable third member with reversible axle bevel gear positions for standard or counter rotation setups (swap gear to opposite side for counter rotation center drivetrain setup)
  • Does not come with aluminum truss
  • AR44 compatible cast metal knuckles
  • Cast metal splined axle housing and cast metal C-hubs with adjustable caster angles for steering adjustments
  • Detachable aluminum forward-steering knuckle levers (#BRLC7002/A and #BRLC7002/C)
  • Steel damper mount included
  • BADASS HD Steel universal shaft for ultimate durability and strength for the axle drivetrain

Size:
  • 176mm / 6.93 inch pin to pin (front and rear)

Optional:
  • Leaf springs set #BRLC7064A
