BRX80 Conversion Kit for BRX01 & BRX70/BRX90 PHAT™ Axle

USD $89.00

Part #: BRLC7206


LOADING IMAGES

BRX80 Conversion Kit for BRX01 & BRX70/BRX90 PHAT™ Axle

USD $89.00

Part #: BRLC7206

Qty:

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: In stock (ships within US and US territories only)

This item is not available to ship outside of the U.S.

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Conversion KitsPhat Axle Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---brx80-conversion-kit-for-brx01---brx70brx90-phat----axle_brlc7206_260722_1714958500.pdf

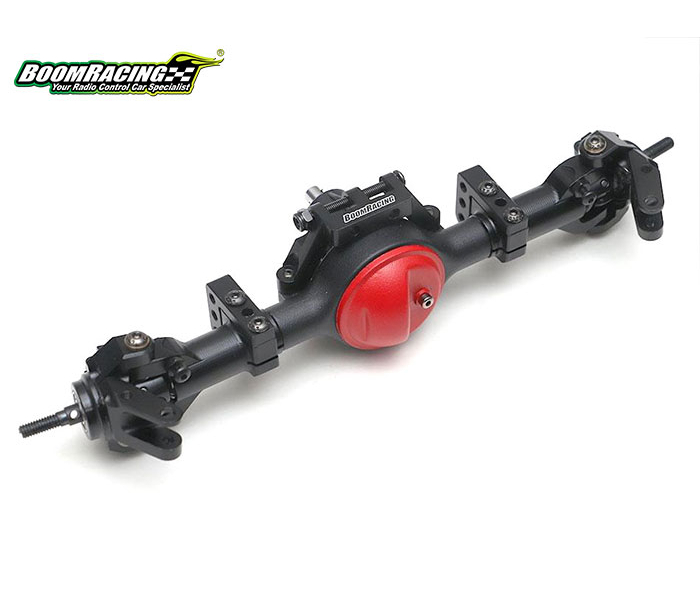

This is a Conversion Kit for the BRX70 or BRX90 axles to BRX80 axles.

This conversion kit is for you if you have the BRX70 axles but want wider widths, or have the BRX90 axles but want a narrower track.

Width Comparision:

  • BRX70
    • Front: 148.8mm
    • Rear: 145.8mm
  • BRX80
    • Front: 162mm
    • Rear: 162mm
  • BRX90
    • Front: 176.9mm
    • Rear: 175.9mm

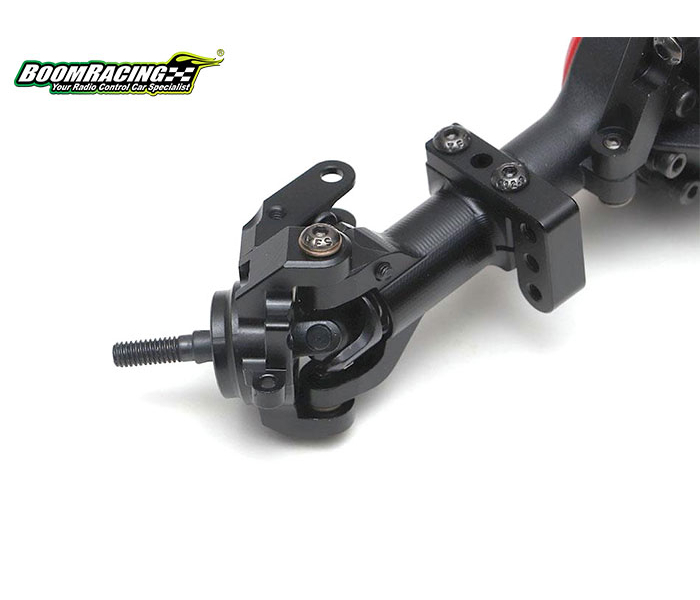

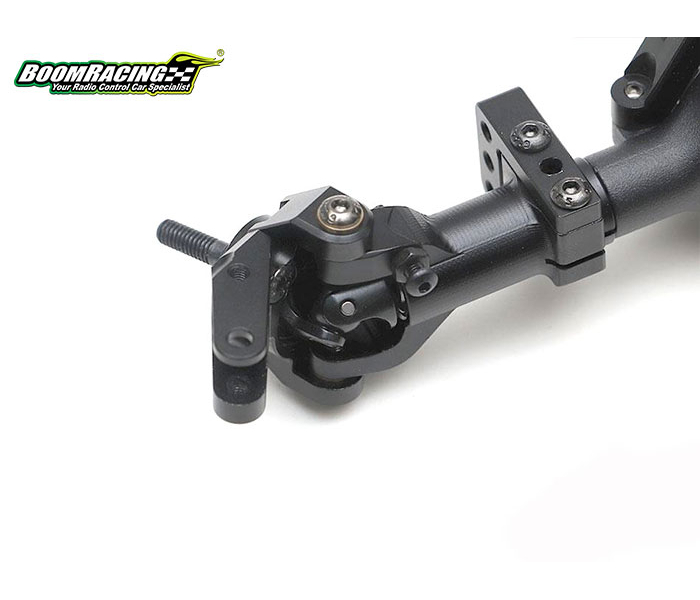

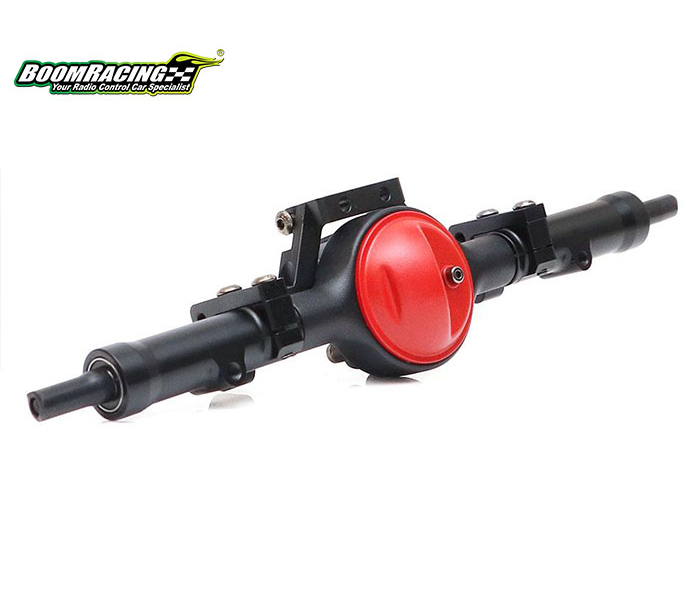

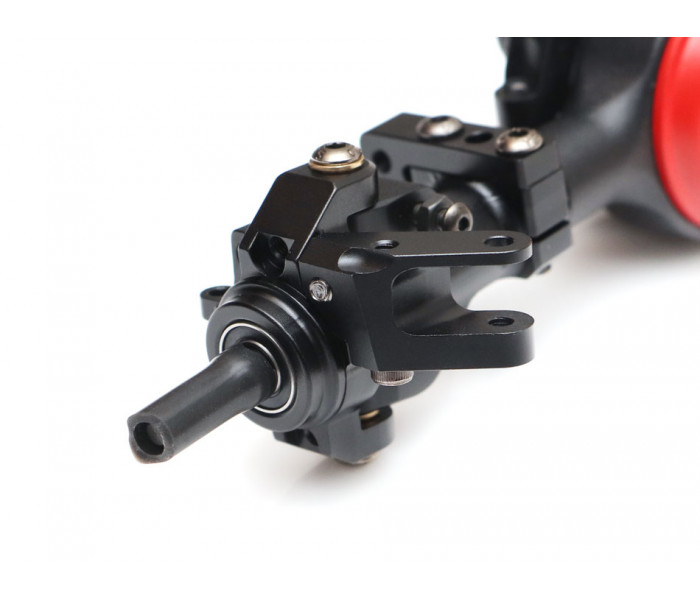

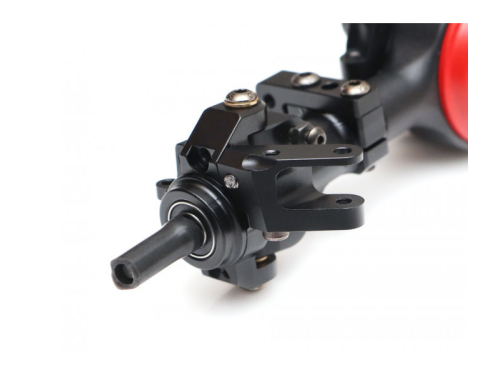

The Conversion Kit includes a pair of CNC aluminum C-Hubs and Lockouts, Front Universal Driveshafts, and Rear Drive Shafts, Stainless Steel Tie Rod Steering Link and full rubber-sealed ball bearings.

Please download the Installation Manual for detailed instructions.

CNC machining upgrades are manufactured from billet materials.

All hardware is included.

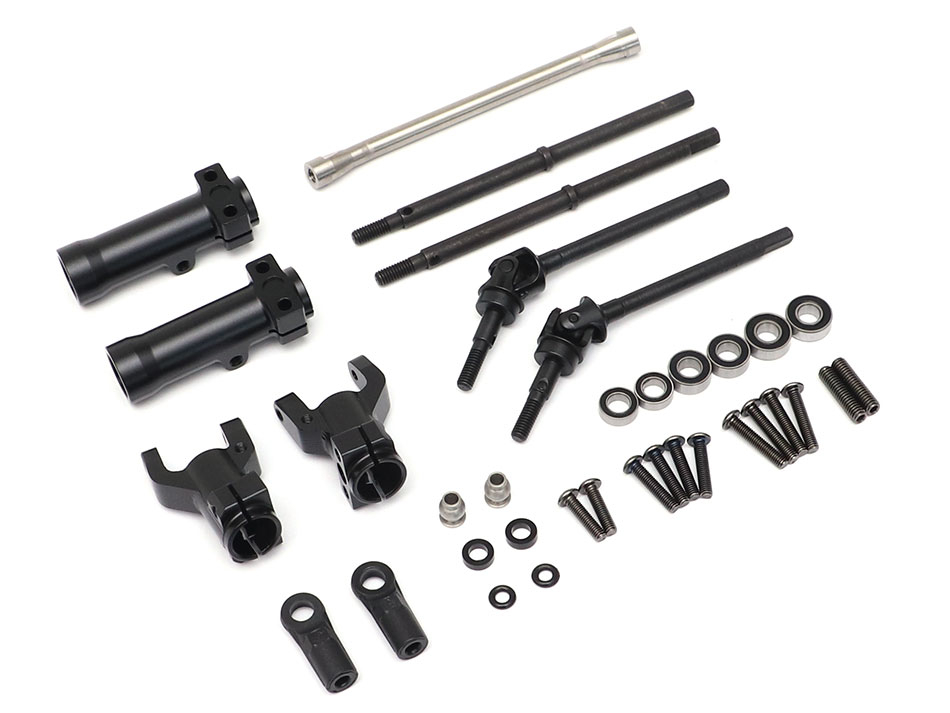

Includes:

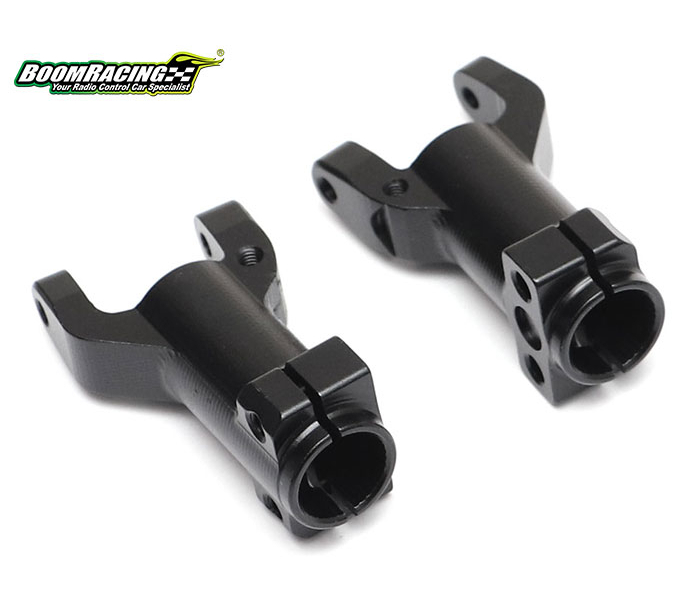

  • 2x Aluminum C-Hub #BRD8011

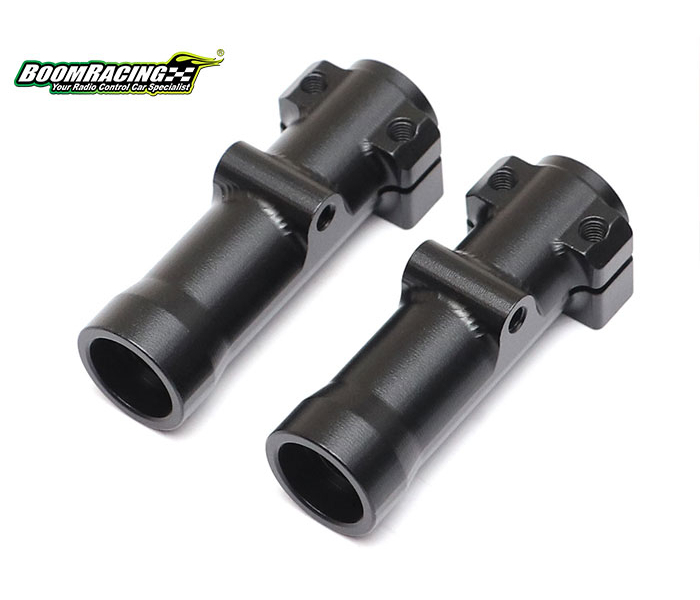

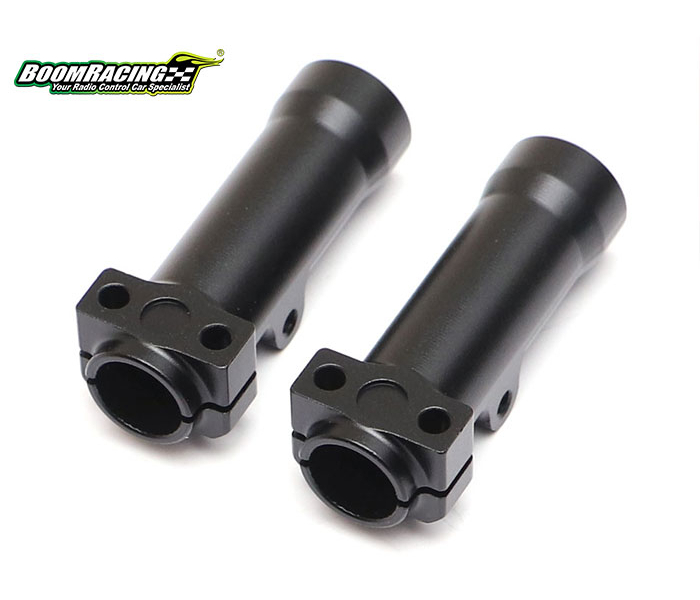

  • 2x Aluminum Lock Out #BRD8012
  • 2x BADASS HD Universal Drive Shaft for BRX90 Axle #BRBD8001
  • 2x BADASS HD Rear Shaft for BRX90 Axle #BRBD8002
  • 1x Steering Link #BRD8022A
  • 2x D5x9x3 Bearing #BBZMR952RS
  • 2x D5x11x4 Bearing BBZMR115RS
  • 2x D4x10x4 Bearing #BBZMR1052RS
  • 2x Straight Rod End #BRW750306A
  • 2x Stainless Steel Pivot Ball #BRW750300
  • 4x M3x16 RS Screw #BRASBH3016
  • 2x M3x12 RS Screw #BRASBH3012
  • 4x M3x14 RS Screw #BRASBH3014
  • 2x M4x16 SS Screw #BRASSPD427/N
  • 2x D4x7x2 Spacer #BRASSPD427/N
  • 2x O-Ring #BRSORD6-15
