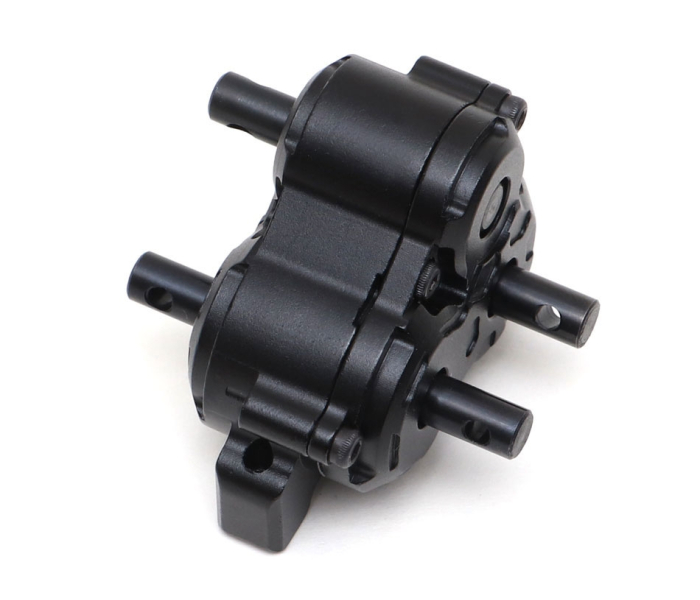

BRX Anti Torque Twist SRD Transfer Case w/ HD Gears for BRX01 D110 D90 Defender

USD $43.90

Part #: BRQ763069


LOADING IMAGES

BRX Anti Torque Twist SRD Transfer Case w/ HD Gears for BRX01 D110 D90 Defender

USD $43.90

Part #: BRQ763069

Notify me when this item is in stock.
Add to favorites

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Transfer BoxTransfer Box GearsBRX01 PartsBRX02 Parts

PRODUCT DESCRIPTION

Product Resources
instruction-manual---brx-anti-torque-twist-t-case-brq763069_1571300989.pdf

Pushing scale performance forward.

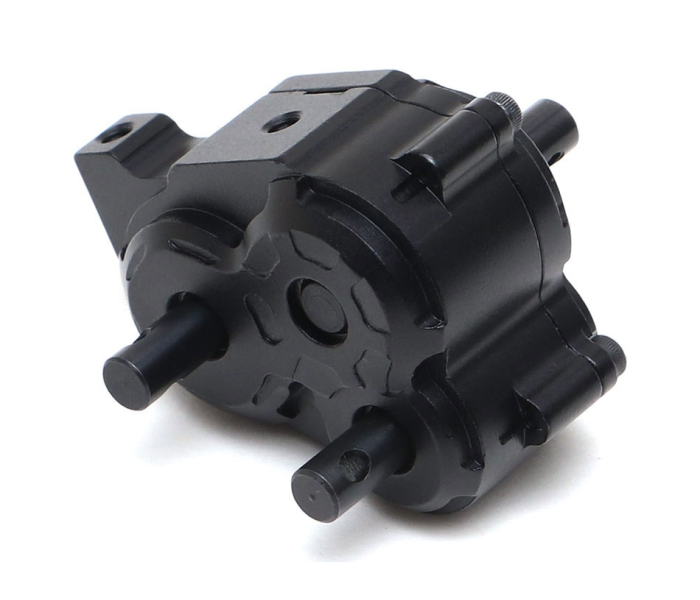

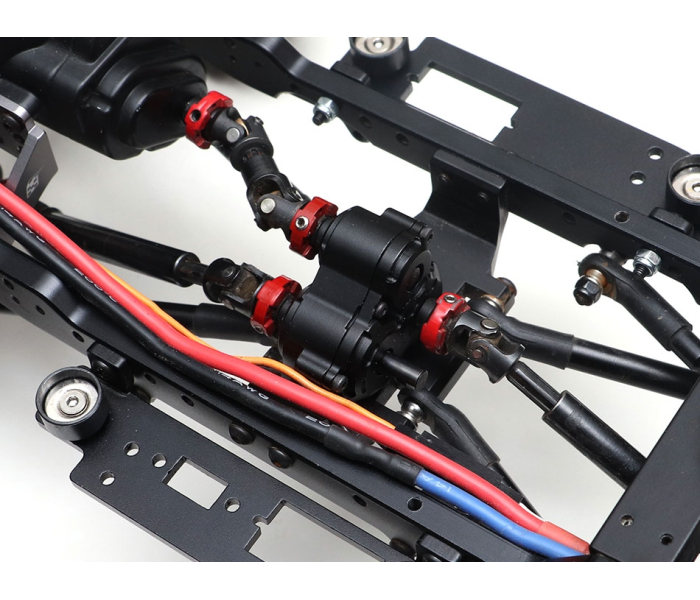

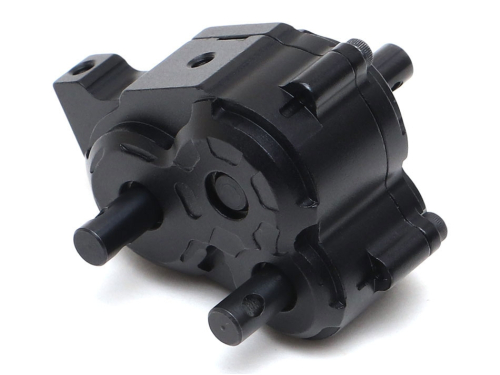

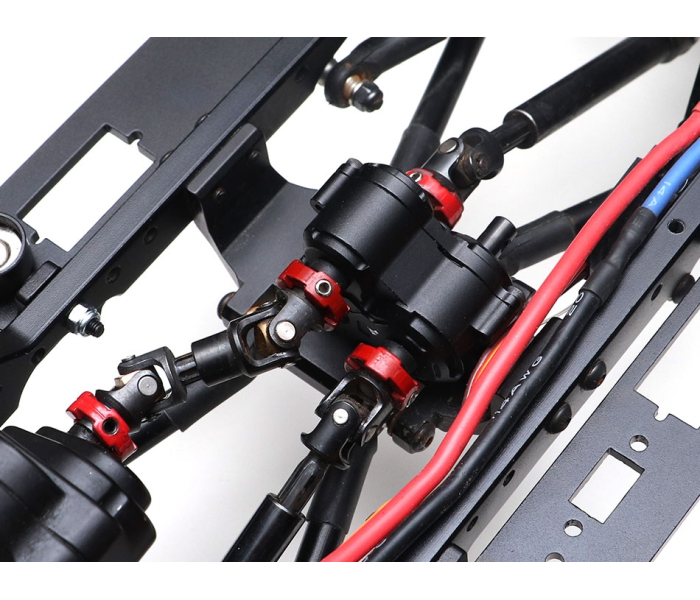

RC crawlers in the past have suffered from major torque twists with few available upgrade options to eliminate it. The new BRX HD T-Case creates a new standard for all future crawlers. The BRX T-Case enables the front and rear center drivelines to spin in opposite directions. It creates a counter-rotational force that reduces torque twist.

The Selective Rotational Drive™ (SRD) system enables the drivetrain to run a counter-rotation system OR normal direct drive rotation.

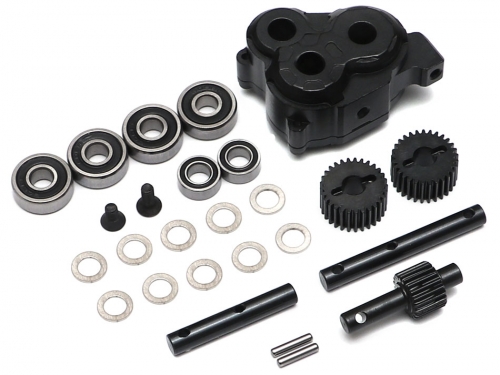

Features:

  • Heavy-duty steel gear set

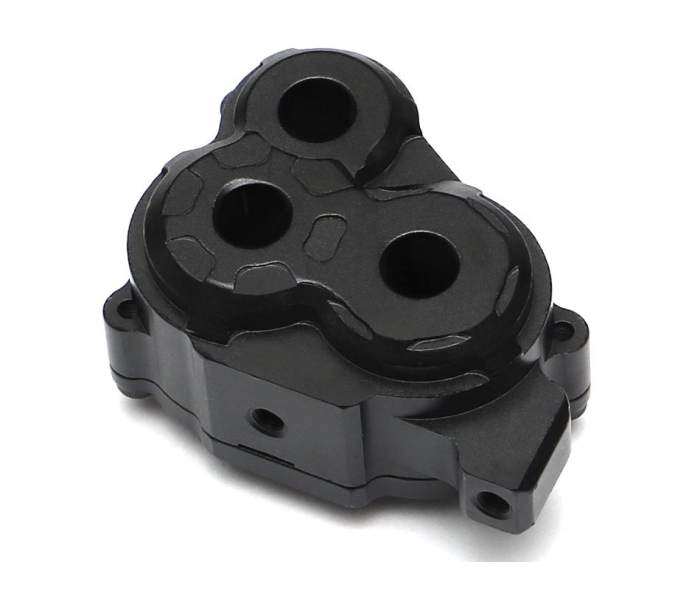

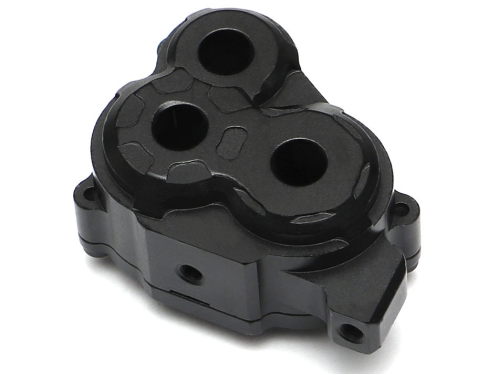

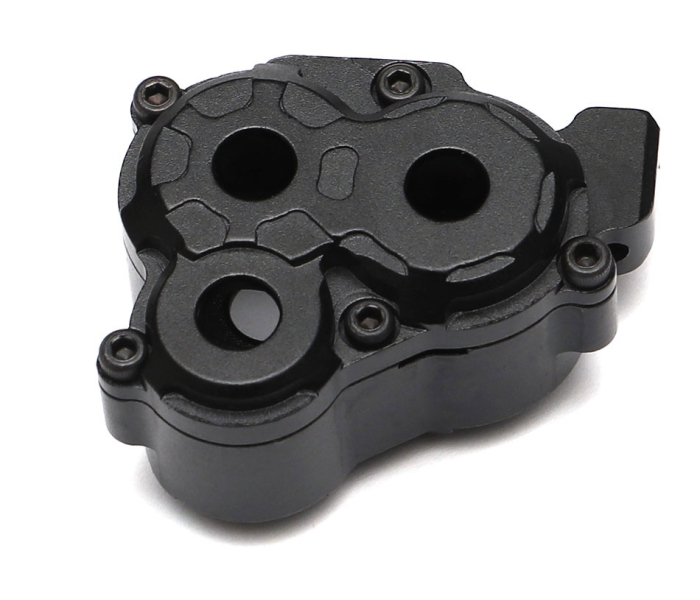

  • Billet aluminum transfer case housing
  • Full rubber-sealed ball bearings

Specification:
  • Input Gear: 20T
  • Output Gear: 29T (Normal & Reversed)
  • Reduction Gear Ratio: 1 : 1.45
  • Front / Rear Output Ratio: 1:1

Fits:
  • Boom Racing BRX01 / BRX02
  • Boom Racing D90 (with Skid Plate BR302011 or BRLC7020)
  • Boom Racing D110 (with Skid Plate BR302011 or BRLC7020)

To run this T-Case on the Boom Racing Defender D90 chassis (discontinued), two other upgrades are needed:
1. High Clearance Skid Plate for D90 Chassis & BRX T-Case #BR302011
2. Counter Rotation Link Mounts (for Defender D90/D110 Scale PHAT Axle BRQ763060R) #BRQ763068

Also available:
Complete BRX Anti Torque Twist Conversion Kit for Defender D90 #BRQ763072
Complete BRX Anti Torque Twist Conversion Kit for Defender D110 #BRQ763073

Note: This transfer case will not fit the optional Overdrive HD Gear Set for BRX T-Case (33T, 25T, 16T) #BRLC70201-GEAR.
