Brass Rear Brake Disc Set for AR44 Axles

USD $37.90

Part #: BR955035R


LOADING IMAGES

Brass Rear Brake Disc Set for AR44 Axles

USD $37.90

Part #: BR955035R

Notify me when this item is in stock.
Add to favorites

Warehouse Availability:

HK: Out of stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Wheel HexBrake DiscLockout

PRODUCT DESCRIPTION

Product Resources
instruction-manual---boomracing_brass_brake_disc_1579672297.pdf

This is a set of Brass Scale Brake Disc Set for the AR44 (SCX10.2) Rear Axle.

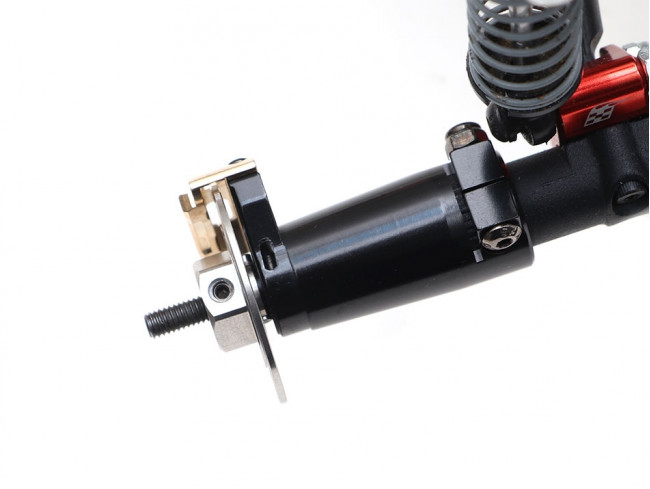

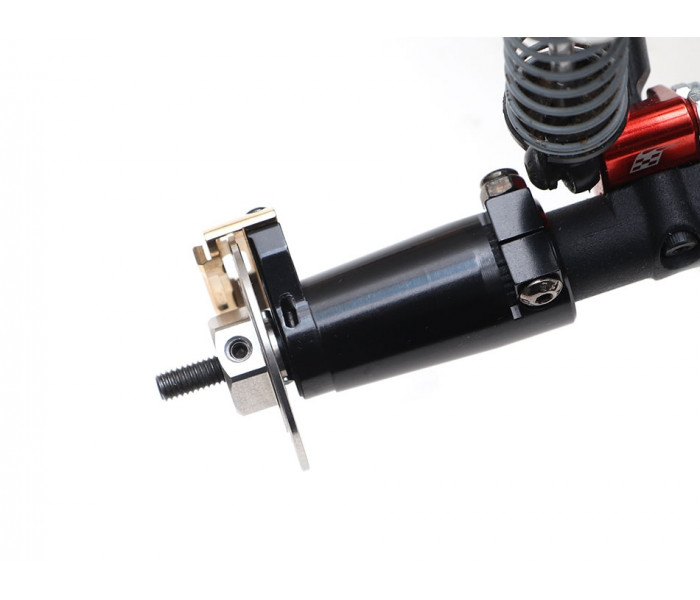

The brass caliper attaches directly onto the aluminum lockout.

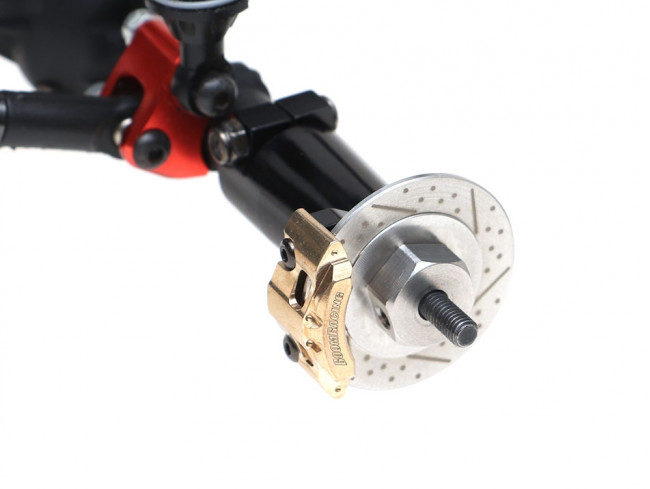

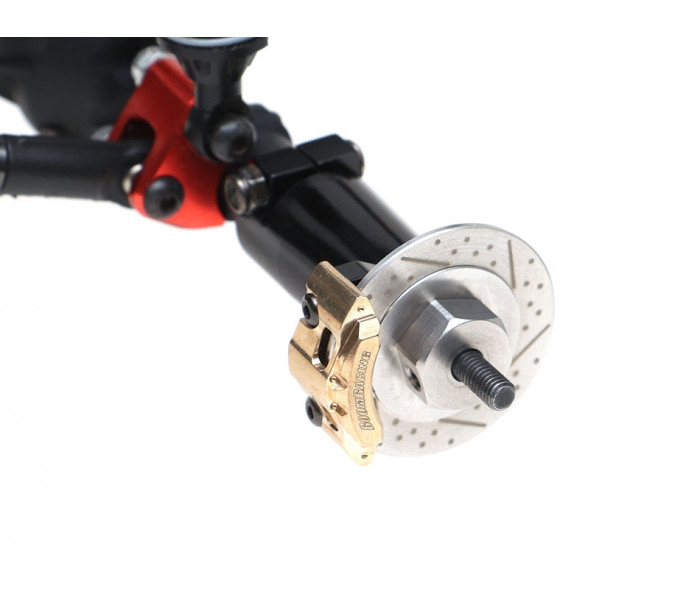

The stainless steel brake disc is machined together with a 12mm standard hex. The hex uses a drive pin and has two set screws to lock down the drive shaft securely.

Note:
If using on the stock plastic AR44 axles, it will only fit first-generation where the housing and the lockouts are separate.

This brake system is not designed for 1.55" wheels. Will fit Boom Racing 1.55" 16-Hole Steelies if used in deep-dish setup.

Fits:

  • Axles:
    • First-gen AR44 plastic stock (housing and lockout separate)
    • Boom Racing PHAT AR44 Axle
  • Wheels:
    • 1.9"/2.2" wheels
    • Wheels with 31mm inner diameter or more

Specification:
  • Weight:
    • Stainless Steel Brake Disc: 12 grams per disc
    • Brass Caliper: 6.5 grams per caliper
  • Diameter:
    • Caliper: 35.35mm
    • Brake Disc: 31mm
  • Hex Offset: 6.45mm
  • 12mm wheel hex

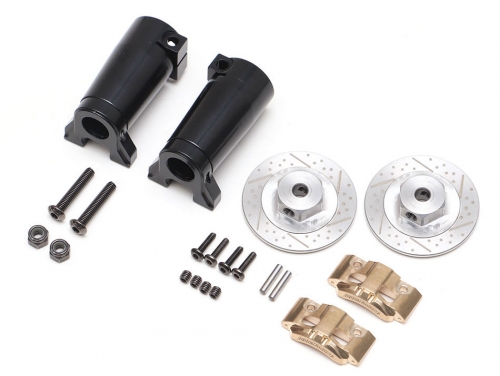

Includes:

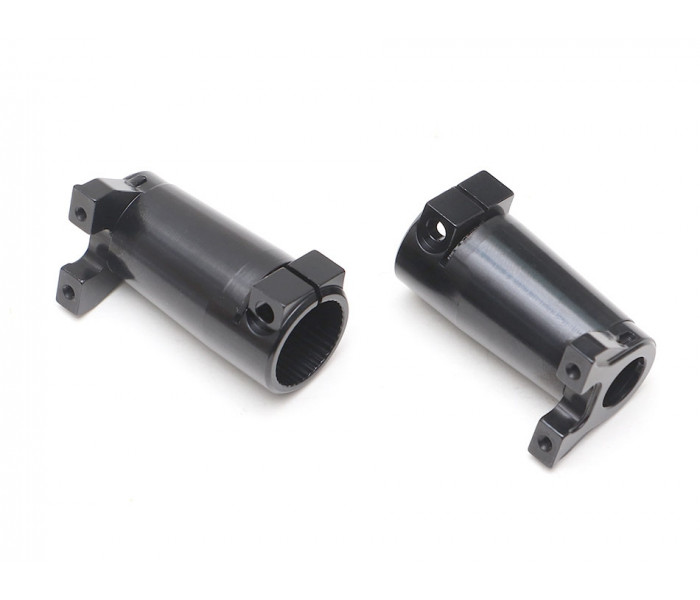

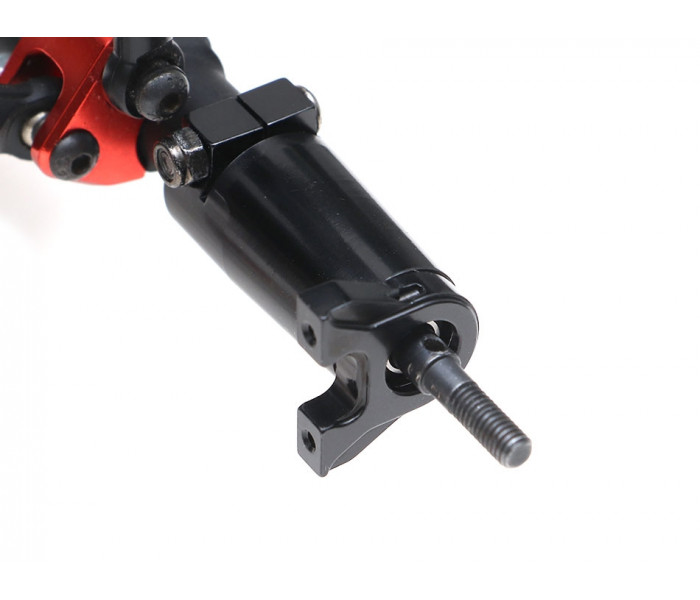

  • 2x Aluminum Lockout (AR44/BRX70/BRX90 compatible)

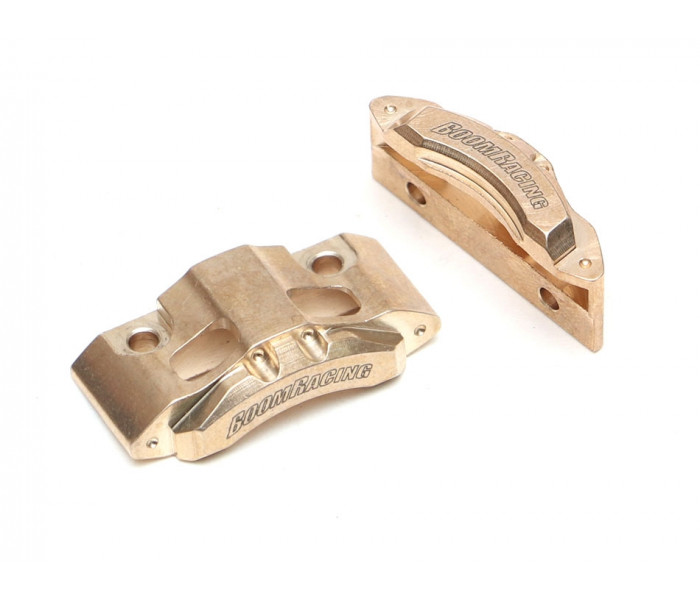

  • 2x Brass Brake Caliper #BRLC7082
  • 2x Stainless Steel Brake Disc 12mm Hex #BRLC7081
  • 2x M3x18 RS Screw
  • 2x M3 Nut - Nyloc
  • 4x M2x10 RS Screw
  • 4x M3x3 SS Screw
  • 2x M2x10 Pin

Optional Parts:

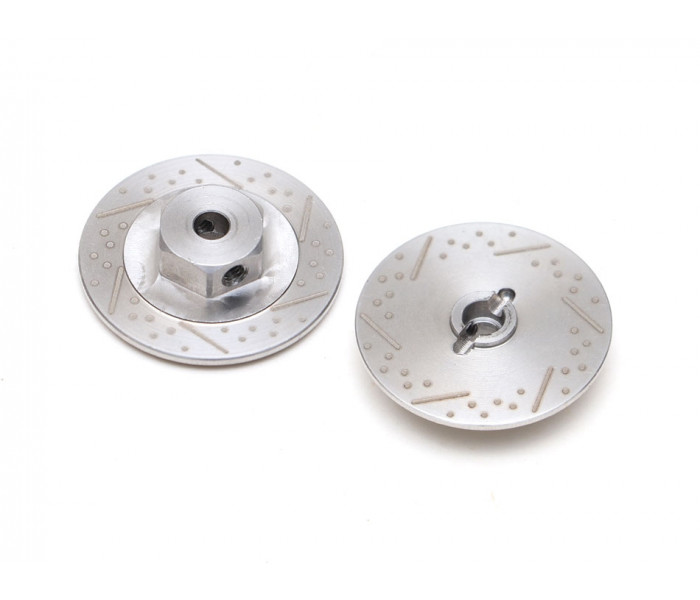

Stainless Steel Cross Drilled Brake Disc 12mm Hex (2) #BRLC7084
