Boom Racing AR44 Axle Mounted Servo/Counter-Rotation Axle Conversion Kit

6822 Views

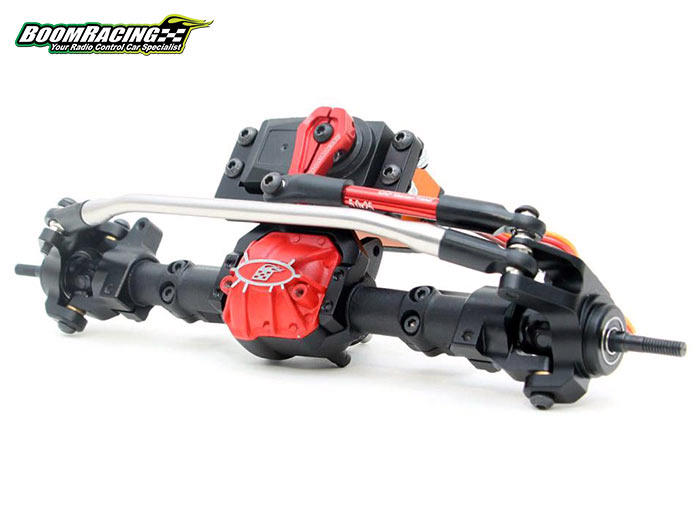

Boom Racing releases Axle Mounted Servo AND Counter-Rotation Axle Conversion Kit for Axial's AR44 axle housing to convert your SCX10 II from stock CMS.

This is a dual purpose axle conversion kit for the front AND the rear AR44 axle.

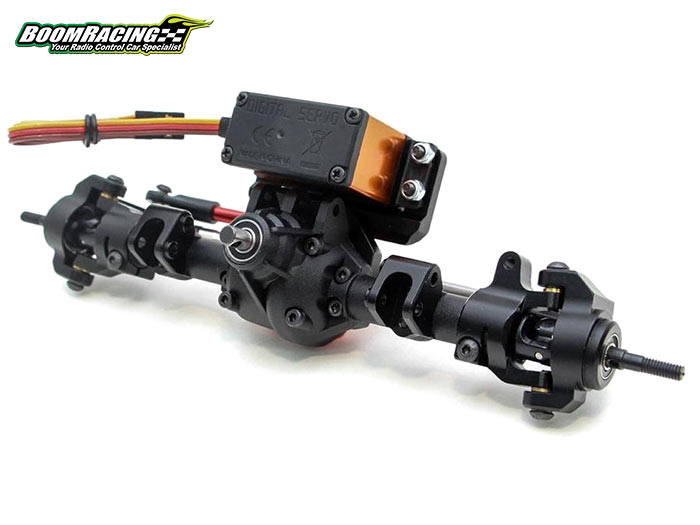

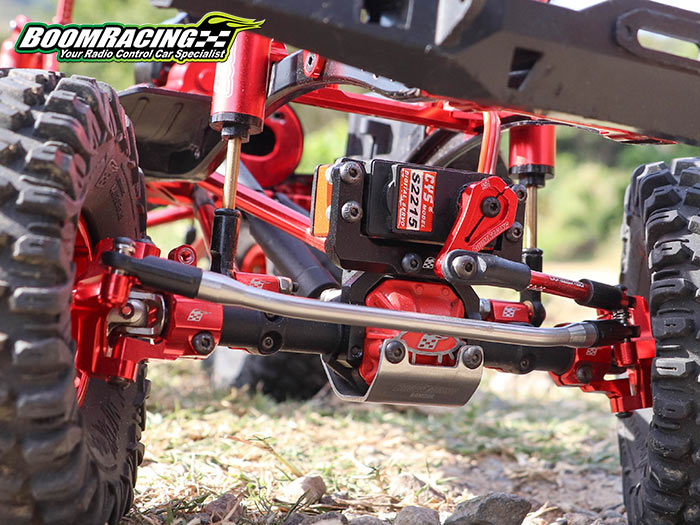

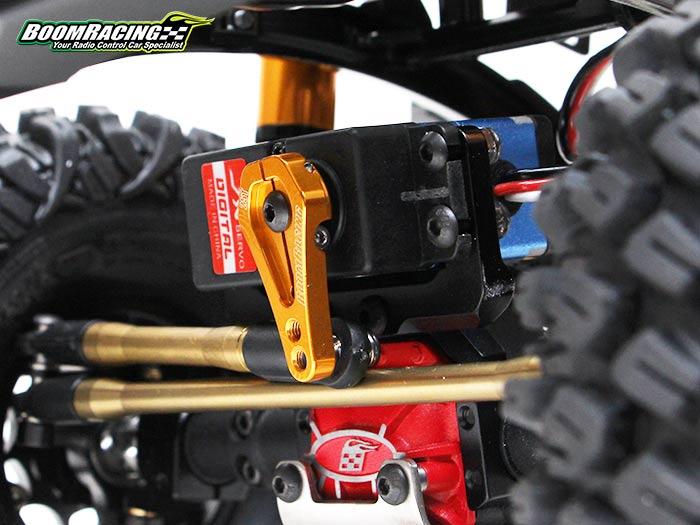

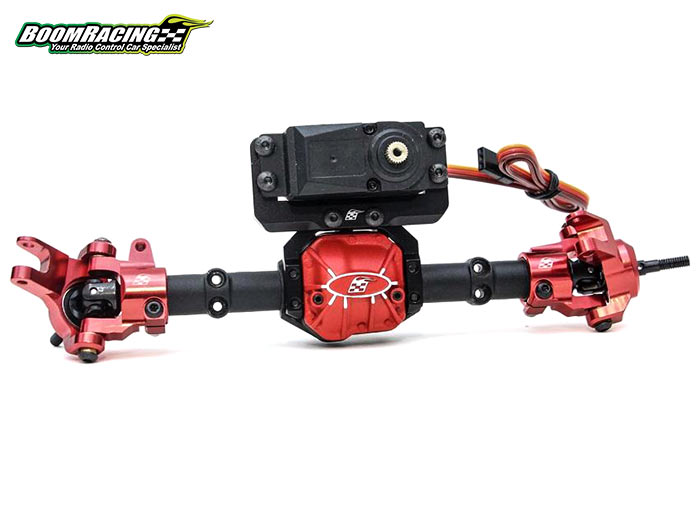

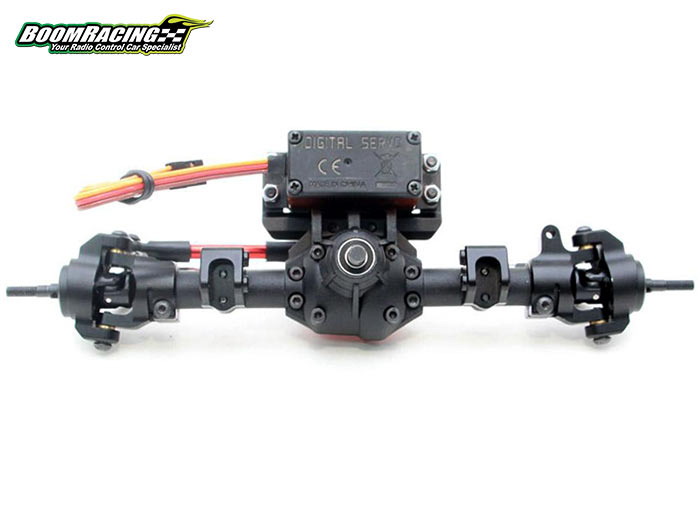

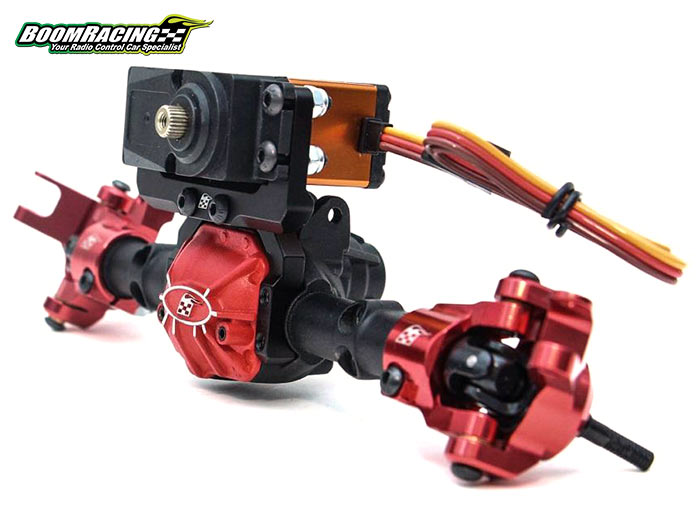

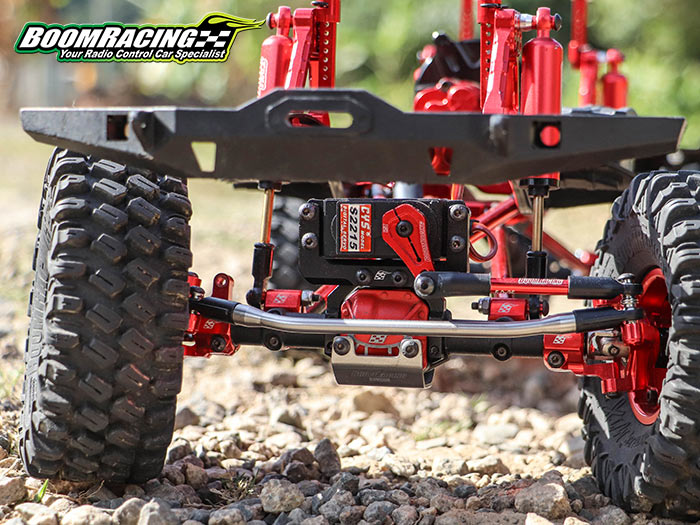

Convert the Axial SCX10 II chassis mounted servo (CMS) to axle mounted servo (AMS)

AND

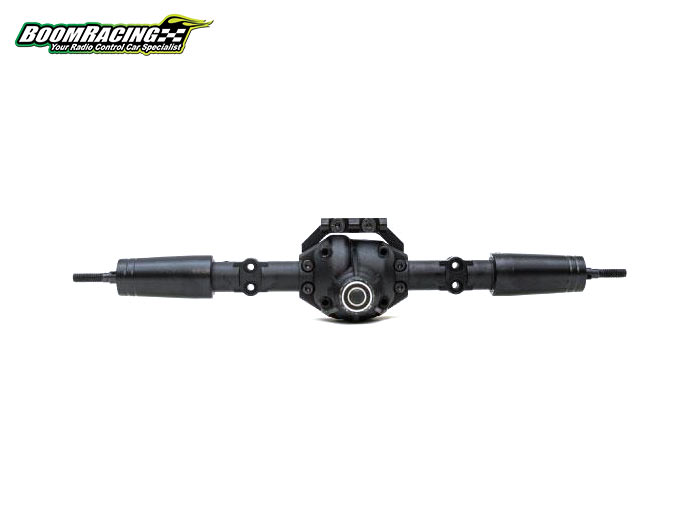

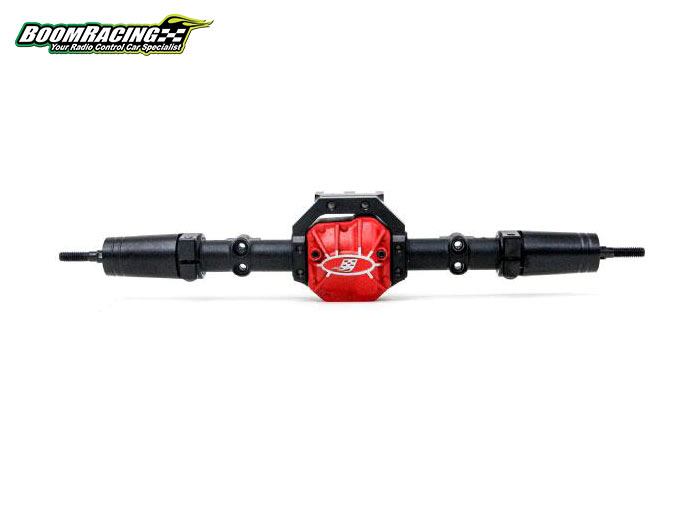

Convert the AR44 axle to run counter-rotational transfer case by flipping the axle upside-down so the ring gear sits on the opposite side for the axle (to eliminate torque twist)

Convert both by using one axle (the front axle) to achieve the above two conversions (CMS to AMS and Counter-Rotation). If you only want a Counter-Rotation conversion, you have the option to do this in the rear axle.

Advantages of Axle Mounted Servo:

Takes away the bump steer
Quicker steering response
More precise steering and turning angle
Stronger steering
More weight down low for better handling

Will fit stock plastic Axial SCX10 II AR44 axle housing with some DIY modifications (see manual).

The set comes with an aluminum 4-link truss for you to swap the axle up-side-down if you run a counter-rotational transfer case (to eliminate torque twist).

---------------------------------------------

1. To mod the AR44 axle (CMS to AMS):

For Boom Racing AR44 PHAT Axle, the mount will fit directly on the without any modifications.

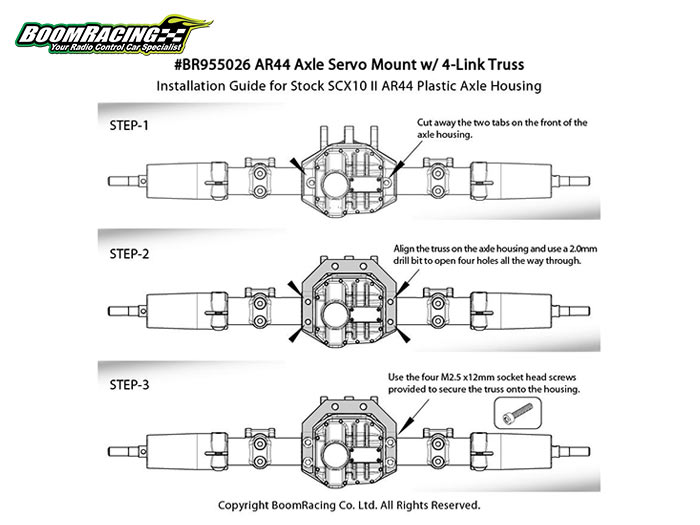

For plastic AR44 axle, following these three steps:

1.1 Cut away the two tabs on the front of the axle housing
1.2 Align the truss on the axle housing and use a 2.0mm drill bit to open four holes all the way through.
1.3 Use the four M2.5 X 12mm socket head screws provided to secure the truss onto the housing.

Note: For more precise drilling, after drilling the first hole, tighten the bolt to secure the mount. Then drill the second hole, and so forth.

---------------------------------------------

2. To mod and install the 4-link Truss:

2.1 File down or cut away the 4-link axle mount on the axle.

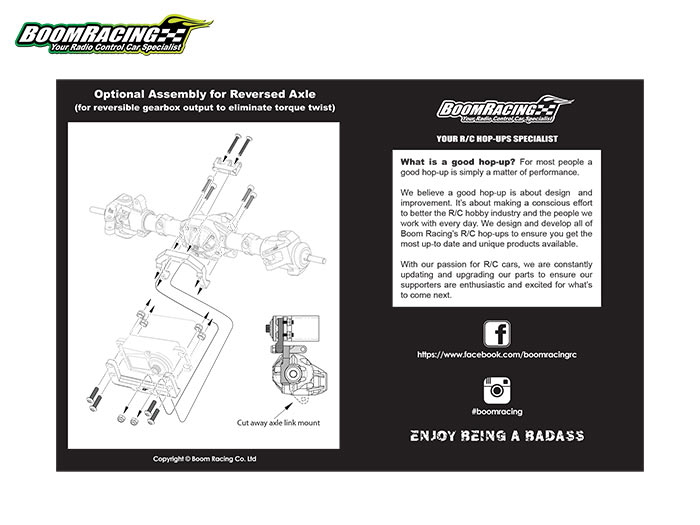

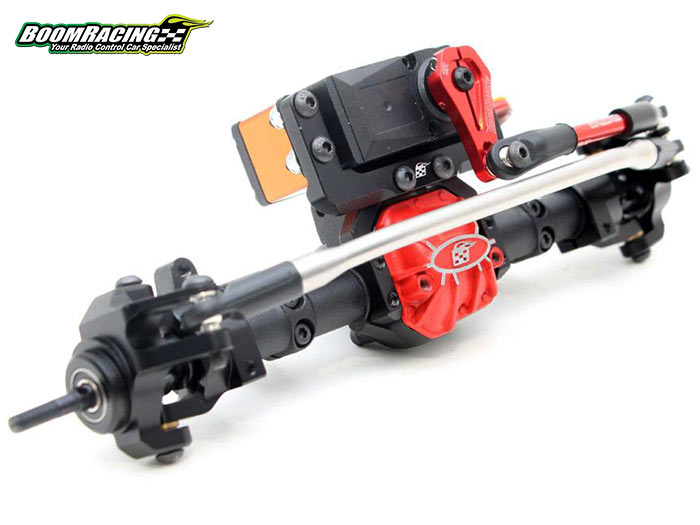

2.2 Reverse the axle 180 degree (or turn it upside-down) and install the brace with truss (see picture for result).
2.3 If you are converting a plastic axle, follow Steps 1.2 and 1.3 now.

---------------------------------------------

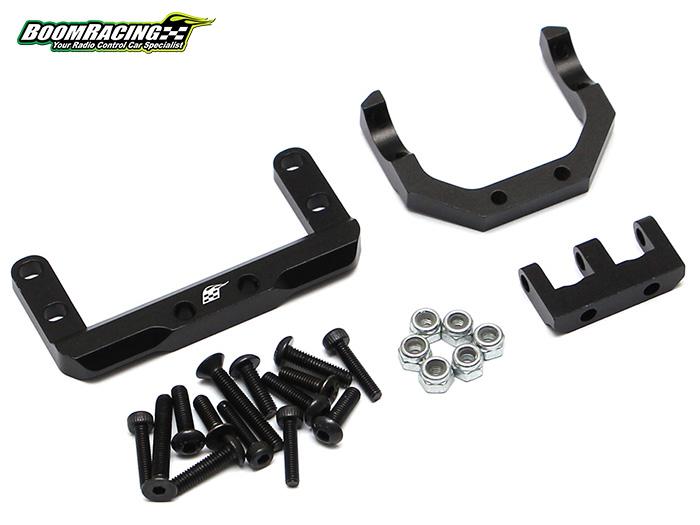

Includes:

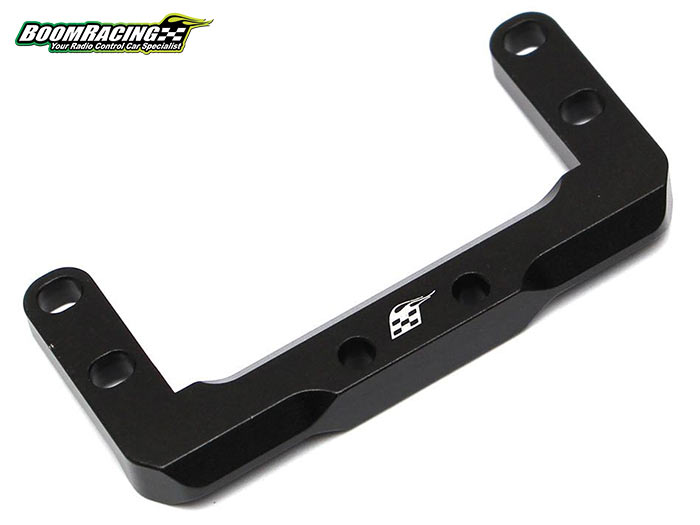

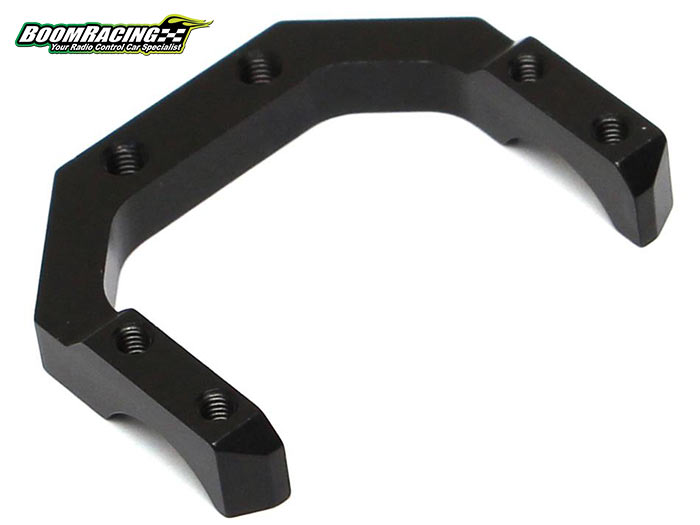

1x Aluminum Servo Mount
1x Aluminum Truss

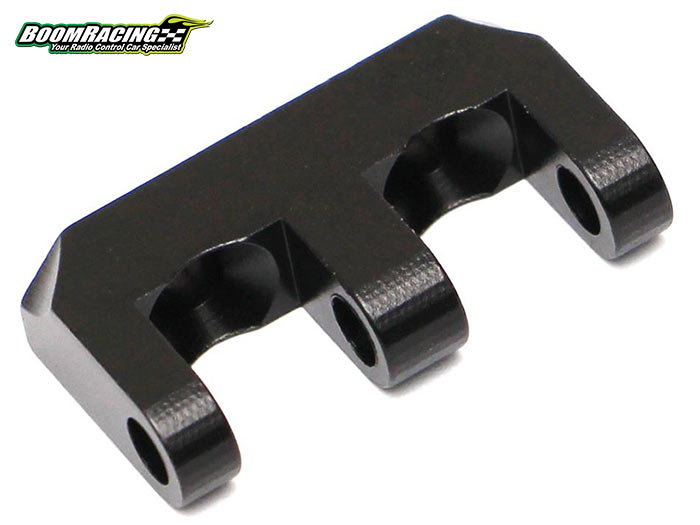

1x Aluminum Link Mount
4x M2.5x12mm Socket Cap Screw
2x M3x10mm Round Socket Head Screw
4x M3x12mm Round Socket Head Screw
2x M3x20mm Counter Sink Screw
6x M3 Locknuts

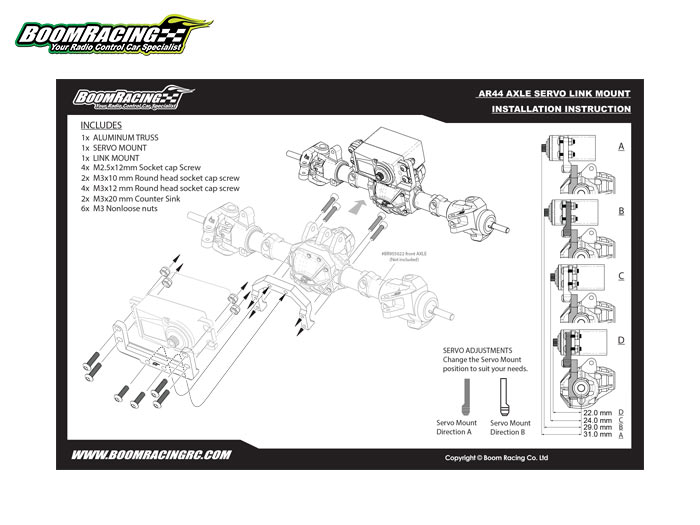

1x Manual

You will need:
1x front upper link 71mm (2x if you want to match the front upper links)
1x drag link (upper steering link)
