Boom Racing Releases BRX70 PHAT Axle

6525 Views

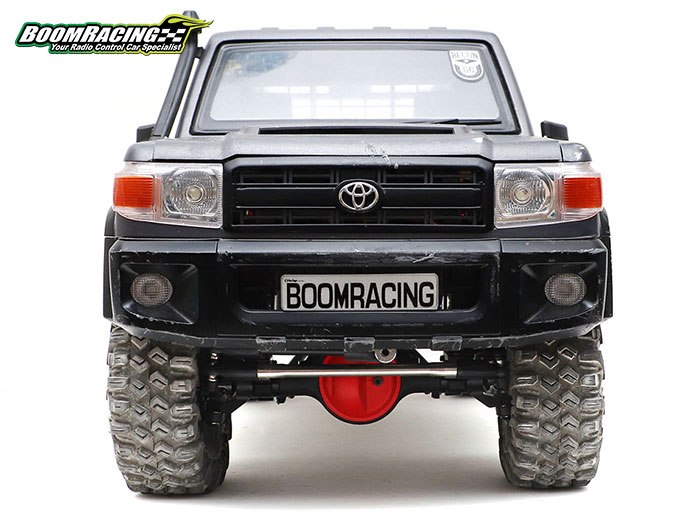

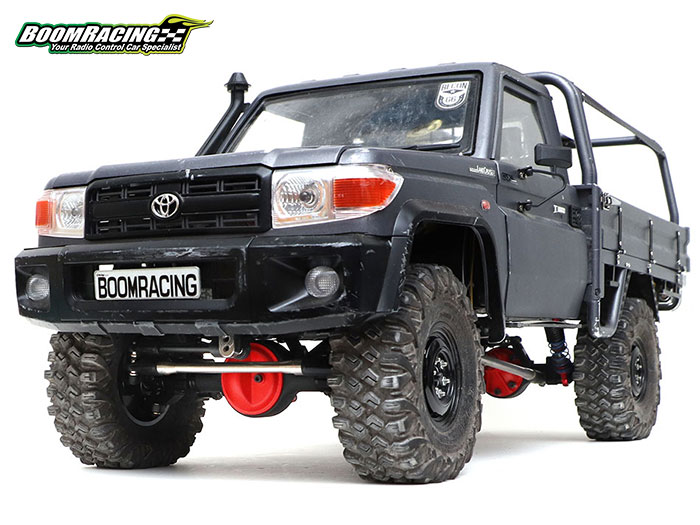

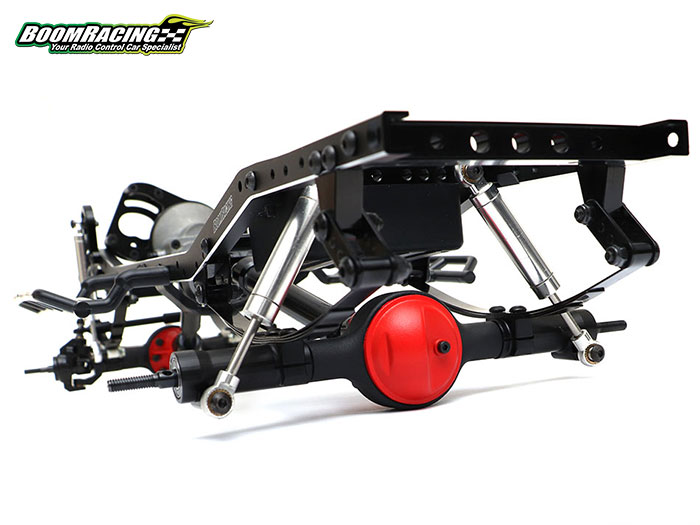

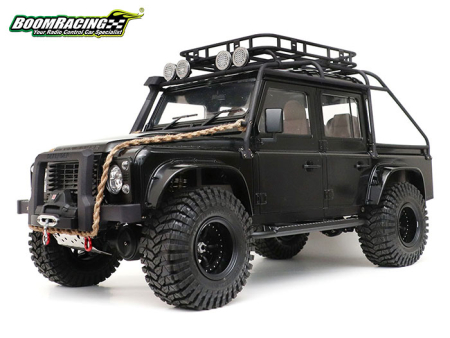

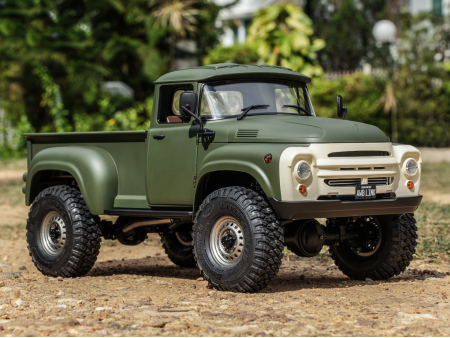

Builders around the world is creating more realistic scale trucks. Boom Racing releases an all-new narrow BRX70 PHAT axle for scale truck builders.

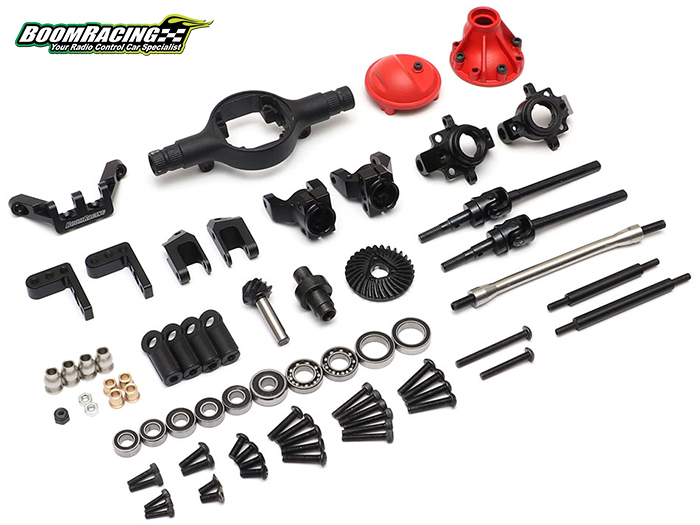

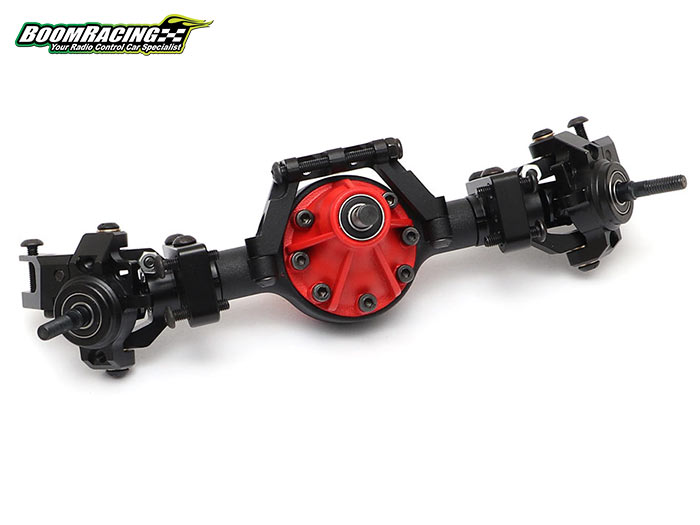

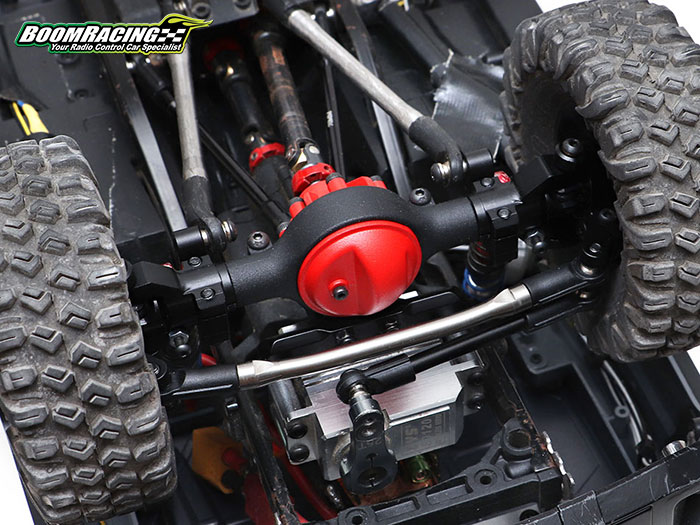

The BRX70 axle is Boom Racing's new narrow axle. Packed with many desirable solid axle features; heavy weight for low CG, reversible axle bevel gear positions, leaf spring option (over and under axle), chassis mounted or axle mounted servo option, behind-the-axle steering option, detachable aluminum CNC truss, adjustable caster angle. It uses the widely available AR44 axle gear, input shaft and AR44 knuckles.

This is a performance based, heavy and narrow axle set designed for performance based scale RC builds. Use this axle as a base for any custom builds.

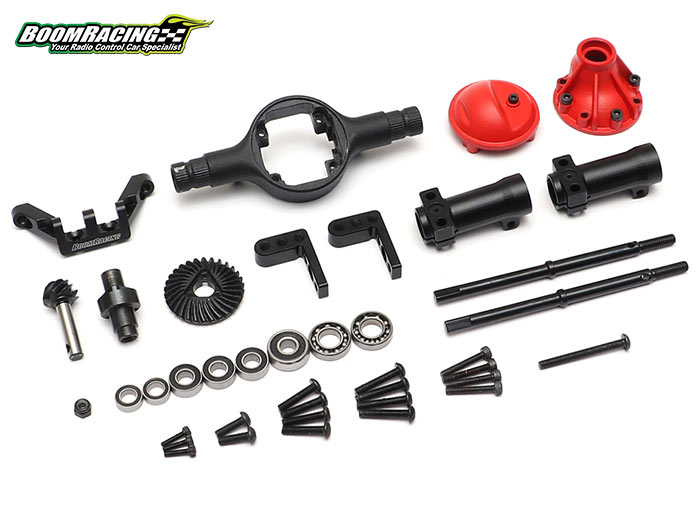

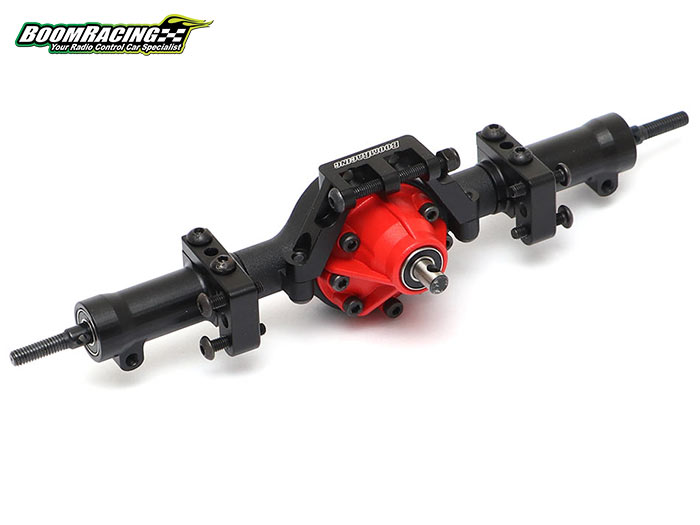

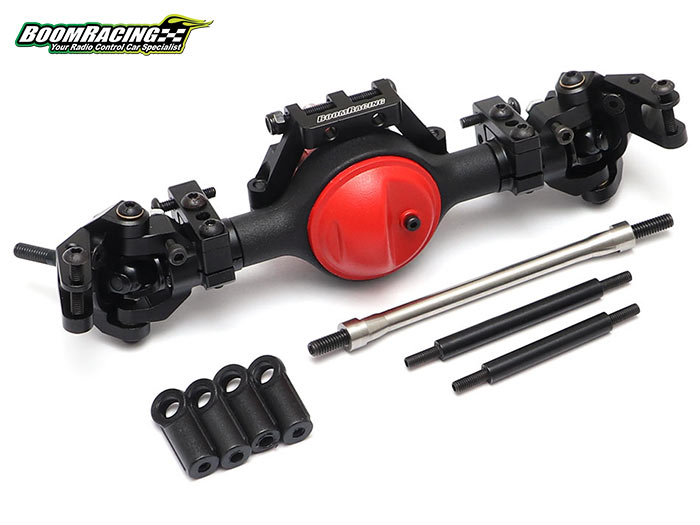

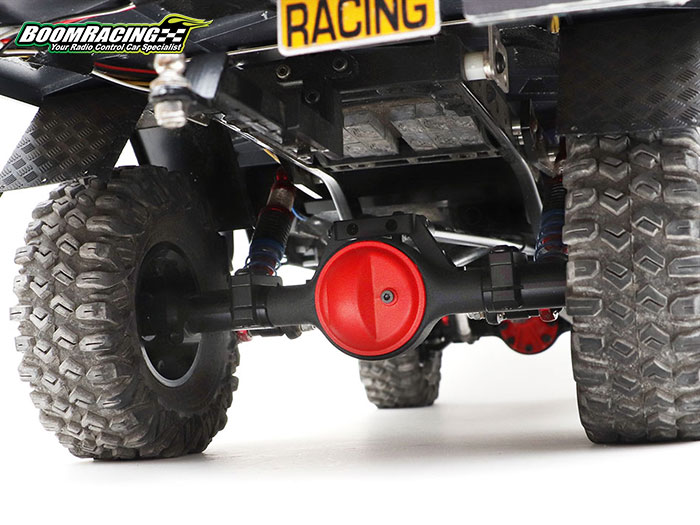

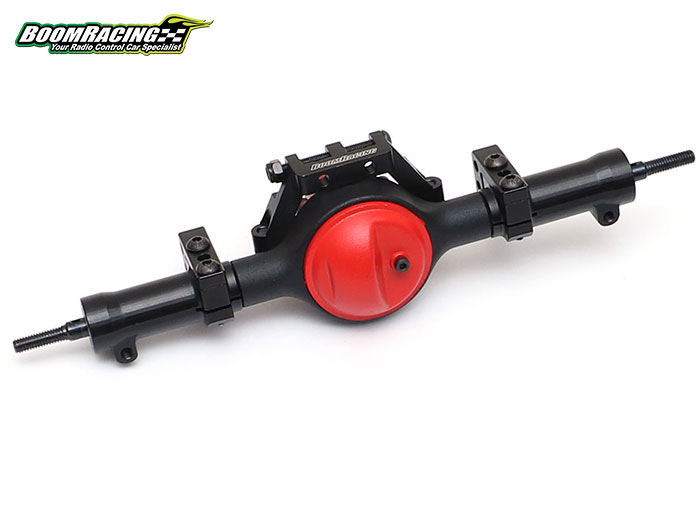

BRX70 front axle is slightly wider than the BRX70 rear axle. This provides better steering performance and stability for the chassis.

Size:

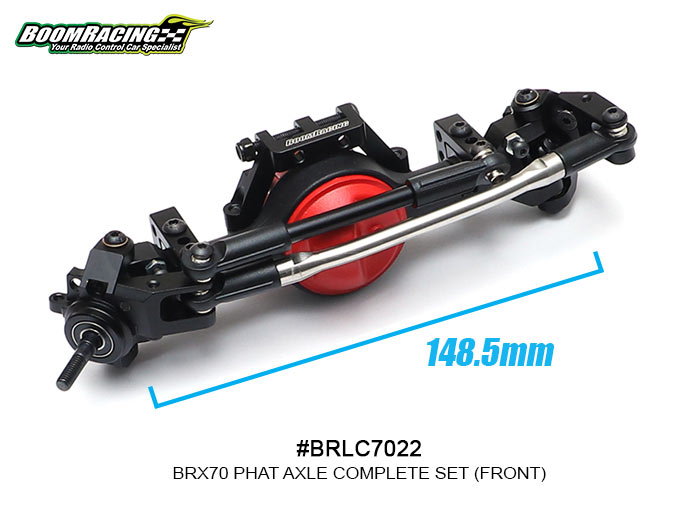

148.5mm pin-to-pin (5.846 inches)

Features:

Narrow axle for super scale builds

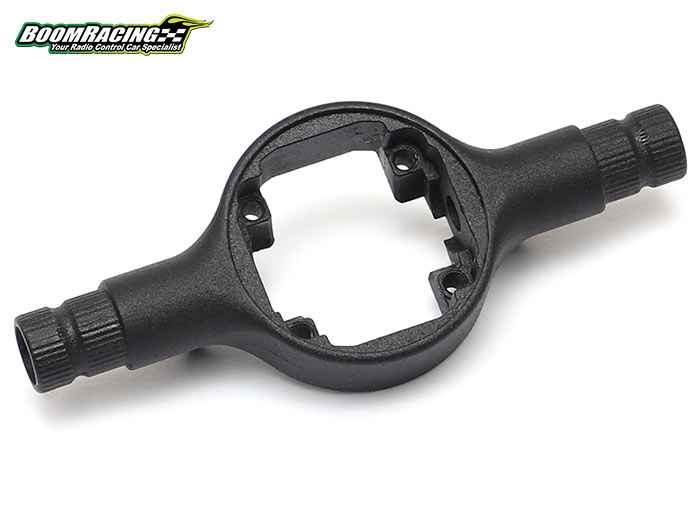

PHAT axle (heavy and strong)
260 grams total weight

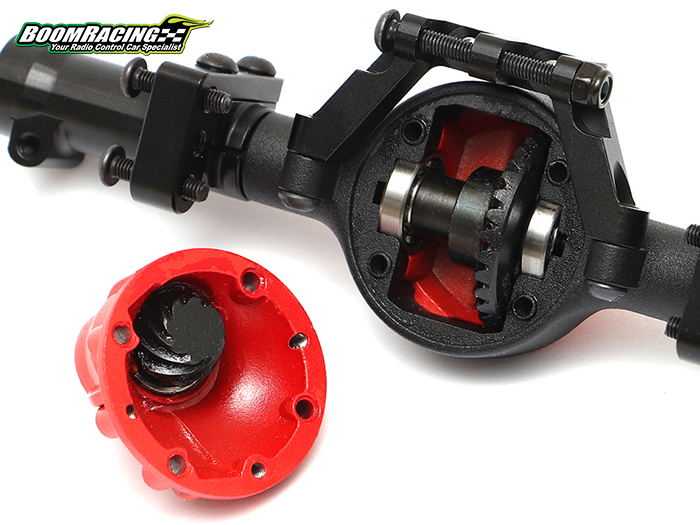

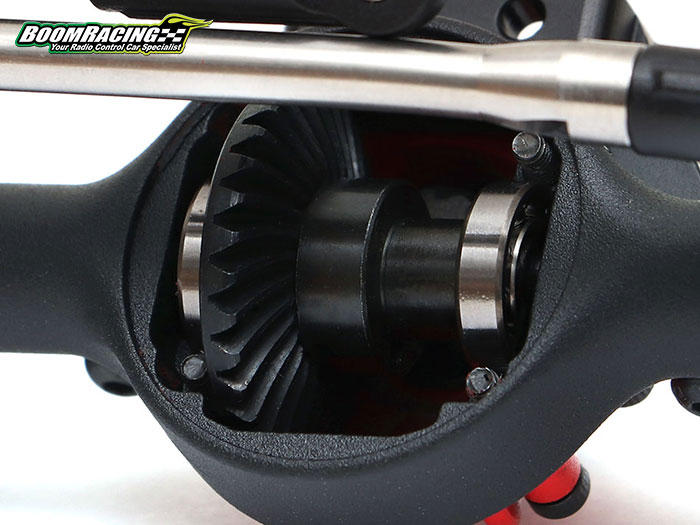

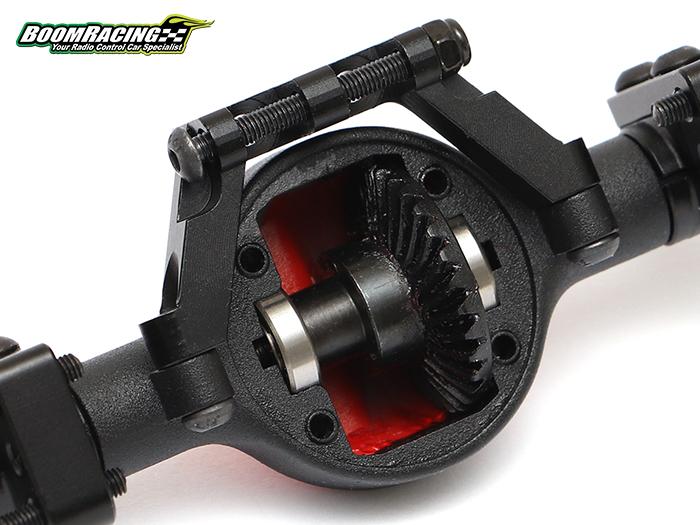

Reversible axle gear in the housing (swap gear to opposite side for counter rotation center drivetrain setup)
Standard AR44 high pinion gear & input shaft

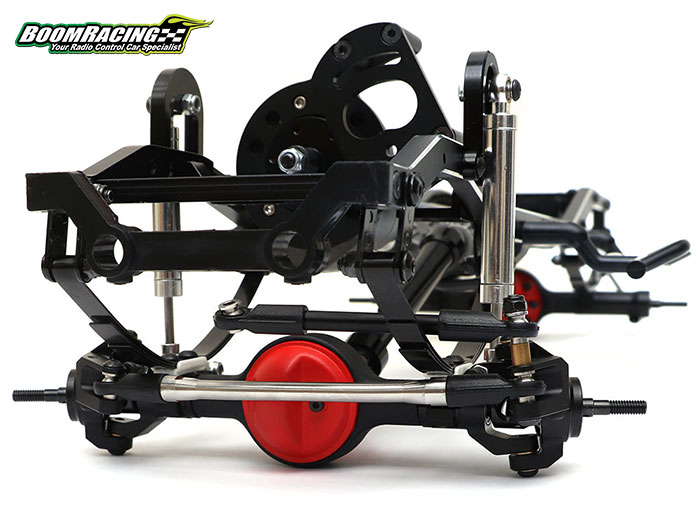

Chassis Mounted Servo (CMS) AND Axle Mounted Servo (AMS) setup option

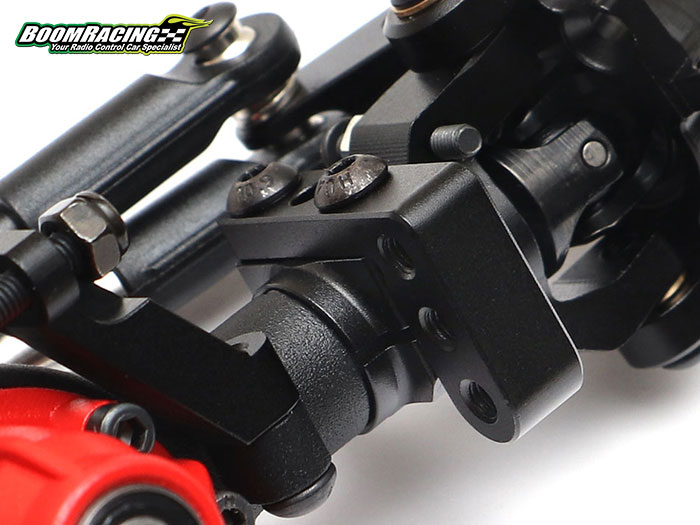

Detachable knuckle lever for Behind-The-Axle steering setup option

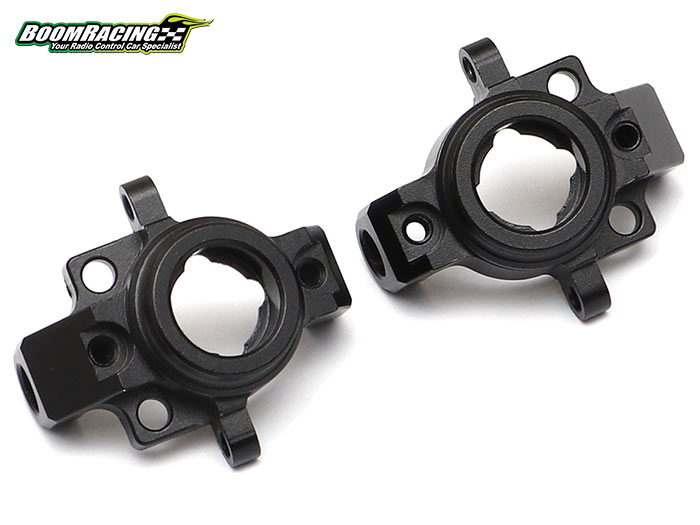

Standard AR44 knuckle arms are compatible

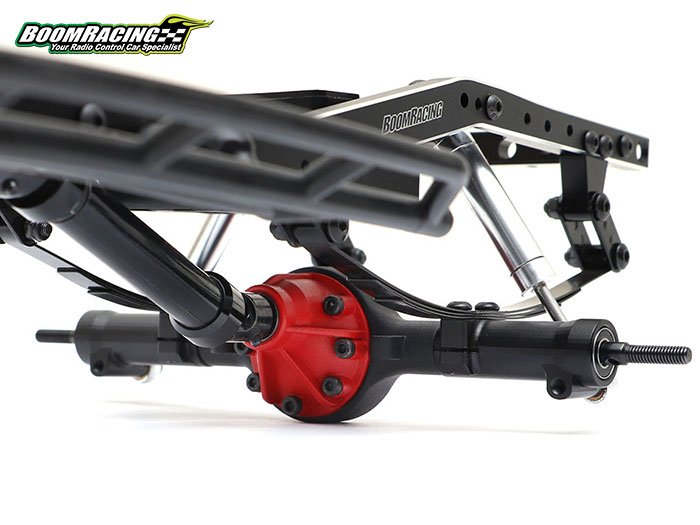

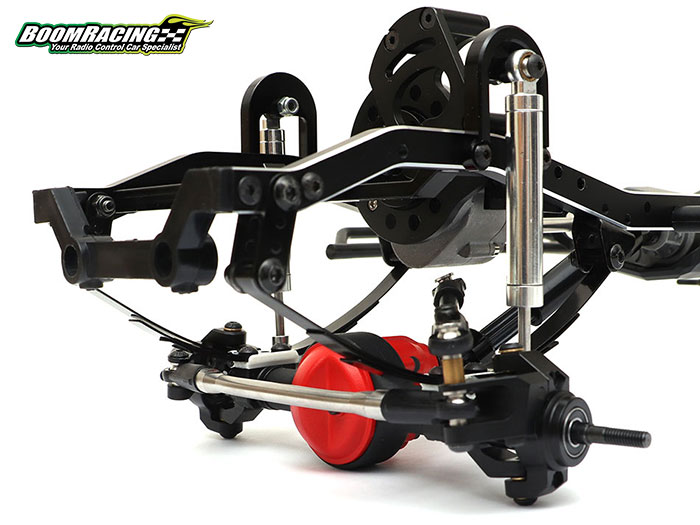

Leaf spring over and under the axle housing option

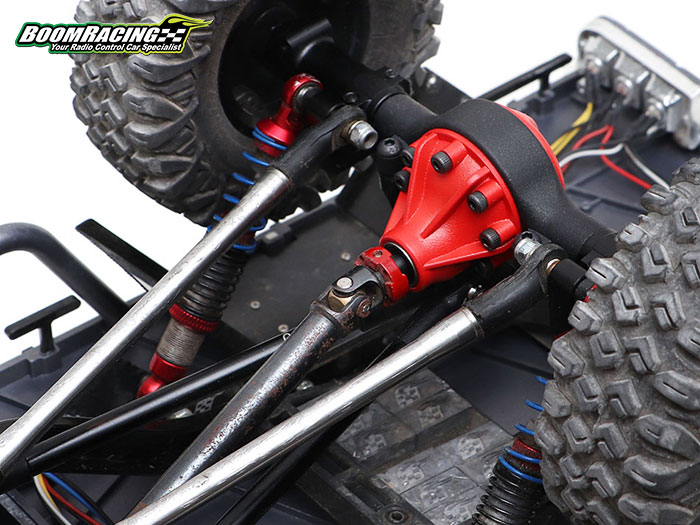

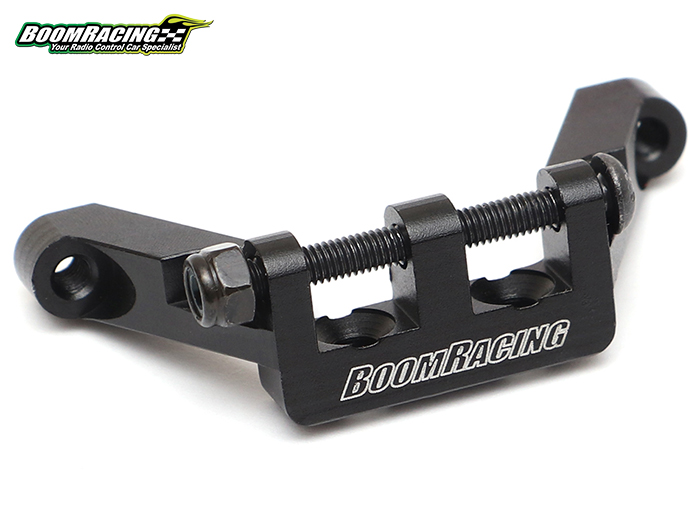

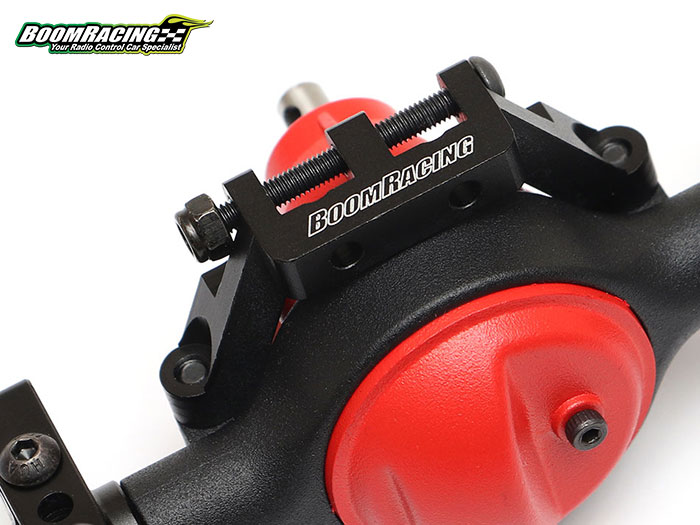

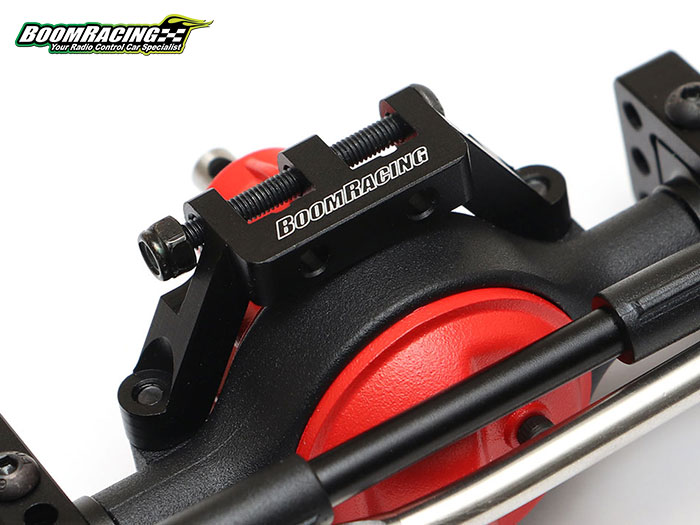

CNC aluminum truss included for 3-Link and 4-Link setup option

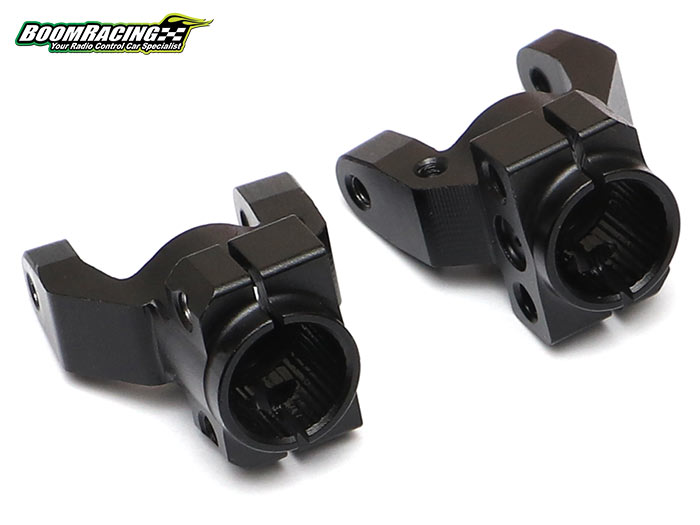

Adjustable caster angle for additional steering adjustability

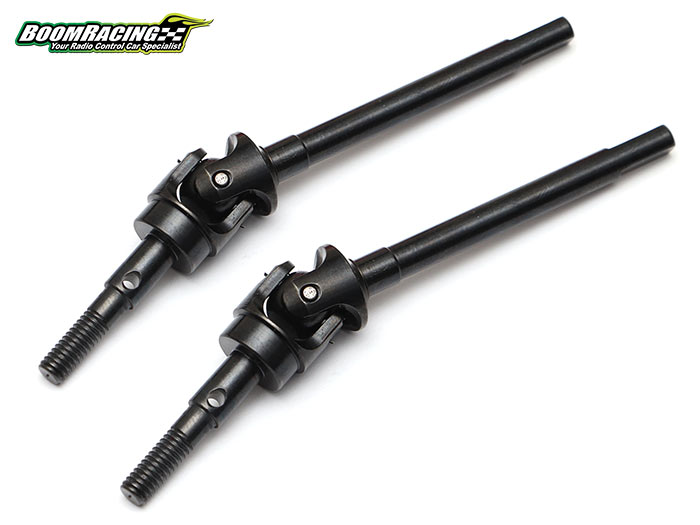

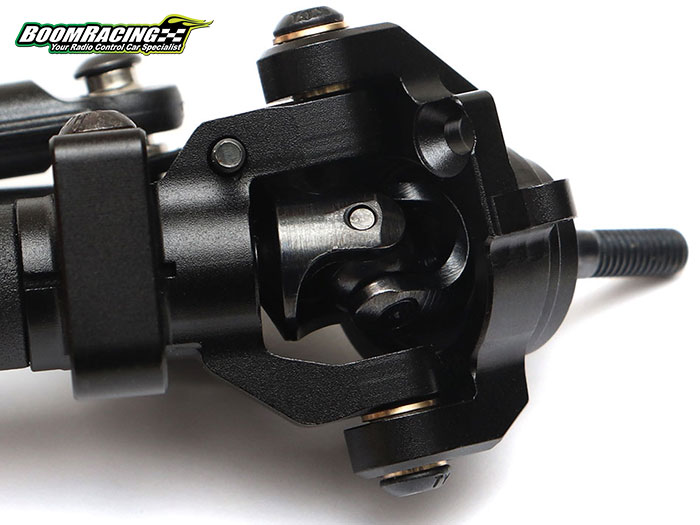

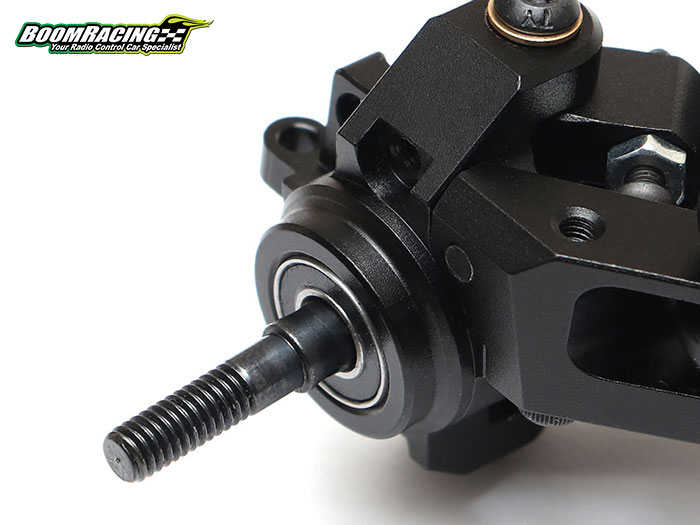

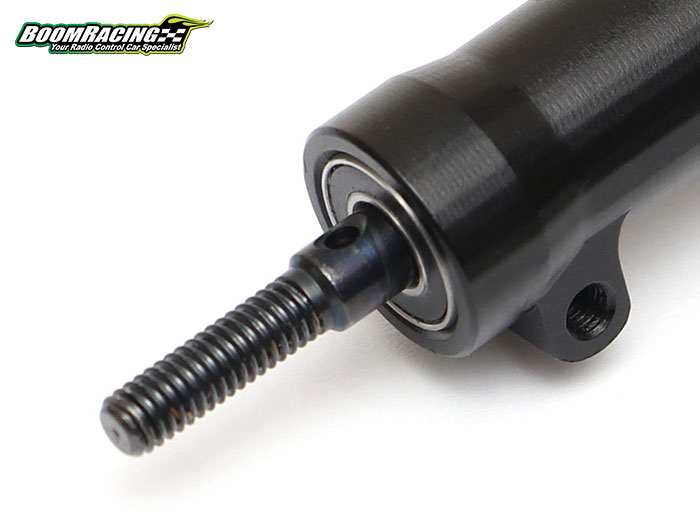

BADASS HD Steel universal shaft for ultimate durability and strength for the axle drivetrain

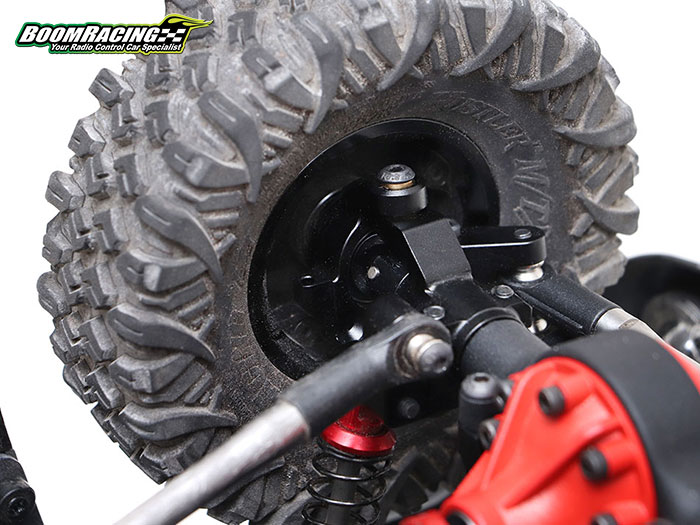

High steering angle you won't believe it's true - over 45 degrees

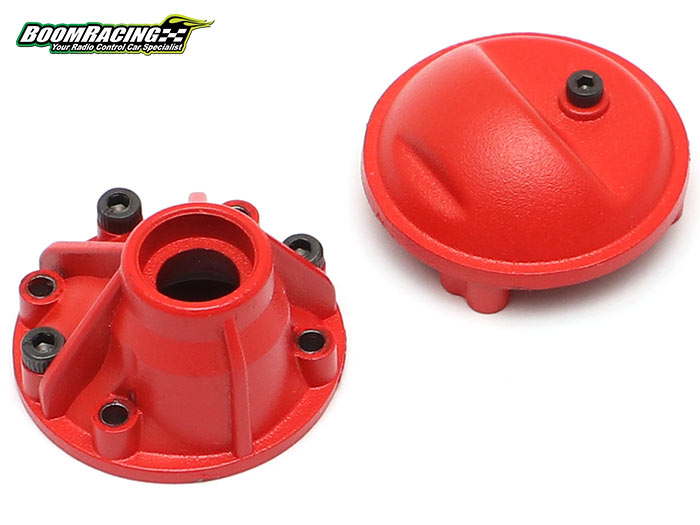

Removable third member for 6x6 pass-thru option (coming soon)

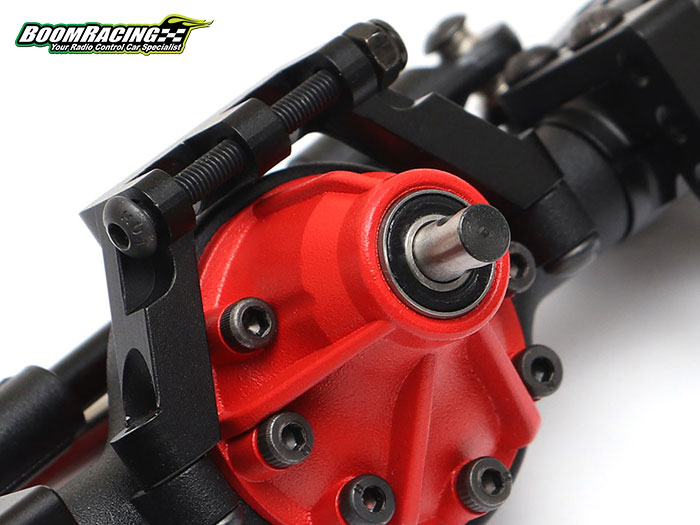

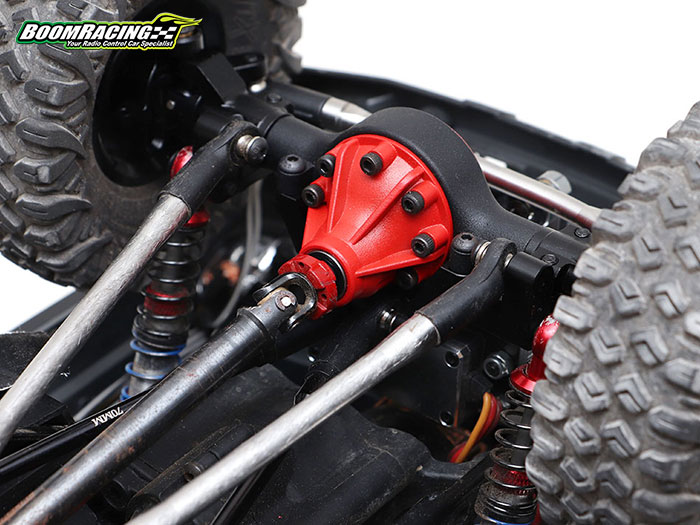

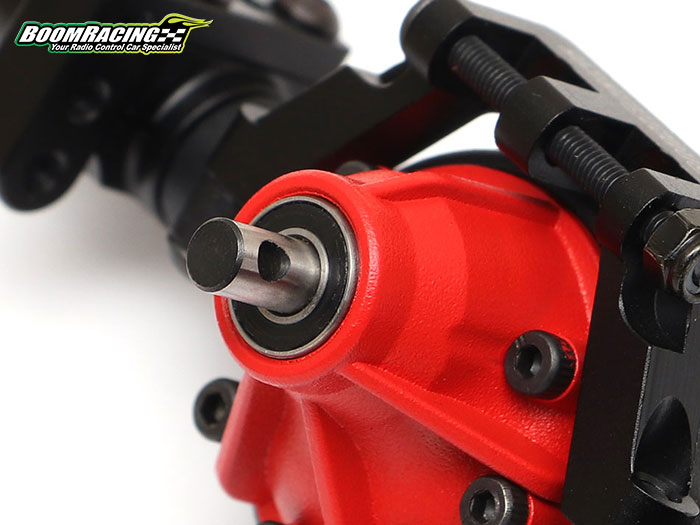

Third member high pinion angle for better clearance

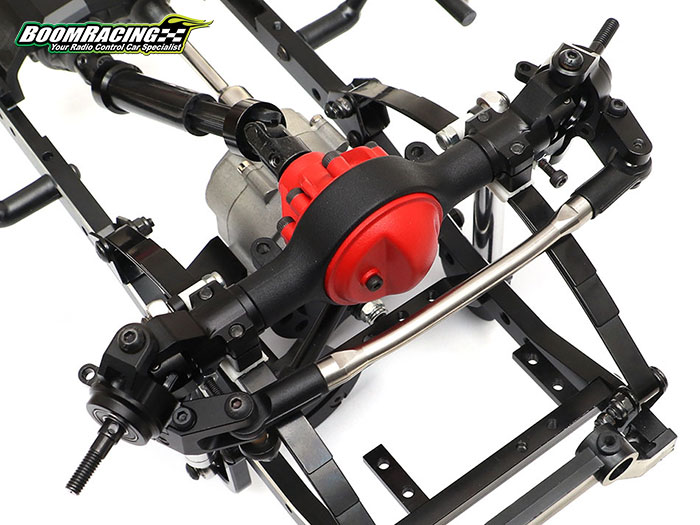

Counter rotation stainless steel tie rod steering link for quick adjustments

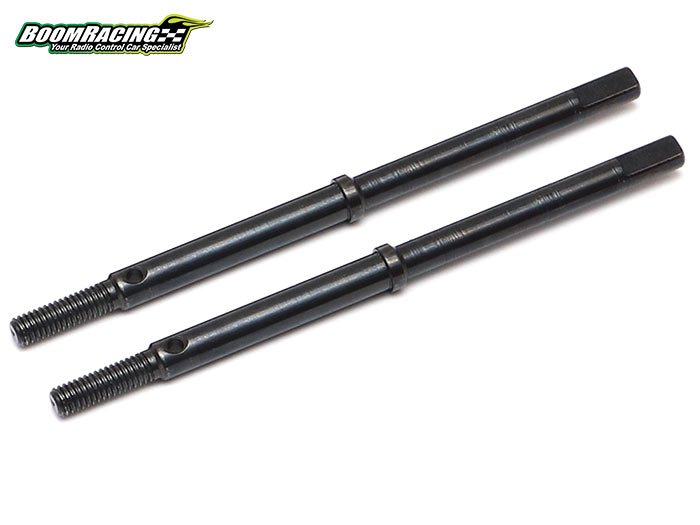

Option to lengthen the axle width with longer c-hubs and universal axle shafts (coming soon)
