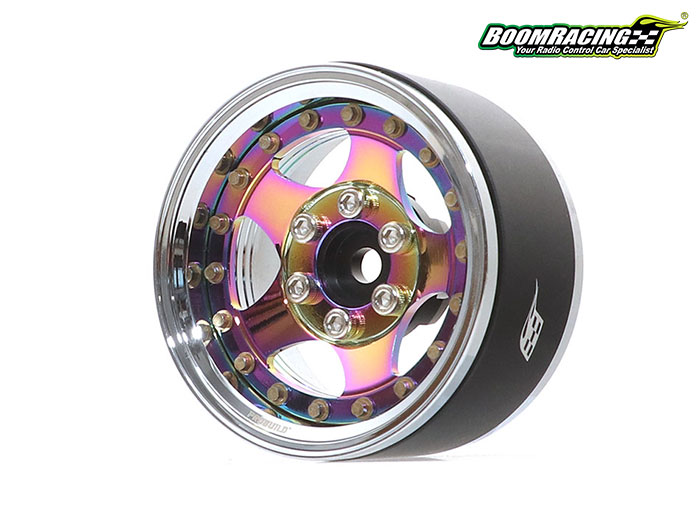

Boom Racing ProBuild 1.9 SV5 Neo Chrome Beadlock Wheels

2898 Views

Boom Racing released a new Neo Chrome color option for their ProBuild 1.9" Offset Beadlock Wheels.

Boom Racing released a new Neo Chrome color option for their ProBuild 1.9" Offset Beadlock Wheels. One of the first of its kind, this neo chrome color beadlock wheel is specially manufactured for scale appearance.

Wheel Combination:

  • Barrel Color: Chrome
  • Faceplate Style: SV5
  • Faceplate Color: Neo Chrome
  • Outer hardware: Scale Hex Gold + Cap Head 12.9
  • Hub Size: XT604
  • Hub Hardware: Silver
  • Lock Ring: Chrome


Specification:

  • Diameter: 1.9"
  • Width: 29.4mm (1.157")
  • Inner Wheel Clearance: 45mm (1.771")
  • Weight:
    • 73 grams per wheel (fully assembled)
    • 60 grams per wheel (without hub and hardware)
  • Offset: Adjustable (Hub Type | Actual Offset)
    • XT6015PIN | 3mm / -3mm / -4.6mm / -10.6mm
    • XT601 | 0mm / -6mm / -7.6mm / -13.6mm
    • XT604 | -3mm / -9mm / -10.6mm / -16.6mm (Included)
    • XT606 | -5mm / -11mm / -12.6mm / -18.6mm
    • XT608 | -7mm / -13mm / -14.6mm / -20.6mm


What's Included? All Ready-Sets come with the following:

  • 1x Alum 7.5mm Barrel
  • 1x Alum 15mm Barrel
  • 2x Alum 22.5mm Beadlock Center Piece
  • 2x Alum Faceplate
  • 2x Steel Lock Ring
  • 2x XT604 Alum Wheel Hub Adapter
  • 40x M2x9 Scale Screw
  • 40x M2x8 12.9 Grade Socket Cap Screw for wheel
  • 12x M2.5x8 12.9 Grade Socket Cap Screw for hub
  • 6x M2x14 12.9 Grade Socket Cap Pilot Screw
  • 2x M4 Nyloc Nut
  • 1x 7mm Nut Driver Adapter #BRT10045
  • 1x 2mm Scale Socket Driver #BRT10049
  • 1x Decal Sheet


Fits:

  • 1.9" Crawler Tires
  • Clears TRX4 and SCX10.3 portal axles


Optional Wheel Hub Adapter Sizes:

  • XT6015PIN - 1.5mm Pin Alum Offset #BRXT6015PIN
  • XT601 - 1mm Alum Offset #BRXT601
  • XT604 - 4mm Alum Offset #BRXT604 (Included)
  • XT606 - 6mm Alum Offset #BRXT606
  • XT608 - 8mm Alum Offset #BRXT608




















Author:Jason Tsang
