Boom Racing Mini Servo Mount Set for BRX02

1080 Views

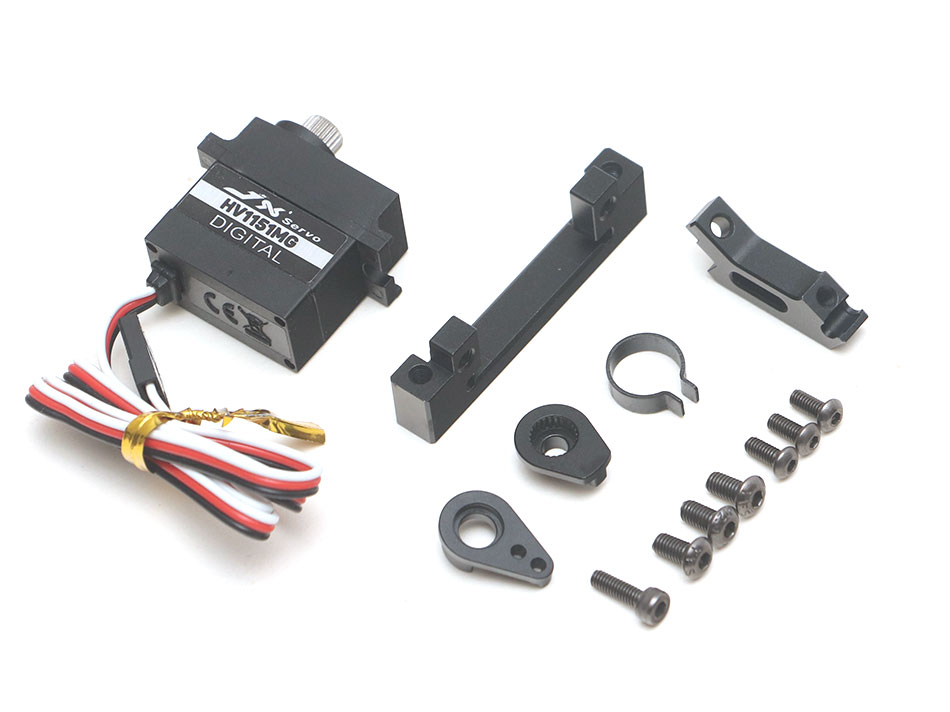

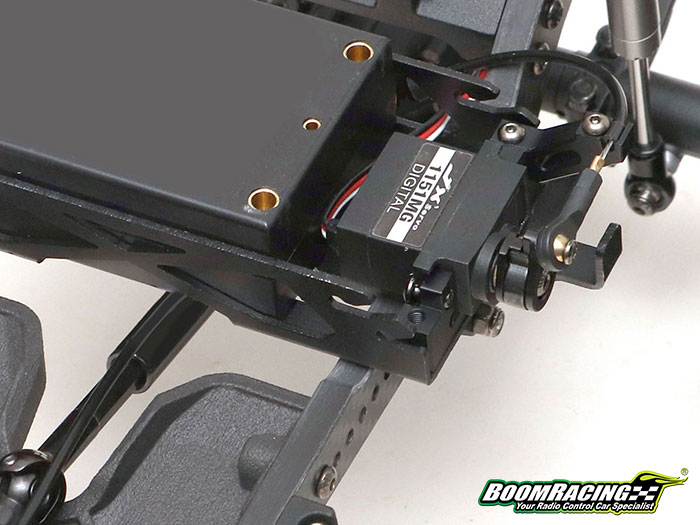

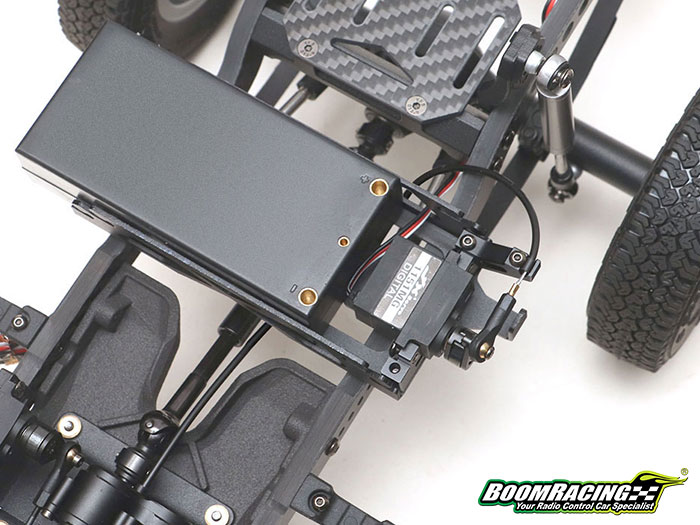

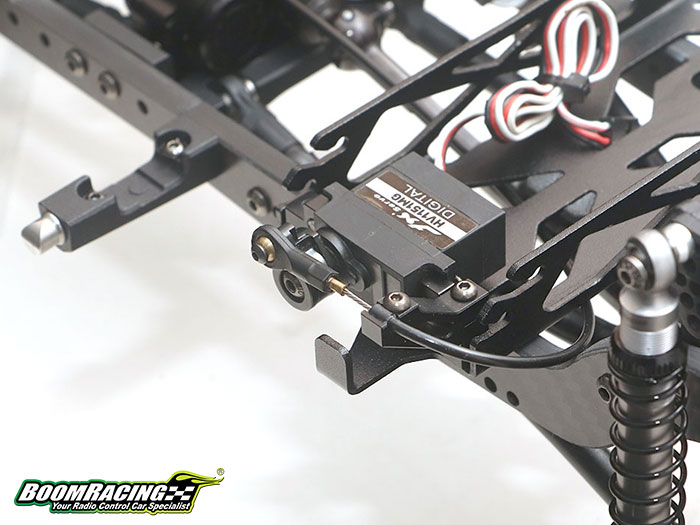

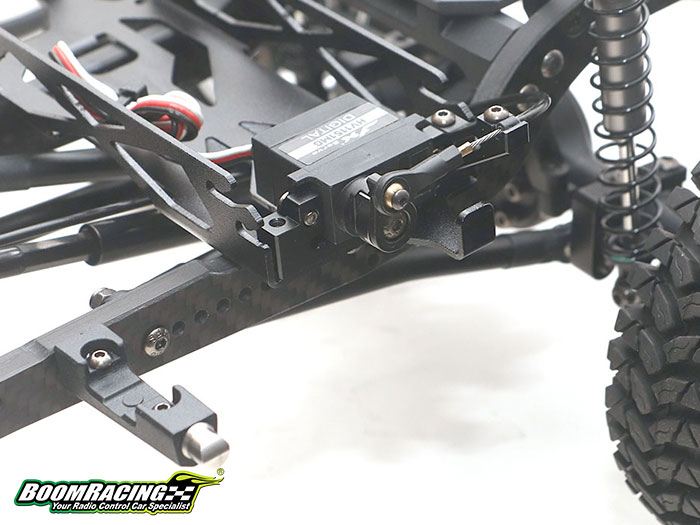

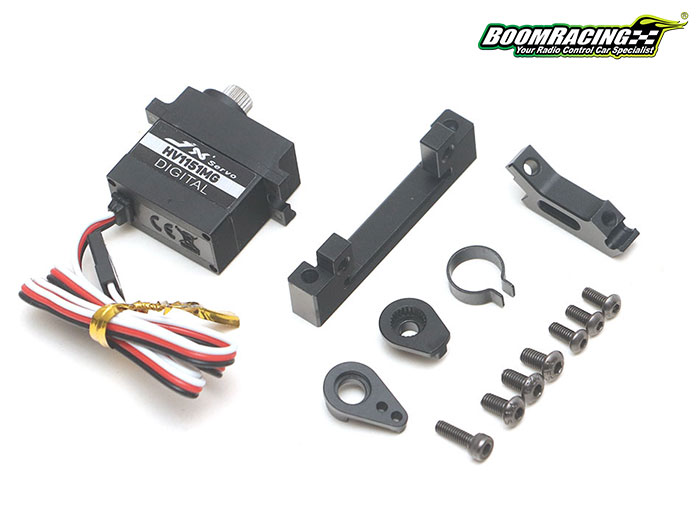

This is a mini servo mount with JX high voltage mini servo. This is for the optional SWD/DIG transfer case.

Mini Servo Specifications:

    • Brand: JX Servo
    • Model: JX/PDI-HV1151MG
    • Working voltage: 6V~8.4V
    • Working temperature: -20C°~ +60C°
    • Dead band: 4usec
    • Motor type: Core Motor
    • Signal booster type: Digital
    • Gear material: Metal gear
    • Operating Speed: 0.12s/60deg (6.0V) | 0.10s/60deg (8.4V)
    • Stall Torque: 3.5kg/cm (6.0V) | 4.5kg/cm (8.4V)
    • Idle Current: 150mA (6.0V) | 180mA (8.4V)
    • Load Current: 260mA (6.0V) | 340mA (8.4V)
    • Size: 23.2 x 12.5 x 25.6mm
    • Weight: 15g
    • Tooth Count: 25
    • Wire length: 310mm JR plug
    • Black: Negative Red: Positive White: Signal

Package total weight: 40.00 grams (incl. packaging)

Factory description: Boom Racing BRX02 Mini Servo Mount Set for BRX01 w/ Mini Servo @ 8.4v

Manufacturer number: BRD901101KIT














Author:Joel Berones
