Boom Racing Land Rover Series III 109 Pickup

2142 Views

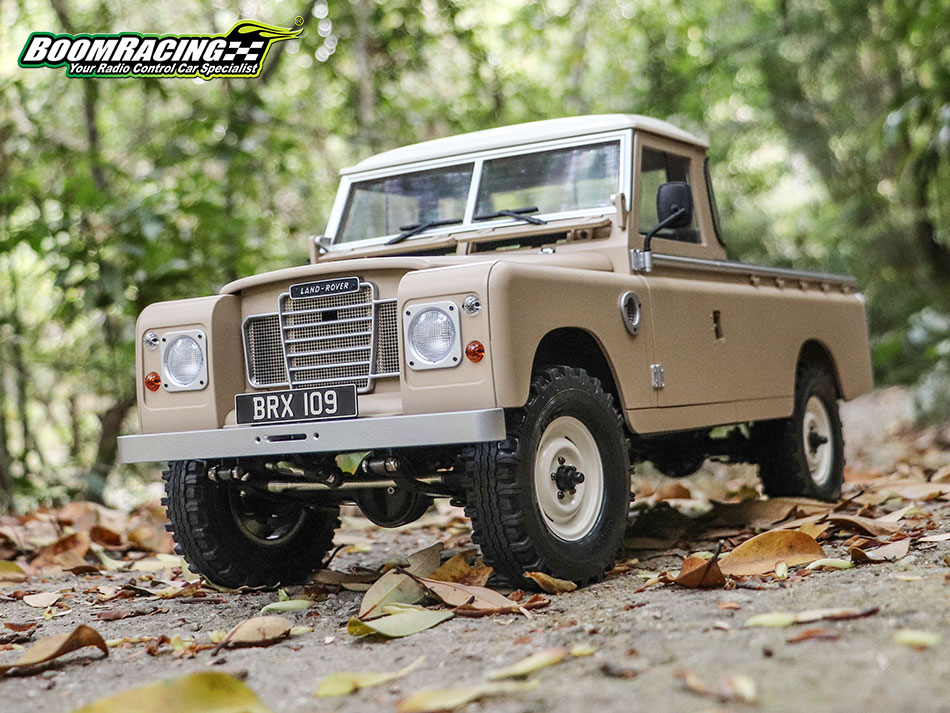

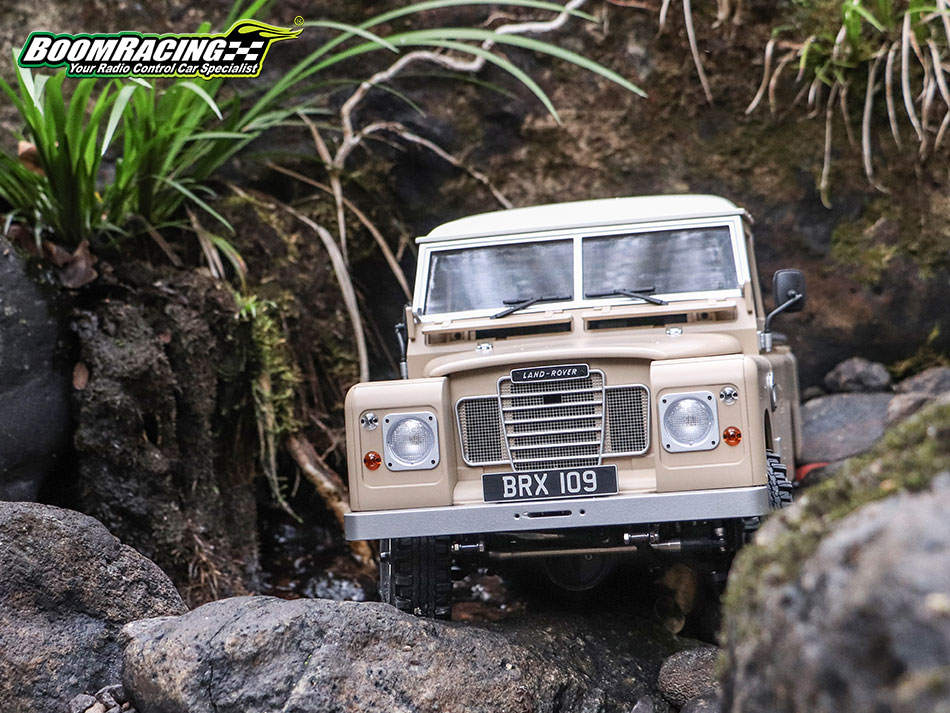

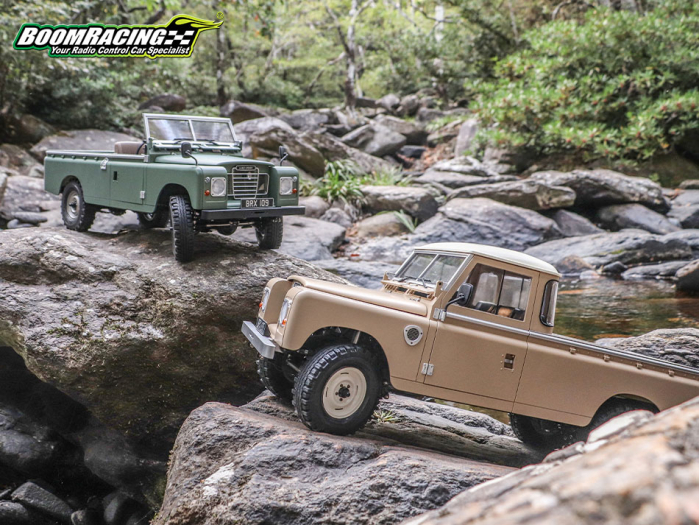

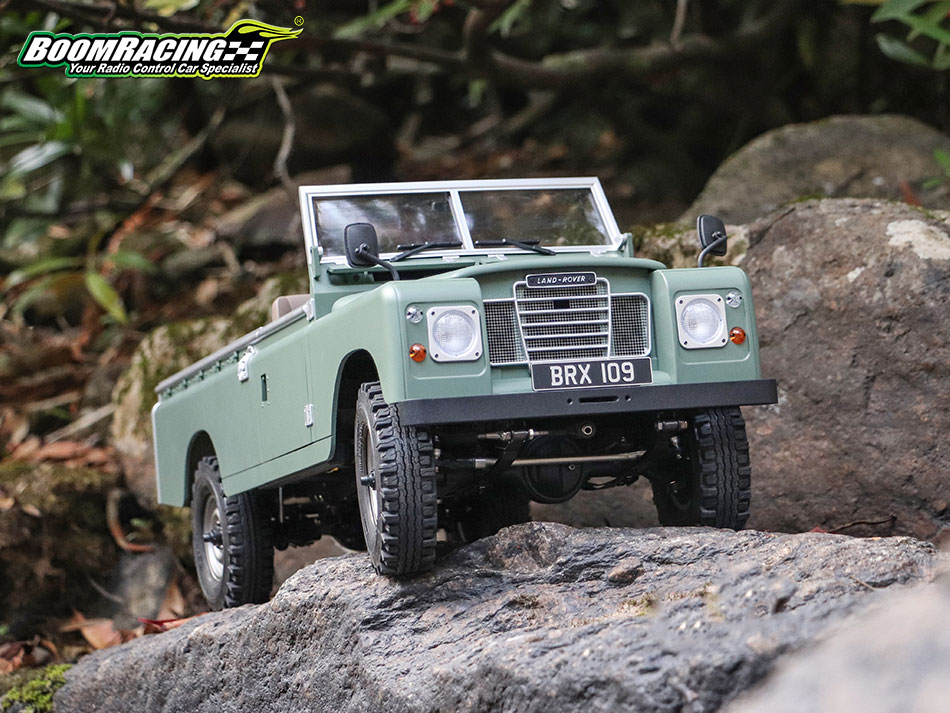

The much anticipated officially licensed Boom Racing BRX02™ Land Rover® Series III 109 Pickup 1/10 4WD radio control car kit is here!

Commonly referred to as Series Land Rovers, it is arguably one of the world’s most iconic vehicles ever made. Produced from 1971 to 1985, the Land Rover Series III is unshowy, unpretentious, and classless; it is the car that you can arrive with at Buckingham Palace, a rural farm, or an inner-city estate.

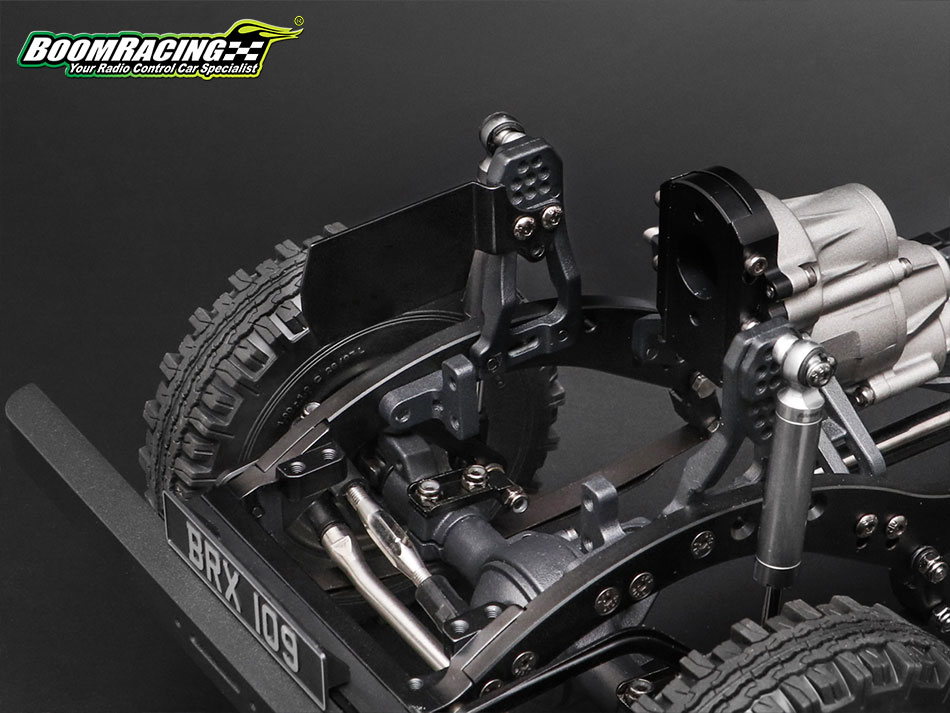

The Boom Racing Land Rover Series III project began with the BRX02 Leaf chassis as a starting platform with a 334mm wheelbase.

What's new on the BRX02 109 chassis:

BRX80 high pinion Scale PHAT™ axles w/ AR44 heavy-duty triangulated helical cut 30/8T gears

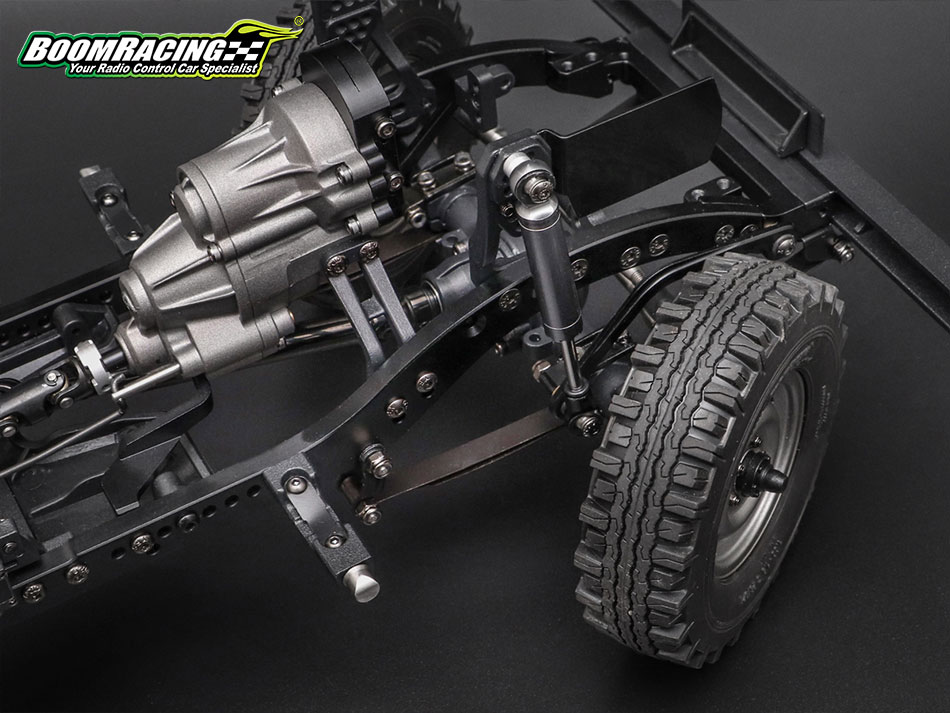

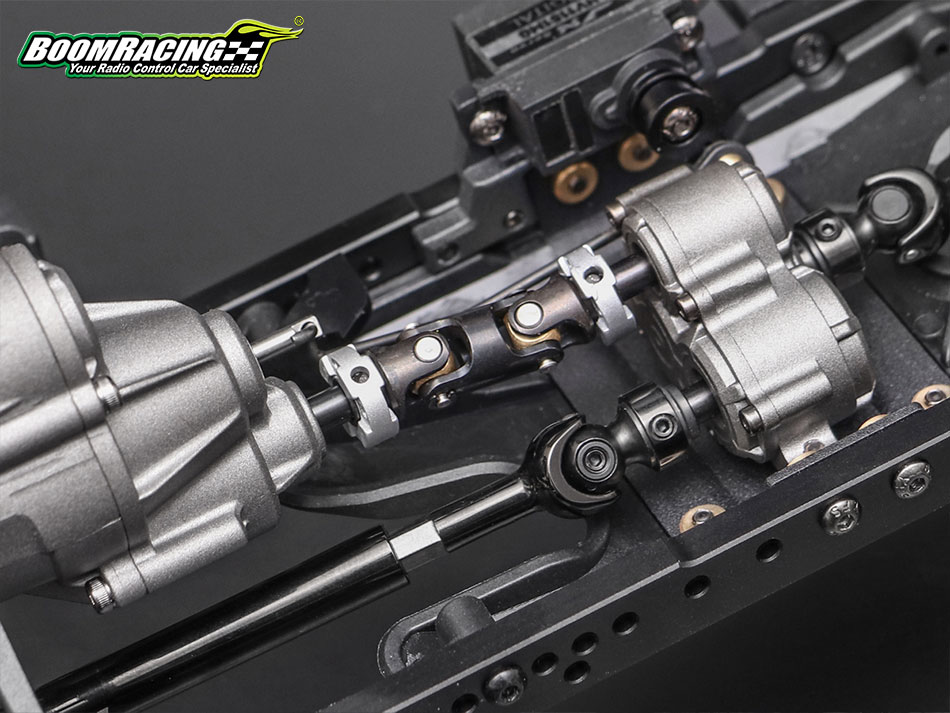

B2X™ anti-torque twist aluminum transfer case (Overdrive-Ready)
Billet aluminum 6mm chassis rails for superior strength and chassis rigidity
Forward stainless steel ESC mounting plate
KUDU™ 80mm Scale Shock Dampers

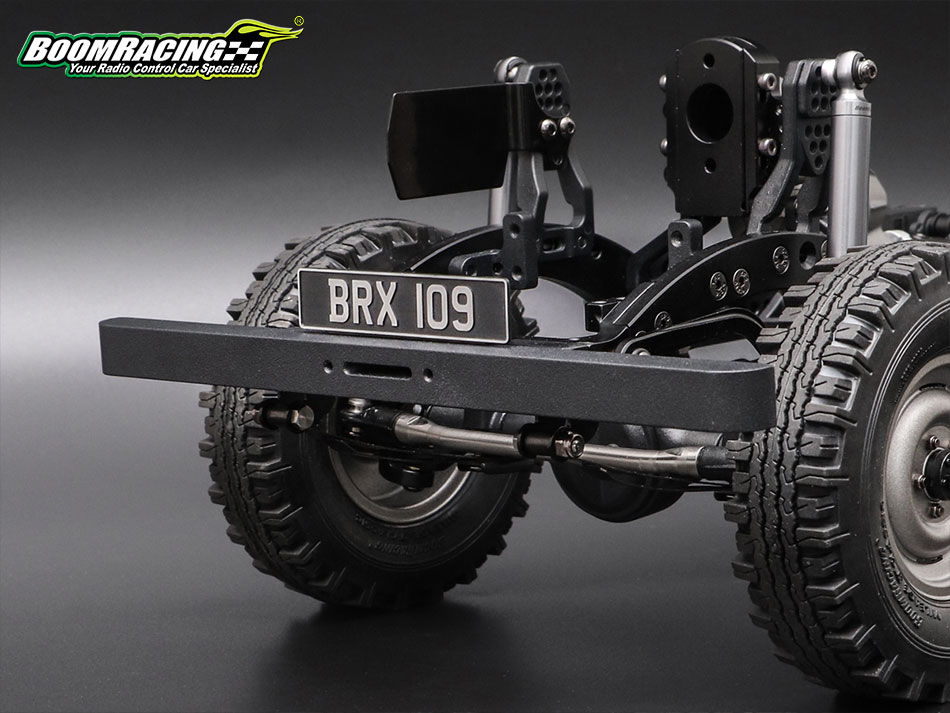

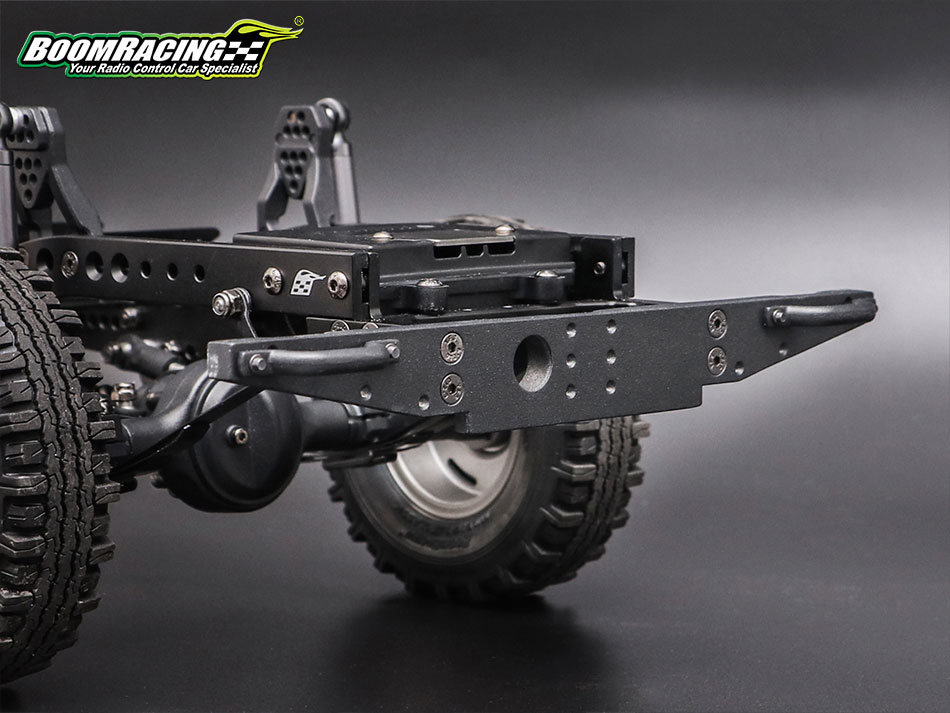

Classic aluminum front and rear bumpers for Series Land Rover®
Molded nylon front and rear skid plate sliders

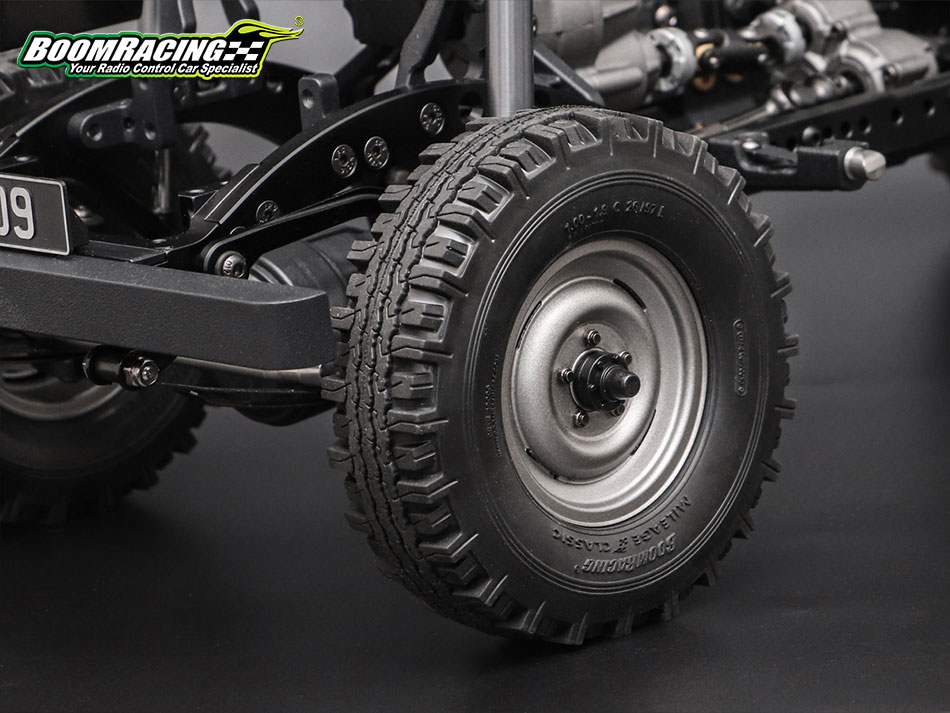

SLR™ 1.9” Classic Steel Wheels w/ caps and scale hardware
XT502-Pin aluminum wheel pin hub
Mileage Classic 1.9" Scale Crawler Tire Gekko™ Black 3.82"x1.0" (97x26mm)
Optional molded nylon front and rear inner fenders

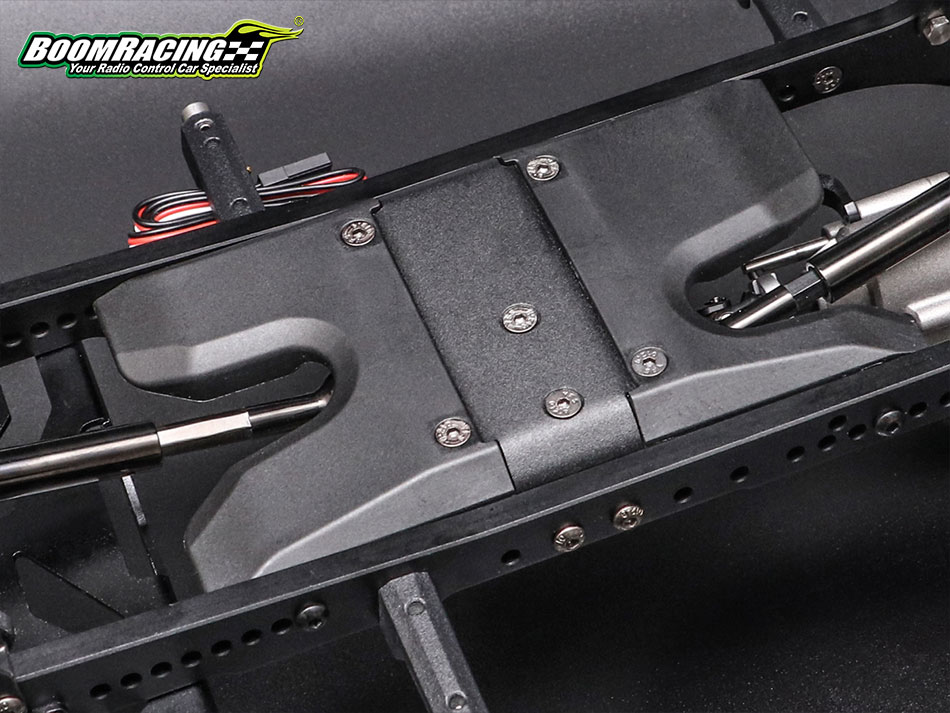

Optional molded nylon center-side skid plate

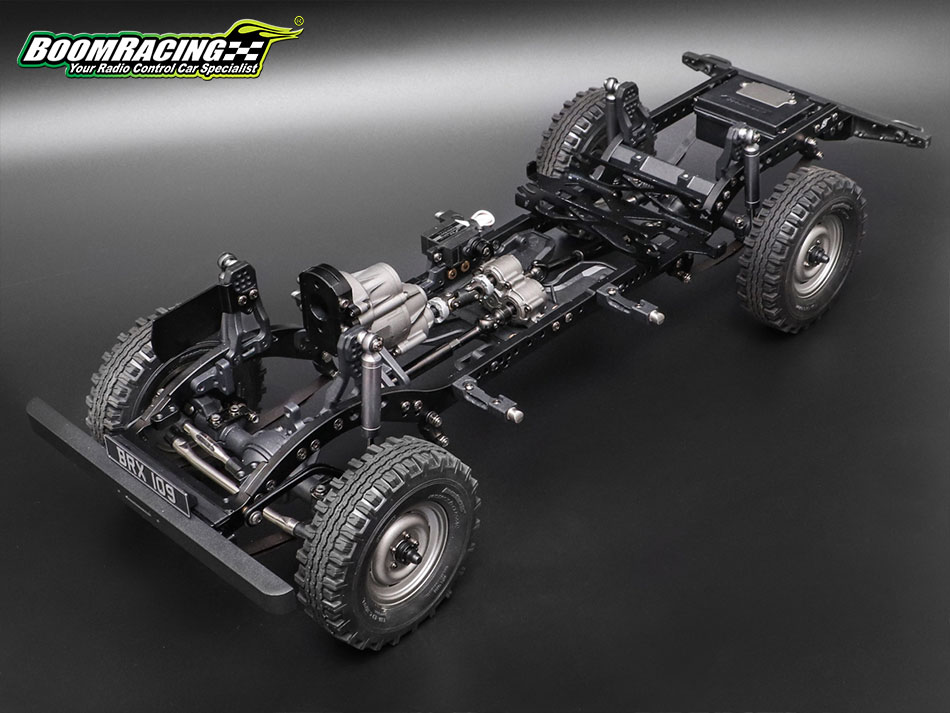

Additional BRX02 109 Chassis Features:

Highly proportional, performance-based realistic scale crawler chassis
Centralized weight and drivetrain layout for a well-balanced chassis setup
Proven robust drivetrain for maximum durability and performance
Transmission: BCF2™ 2-speed Hi-Lo gears with remote shifting

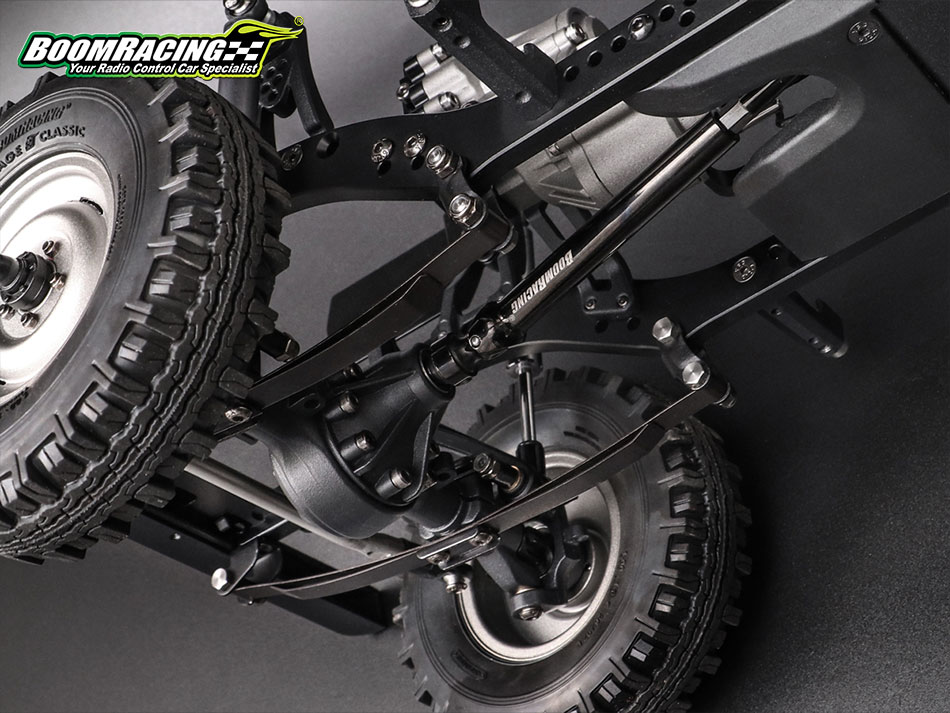

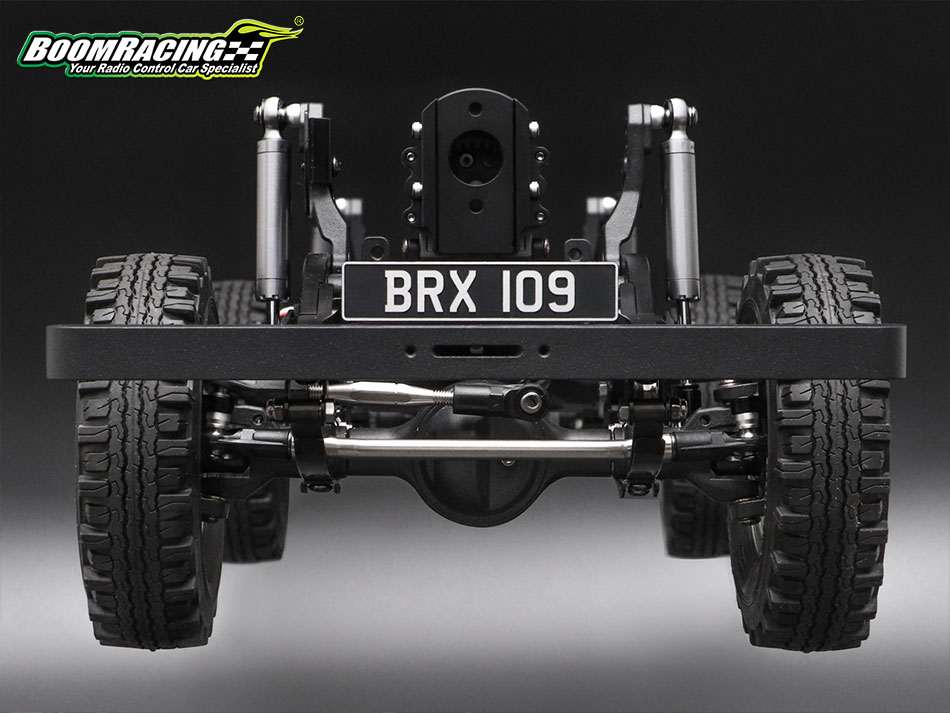

Front and rear realistic steel leaf spring suspension
KUDU™ 110-130mm heavy-duty steel CVD drive shafts
Chassis-mounted servo setup
High-clearance skid plate for superior crawling capability
Ready for Internal Servo Winch Kit [BRD90110036]
JX Waterproof Metal Gears Mini Servo for remote 2-speed shifting

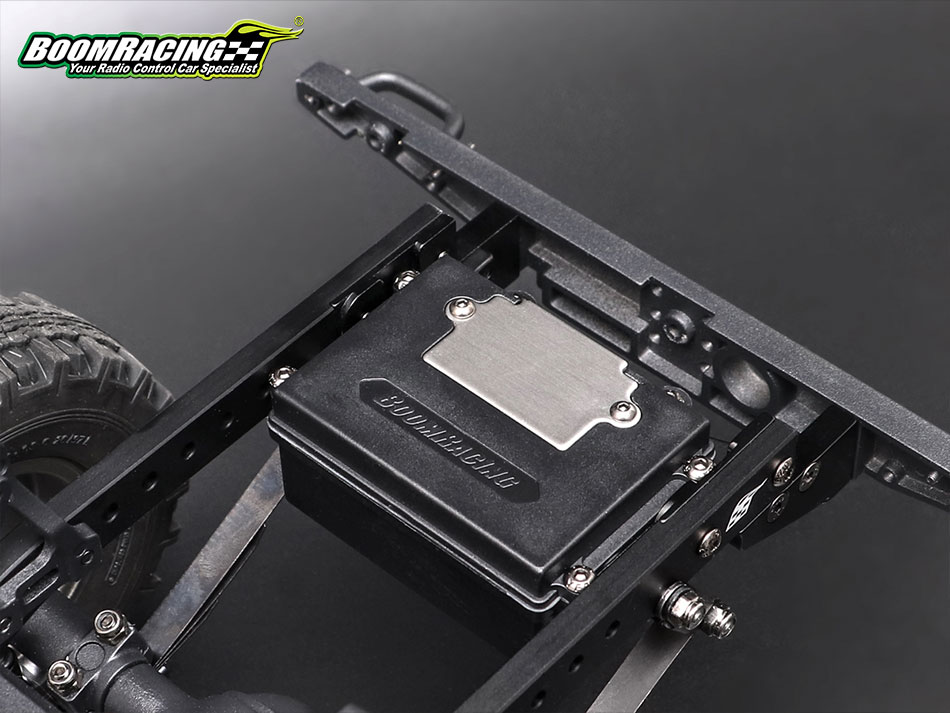

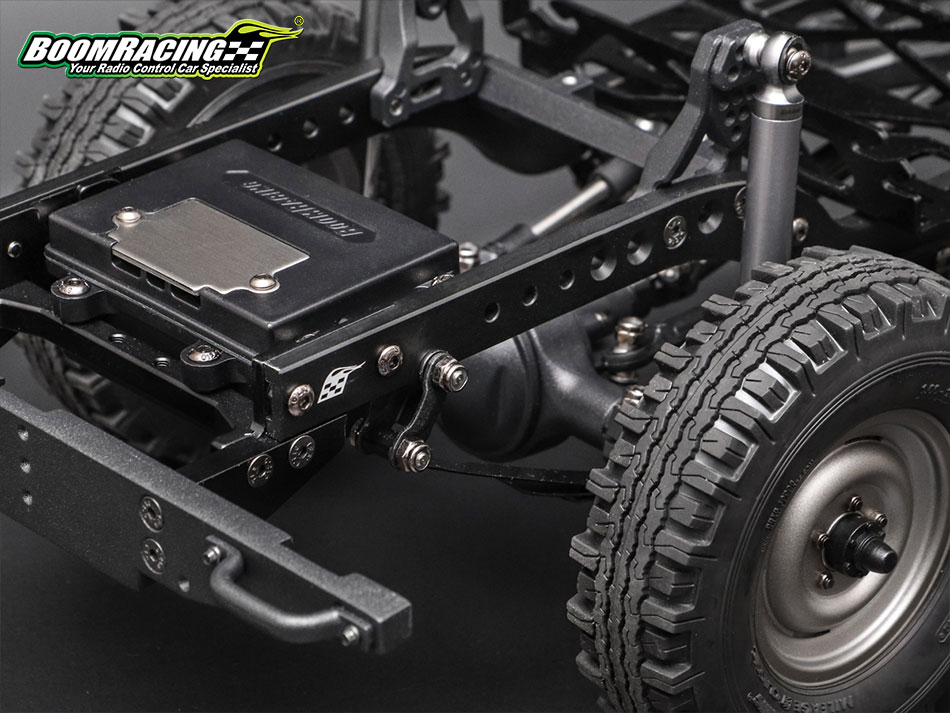

A proprietary silicone-sealed watertight receiver box keeps the receiver dry
Complete high-performance rubber-sealed bearings
High-grade 12.9 alloy steel nickel-plated screws

BRX02 109 Specifications:

Length: 538mm / 21.18"
Width: 195mm / 7.68"
Height: 138mm / 5.44"
Wheelbase: 334mm / 13.15"
Track Width: 160mm / 6.30"
Axle Clearance: 30mm / 1.18"
Skid Clearance: 50mm / 1.97"
Weight: 2115g / 4.66lbs
Shock Length: 80mm / 3.15"
Motor Size: 540/550 (not included)
Gear Pitch: 9T 32P Pinion/Spur, 48P T-Case (9-14T)
Drive System: full-time shaft-driven 4WD
Steering: chassis-mounted servo
Suspension: front and rear leaf spring suspension with dampers

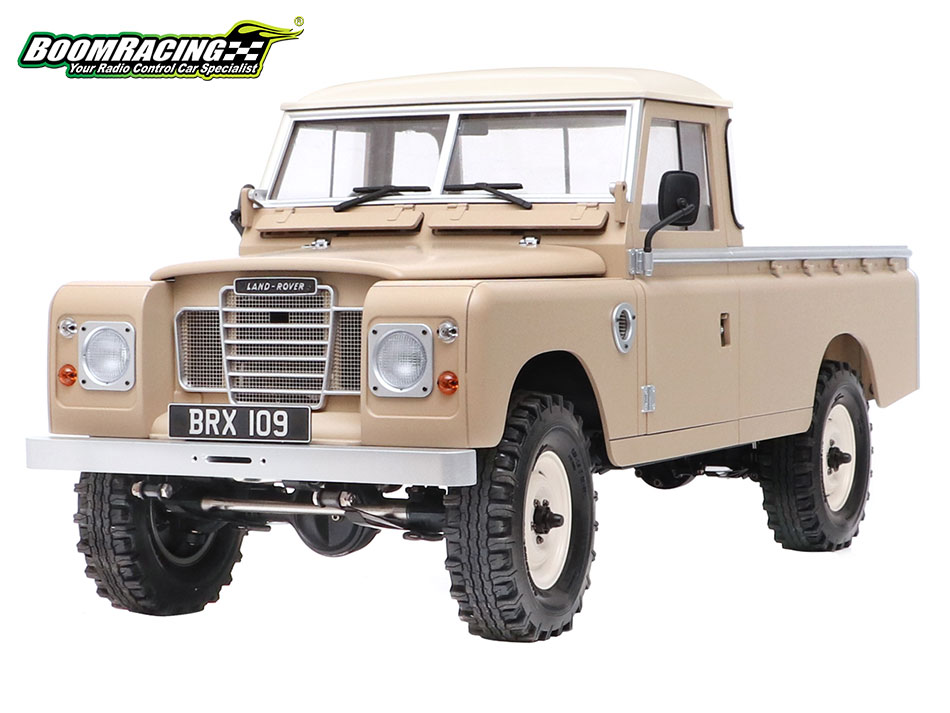

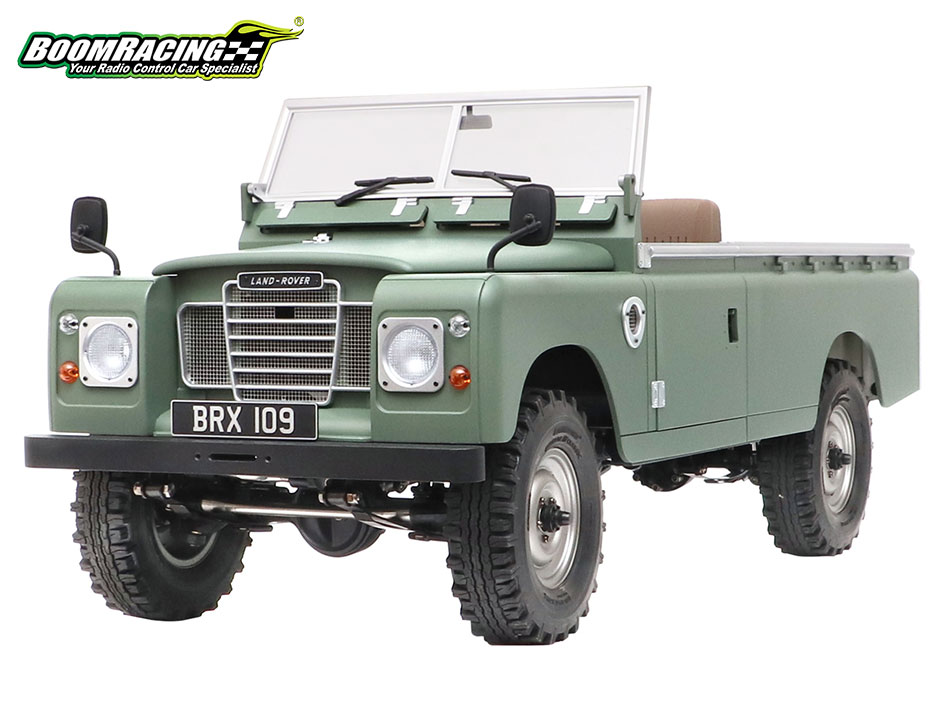

Body Features:

Officially licensed by Jaguar Land Rover
Approved by Jaguar Land Rover for quality and scale accuracy
Fully molded ABS hard body construction
Extremely detailed body lines and realistic proportions

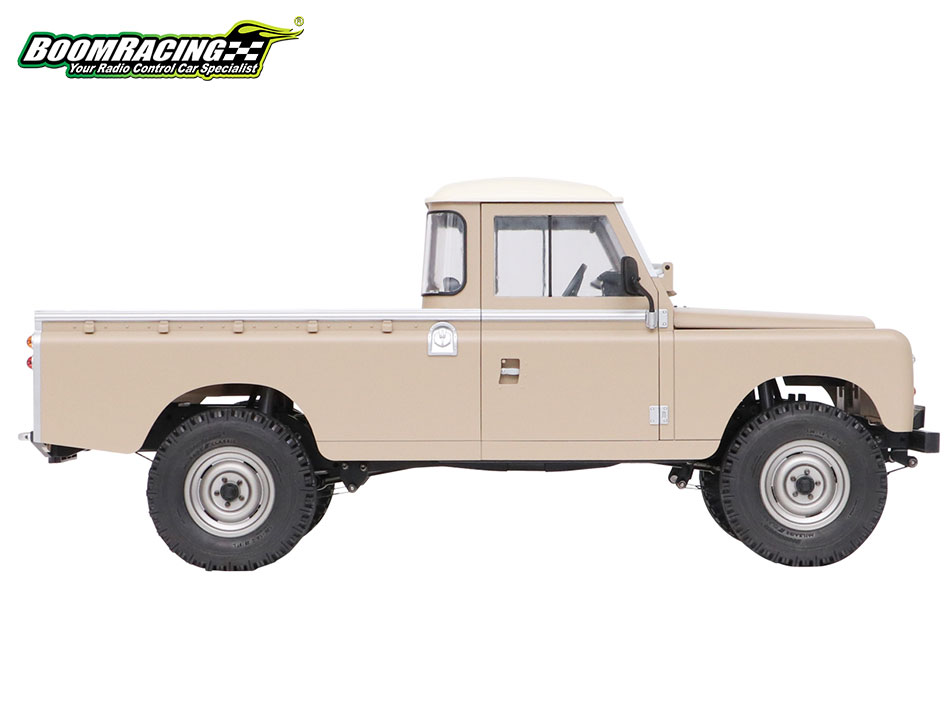

The body is constructed like the 1:1 truck using multiple scaled-down panels

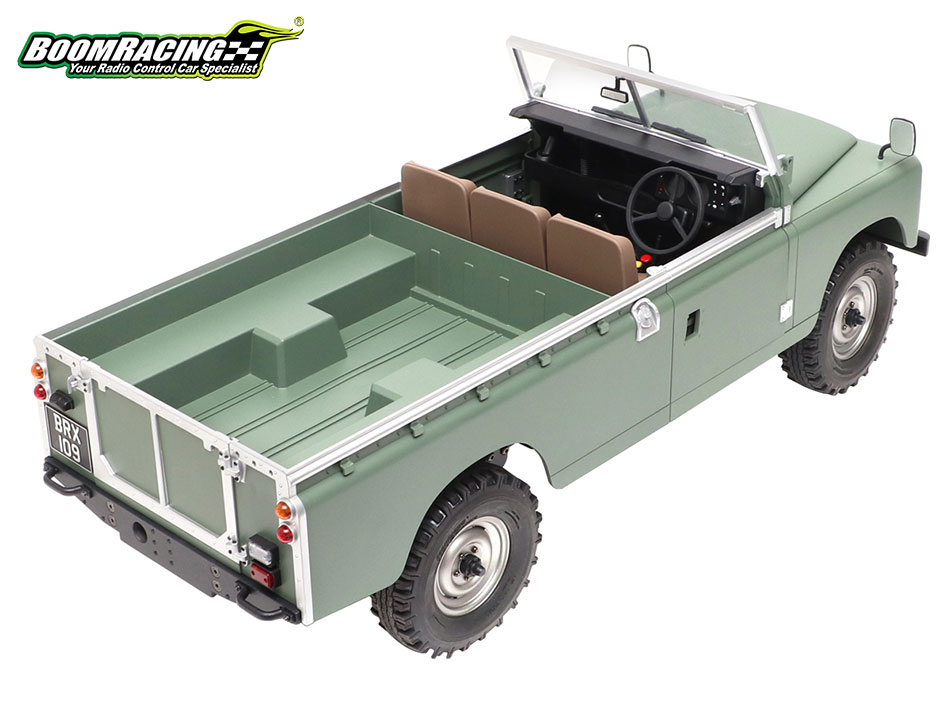

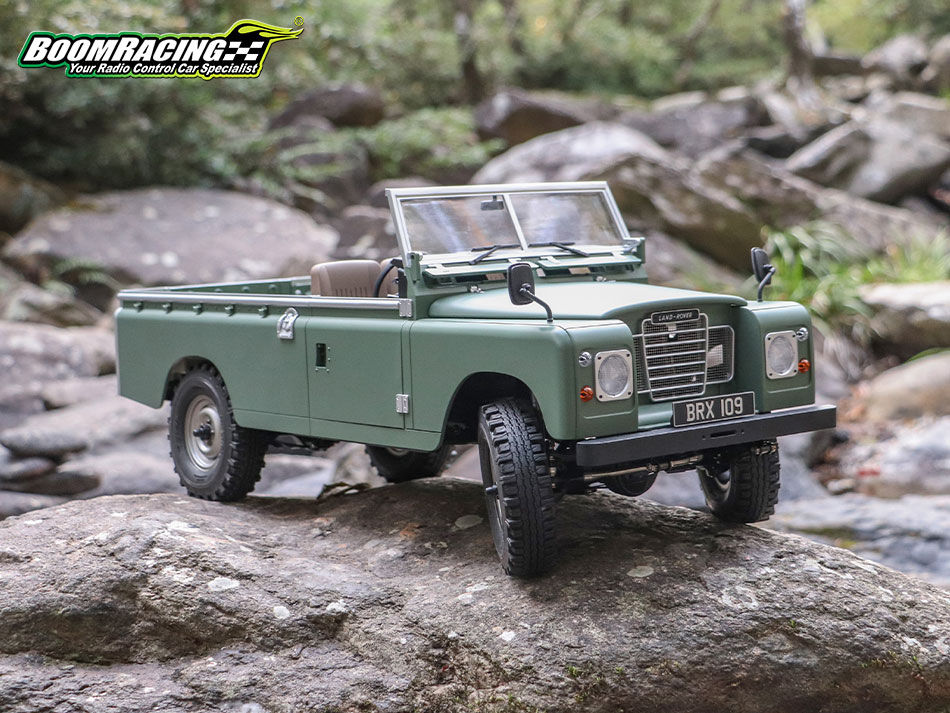

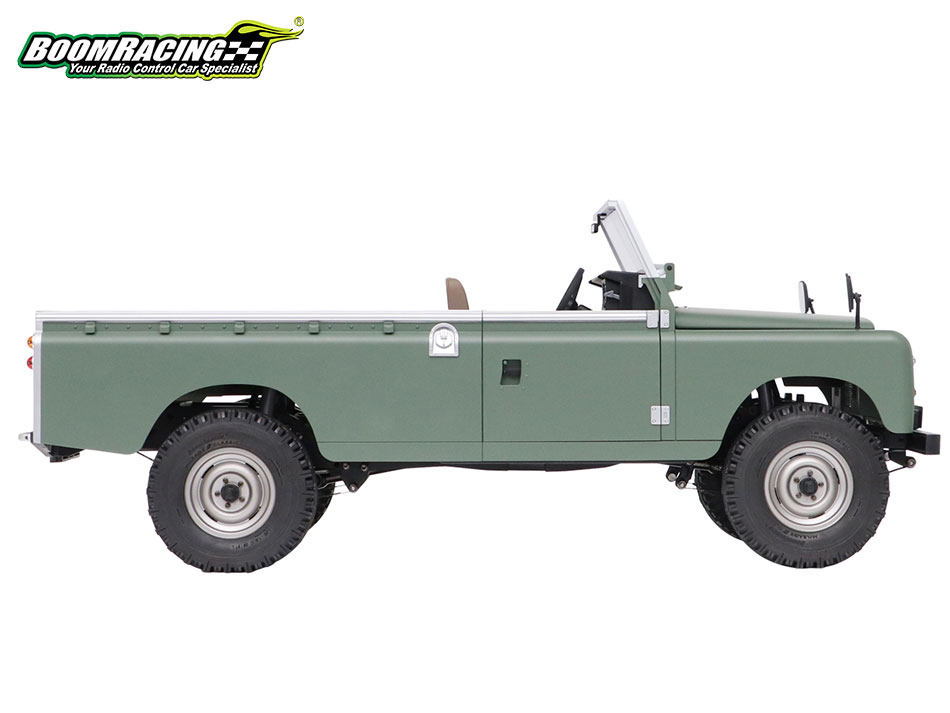

Your choice of hardtop and convertible, both included
Adjustable flip-down windscreen with hinges
Bulkhead vent flaps can flip open and stay in position
Opening hood, doors, and tailgate with door hinges
Stainless steel front radiator wire grill
The engine air intake has right and left openings; your choice to build a diesel or gasoline engine Series 3
Full interior with a dash, floor panel with seats, gear stick, hi/low stick, 2WD/4WD stick, handbrake, pedals
ABS-molded clear windows
Adjustable seat position to fit different figure sizes
Molded rubber side mirrors for durability
Side mirrors can be mounted in two locations, it’s your choice!
Molded adjustable wipers and door handles

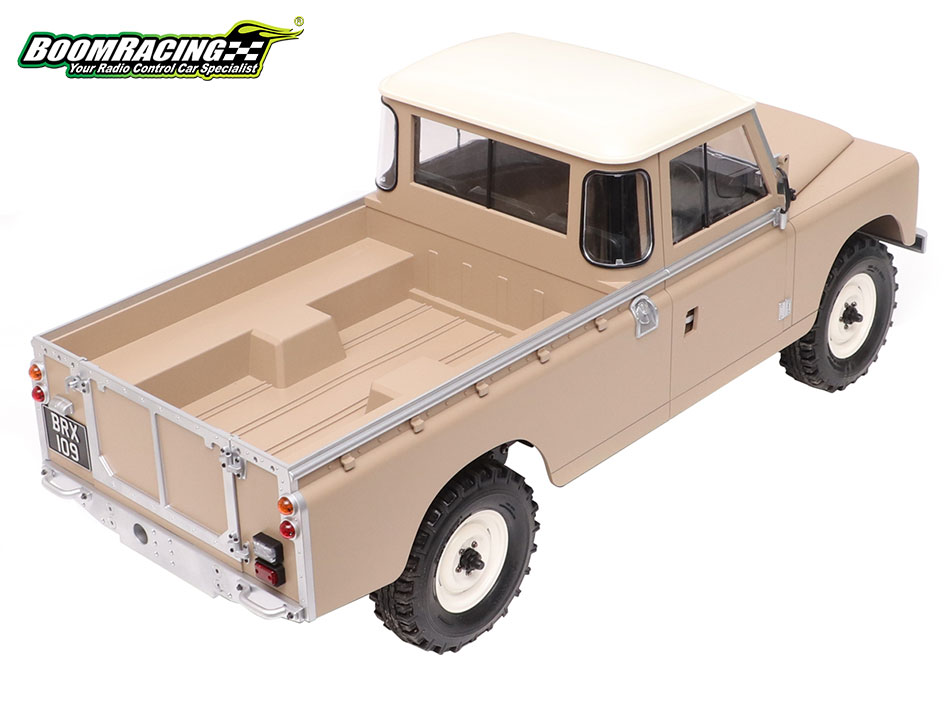

The rear bed has ten attachable side rope hooks
Chrome parts including mirrors and front light buckets
Full light buckets (ready for 13 LEDs); 2x main headlights, 2x front side lights, 2x front amber signal lights, 2x rear stop lights, 2x rear amber signal lights, 1x reverse light, 1x rear fog light, 1x license plate light
Optional KUDU LED Body Light Kit (est. mid-May 2023)
Optional dash KUDU LED Dash Light Kit (est. mid-July 2023)
The key with the classic Land Rover emblem for door opening
Full-scale screws with tools
The full decal sheet and manual
