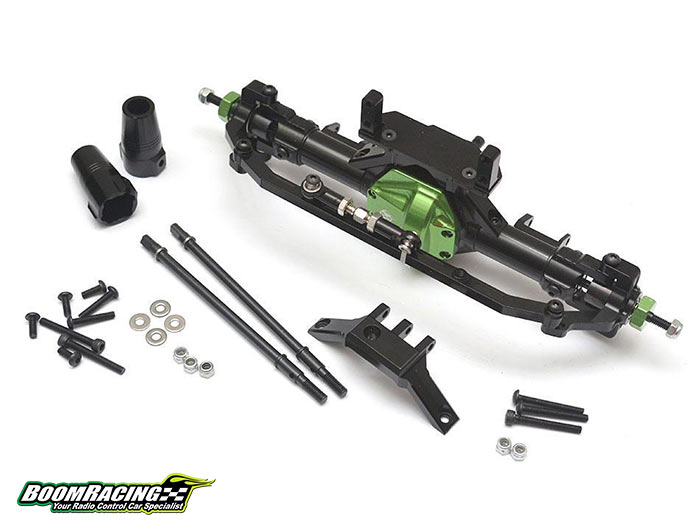

Boom Racing Front/Rear Convertible Axles For Axial SCX10

5193 Views

An update for Boom Racing complete aluminum axles for Axial SCX10 that are interchangeable front and rear.

A special feature with these axles is that the axle housing can be flipped over 180 degrees, so the bevel gears spin on the opposite direction, for the increasingly popular reverse transmission gear box (which eliminates torque twist).

Features:
Standard width for SCX10
Comes with all parts to use for the front or the rear axle
This axle can be flipped upside down and be used for forward / reverse wave gearboxes, with the bevel gear placed on the opposite side of the axle gear housing. The truss can be mounted on the bottom.
This axle lets you set up with 3 link (Y link stock) or 4 link set up
This axle is for the front or the rear
Comes with our heavy duty steel one-piece spool and 38/13T gear (will fit stock axle)
Heavy duty dog bone shaft and rear driveshaft

Specs:
Hole to hole: 190mm
Total width: 215mm

Includes:
Heavy duty one-piece 38/13T steel bevel gear and spool
Steel dog bone shafts and rear driveshafts
Full metal bearings
Aluminum truss
Aluminum hexes
Aluminum front knuckles
Aluminum front c-hubs
Aluminum rear lockout
Aluminum servo plate
Aluminum servo posts
Aluminum steering links
Aluminum diff cover
Aluminum diff gear retainer
Hardware
