Boom Racing Complete Front & Rear Assembled BRX80 PHAT Axle Set

6417 Views

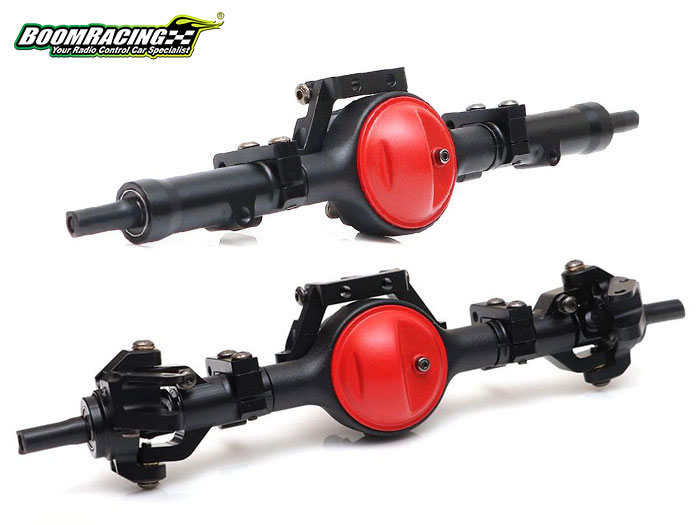

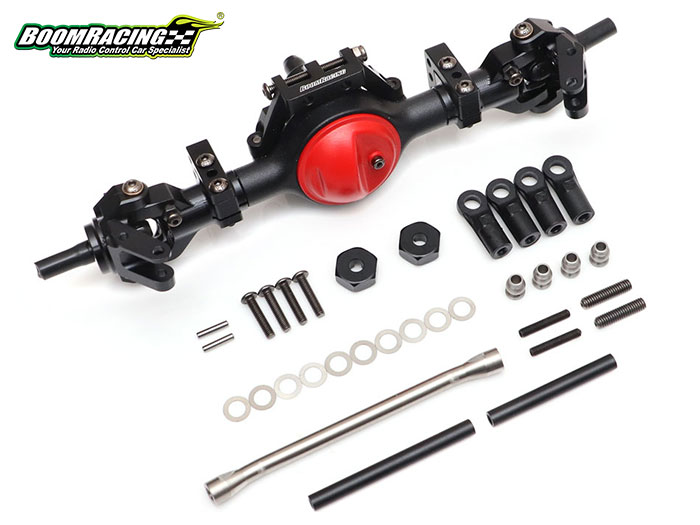

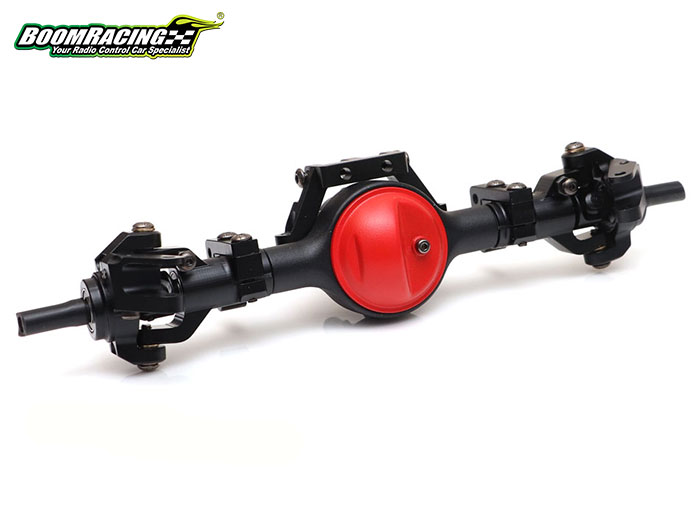

A complete set of front and rear assembled BRX80 Scale PHAT Axle Set. The BRX80 pin-to-pin axle width is 162mm or 6.378 inches, which is between the BRX70 and BRX90 axles.

The BRX80 axle is a performance-based, high mass heavy-duty axle set designed for 1:10 scale RC crawlers and trucks. It can be easily installed in any project build.

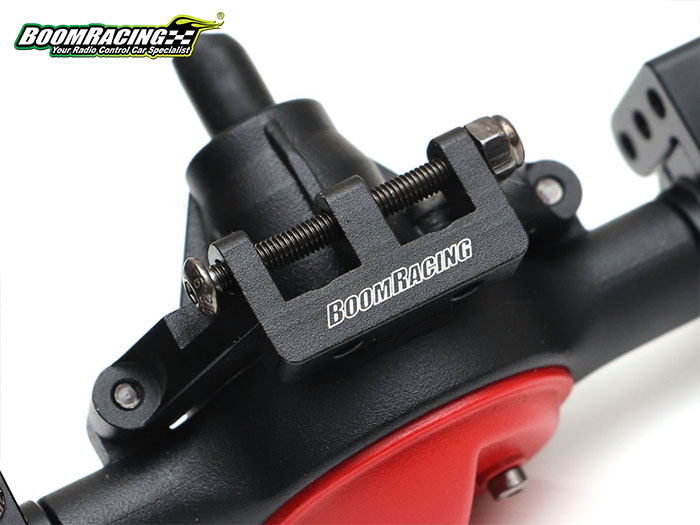

Similar to the BRX70 and BRX90 axles, this latest BRX80 axle is packed with many features; heavy weight for low CG, reversible axle bevel gear positions, optional leaf spring over and under the axle, optional CMS or axle-mounted servo setup, optional behind-the-axle steering, detachable aluminum CNC link mount and third member, adjustable caster angle and more. Comes with heavy-duty steel keyed AR44 axle gears for ultimate strength and durability, an input shaft, and AR44 compatible knuckles.

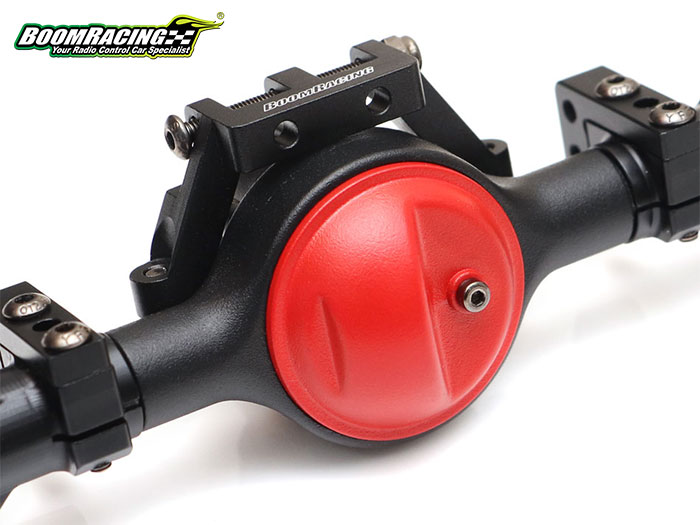

Includes red color Diff Cover; optional Black color Diff Cover is available.

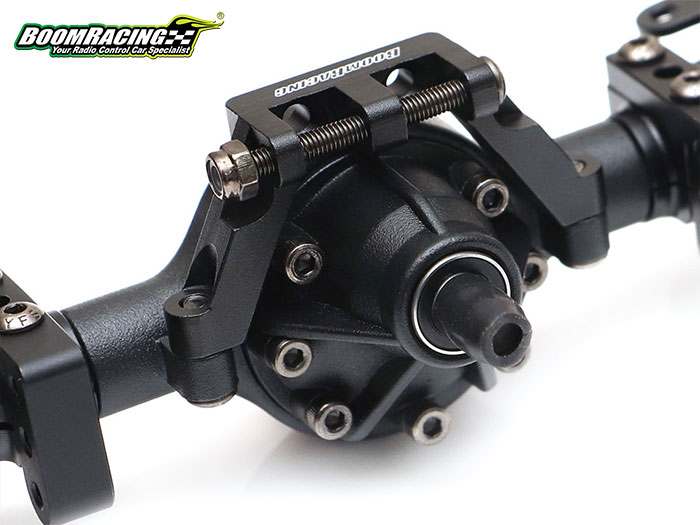

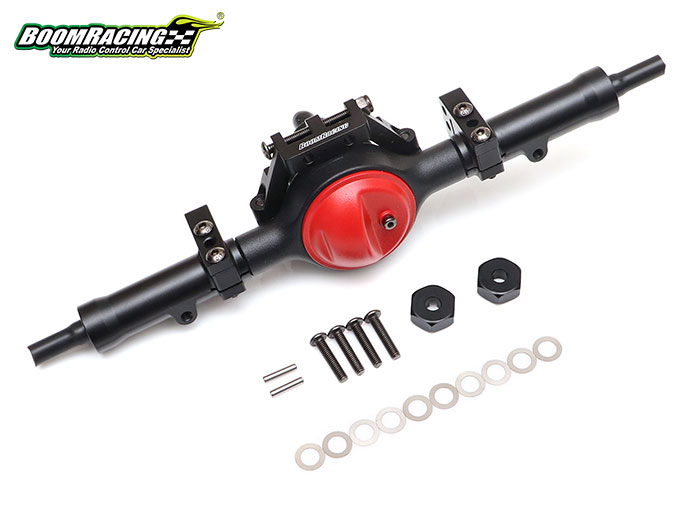

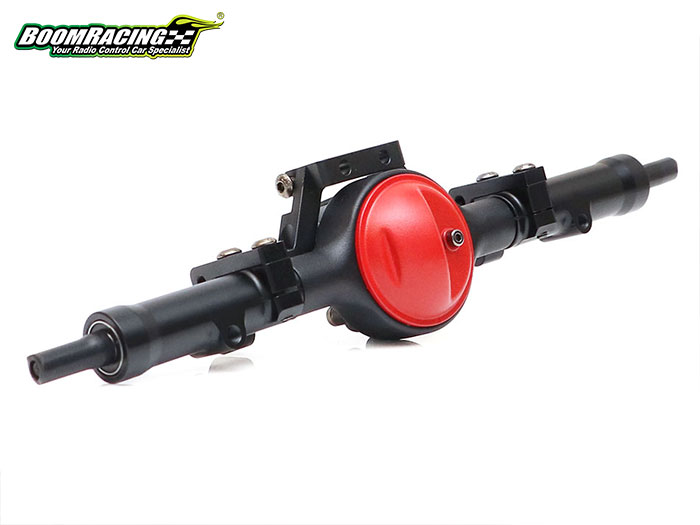

Includes black color Third Member (fits Reverse AR44 Helical Cut Bevel Gear for running Counter Rotating Center Drive Shafts usually used in the rear axle).

Size:

162mm pin-to-pin or 6.378 inches

Features:

+ High mass heavy-duty performance axle for crawler and truck projects

+ Straightforward solid-axle design and fits easily on many trucks

+ Reversible axle gear in the housing (option to swap gear to the opposite side for counter-rotation setup)

+ Heavy-duty keyed steel AR44 high pinion gear & input shaft

+ High pinion axle setup for better clearance

+ Chassis Mounted Servo (CMS) and Axle Mounted Servo (AMS) setup option

+ Detachable knuckle lever for a behind-the-axle steering setup option

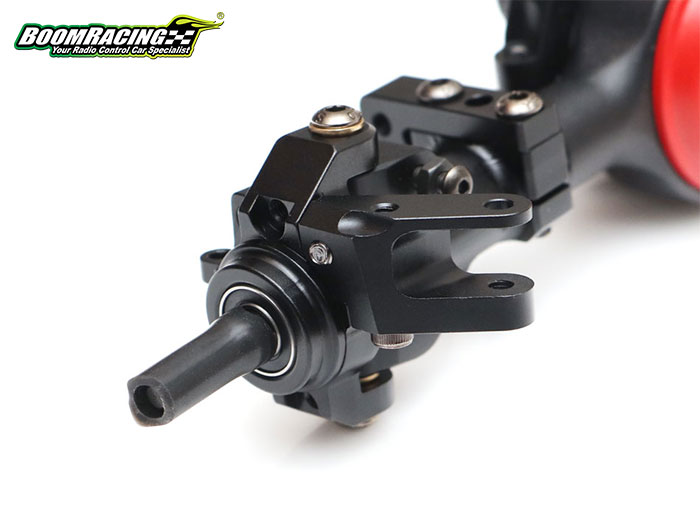

+ AR44 knuckle arms are compatible

+ Leaf spring over and under the axle housing option
