Boom Racing Complete Assembled BRX90 Portal PHAT Axles

1998 Views

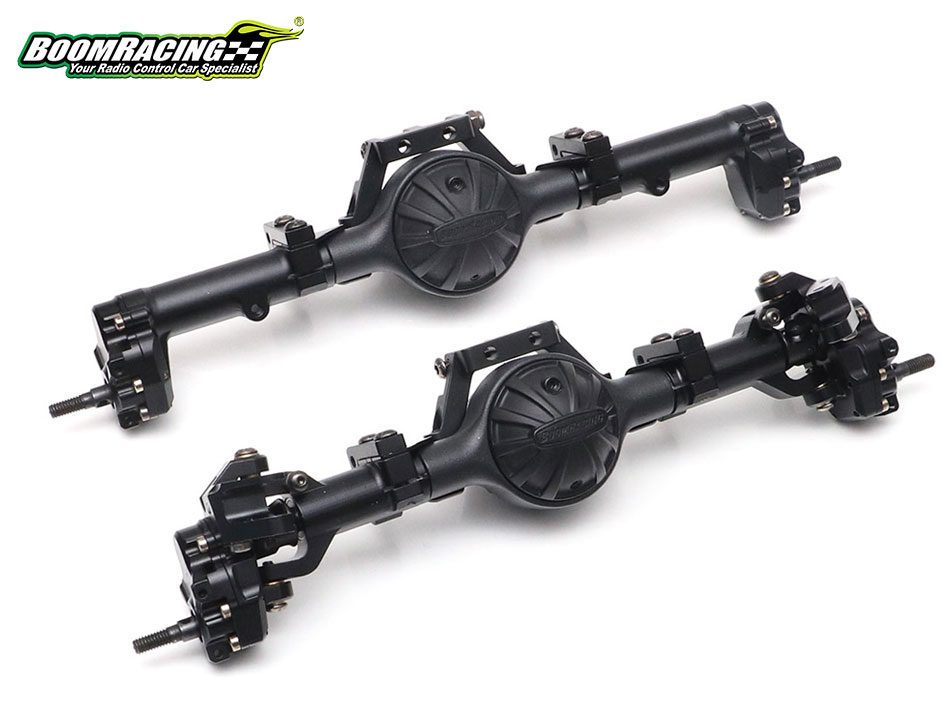

Introducing the new Complete Assembled BRX90 Portal PHAT Axles.

The BRX90 fits most standard-sized 1/10 vehicles, perfect for your custom builds.

Packed with many desirable features; a heavy-weighted cast alloy axle housing for low CG, setup of your chassis using links or leaf spring over and under the axle, chassis-mounted or axle-mounted servo, behind-the-axle steering or front tie rod, detachable aluminum CNC truss, adjustable caster angle and more.

Our four-gear portal gearbox also means you can use them to fit directly onto most drivetrains without needing to change the rotation direction.

Specification:

Width: 188.3mm / 7.41" pin-to-pin (front and rear)
Portal gearbox ratio: 1:1
Weight: 321.8g (front) / 261.6g (rear)
Portal Gearbox Size: Width: 23.5mm / Height: 30.5mm (21.5mm above shaft / 9mm below)
Requires 44mm / 1.73" wheel barrel clearance (to clear the entire portal gearbox)

Features:

Additional 15mm / 0.59" ground clearance at the pumpkin over the BRX90 straight axle
CNC aluminum portal knuckles & covers (front) / lockouts (rear)
BADASS™ heavy-duty steel front universal (front) / rear driveshafts and portal spindles for ultimate durability and strength for the axle drivetrain
Four heavy-duty hardened steel metal gears in each portal gearbox
PHAT axle (heavy and strong) for low CG
Anti-twist steel brackets (0 Deg) for axle strength
Reversible axle gear in the housing for counter rotation setup and optional reversed-cut ring and pinion gear available
Triangular keyed (30/8T) hardened steel AR44 high pinion helical ring and pinion gear with spool
Chassis Mounted Servo (CMS) or servo-on-axle setup

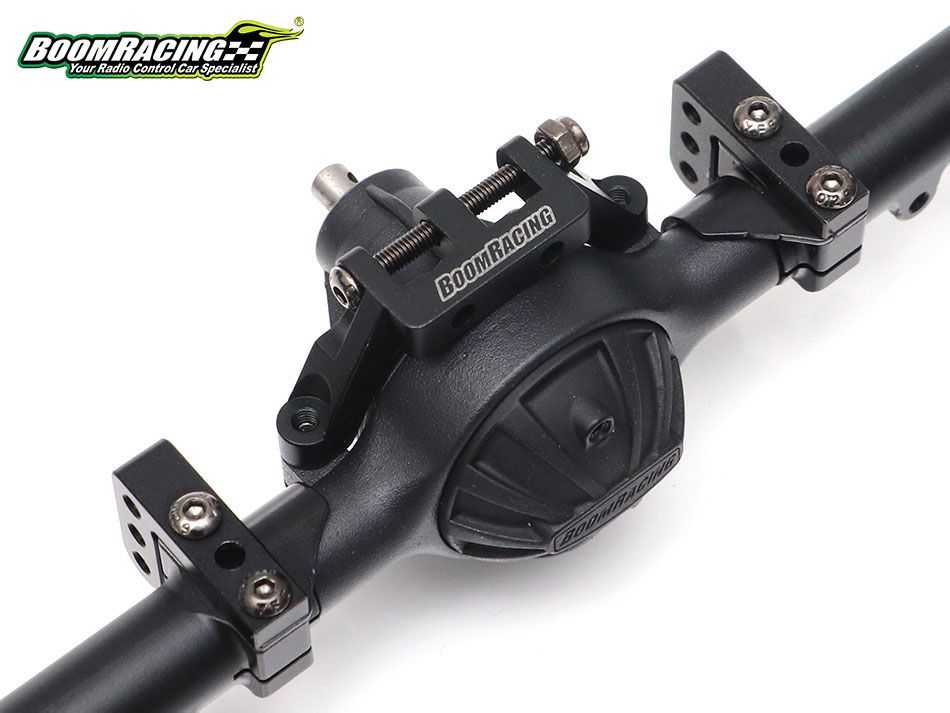

CNC aluminum truss included for 3-Link and a 4-Link setup
Detachable knuckle lever for Behind-The-Axle steering setup option (front)
Leaf spring over and under the axle housing option
Compatible with PHAT™ Axle brake disc and caliper (requires optional adapter BRPT005)
Adjustable caster angle for additional steering adjustability
High steering angle - over 45 degrees
Removable third member for 6x6 / 8x8 pass-thru option
Counter rotation stainless steel steering link for quick adjustments
Full rubber sealed bearings
Full 12.9-grade hardware
