Boom Racing BRX01 Leaf Spring Conversion Swap

1008 Views

Thinking of converting the BRX01 chassis from linked suspension to rear or full leaf springs? Here is a list of optional parts needed.

OPTION 1

REAR LEAF SPRINGS CONVERSION

If you are planning to add just the rear leaf springs to the BRX01 and run linked suspension up front, these following parts are needed.

"Must Have" parts:

Rear Leaf Spring Conversion Kit BRLC7064

"Good To Have" parts:

If you are using the original stock skid plate with the Rear Leaf Spring Conversion Kit, installing this slider adds protection to the bottom of the chassis and will help with sliding through debris and rocks.

B3D™ Rear Slider for BRX01 Center Skid Plate (for Rear Leaf Spring) BRLC7072

"Optional Performance" Parts

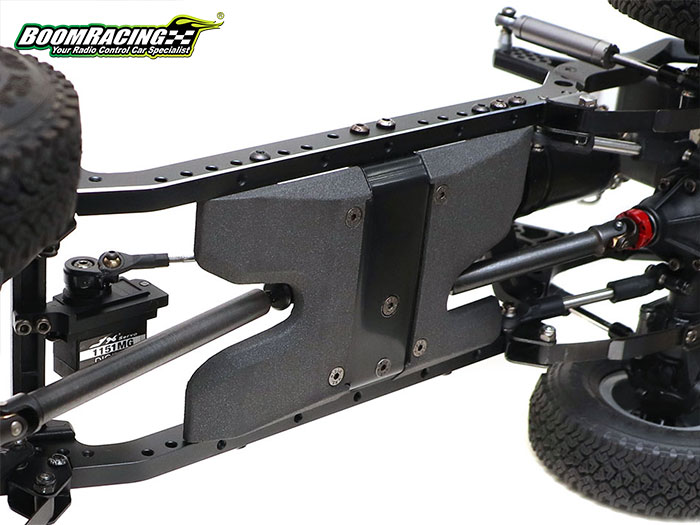

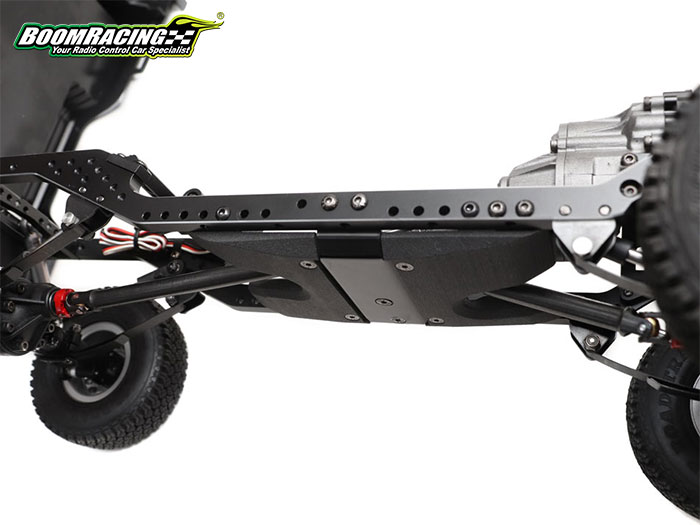

This is an optional high clearance skid plate - it adds 4.5mm additional ground clearance without changing the center of gravity of the t-case, which is a plus. The high clearance skid plate is a direct replacement of the stock skid plate, and there is a rear slider made specifically for this optional skid plate. Here are the two parts:

High Clearance Center Alum Skid Plate w/ Stainless Steel Plate for BRX02 Link (BR8004) & BRX01 BRX020020

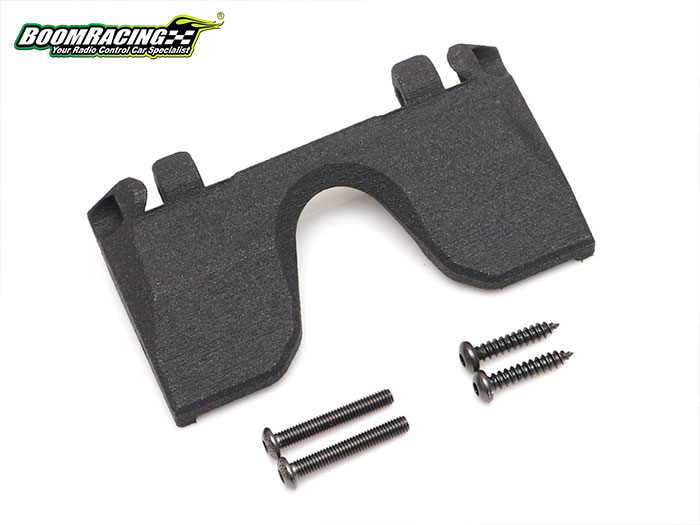

B3D™ Rear Slider for High Clearance Center Skid Plate (for BRX01 Rear Leaf Spring) BRLC7080

OPTION 2

FULL LEAF SPRINGS CONVERSION (FRONT & REAR)

"Must Have" parts:

The Front Leaf Spring Conversion Kit and the Rear Leaf Spring Conversion Kit are now available for a full leaf spring suspension swap for the BRX01 chassis. Both leaf spring kits come with one master leaf and three graduated leaves for adjustability.

Front Leaf Spring Conversion Kit BRLC7201

Rear Leaf Spring Conversion Kit BRLC7064

"Good To Have" parts:

If you want a better driving experience with the full leaf spring truck, these front and rear sliders for the original stock skid plate will help. The B3D nylon sliders help shield and protect the front and rear portions of the transfer case and skid plate. They build a smooth surface around the skid plate for the truck to slide better over obstacles.

B3D™ Front Slider for BRX01 Center Skid Plate (for Front Leaf Spring) BRLC7077

B3D™ Rear Slider for BRX01 Center Skid Plate (for Rear Leaf Spring) BRLC7072

"Optional Performance" Parts

Upgrade the center skid plate using the BRX02 Leaf Spring High Clearance Skid Plate BRX020020LF for an additional 6mm in clearance gain with the center of gravity remaining unchanged. The Front & Rear Sliders BRLC7095 are specifically designed for this skid plate swap on the BRX01.

High Clearance Steel Center Skid Plate for BRX02 Leaf (BR8005) & BRX01 Full Leaf BRX020020LF

B3D™ F & R Sliders for High Clearance Center Skid Plate (for BRX01 Full Leaf Spring) BRLC7095

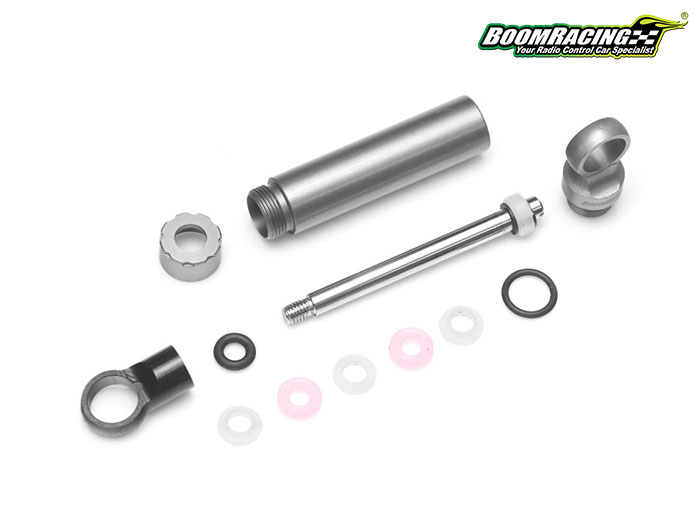

The original shocks on the BRX01 can be reused with the leaf spring conversion kits. However, the KUDU shocks have an overall improvement on oil seals for better performance, as well as a nicer scale appearance than the original shocks.

KUDU™ 70/80mm Scale Shock Absorbers (2) BRSH0070 / BRSH0080 (rear shocks can use 70 or 80mm)

Additionally, here is a summary table for the Skid Plates and Sliders available for BRX01 and BRX02 running different leaf spring suspension setups.

SUMMARY

There are multiple ways to swap the suspension from linked to leaf springs; there is the rear leaf spring setup with stock skid plate; then there is a front and rear leaf spring setup with stock skid plate. If you want to upgrade the performance at the same time, you may choose to use the high clearance skid plates, which are available for both rear leaf spring only, and the full leaf spring conversion.

If you have any questions feel free to leave us a message or send us an email from the contact form.

Enjoy being a badass!

Author:Jason Tsang
