BADASS™ Heavy Duty Steel Center Drive Shaft 51-56mm (Pin to Pin) 1Pc [Recon G6 Certified]

USD $24.50

Part #: BRBD955003F


LOADING IMAGES

BADASS™ Heavy Duty Steel Center Drive Shaft 51-56mm (Pin to Pin) 1Pc [Recon G6 Certified]

USD $24.50

Part #: BRBD955003F

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: In stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Center Drive ShaftRECON G6 Certified

PRODUCT DESCRIPTION

Product Resources

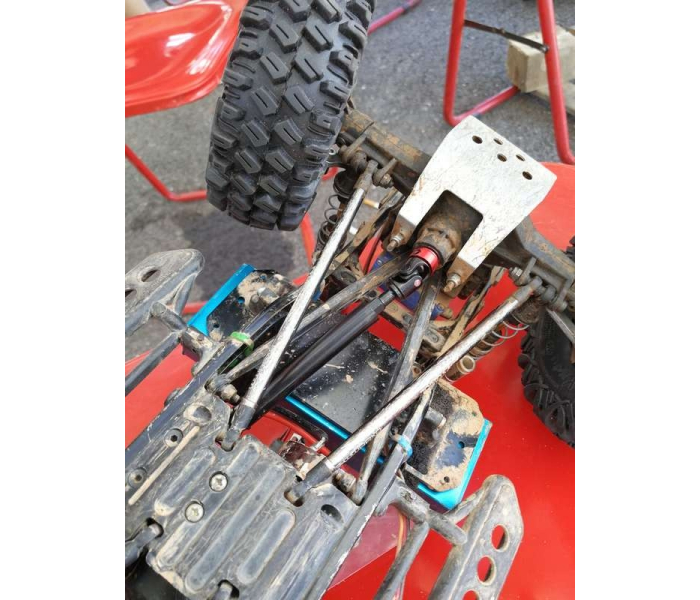

This is a BADASS™ heavy-duty steel universal Center Drive Shaft (or Driveline) for crawlers and trucks.

BADASS™ is a product line Boom Racing developed to represent ultra-durability and strength, using the highest quality material for RC parts.

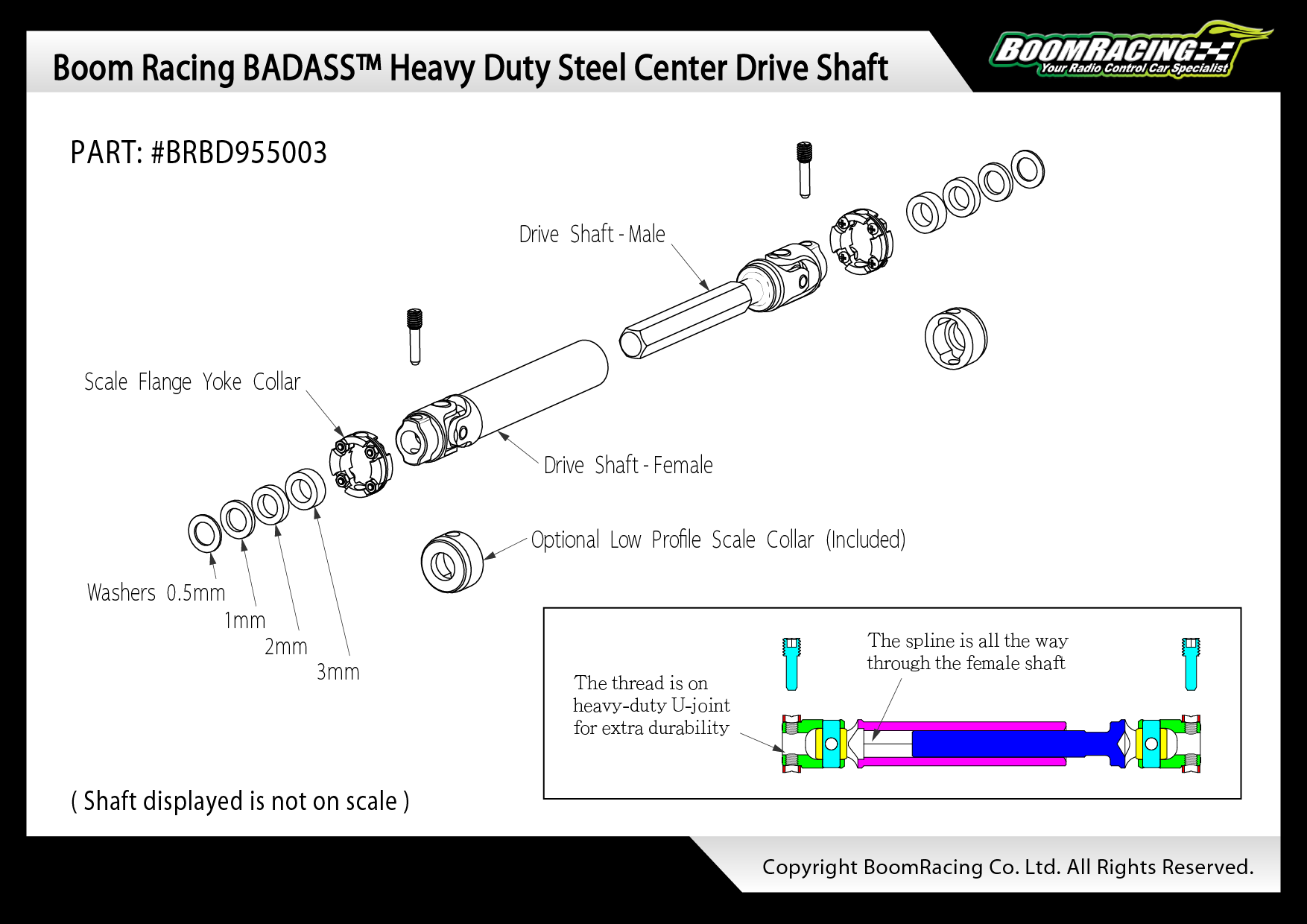

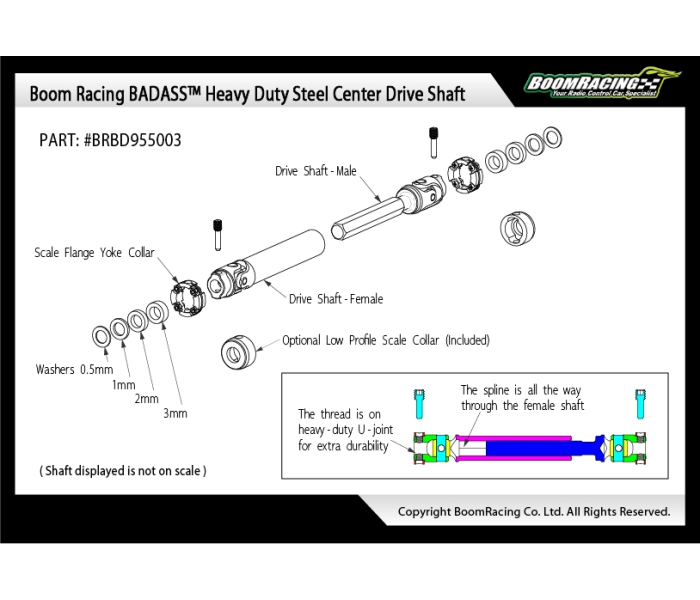

Grub screw pin taps into the driveshaft. The red collar rings are not threaded and are for scale looks.

Washers and spacers are provided to shim the input and output shafts that are especially needed for high pinion bevel gears.

The female shafts are splined all the way through.

Specs

  • High-grade alloy steel
  • Lightweight and ultra-hard steel for strength and durability
  • Input/Output hole size: 5mm
  • High degree articulation (no binding)
  • Beefed up joints with press-fit design for ultra durability

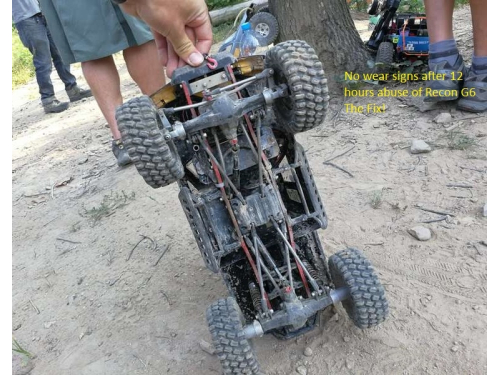

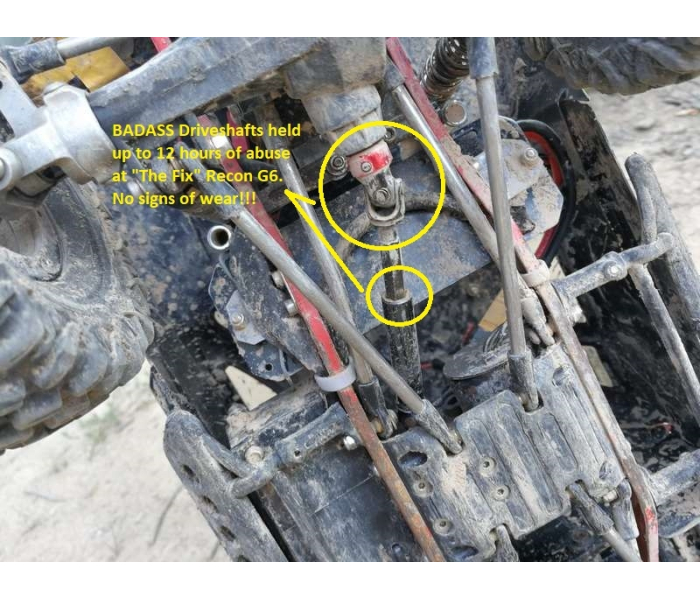

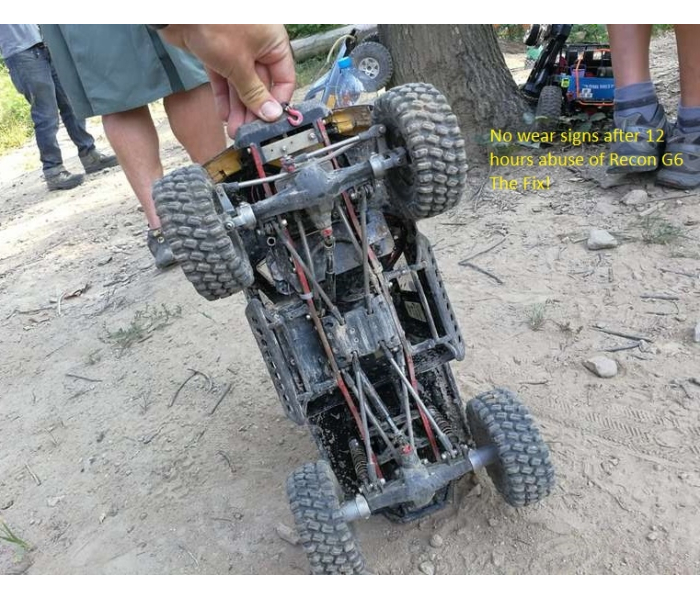

  • Long-lasting and tested against metal fatigue
  • Splined all the way through (Male and Female)
  • Realistic scale looks

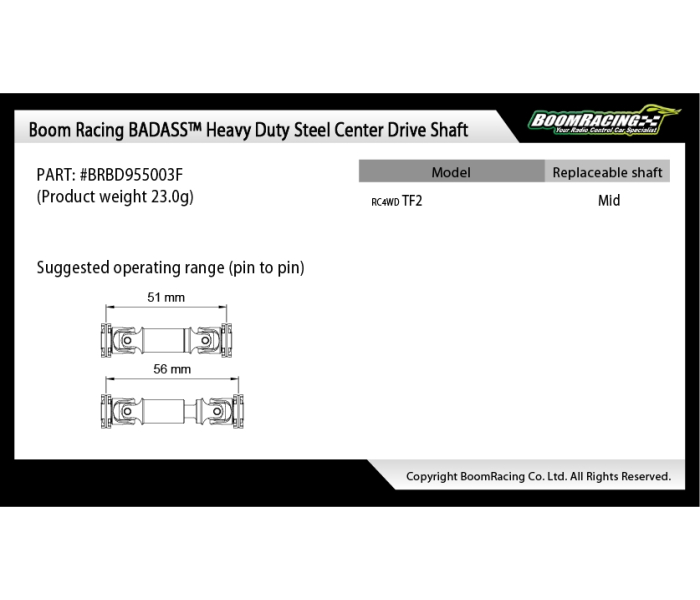

  • Adjustable length: 55-60mm (51-56mm pin-to-pin)

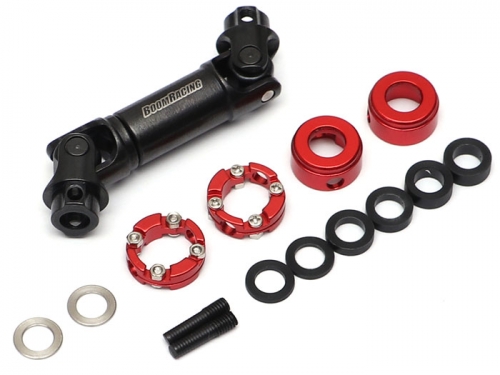

Includes
  • Badass HD Steel CVD Center Driveshaft (1Pc)

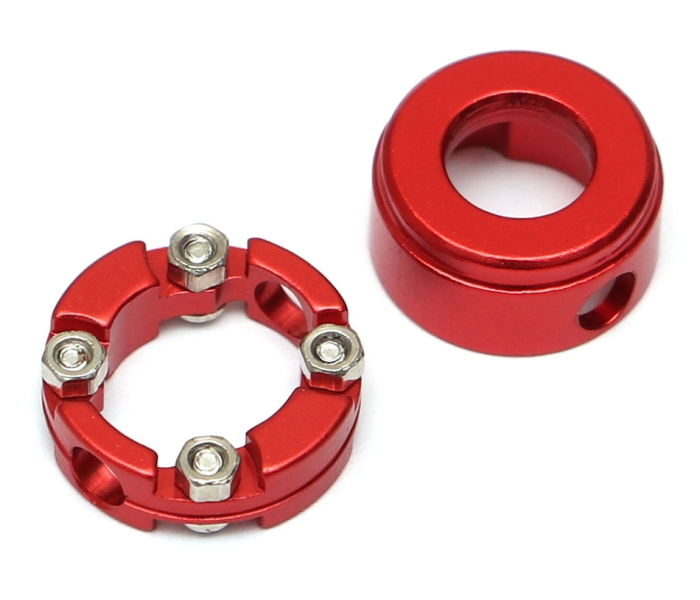

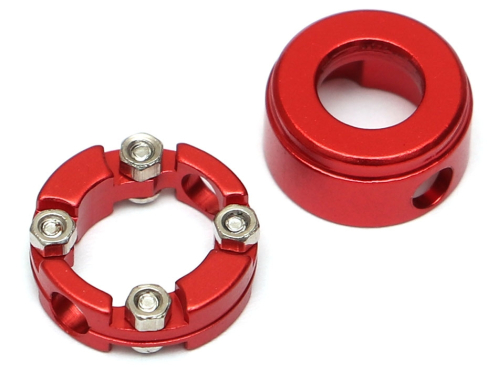

  • Aluminum CNC collars (with scale bolts) X2
  • Aluminum CNC collars (low profile) X2
  • M3 set screw pin (2pcs) #BRASST3024/DS
  • Washer 0.5mm (2pcs)
  • Spacer 1mm (2pcs)
  • Spacer 2mm (2pcs)
  • Spacer 3mm (2pcs)
