AR44 Axle Mounted Servo Conversion Kit w/ 4-Link Truss Black

USD $15.00

Part #: BR955026BK


LOADING IMAGES

AR44 Axle Mounted Servo Conversion Kit w/ 4-Link Truss Black

USD $15.00

Part #: BR955026BK

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords Servo Mounts

PRODUCT DESCRIPTION

Product Resources
installation-manual-scx10-ii-axle-servo-mount.pdf
stock-axle-modification_1723087364.pdf

This is a dual-purpose axle conversion kit for the front AND the rear AR44 axle.

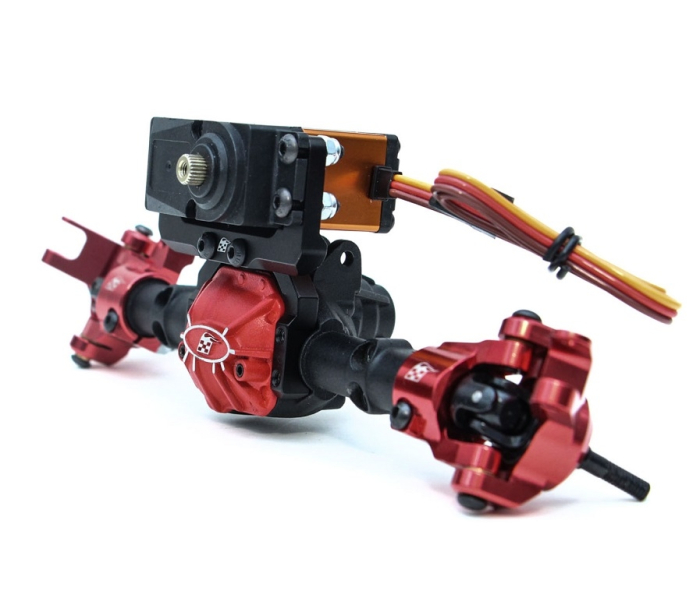

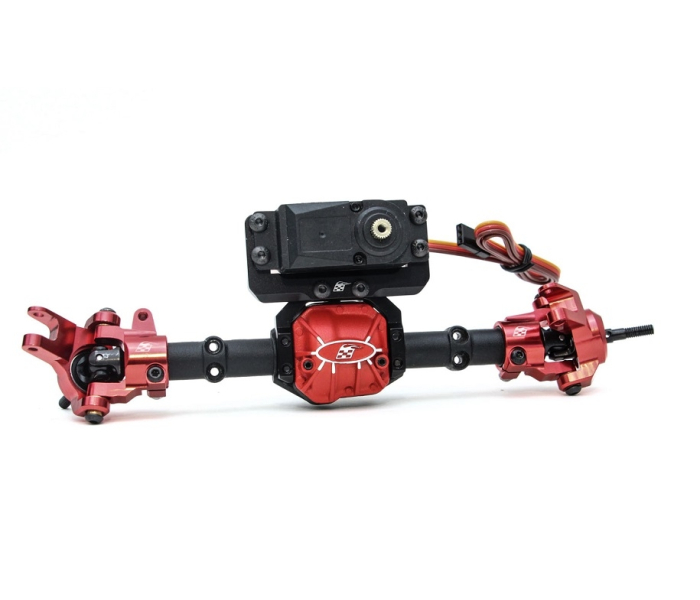

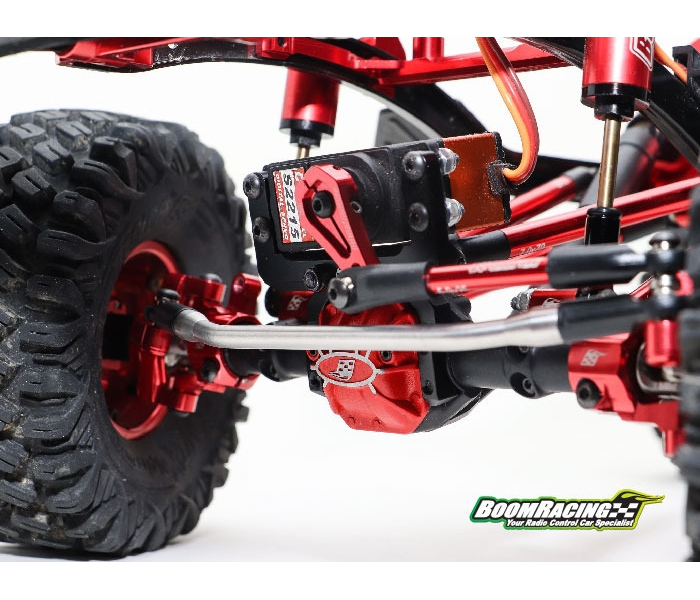

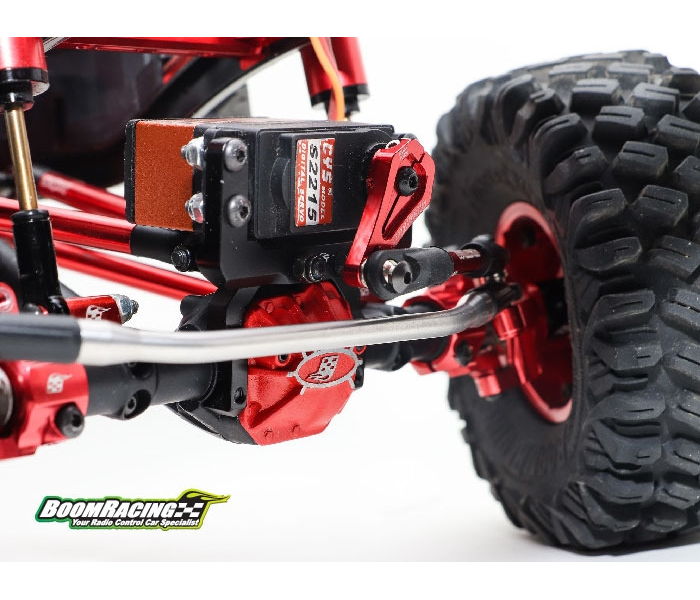

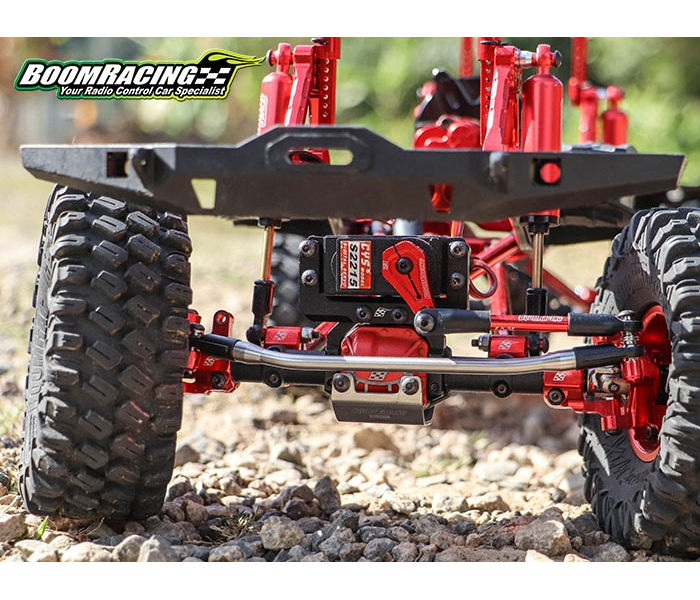

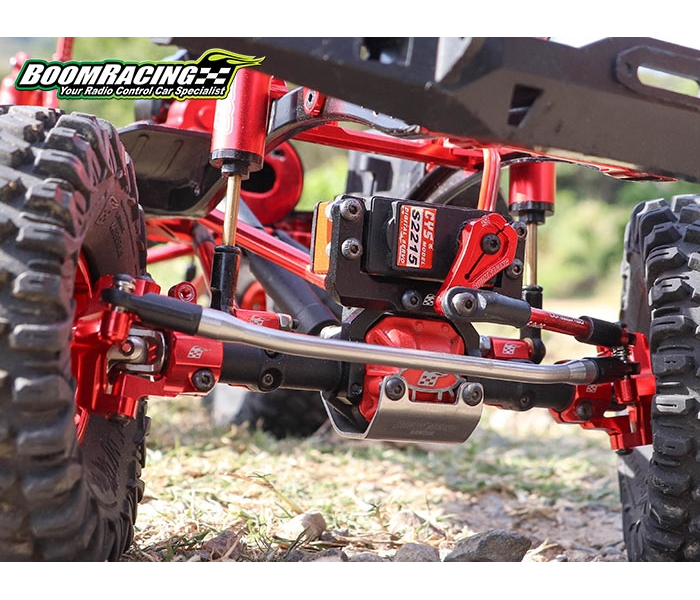

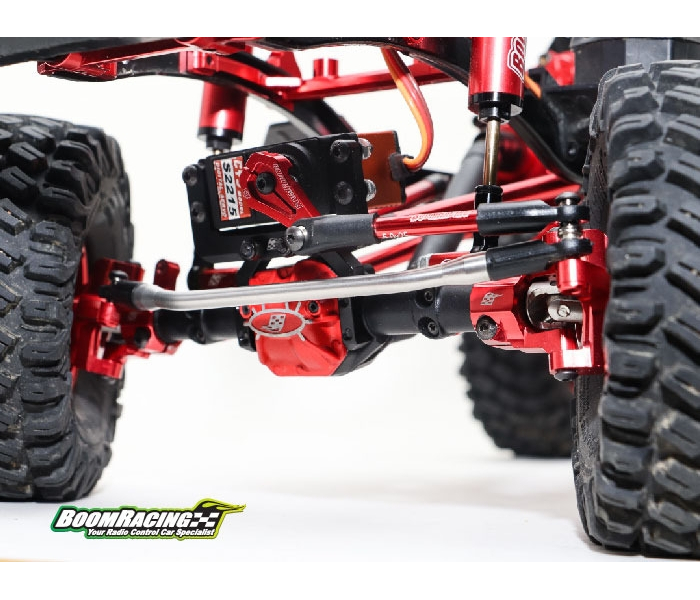

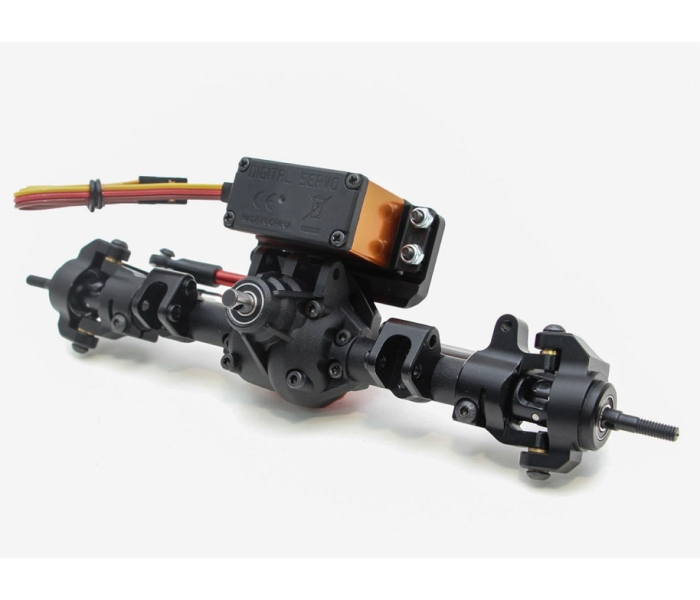

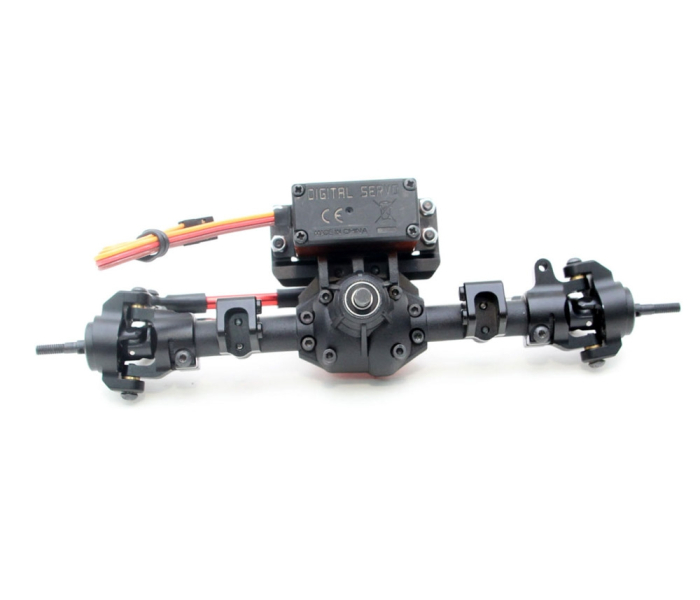

Convert the Axial SCX10 II chassis mounted servo (CMS) to axle mounted servo (AMS)

AND

Convert the AR44 axle to run counter-rotational transfer case (to eliminate torque twist) by flipping the axle upside-down so the ring gear sits on the opposite side for the axle (can be front or rear axle)

You may convert both using one axle (the front axle) to achieve the above two conversions (CMS to AMS and Counter-Rotation). If you only want a Counter-Rotation conversion, you have the option to do this in the rear axle by flipping the axle upside-down, file down the link mounts and install our axle and link mount.

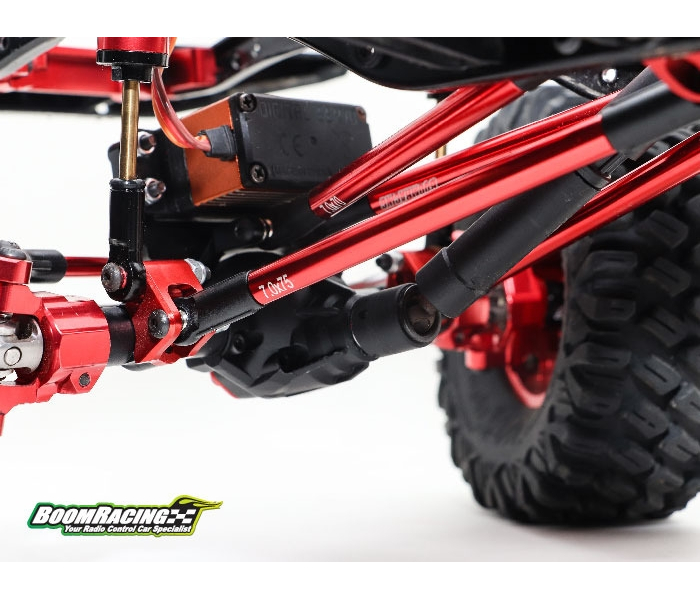

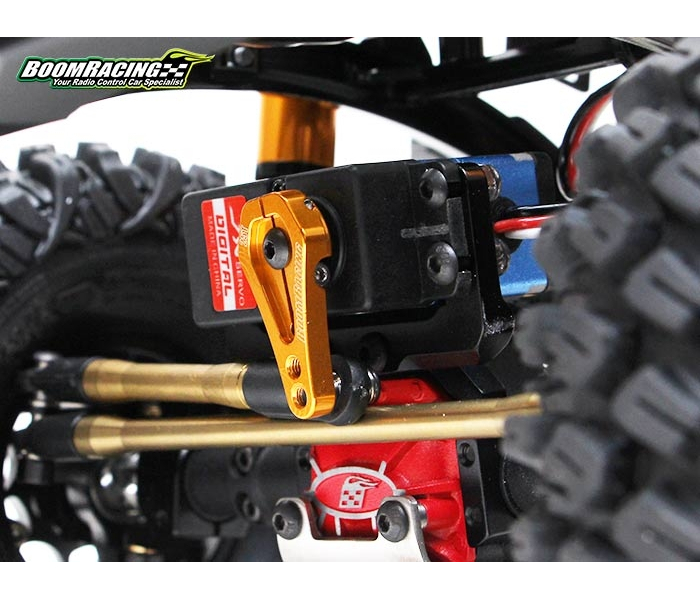

Advantages of Axle Mounted Servo:

  • Takes away the bump steer
  • Quicker steering response
  • More precise steering and turning angle
  • Stronger steering
  • More weight down low for better handling

Note: This version will only fit Boom Racing AR44 PHAT Axle Housing.

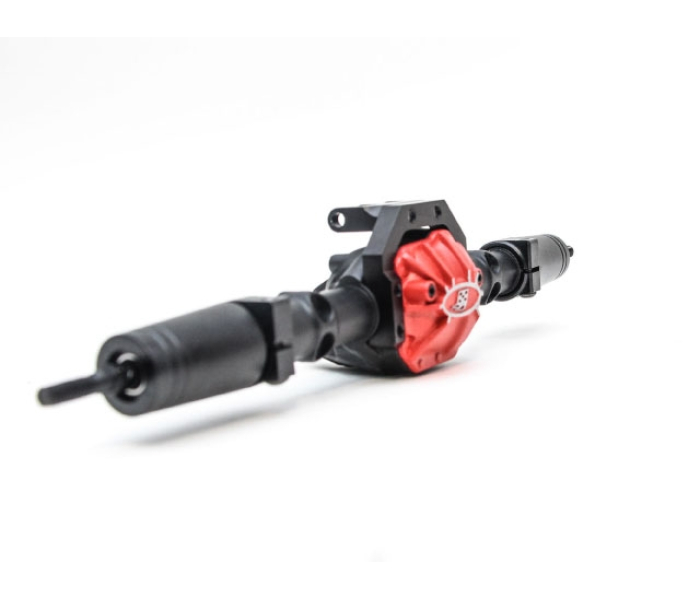

The aluminum 4-link truss mount is used to swap the axle up-side-down if you run a counter-rotational transfer case (to eliminate torque twist).

---------------------------------------------

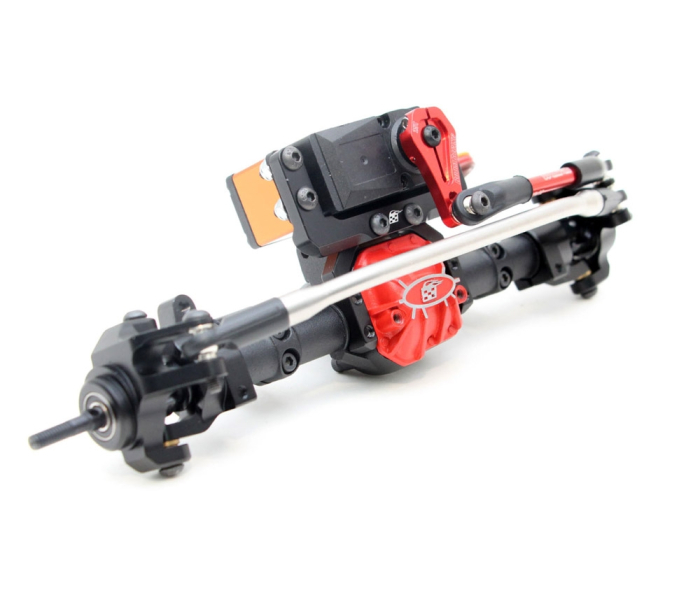

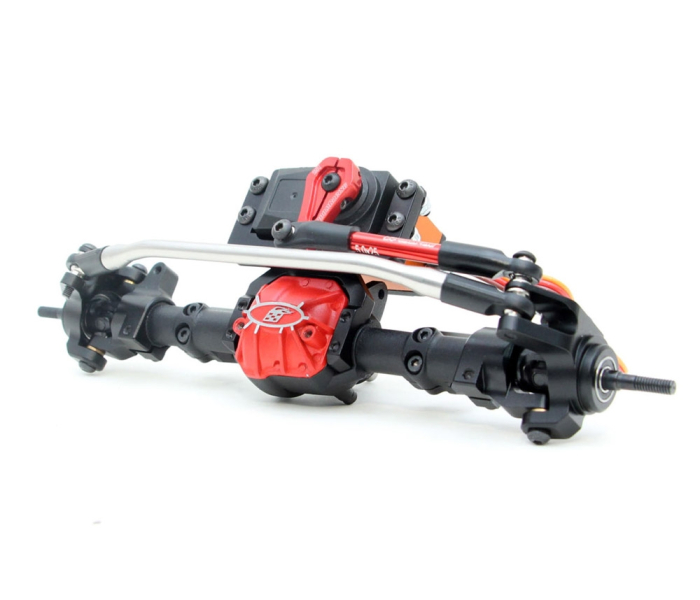

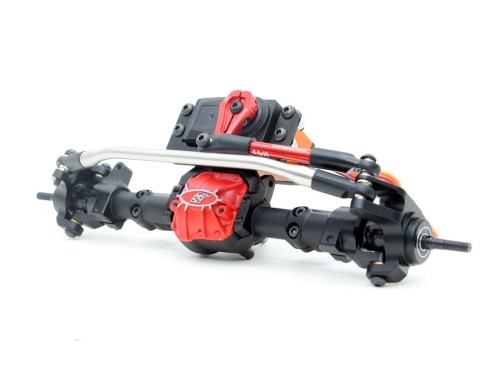

1. To mod the AR44 axle (CMS to AMS):

For Boom Racing AR44 PHAT Axle, the mount will fit directly on without any modifications.

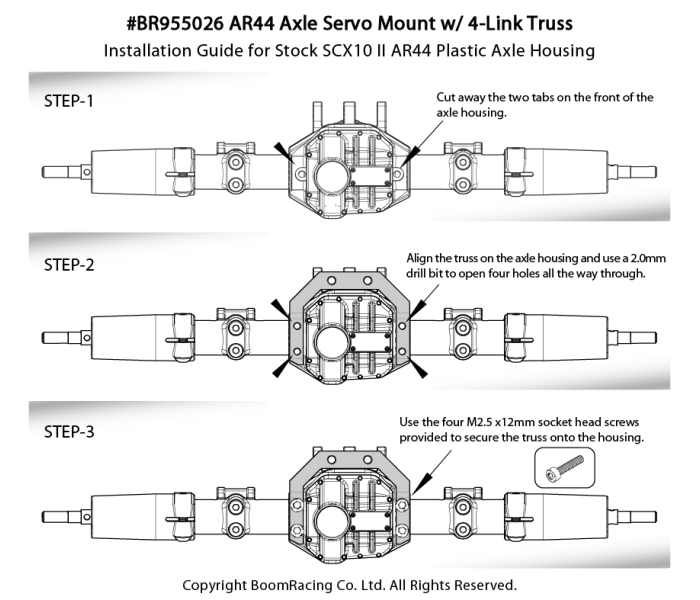

2. To mod and install the 4-link Truss:

2.1 File down or cut away the 4-link axle mount on the axle.

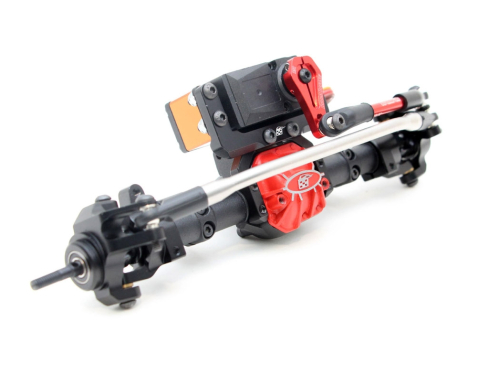

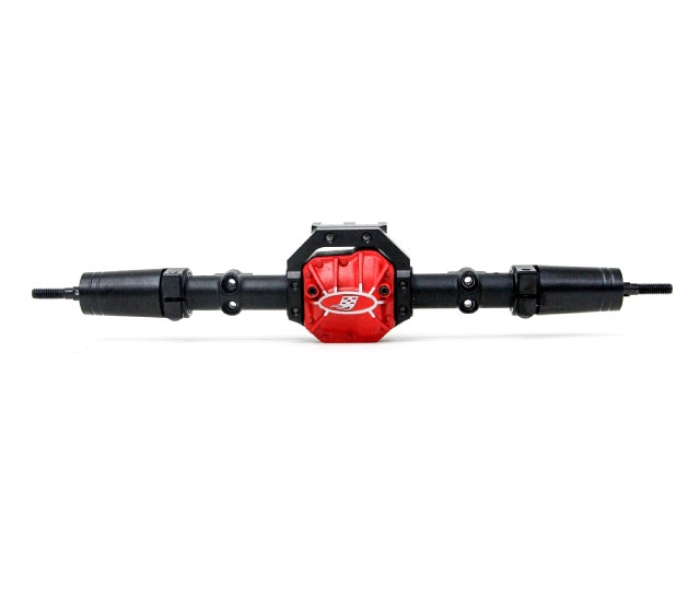

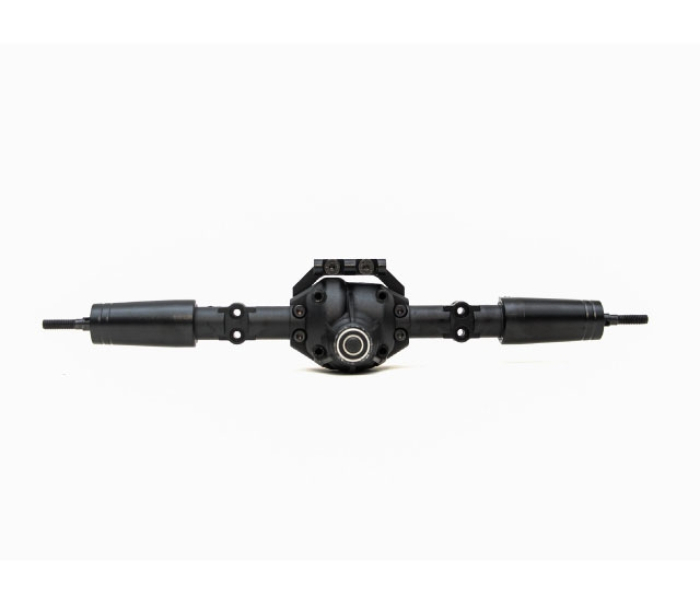

2.2 Reverse the axle 180 degree (or turn it upside-down) and install the brace with truss (see picture for result).

---------------------------------------------

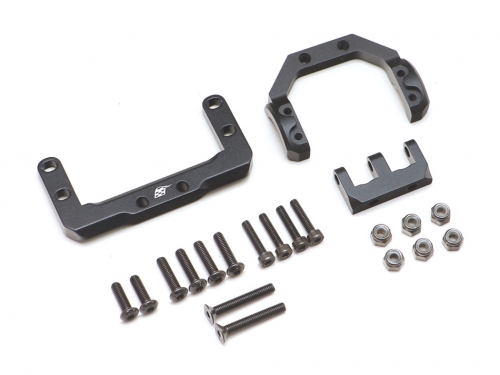

Includes:
1x Aluminum Servo Mount

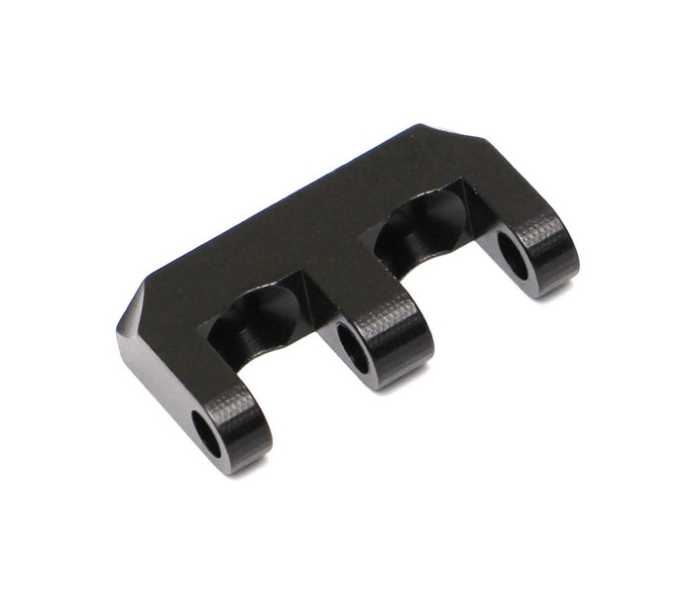

1x Aluminum Axle Truss Mount
1x Aluminum Link Mount
4x M2.5x12mm Socket Cap Screw
2x M3x10mm Round Socket Head Screw
4x M3x12mm Round Socket Head Screw
2x M3x20mm Counter Sink Screw
6x M3 Locknuts
1x Manual

To convert to AMS from CMS you will need:
1x front upper link 71mm (2x if you want to match the front upper links)
1x drag link (upper steering link)

Reviews (19)

Overall:
Fit & Finish:
N/A
Design Styles:
N/A
Performance:

Improves performance.

Loadinggg....

You May Also Like

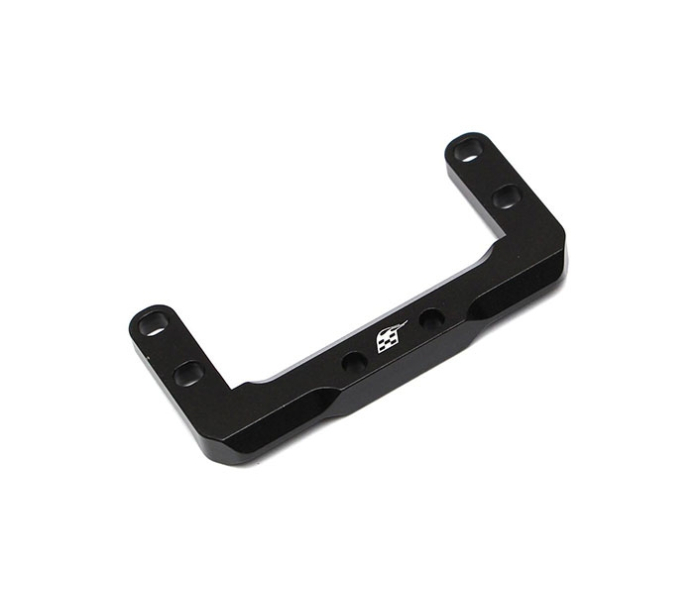

Aluminum Servo Mounts Black
