1.9" Narrow 16-Hole 6-Lug Classic Steelie Reversible Beadlock Wheel w/ XT504-6LUG Hub Rear (2) Gun Metal

USD $26.50

Part #: BRW780943RGM


LOADING IMAGES

1.9" Narrow 16-Hole 6-Lug Classic Steelie Reversible Beadlock Wheel w/ XT504-6LUG Hub Rear (2) Gun Metal

USD $26.50

Part #: BRW780943RGM

Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 1.9 Beadlock Wheels

PRODUCT DESCRIPTION

Product Resources

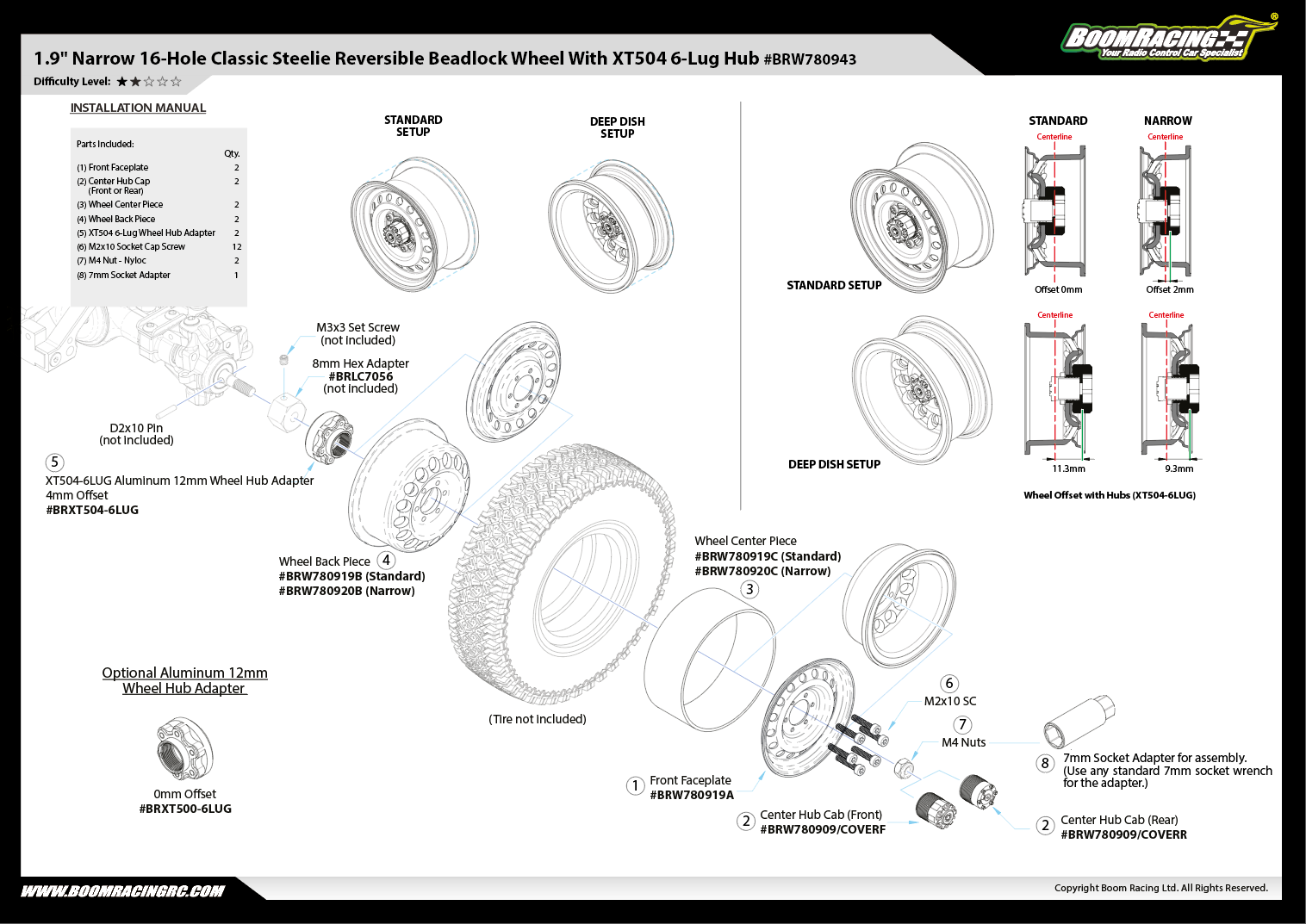

This is a set of narrow rear reversible 1.9" 16-hole 6-Lug steelie beadlock wheels (2). Perfect for 1/10 scale truck builds. Narrow wheels are best suited for ultra scale builds and older vehicles.

They can be setup two ways:

  • Standard
  • Deep Dish with offset

The front face is made of pressed steel for accurate scale looks. Comes with aluminum center rings and the back wheel piece is made from cast metal.

The only difference between the front and rear wheels is the center cap, which is specifically made for scale appearance.

Specification:
  • Bolt Pattern: 6 Lug
  • Wheel size: 1.9"
  • Width: 21mm
  • Inner Diameter: 43mm
  • Fits: Most major crawler tires

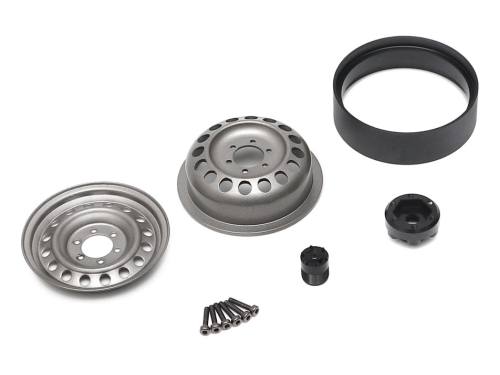

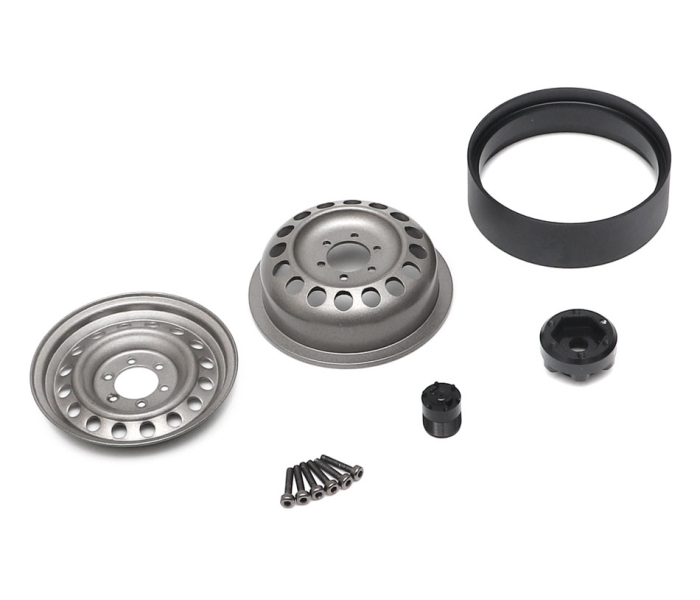

Includes:
  • 2x Narrow 1.9" Classic 16-Hole 6-Lug Steelie Wheels
  • 2x Aluminum Center Hub Cap (Rear)
  • 2x XT504-6LUG Aluminum Wheel Hub 4mm Offset
  • 10x M2x10 Socket Cap Screw
  • 2x M4 Nut - Nyloc
  • 1x Wheel Nut Tool

Optional parts:
  • Scale 4WD Center Locking Hub Cover (2) BRW780921
  • XT500-6LUG 0mm Pin Wheel Hub BRXT500-6LUG

Replacement parts:
  • Front Center Hubs BRW780909/COVERF
  • Rear Center Hubs BRW780909/COVERR
  • XT504 4mm Wheel Hub BRXT504-6LUG
