1.9" 16-Hole Classic Steelie Reversible Beadlock Wheel w/ XT504 Hub Front (2) White

USD $26.50

Part #: BRW780919FW


LOADING IMAGES

1.9" 16-Hole Classic Steelie Reversible Beadlock Wheel w/ XT504 Hub Front (2) White

USD $26.50

Part #: BRW780919FW

All available colors:
Qty:

Warehouse Availability:

HK: In stock (ships worldwide)

US: Out of stock (ships within US and US territories only)

free shipping on parts

On US orders $120+ (including territories)

free shipping for cars

Spend $200 more on parts for free shipping on any car kit or body kit. Spend $100 on parts for free shipping on each extra car kit.

Tagged Keywords 1.9 Beadlock WheelsBRX02 Parts

PRODUCT DESCRIPTION

Product Resources

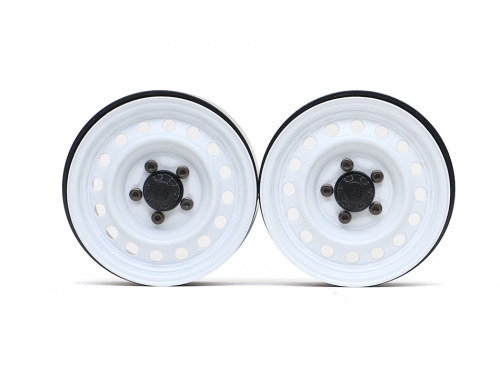

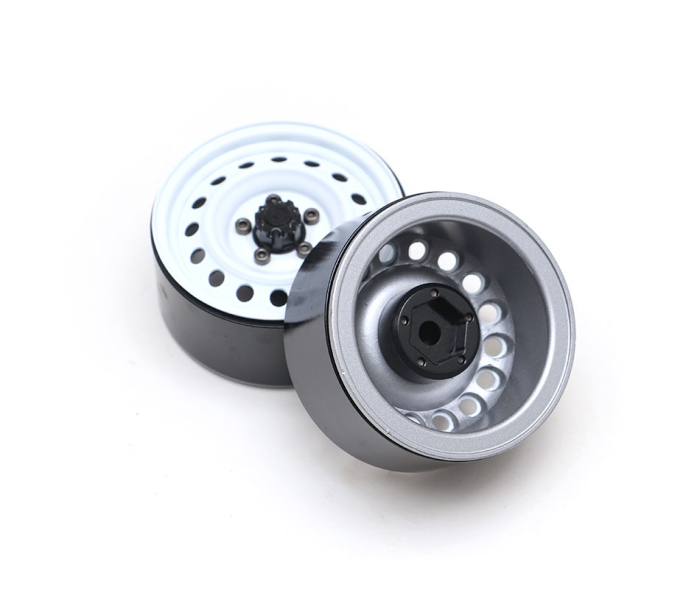

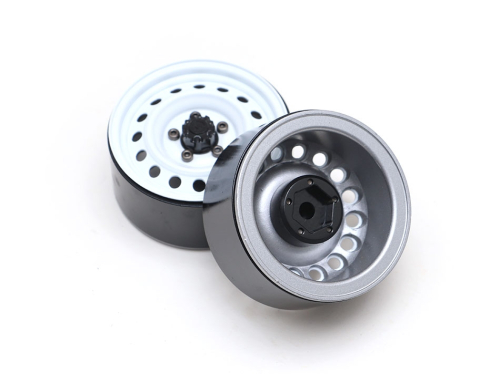

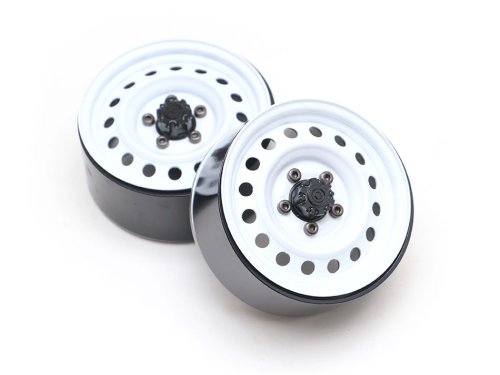

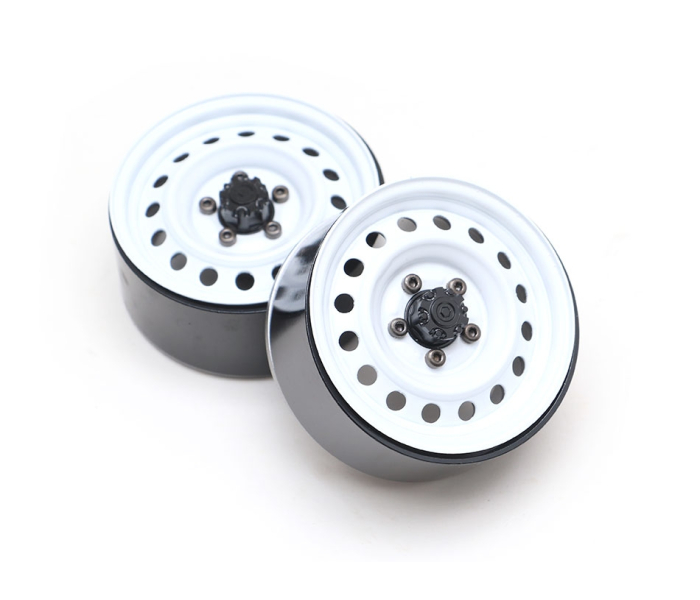

This is a set of front reversible 1.9" 16-hole steelie beadlock wheels (2). Perfect for 1/10 scale truck builds.

They can be setup three ways:

  • Standard
  • Deep Dish with offset
  • Dually (with Adjustable Dually Adapter BRXT5DU)
The front face is made of pressed steel for accurate scale looks. Aluminum center ring and rear is cast metal.

Specification:
  • Wheel size: 1.9"
  • Width: 25mm
  • Inner Diameter: 43mm
  • Fits: Most major crawler tires

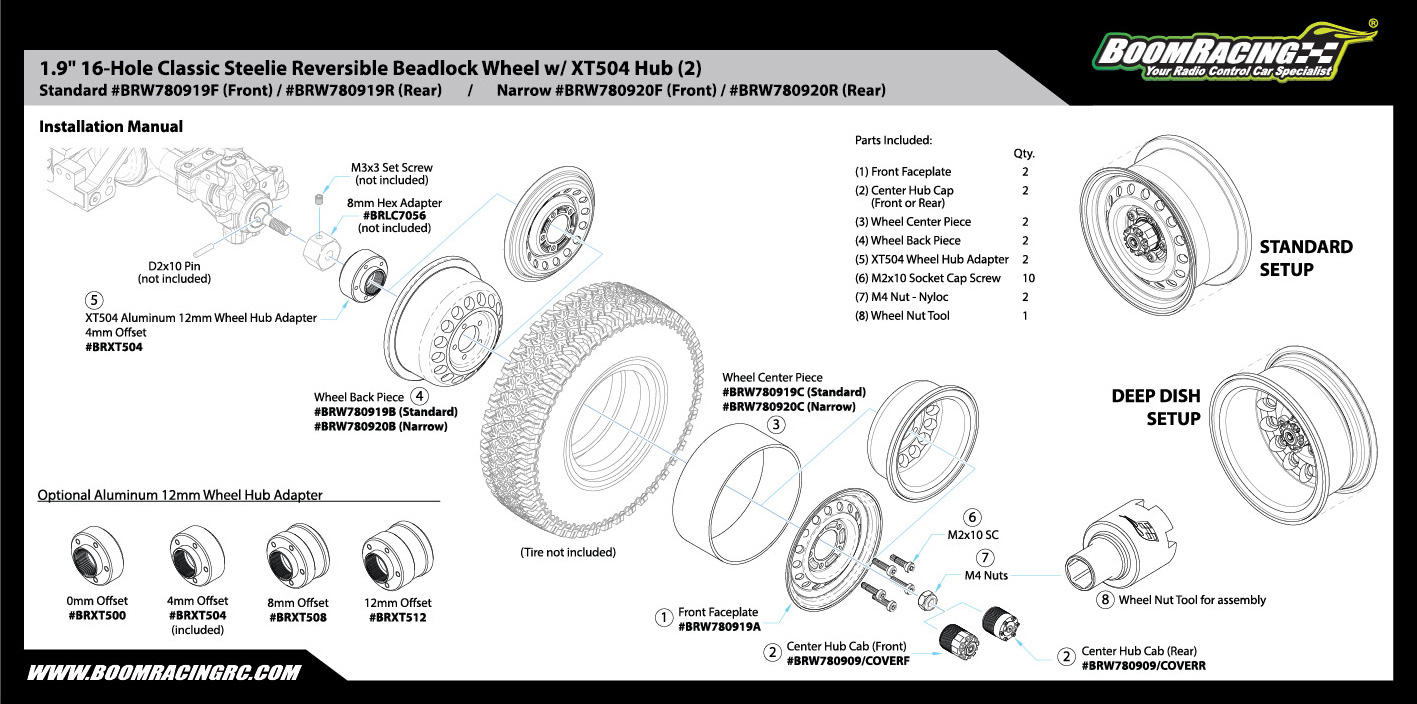

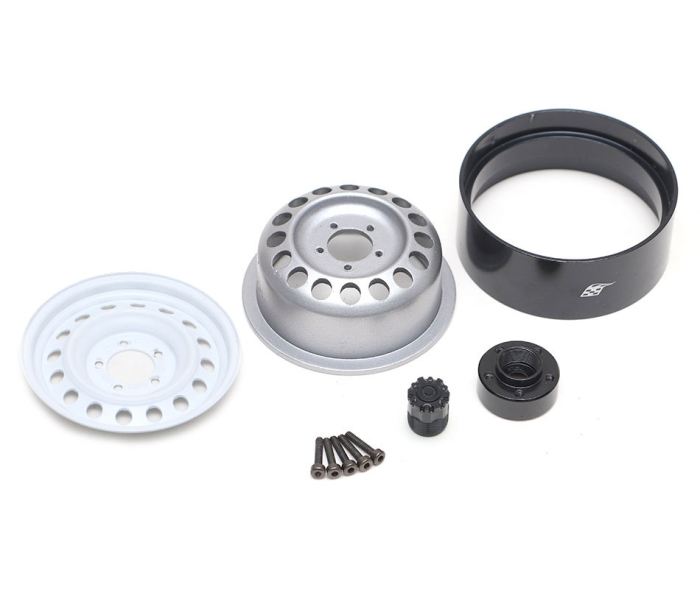

Includes:
  • 2x 1.9" Classic 16-Hole Steelie Wheels
  • 2x Aluminum Center Hub Cap (Front)
  • 2x XT504 Aluminum Wheel Hub 4mm Offset
  • 10x M2x10 Socket Cap Screw
  • 2x M4 Nut - Nyloc
  • 1x Wheel Nut Tool

Optional parts:
  • Scale 4WD Center Locking Hub Cover (2) BRW780921
  • XT500 0mm Pin Wheel Hub BRXT500
  • XT508 8mm Wheel Hub BRXT508
  • XT512 12mm Wheel Hub BRXT512

Replacement parts:
  • Front Center Hubs BRW780909/COVERF
  • Rear Center Hubs BRW780909/COVERR
  • XT504 4mm Wheel Hub BRXT504
